M/T - Lubrication Specifications

BULLETIN NUMBER:
SB96-05-L003

ISSUE DATE:
AUGUST 1996

GROUP:
TRANSMISSION

1996 HOMBRE (TH) MANUAL TRANSMISSION
LUBRICATION SPECIFICATIONS
(WORKSHOP MANUAL UPDATE)

AFFECTED MODELS

1996 Hombre (TH) models.

SERVICE INFORMATION

The lubrication specifications contained in Section 713 - Manual Transmission of the following Workshop Manual, have been revised.

Manual Page No.

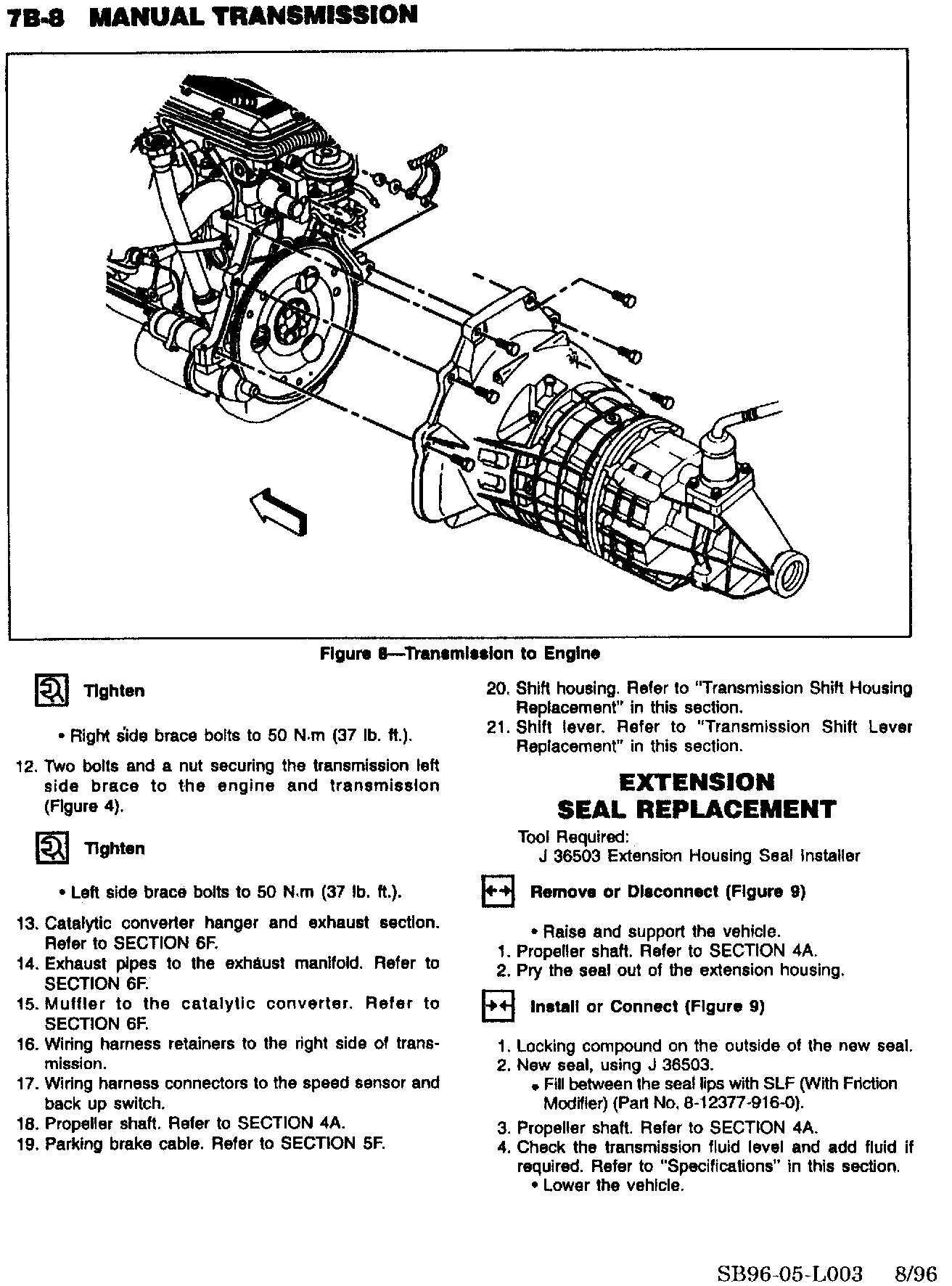

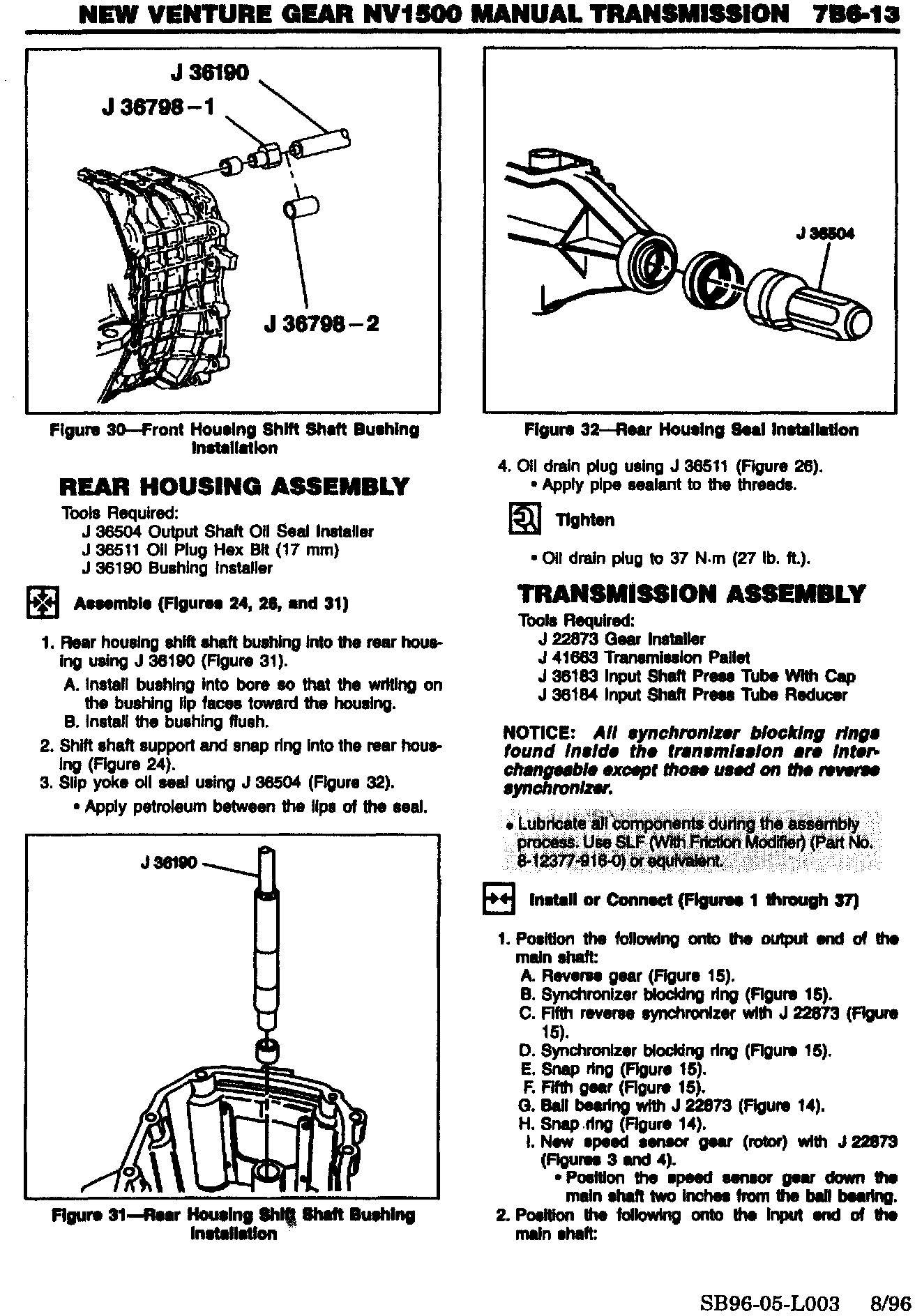

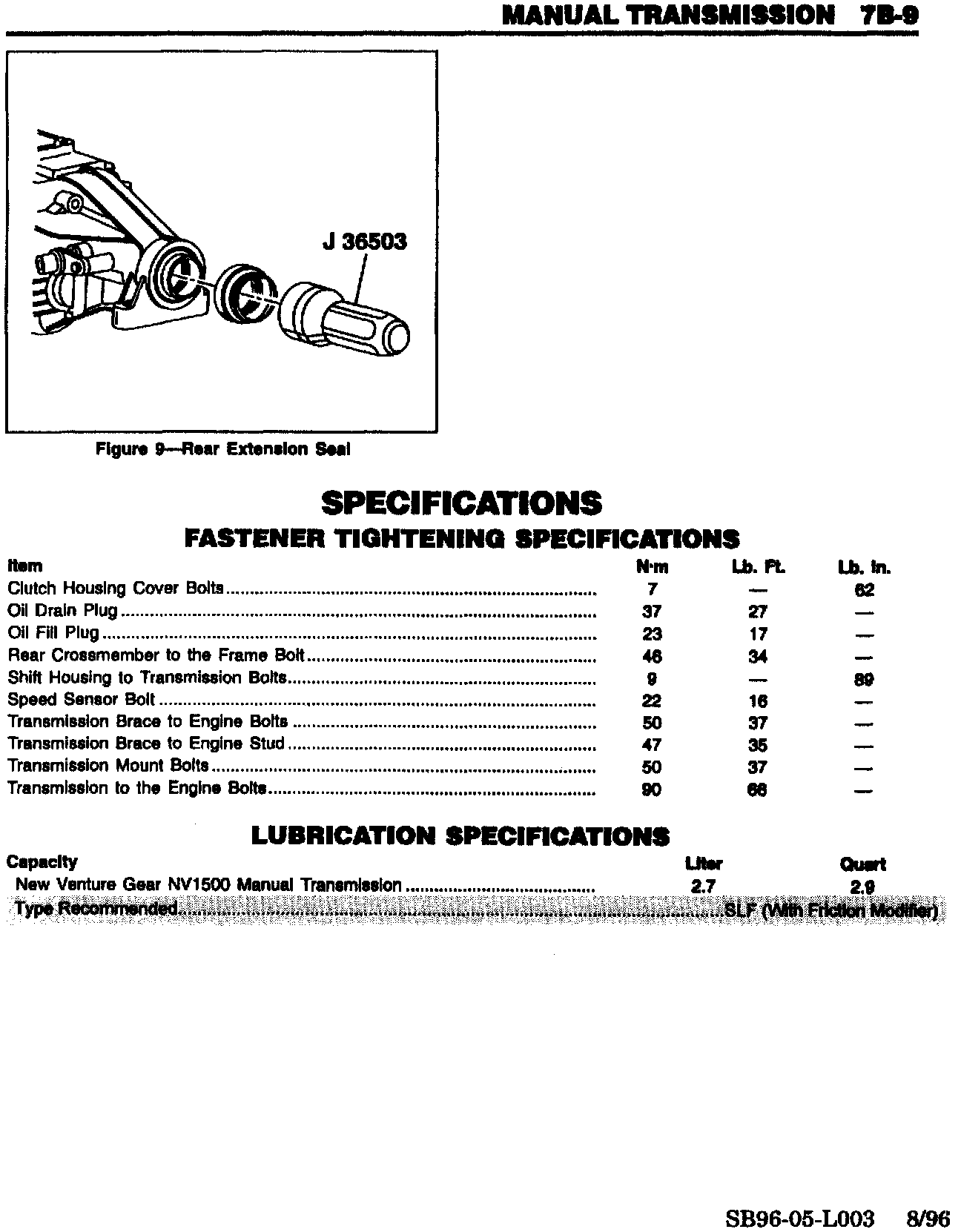

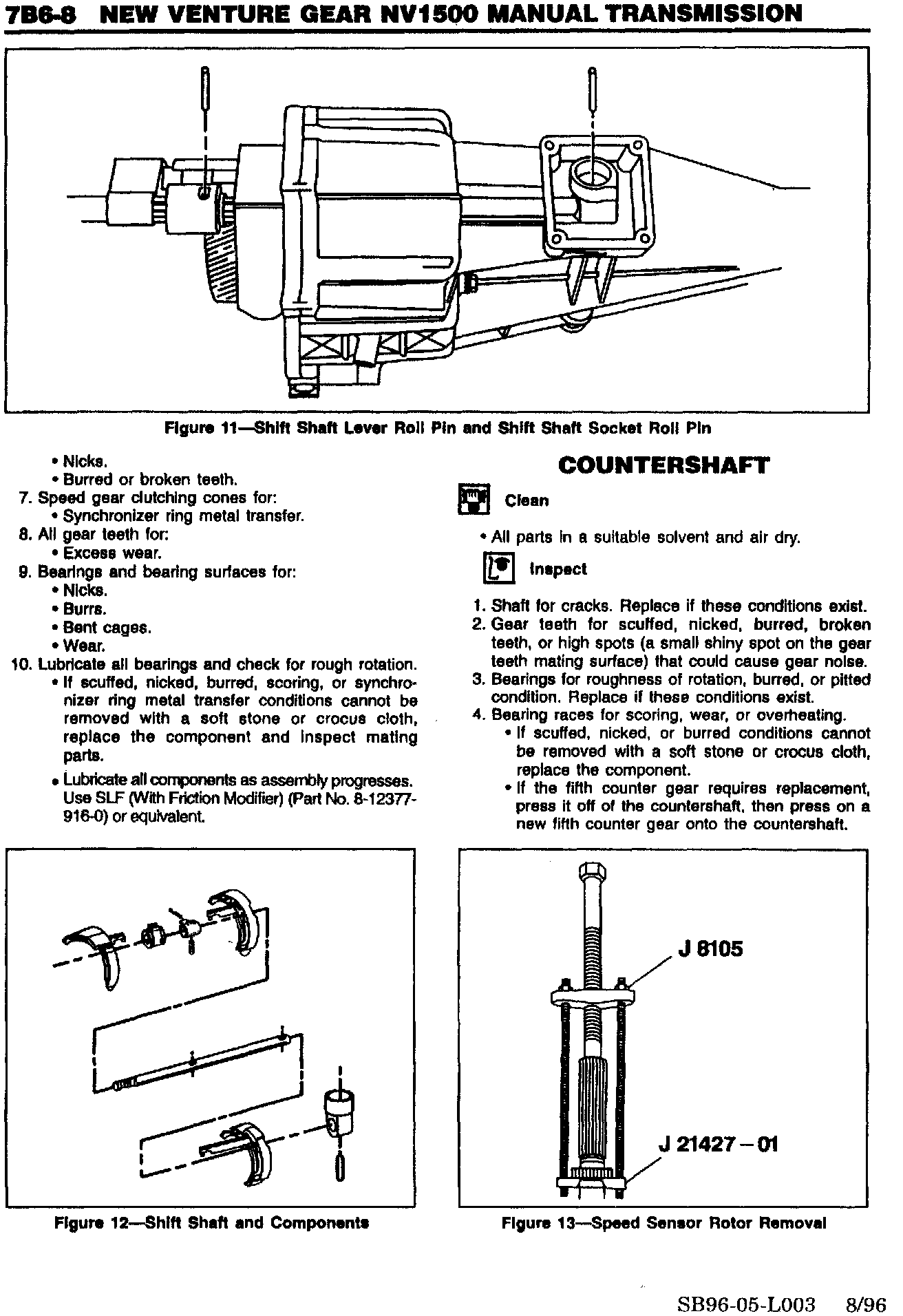

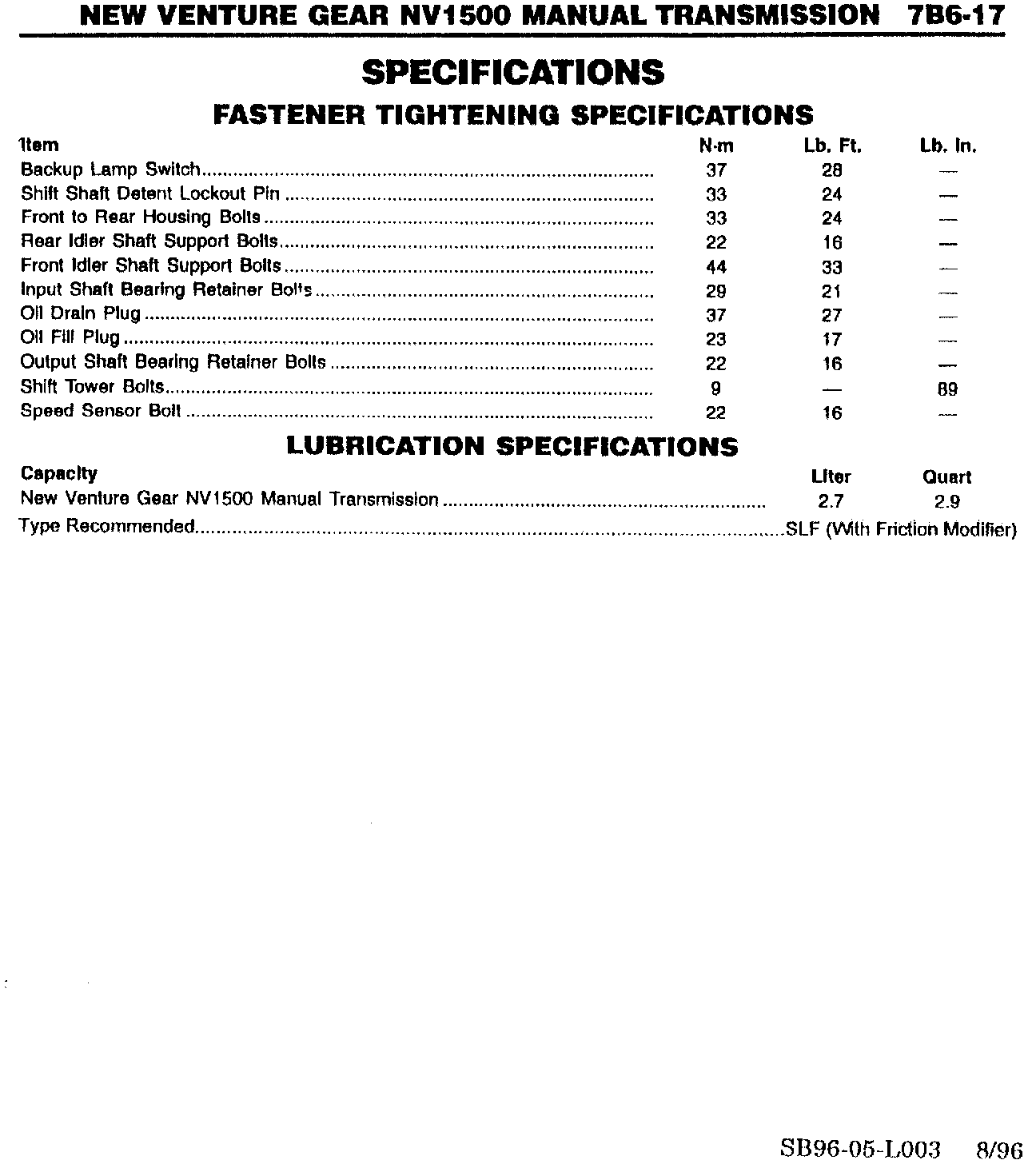

1996 Hombre (TH) 7B-8, 9, 7B6-8, 13, 17
(Publication No.
T150-WSM-L0001-00)

The recommended Synchro-Mesh Lubricating Fluid (SLF) and 5% friction Modifier have been discontinued and replaced with a new fluid called SLF (With Friction Modifier) which is a combination of the two. During transmission servicing, this new fluid eliminates the need of having to add 5% Friction Modifier to the SLF when changing the SLF.

















This Service Bulletin contains the revised pages to the referenced Workshop Manual (see RED marked areas on enclosed pages). Attach the enclosed pages to the referenced Workshop Manual pages.
