Speed Sensor Replacement

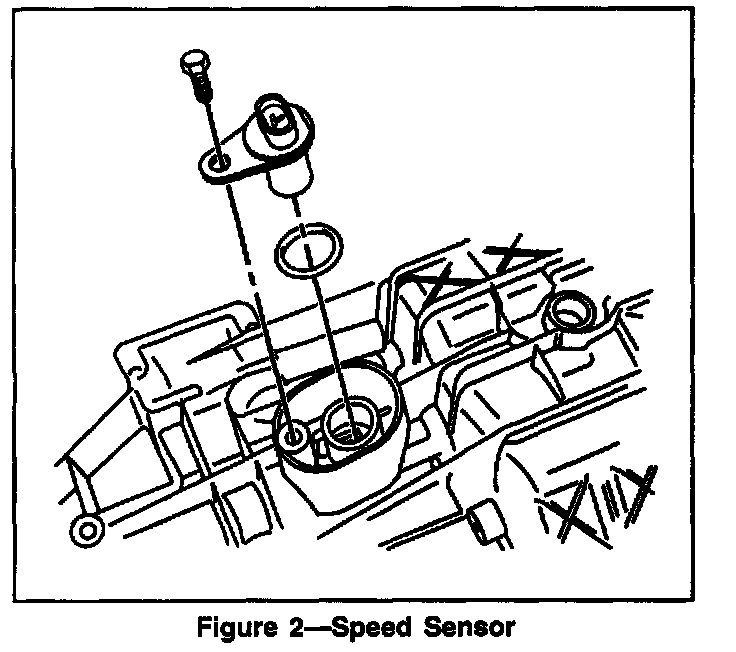

Speed Sensor:
Remove or Disconnect 1.
Harness connector.
2.
Vehicle speed sensor bolt.
3.
Vehicle speed sensor.
4.
O-ring seal.
Install or Connect 1.
New O-ring seal.
-
Coat the seal with a thin film of transmission fluid.
2.
Vehicle speed sensor.
3.
Vehicle speed sensor bolt.
Tighten -
Bolt securing the
speed sensor to
22 N-m (16 lb-ft.). 4.
Harness connector.
5.
Check fluid level and add as required.
