Manual Transmission/Transaxle: Testing and Inspection

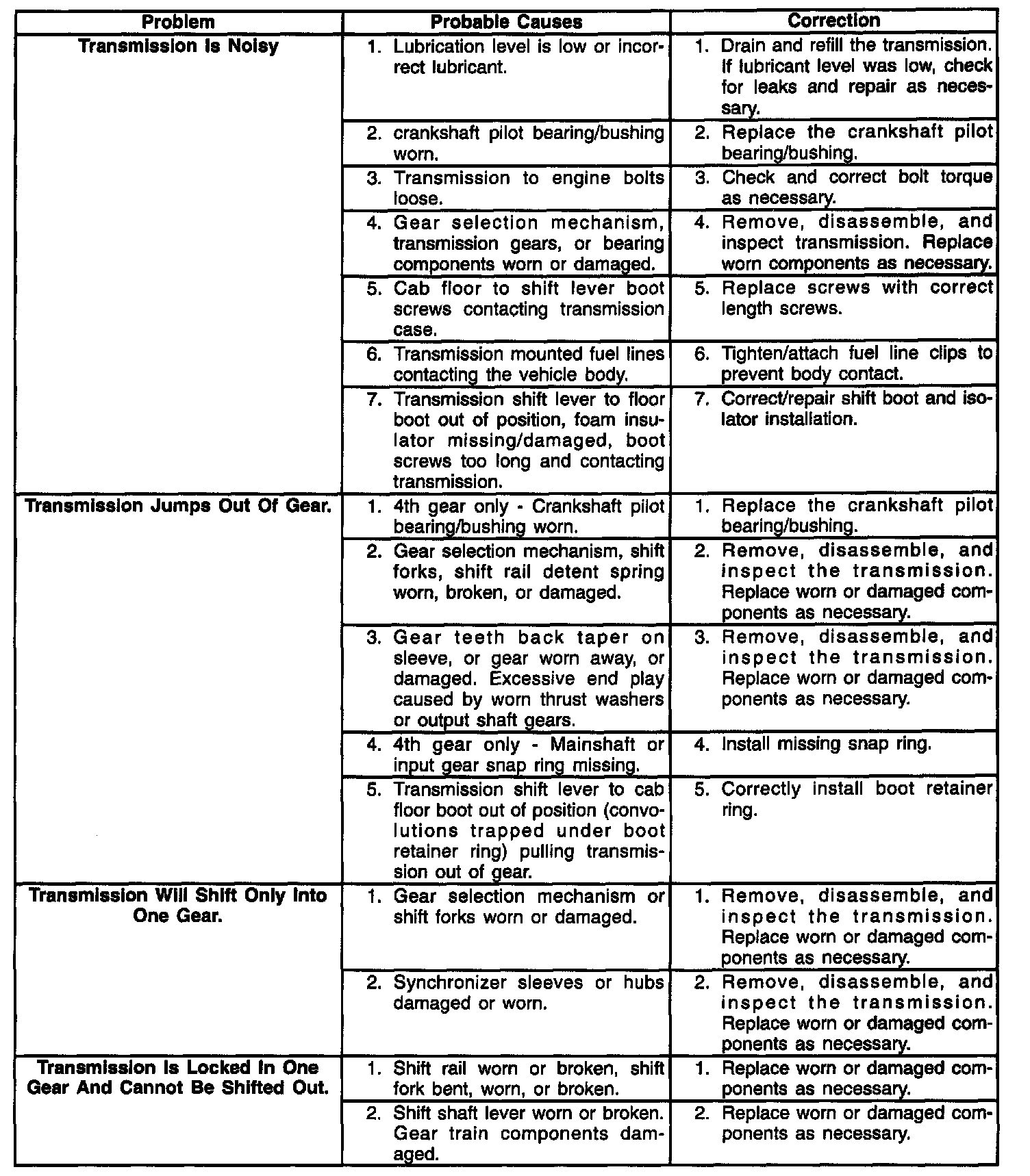

Part 1:

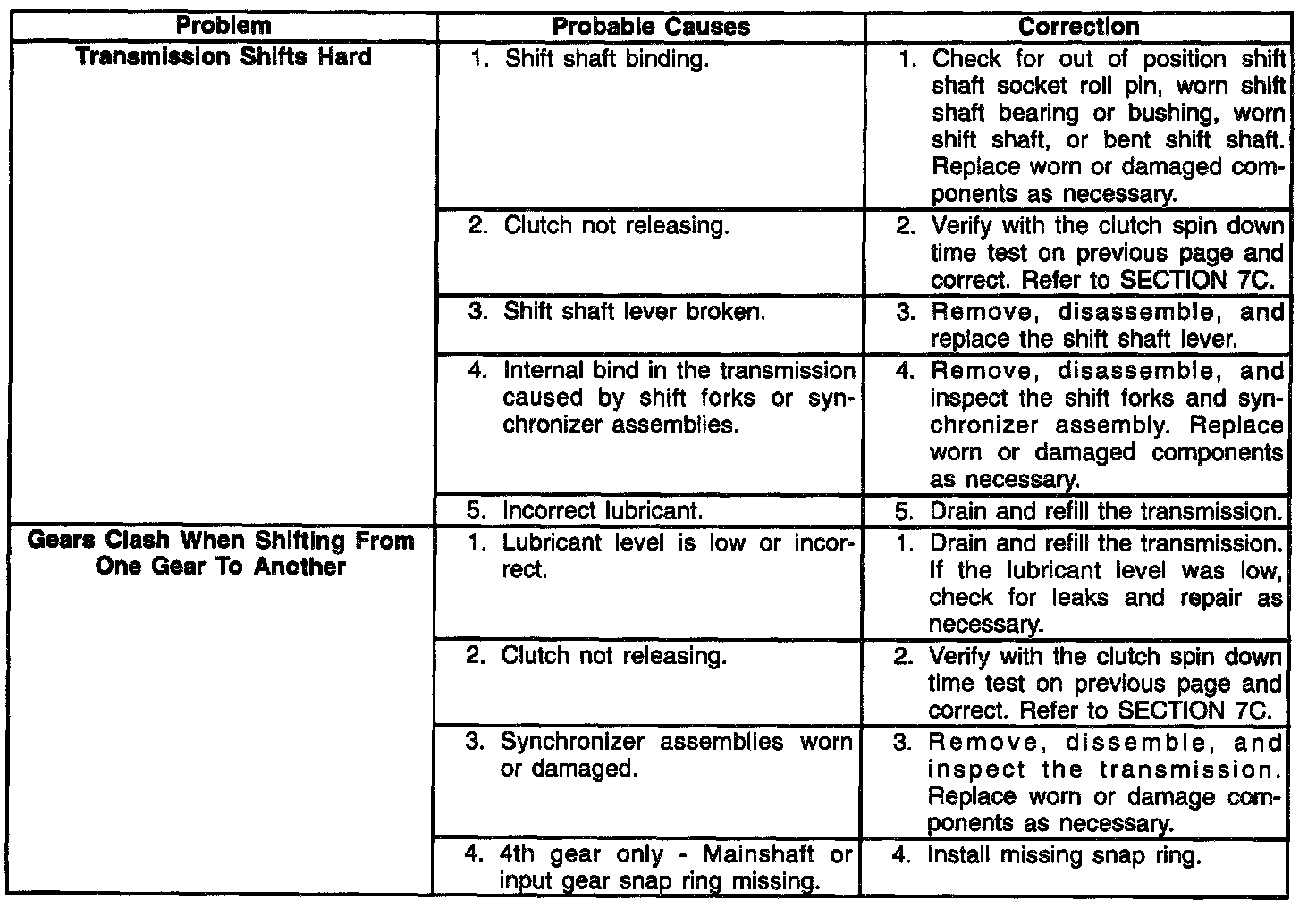

Part 2:

Before removing the transmission, check the clutch and shifting linkages to be sure the problem is in the transmission.

Transmission Mounts
1. Raise the vehicle and move the extension housing up and down.
2. If the plate is loose on the crossmember, tighten the screws.
3. If the rubber is split or spongy, replace the mount.


Clutch Spin Down Time
1. Run the engine at a normal idle with the transmission in neutral and the clutch engaged.
2. Disengage the clutch, wait 9 seconds, and shift the transmission into reverse.
3. If a grinding noise is heard, check the clutch for the problem.
