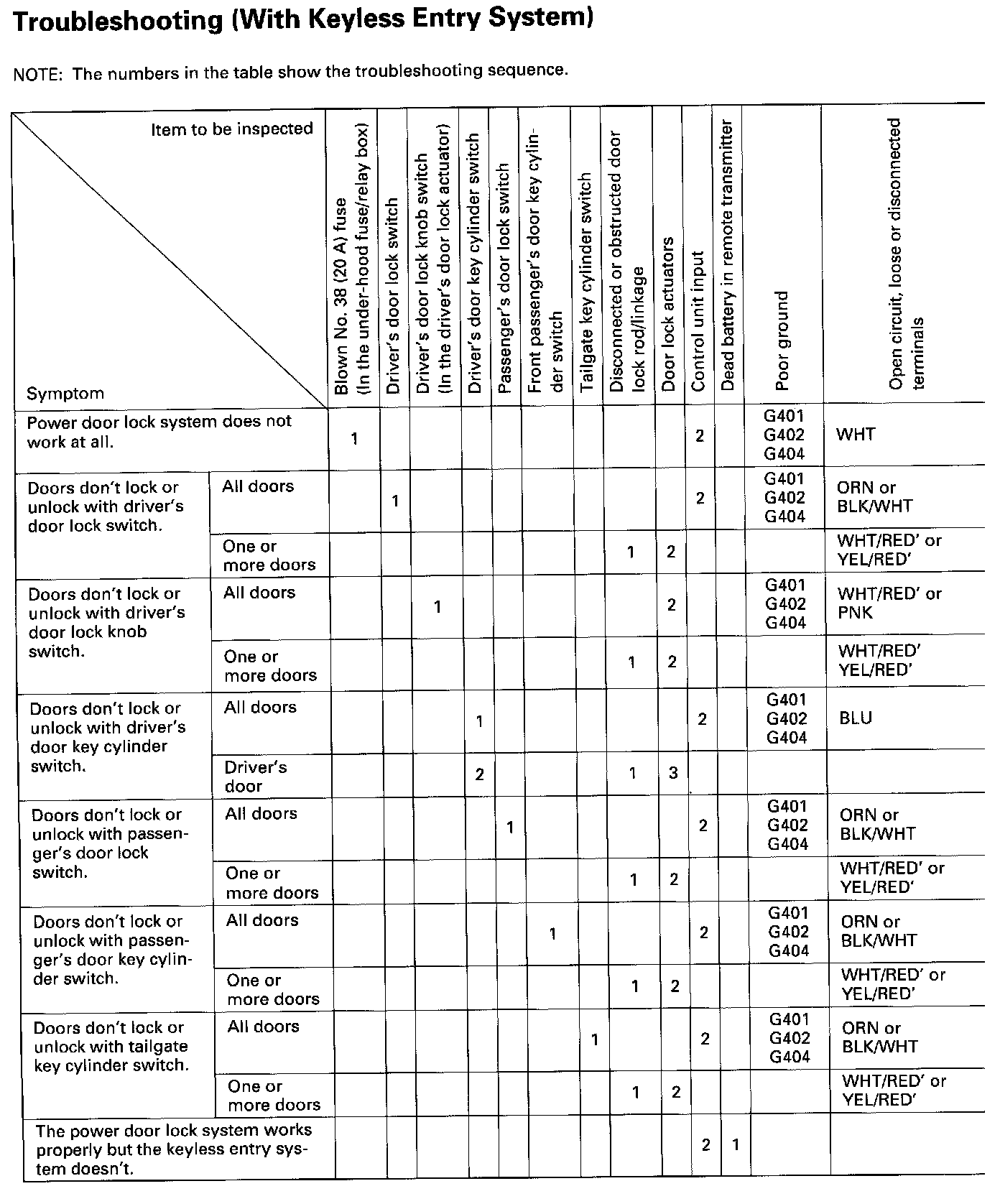

With Keyless Entry System







NOTE:
- When the remote transmitter button is pressed the first time, only the driver's door will unlock. When the button is pressed the second time, all the doors will unlock.
- The doors will relock automatically after 20 seconds if a door is not opened, or the key is out of the ignition switch.
- The keyless entry system will not lock the doors when the key is in the ignition switch.
If the system is working normally, all doors will unlock when you hold the door key in the unlock position (key cylinder switch and door lock knob switch turned ON) for one second or more.
