Preliminary Inspection
PRELIMINARY CHECKS For proper inspection/adjustment of the wheel alignment, check and adjust the following before checking the alignment.
-
Check that the suspension is not modified.
-
Check the tire size and tire pressure.
-
Check the runout of the
wheels and tires.
-

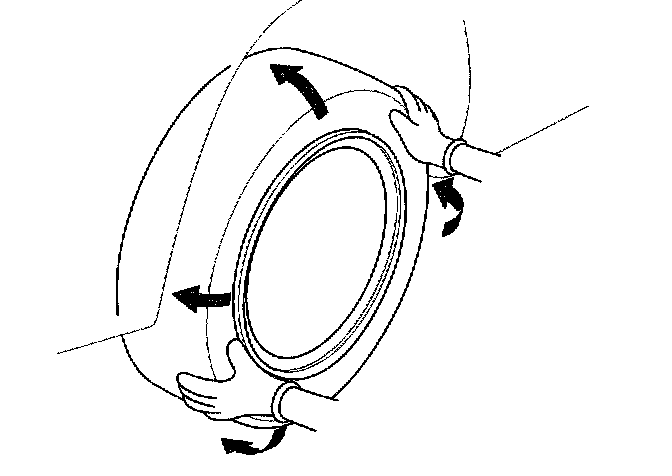

Check the suspension ball joints. (Hold the wheel with your hands, then move it up and down, and right and left, to check for wobbling.)
