Turning Angle

TURNING ANGLE

NOTE: Use commercially-available computerized four wheel alignment equipment to measure wheel alignment (caster, camber, toe, and/or turning angle). Follow the equipment manufacturer's instructions.

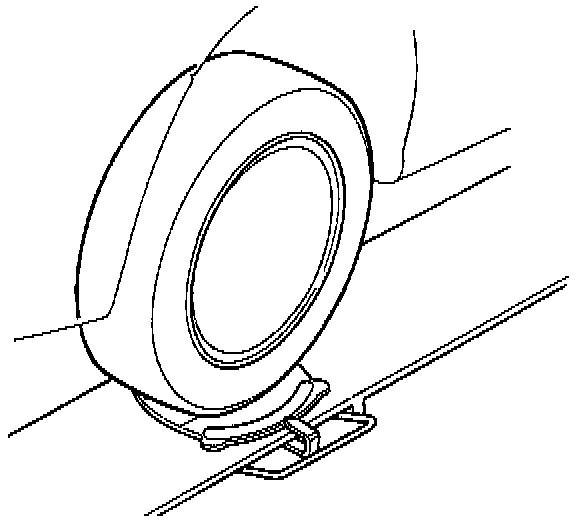

1. Turn the wheel right and left while applying the brake, and measure the turning angle of both wheels. Turning angle:
- Inward wheel: (39°00'+ 2°) +37° to +41°.
- Outward wheel (reference): 30°00'
2. If the turning angle is not within the specifications, check for bent or damaged suspension components.
