Service Specifications
DIMENSIONS Cylinder Head Height: 99.95 - 100.05 mm (3.935 - 3.939 inch)
Warpage: 0.05 mm (0.002 inch)

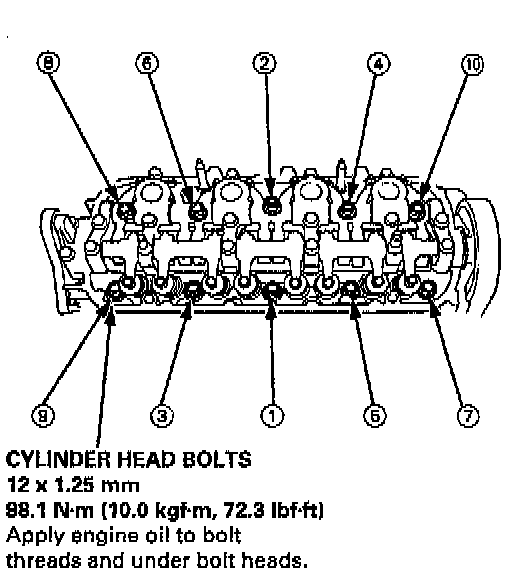

TIGHTENING SPECIFICATIONS Tighten the cylinder head bolts sequentially in three steps.
1st step torque: 39 Nm (29 ft. lbs.)
2nd step torque: 69 Nm (51 ft. lbs.)
3rd step torque: 98.1 Nm (72.3 ft. lbs.)
