Charging System Light Test

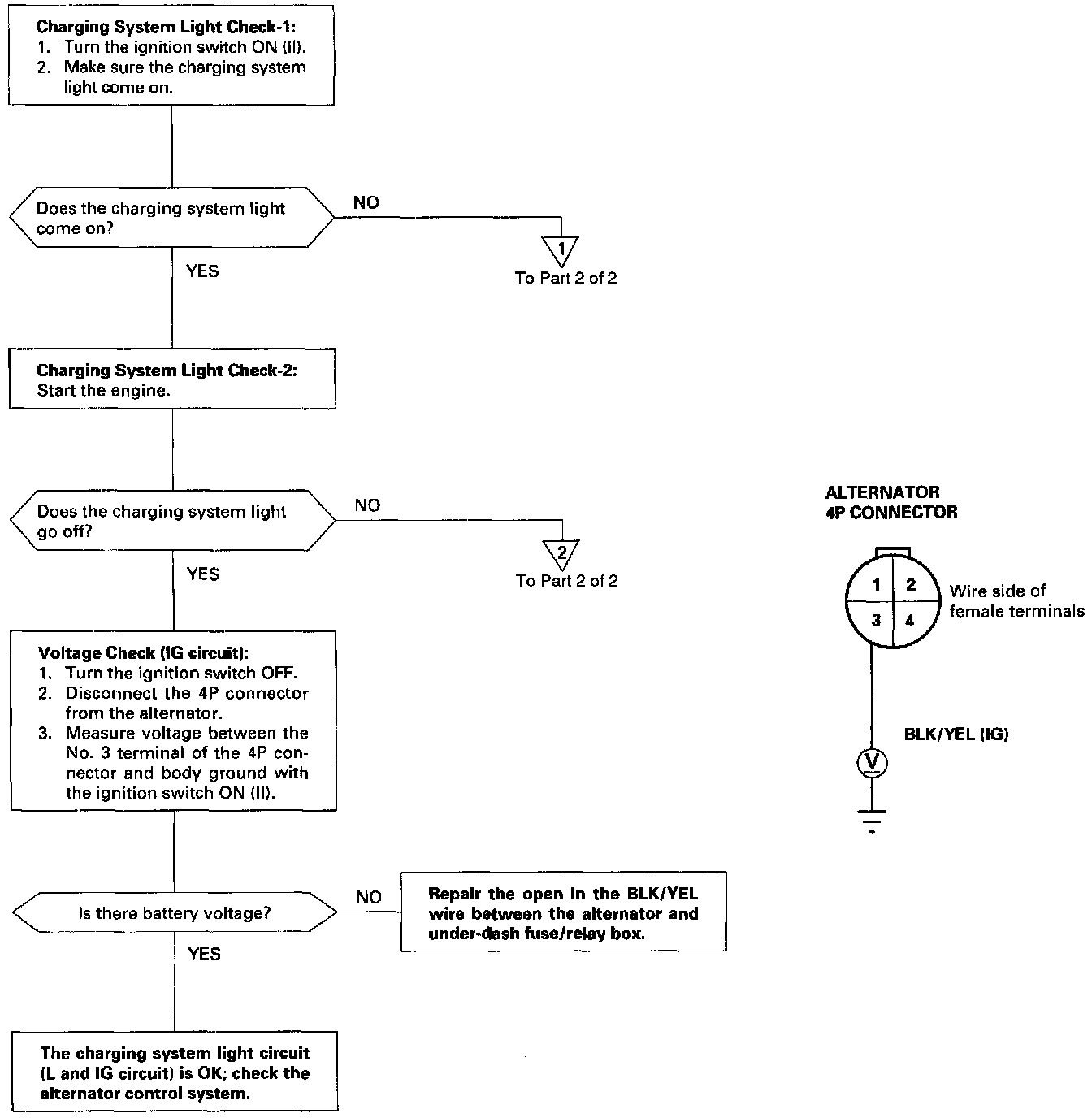

Charging System-Troubleshooting Charging System Light Test (Part 1 Of 2):

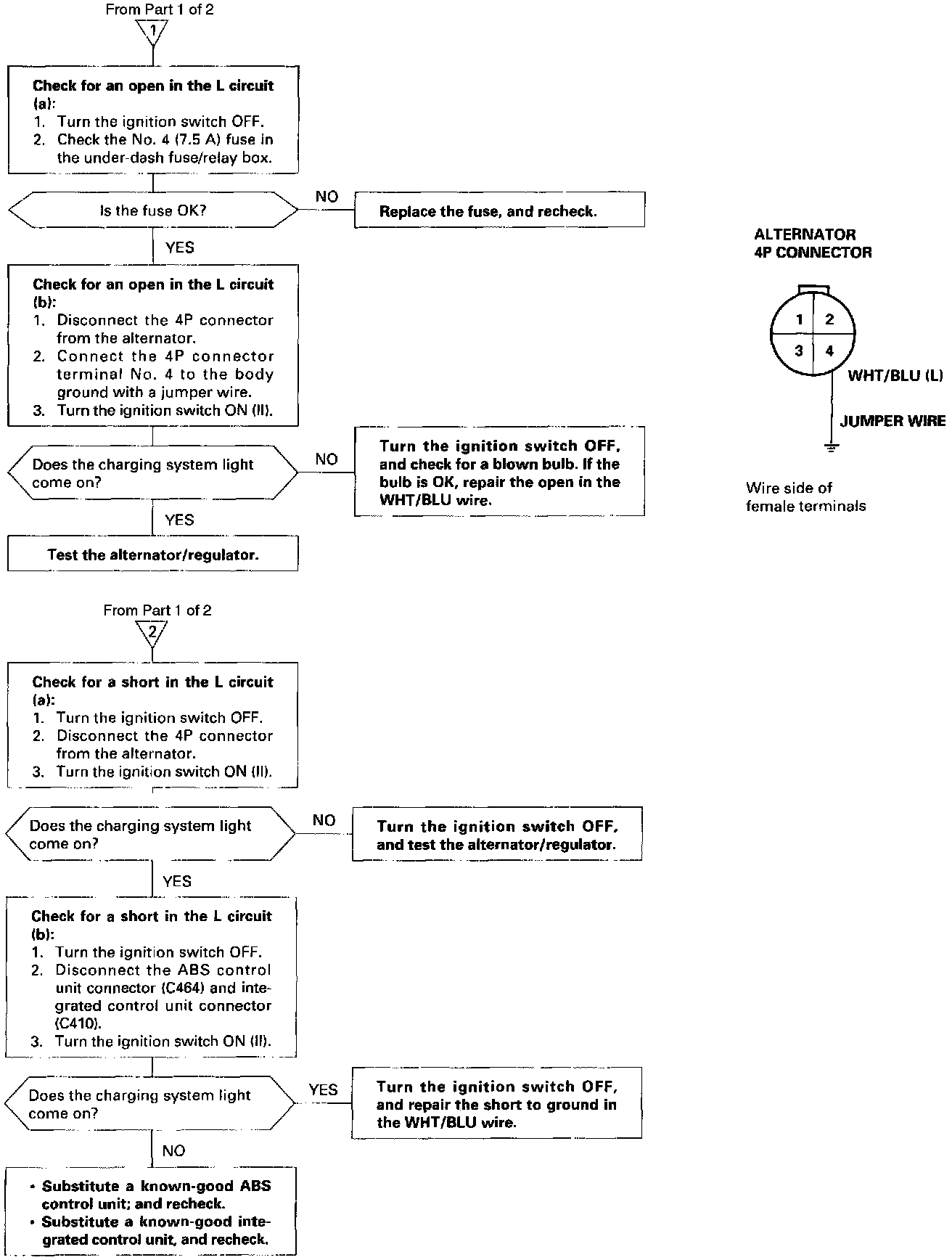

Charging System-Troubleshooting Charging System Light Test (Part 2 Of 2):
If the charging system light does not come on or does not go off, or the battery is dead or low, test the following items in the order listed below:
1. Battery
2. Charging System Light
3. Voltage
4.
Alternator control system
5. Alternator/Regulator
