Ignition Switch: Service and Repair

SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS section before performing repairs or service.

Under-dash Fuse/Relay Box Removal/Installation:

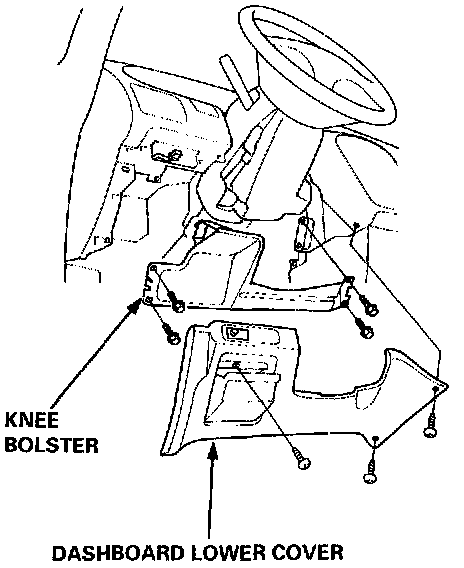

1. Remove the dashboard lower cover and knee bolster.

Electrical Switch Replacement:

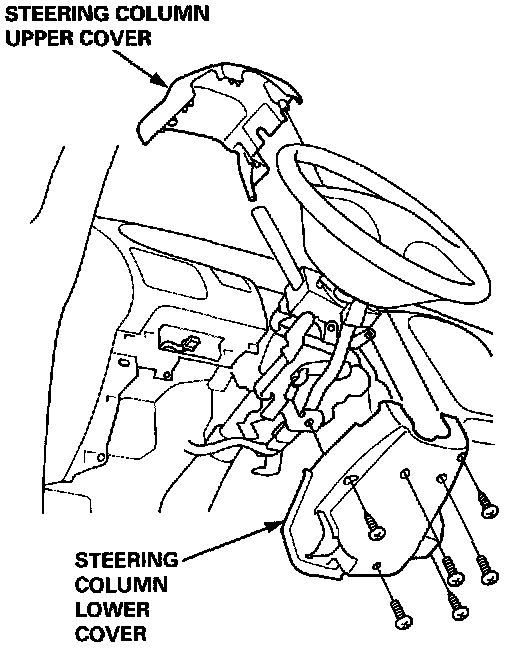

2. Remove the steering column covers.

Ignition Switch Test:

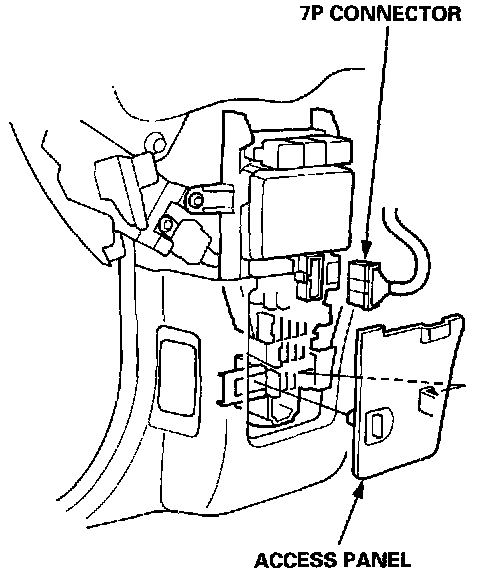

3. Disconnect the 7P connector from the under-dash fuse/relay box.
4. Insert the ignition key, and turn it to "0".

Electrical Switch Replacement:

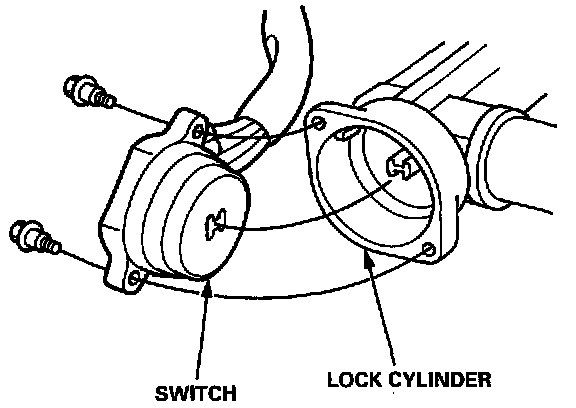

5. Remove the two screws from the steering lock cylinder, and replace the electrical switch.
6. Install in the reverse order of removal.
