Keyless Entry/Security System Transmitter Programming

BULLETIN NUMBER:
SB97-13-L001

ISSUE DATE:
FEBRUARY 1997

GROUP:
ACCESSORIES

1996-97 OASIS (VO) ISUZU KEYLESS ENTRY SYSTEM/SECURITY SYSTEM TRANSMITTER PROGRAMMING

AFFECTED VEHICLES

1996-97 Oasis (VO) models equipped with the Isuzu Keyless Entry System or optional Isuzu Security System.

SERVICE INFORMATION

This Service Bulletin provides an illustrated, easy-to-use reference for programming the Isuzu Keyless Entry System or Isuzu Security System transmitters. Refer to Chart 1, when programming transmitters for vehicles equipped with the Isuzu Keyless Entry System only. Refer to Chart 2 when programming transmitters for vehicles equipped with the optional Isuzu Security System.

The Isuzu Keyless Entry System features remote control of the vehicle power door locks only. The Isuzu Security System features the power door lock remote control and a fully functional alarm system.

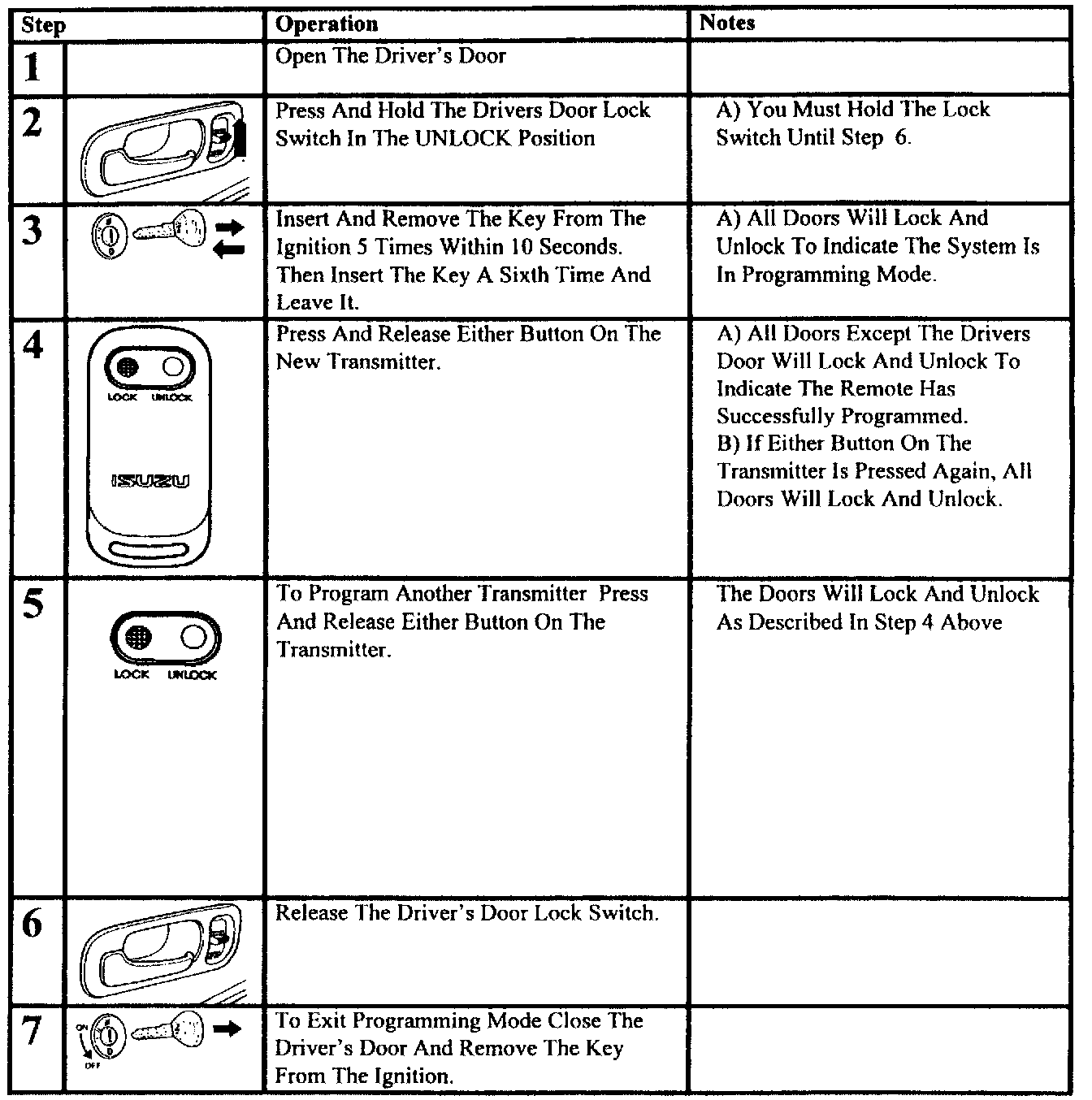

Chart 1 Transmitter Programming Instructions

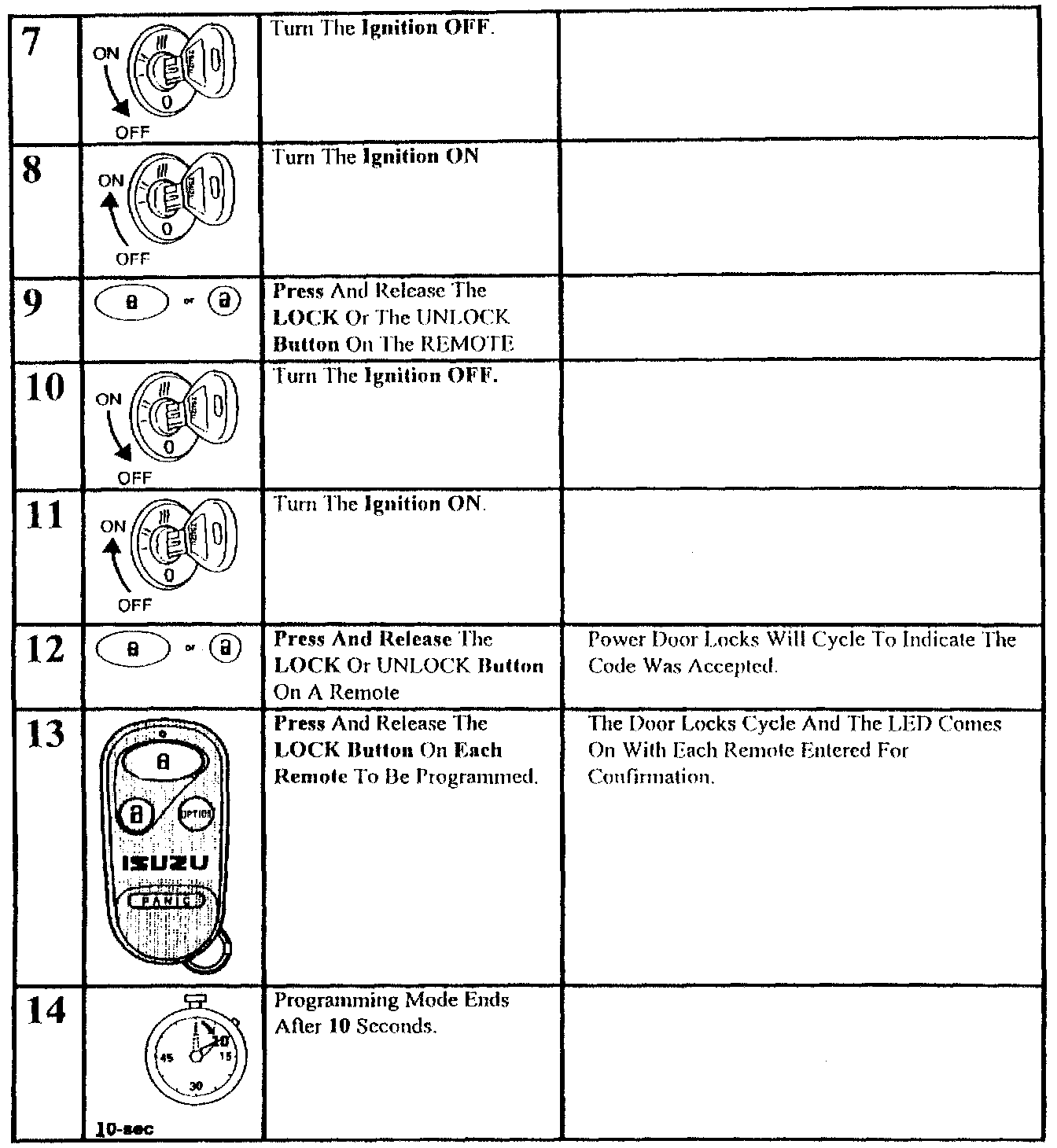

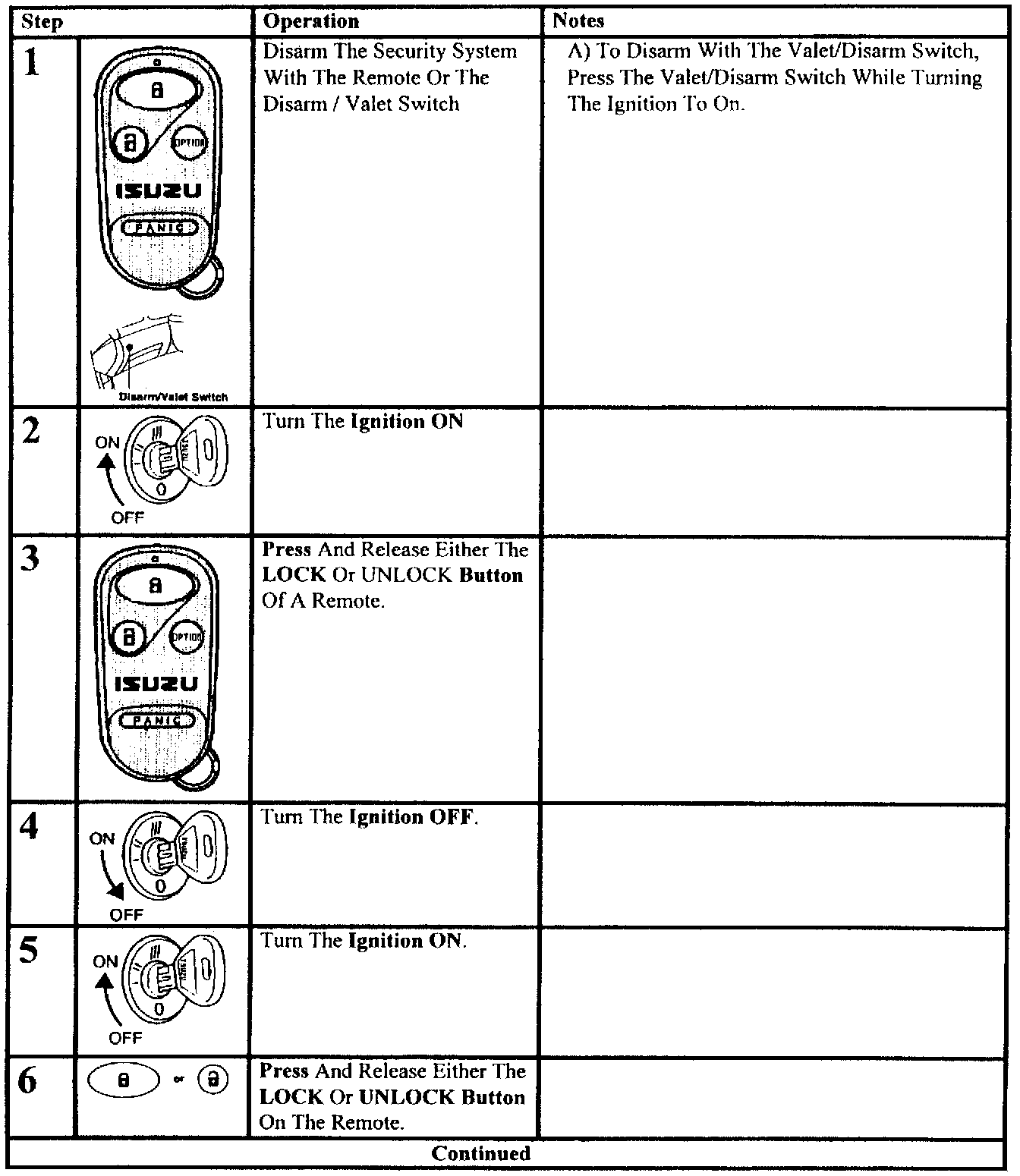

Chart 2 Transmitter Programming Instructions
