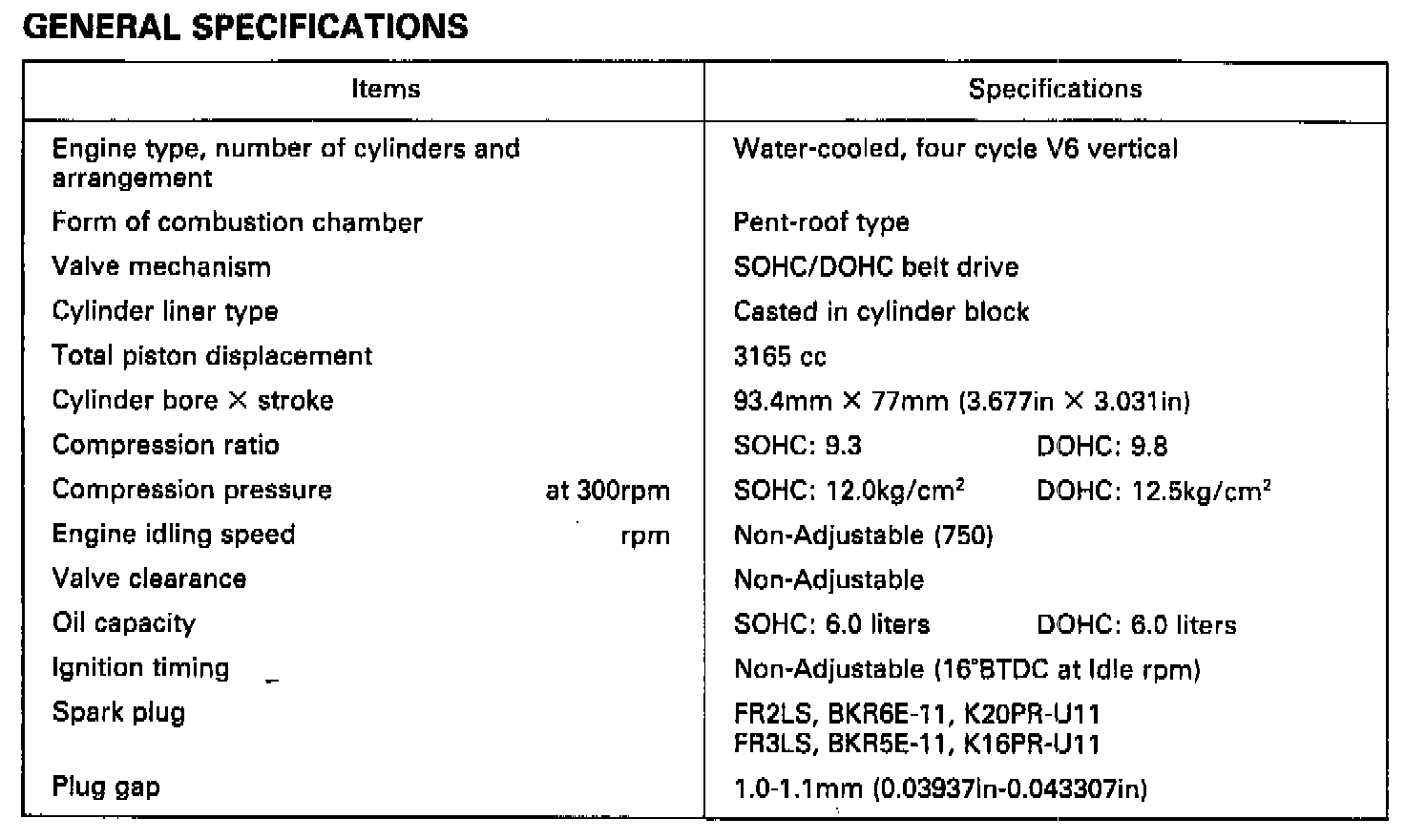

System Specifications
Engine Model
6VD1
Fuel System
Multi Point Fuel Injection
Bore & Stroke Inches
3.68 x 3.03
Comp. Ratio
9.0
Horsepower @ RPM
190 @ 5600
Torque Ft. Lbs. @ RPM
188 @ 4000
Normal Oil Pressure, psi
48-55
Oil Pressure @ 3,000 RPM
56.9-80.4 psi
System Specifications
