Mirrors: Testing and Inspection

TROUBLESHOOTING HINTS:
1. Check condition of CTSY Fuse. If fuse is open, locate and repair source of overload, Replace fuse.
2. Check the CTSY Fuse for battery voltage.
3. If fuse is not open, proceed with diagnostics.

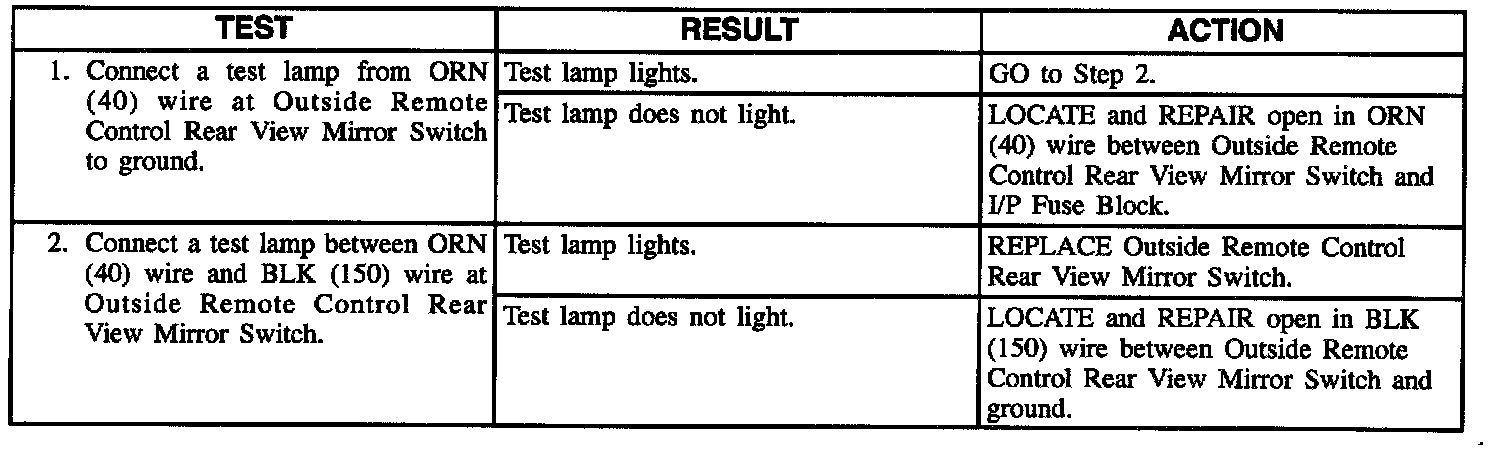

Power Mirrors Do Not Operate

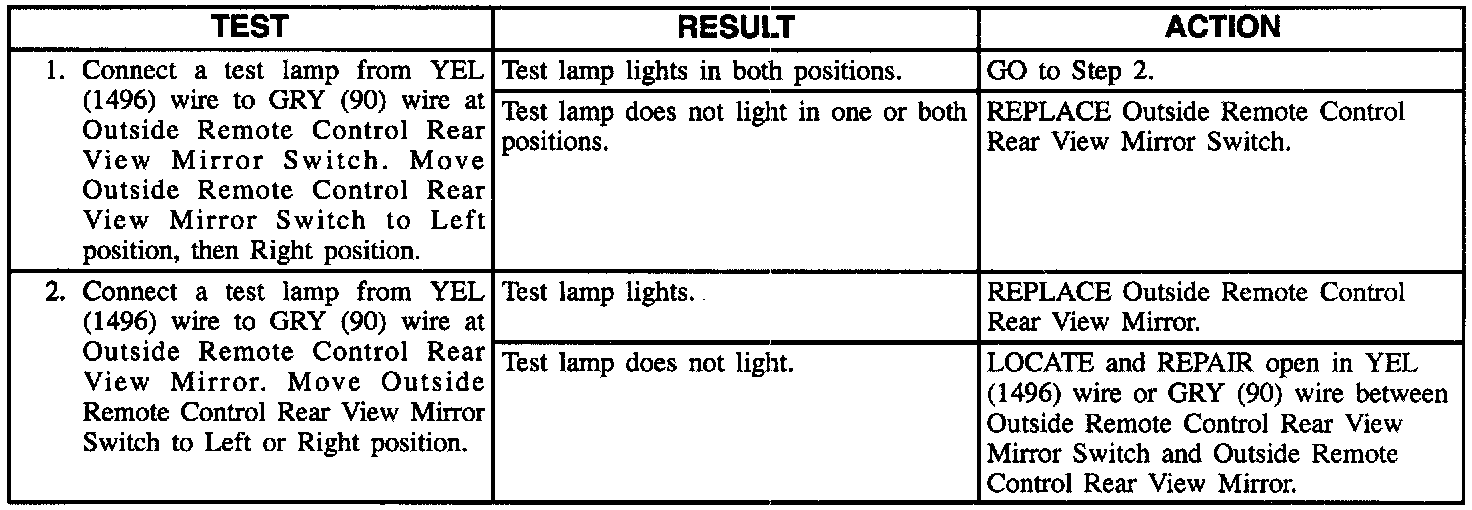

LH Power Mirror Does Not Move Left And Right

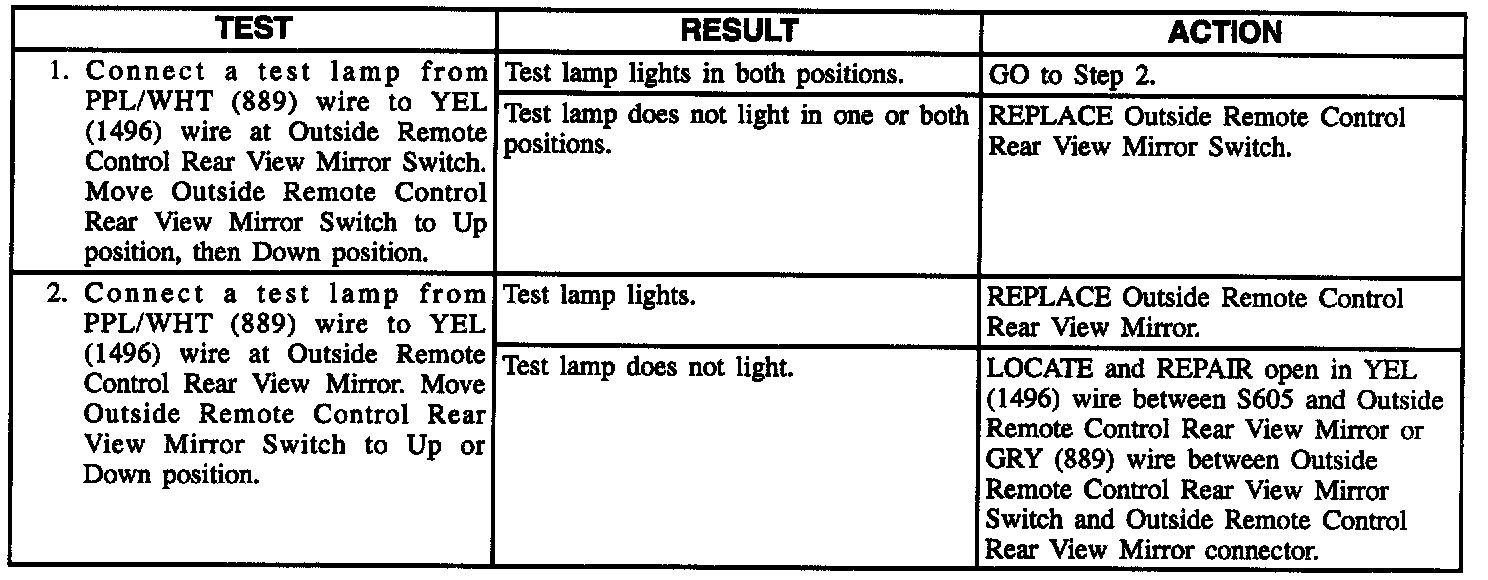

LH Power Mirror Does Not Move Up And Down

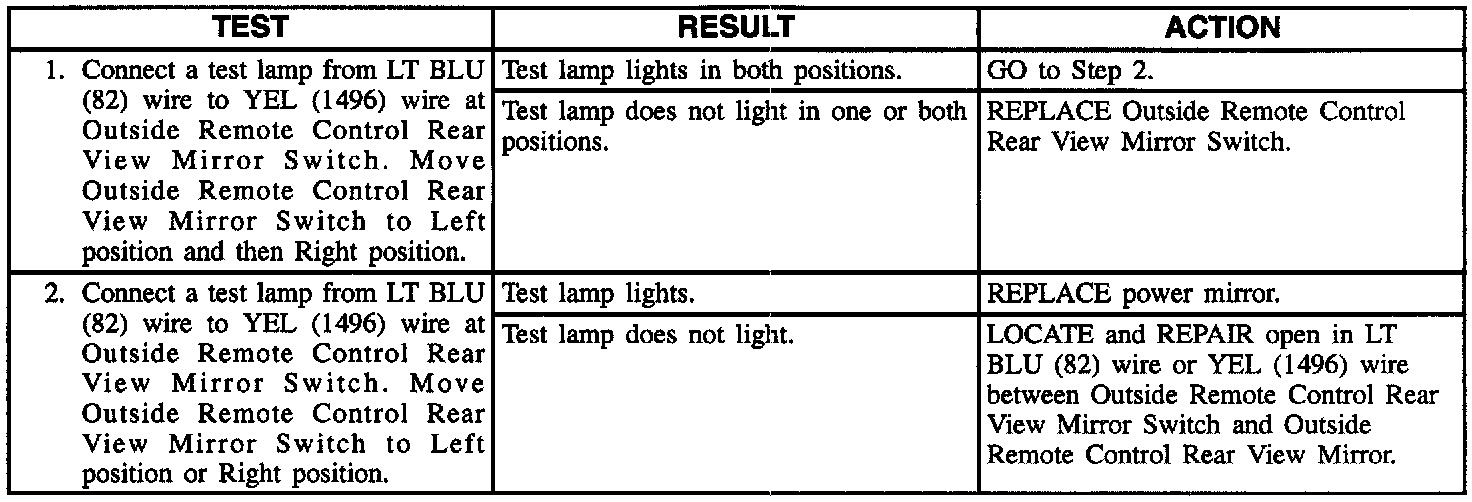

RH Power Mirror Does Not Move Left And Right

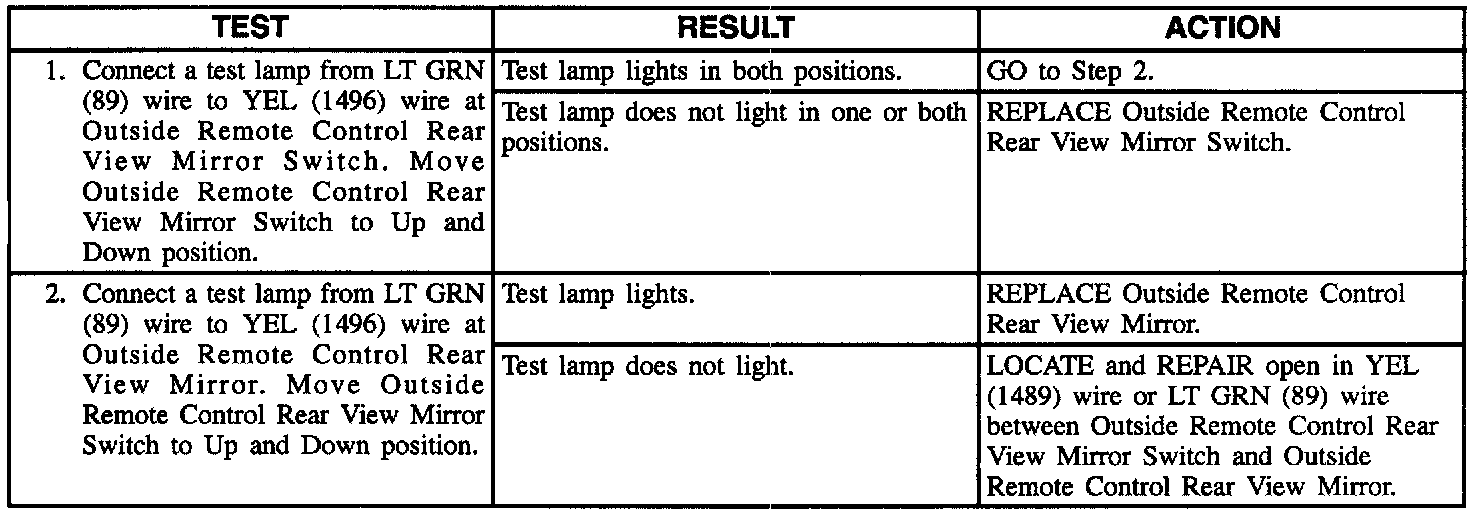

RH Power Mirror Does Not Move Up And Down
