Power Steering Line/Hose: Service and Repair

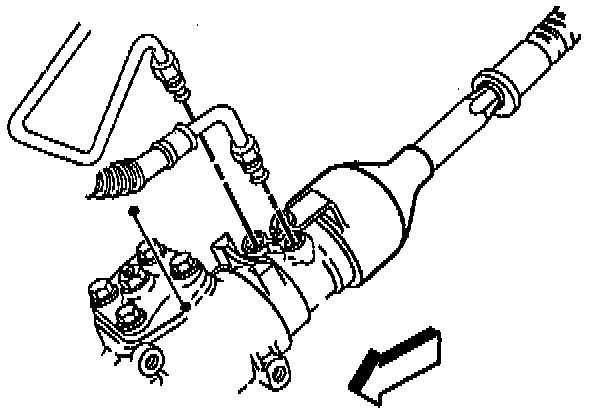

2.2L Engine:

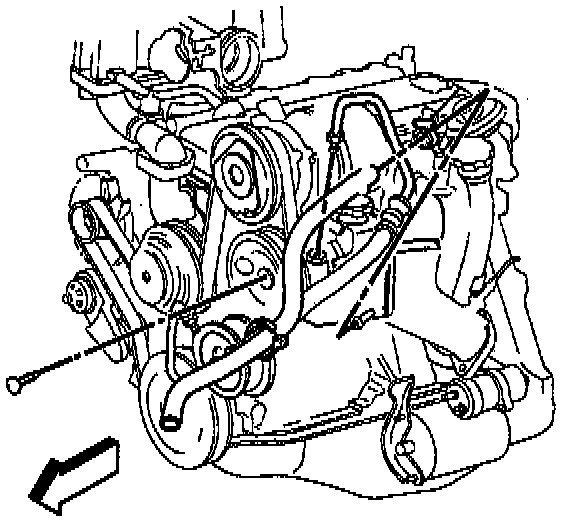

2.2L Engine W/O Oil Cooler:

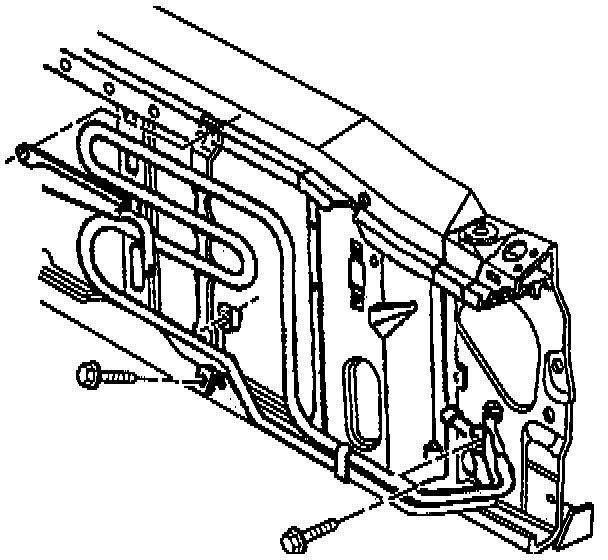

Oil Cooler:

NOTE:
^ When either a hose is reinstalled or replaced, the following points are essential:
^ Route return and feed hoses in the same position they were in before removal.

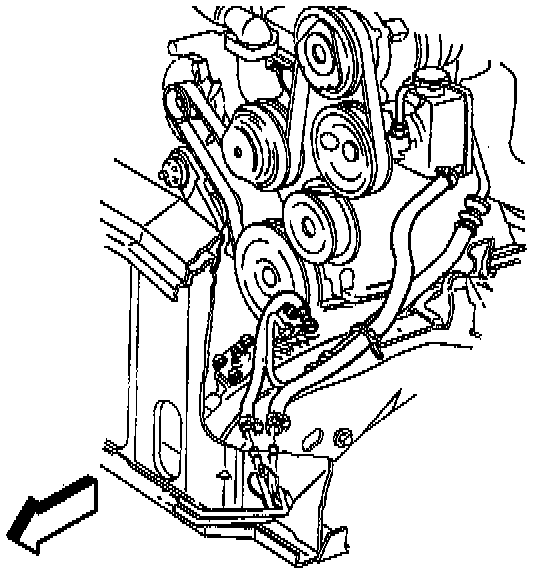

Return Hose:

^ Route return and feed hoses smoothly, avoid sharp bends and chinking.

^ After return and feed hoses are installed, check for leaks while the system is being bled.


CAUTION: Do not start the engine with any power steering hose disconnected, or damage to the components could occur.
