Manifold Pressure/Vacuum Sensor: Service and Repair

Removal Procedure
1. Remove the electrical connector

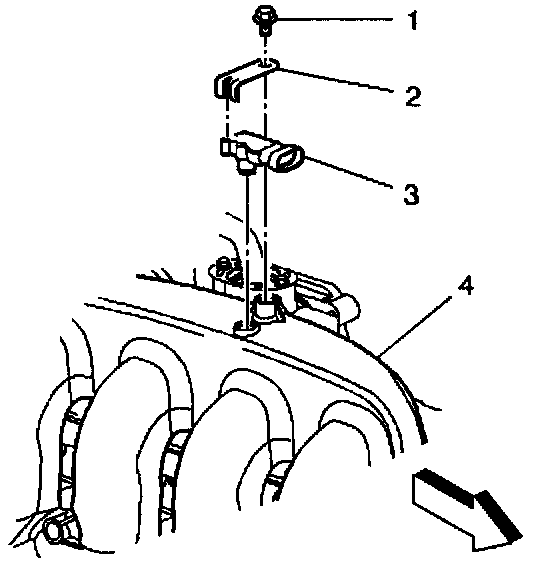

2. Remove the attaching screw (1).
3. Remove the bracket (2).

4. Remove the MAP sensor (3) from the intake manifold (4).

Installation Procedure
1. Install the MAP sensor (3) into the intake manifold (4).
2. Install the MAP Sensor bracket (2).
3. Install the the attaching screw (1).

Tighten the attaching screws to 4-6 N.m (35-53 lb in).

NOTICE: Refer to Fastener Notice in Cautions and Notices.

4. Install the electrical connector.
