Ignition System - Diagnostic Procedures Revised

BULLETIN NUMBER:
SB98-03-L002

ISSUE DATE:
JULY 1998

GROUP:
FUEL SYSTEM

1997 HOMBRE (TH) ENHANCED IGNITION SYSTEM
DIAGNOSTIC PROCEDURES WORKSHOP MANUAL REVISIONS

AFFECTED VEHICLES

1997 Hombre (TH) models equipped with 4.3L V6 engine.

SERVICE INFORMATION

The Enhanced Ignition System (System Check) section has been revised.

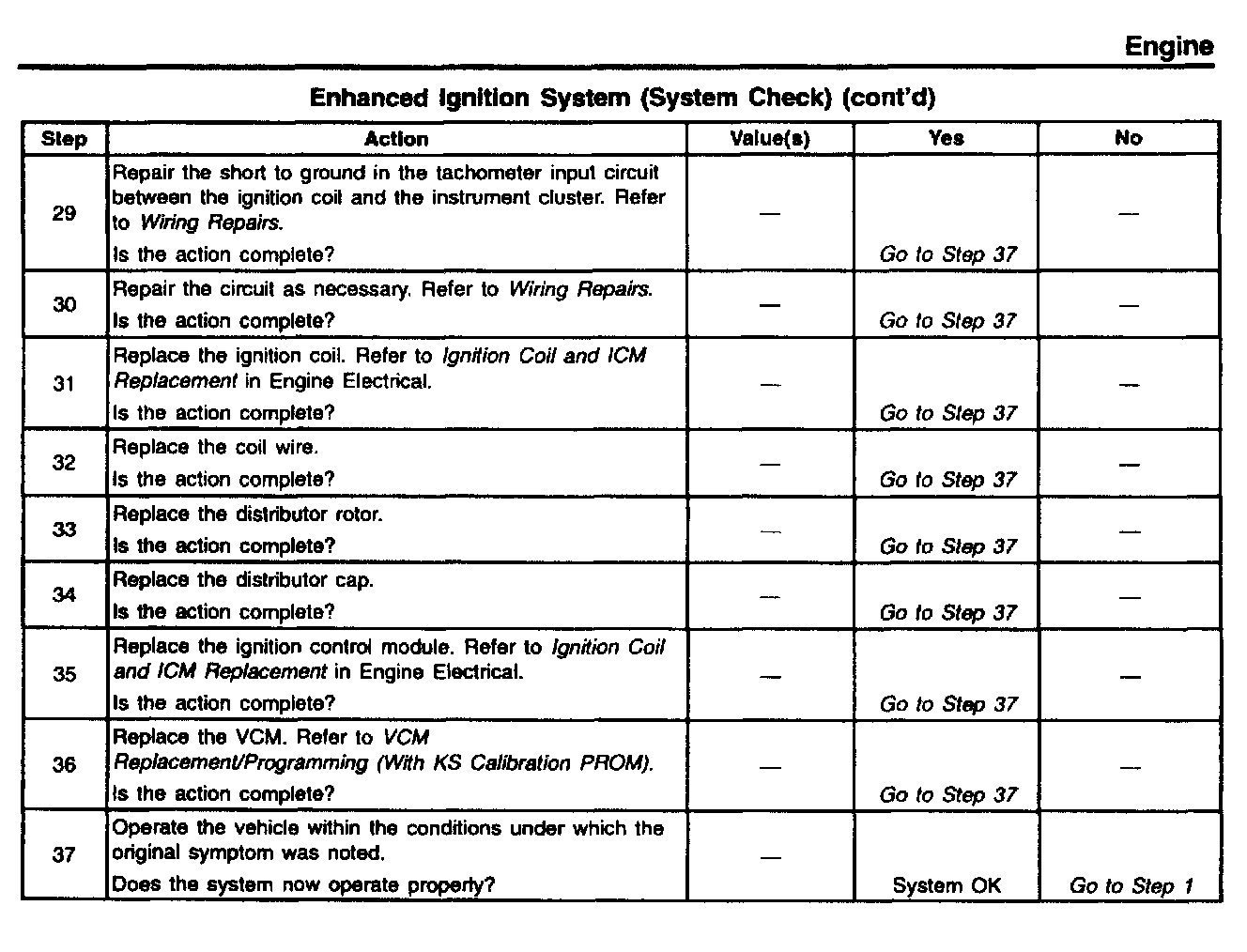

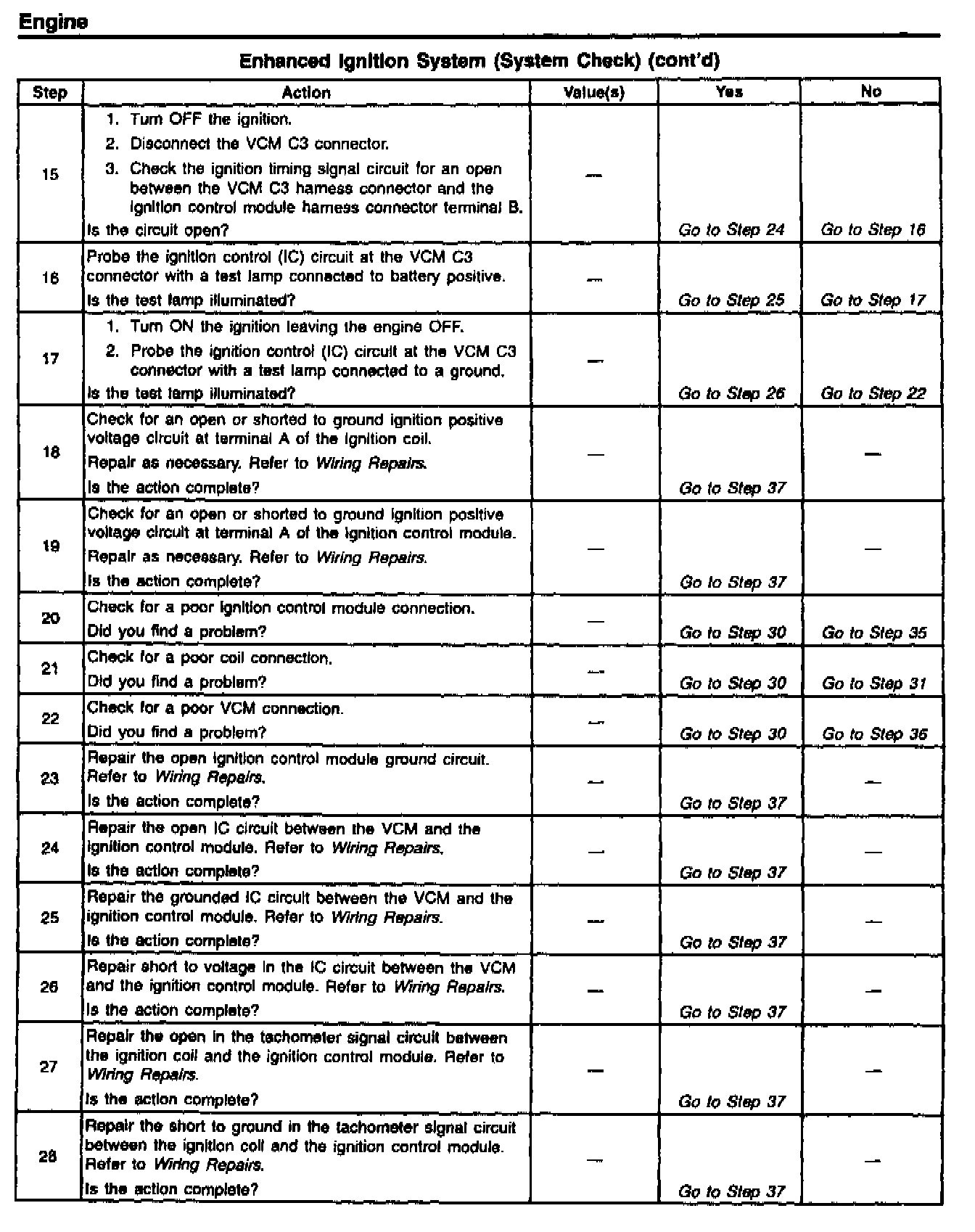

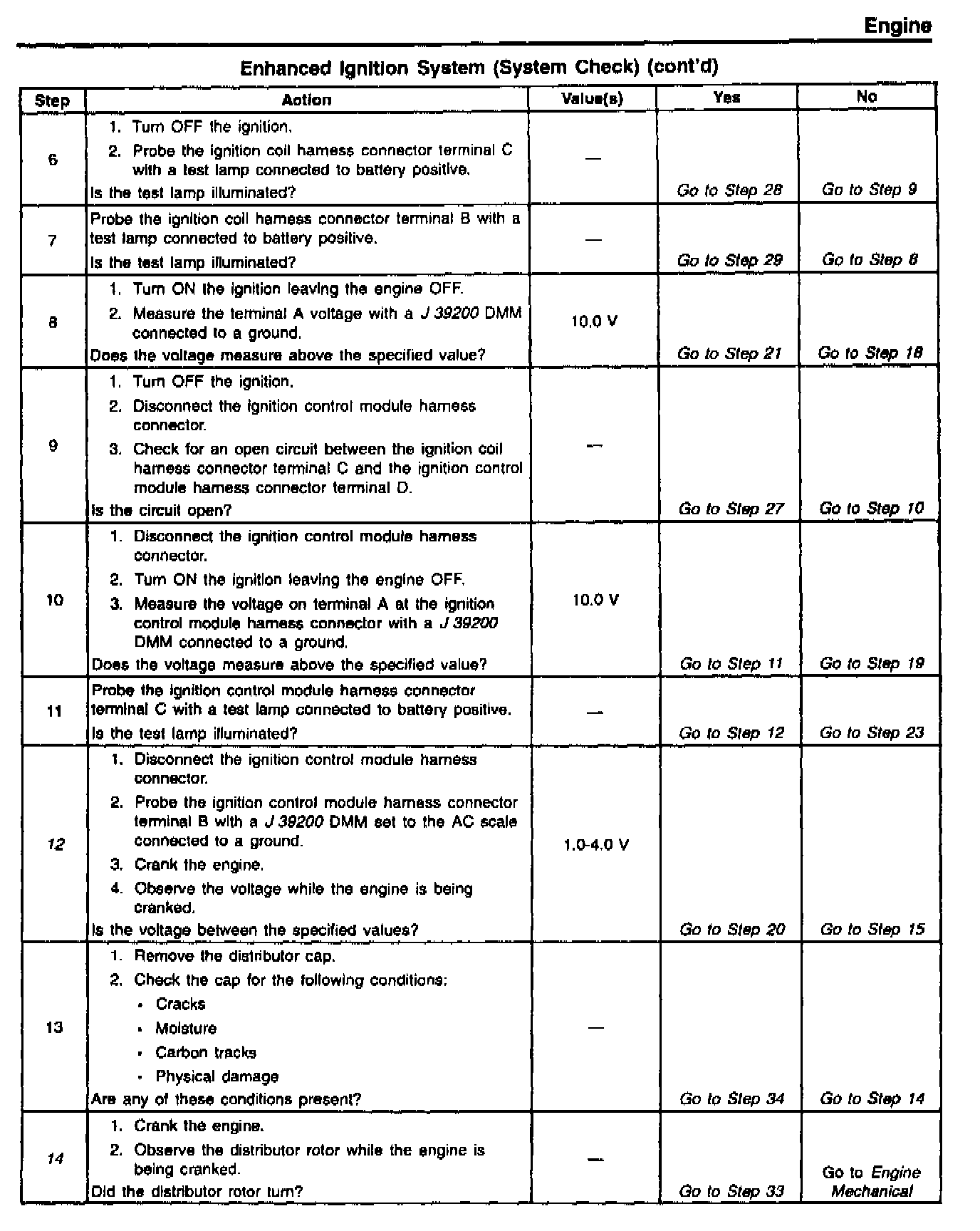

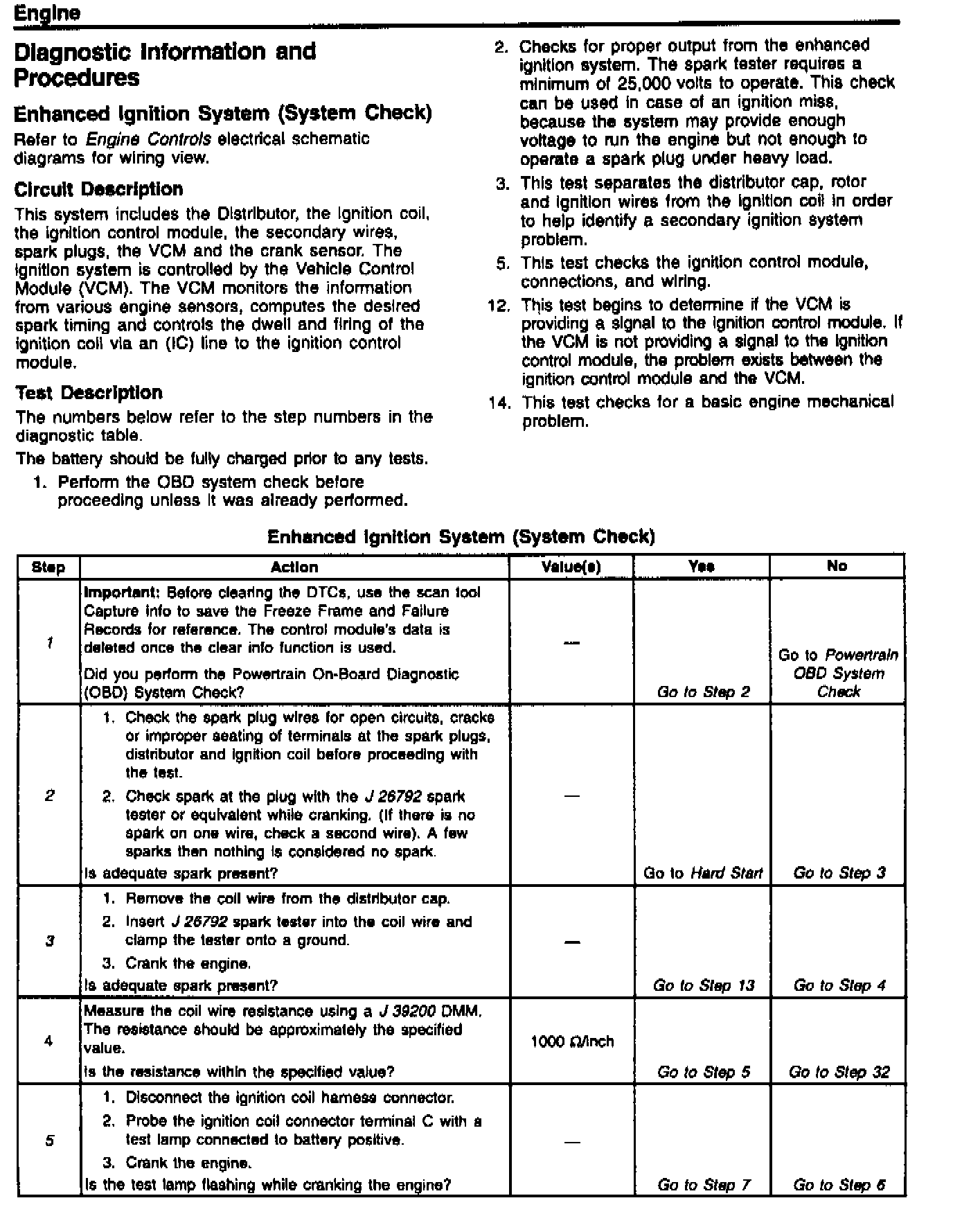

Please see the attached page for the revised diagnostic procedures.

Manual Page No.

TH097-WSM-LO1 6-1141 through
6-1143a (An additional
page has been added.)
(Book 2).














This service bulletin contains the revised pages to the referenced Workshop Manual (Book 2). Attach the enclosed pages to the referenced Workshop Manual (Book 2).
