Fuse Block: Description and Operation

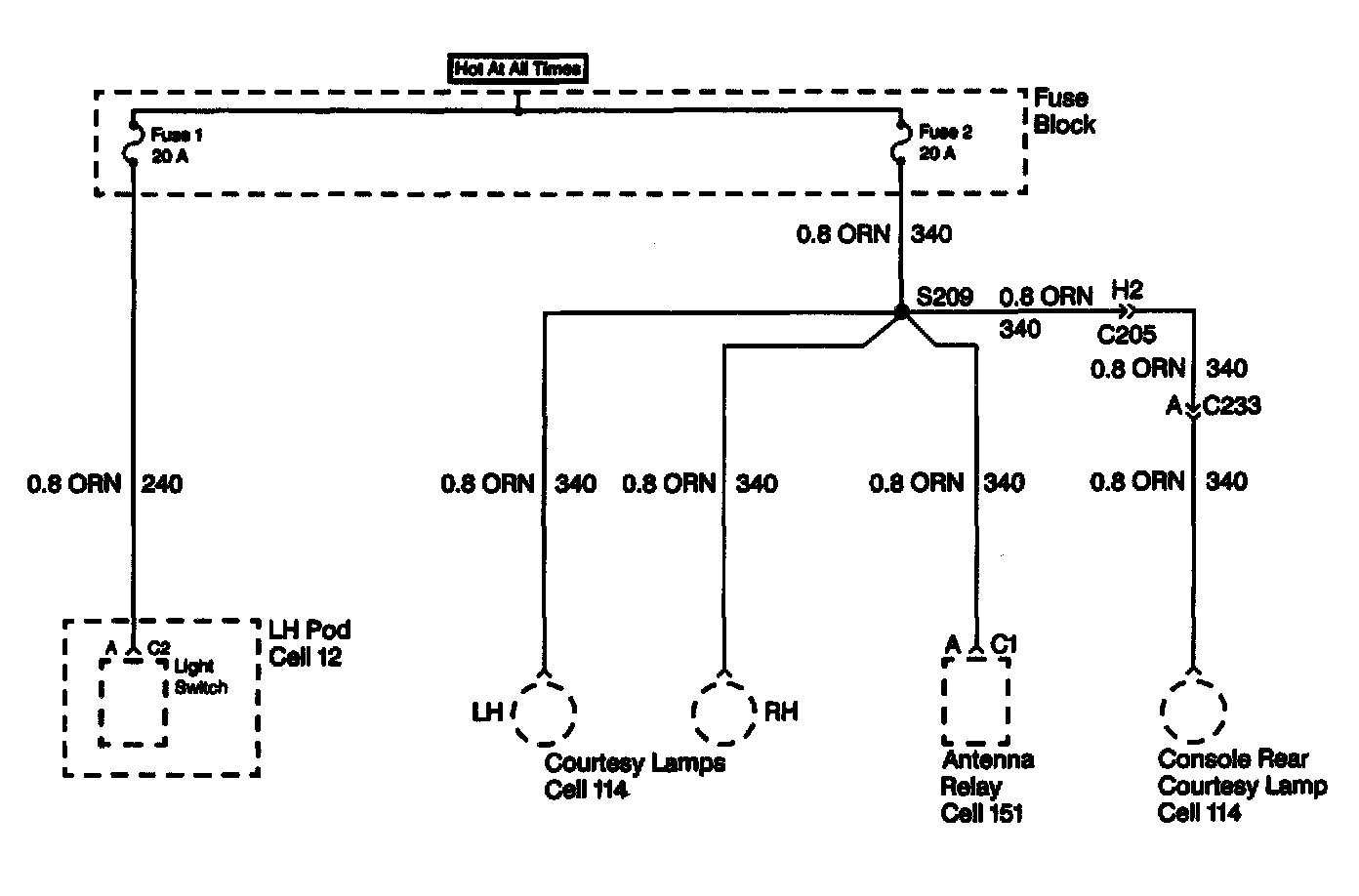

Typical Fuse Block Details Schematic:
The
Fuse Block Details schematic shows all of the wiring between a fuse and the components connected to the fuse. The Fuse Block Details schematic is extremely helpful in locating a short circuit that causes a fuse to open.
