Circuit Board and Terminal Assembly Replacement

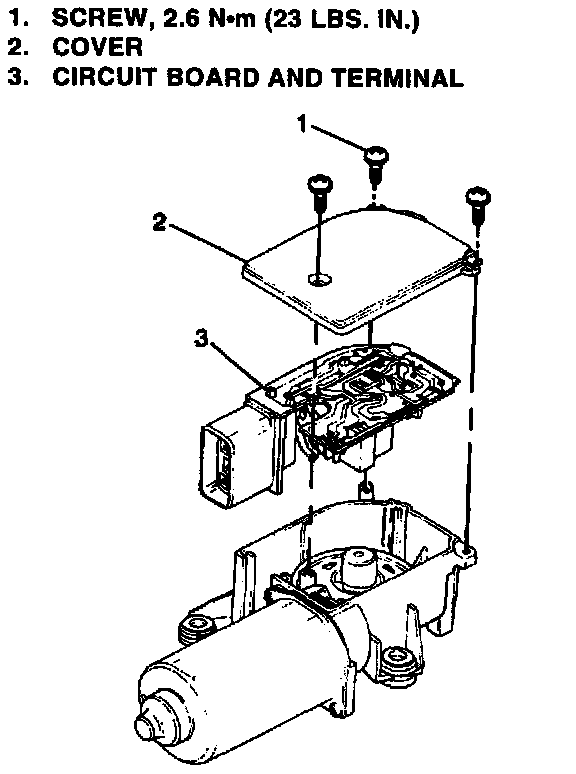

Circuit Board Terminal Assembly Replacement:




Remove or Disconnect
1. Negative battery cable. Refer to CHASSIS/BODY ELECTRICAL SYSTEM.
2. Wiper motor electrical connector.
3. Screws.
4. Cover.
5. Circuit board and terminal assembly by lifting up on terminal.

Circuit Board Terminal Assembly Replacement:




Install or Connect
1. Circuit board and terminal assembly.
2. Cover.

NOTE: Refer to the Fastener Note in the GENERAL INFORMATION.

3. Screws.

Tighten
- Circuit board and terminal assembly screws to 2.6 N.m (23 lbs. in.).

4. Wiper motor electrical connector.
5. Negative battery cable. Refer to the CHASSIS/BODY ELECTRICAL SYSTEM.
