Standard Steering Column

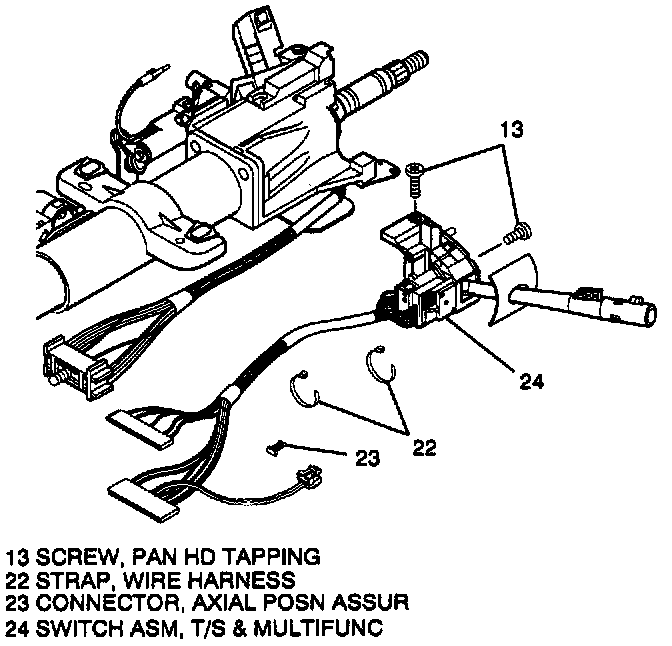

Removing The Turn Signal And Multifunction Switch:

Tools Required: J 41352 Modular Column Holding Fixture.

Remove or Disconnect
1. Do steps 1 through 7, "Remove or Disconnect", LOWER SHROUD, UPPER SHROUD, (Standard Steering Column). Service and Repair

Removing Alarm Switch:

2. Alarm switch from lock module assembly (15).

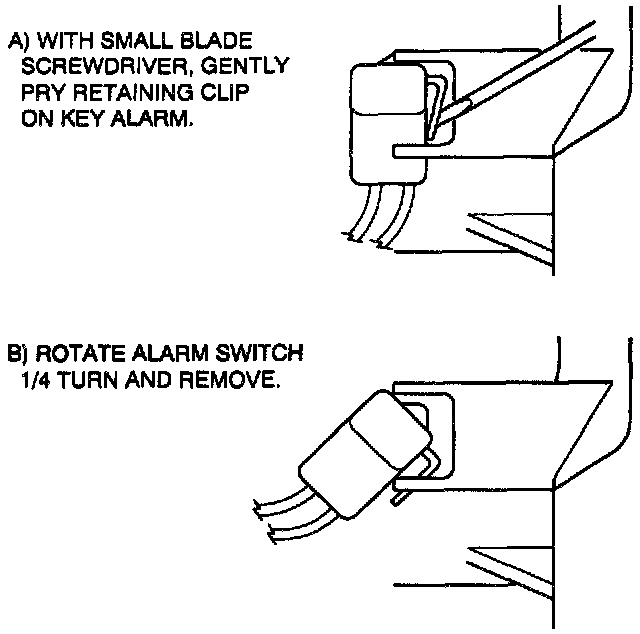

- Gently pry retaining clip on alarm switch with small blade screwdriver.
- Rotate alarm switch 1/4 turn and remove.
- Remove passkey connector.

Removing Pass Key Connector:

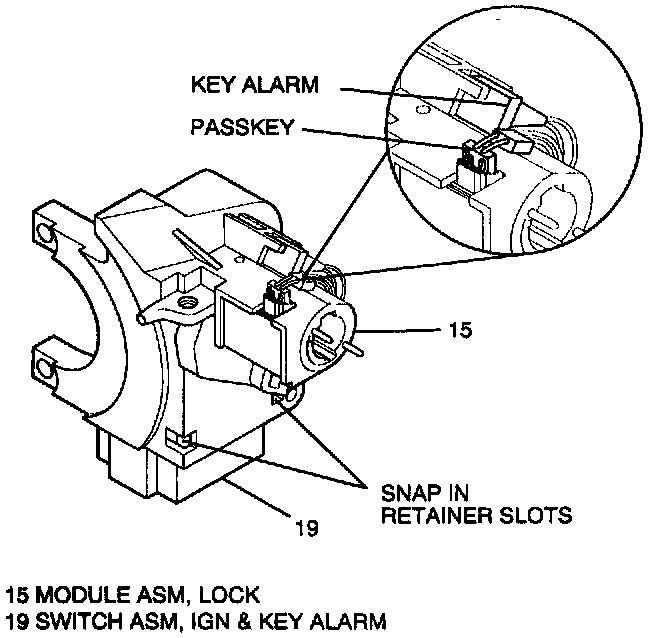

3. Ignition & key alarm switch assembly (19).
- Wire harness from slot in steering column housing assembly (26).
- Use small screwdriver to push on slots to remove ignition & key alarm assembly.

Install or Connect

NOTICE: Refer to the fastener NOTICE. Service Precautions Failure to do so may result in component damage or malfunction of steering column.

Installing Switch Assembly Ignition And Key Alarm:

1. Insert ignition & key alarm switch assembly (19).
- Route wire harness through slot in steering column housing assembly (26). Secure wire harness with a wire harness strap (22) through hole located in the bottom of housing assembly (26).

2. Alarm switch to lock module assembly (15).
A. Switch with retaining clip parallel to lock cylinder (17).
B. Rotate switch 1/4 turn until locked into place.
C. Install passkey connector.

3. Do steps 3 through 12, "Install or Connect", LOWER / UPPER SHROUD, (Standard Steering Column). Service and Repair
