Engine Controls Component Views

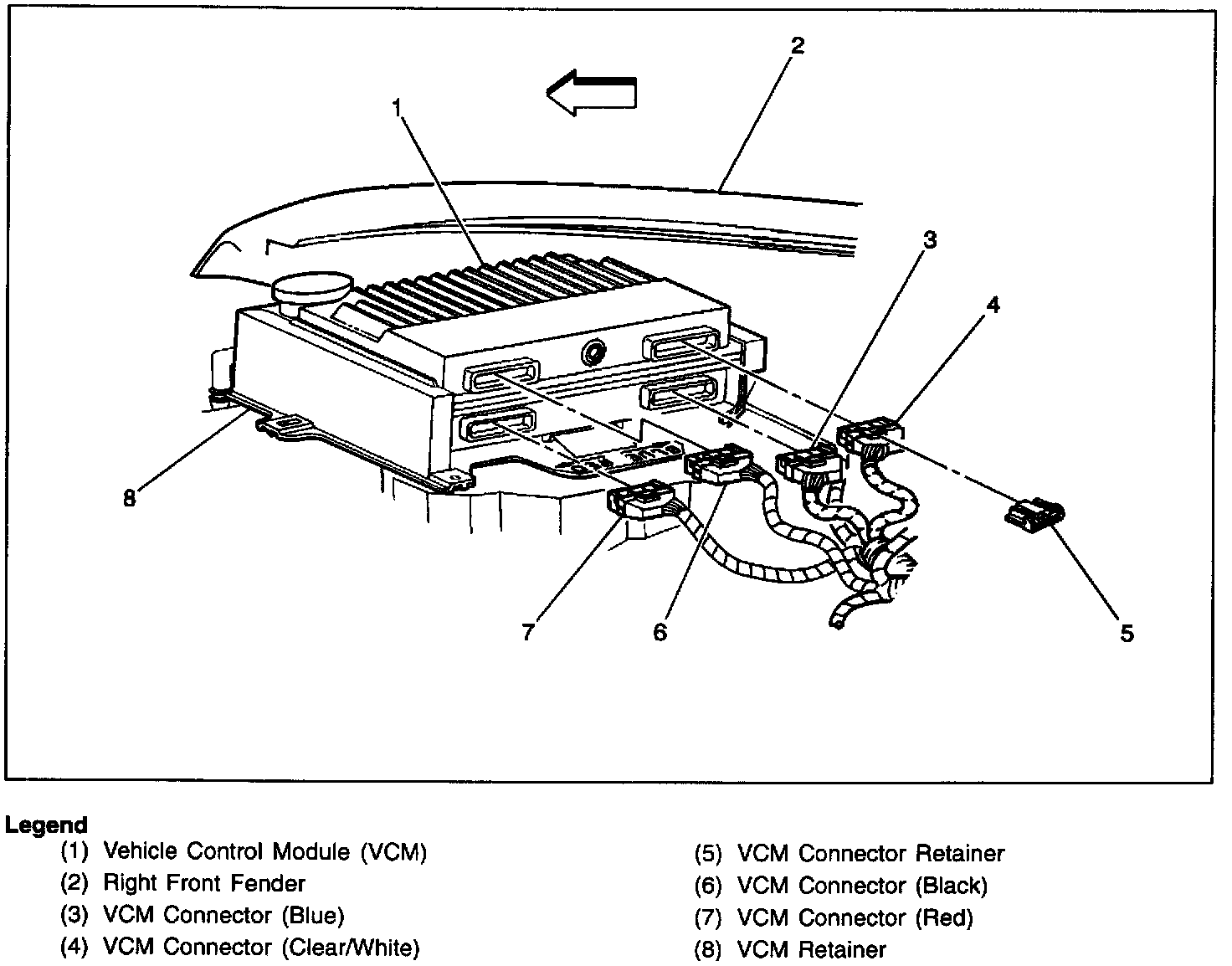

VCM

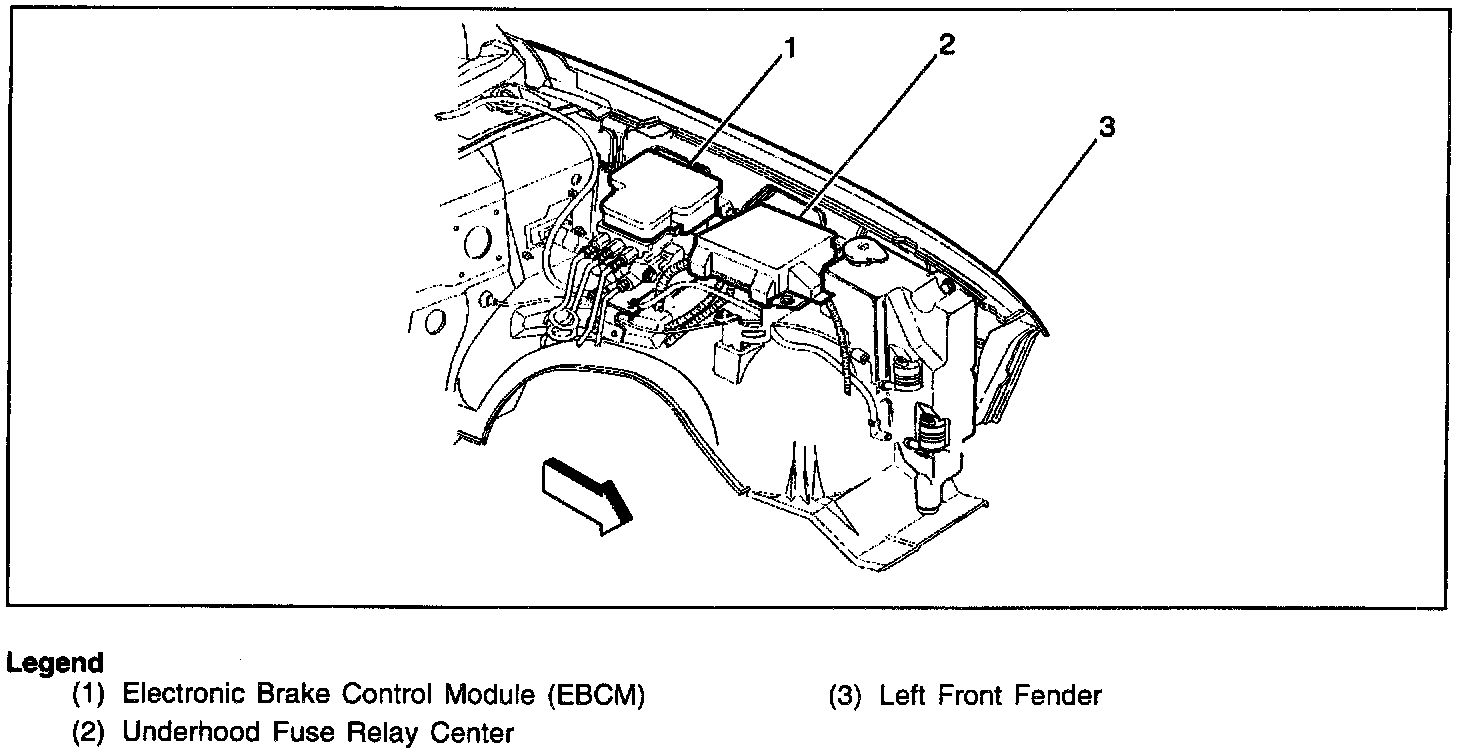

Underhood Fuse/Relay Center and Electronic Brake Control Module (EBCM)

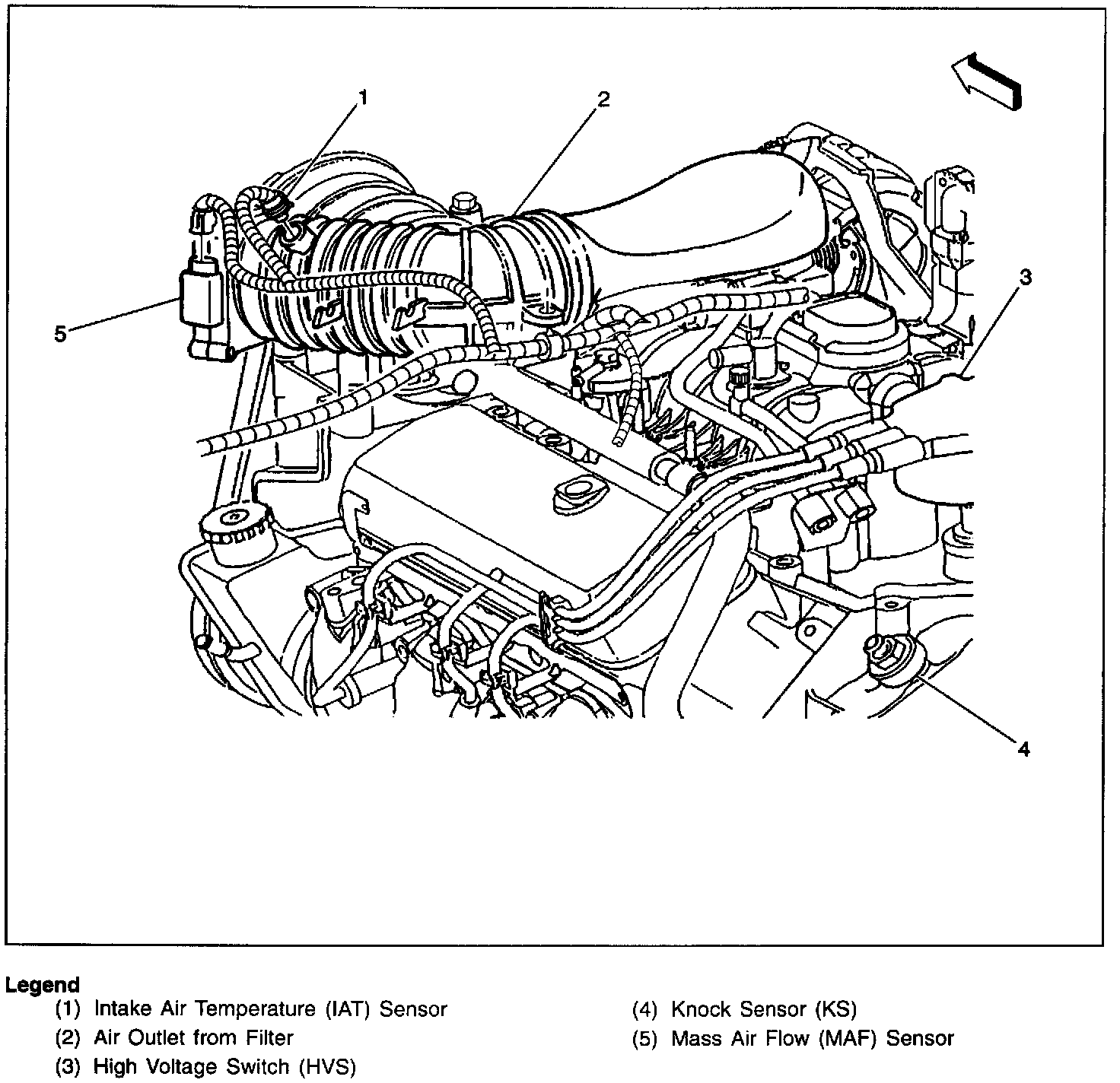

Mass Air Flow (MAF) Sensor and Intake Air Temperature (IAT) Sensor

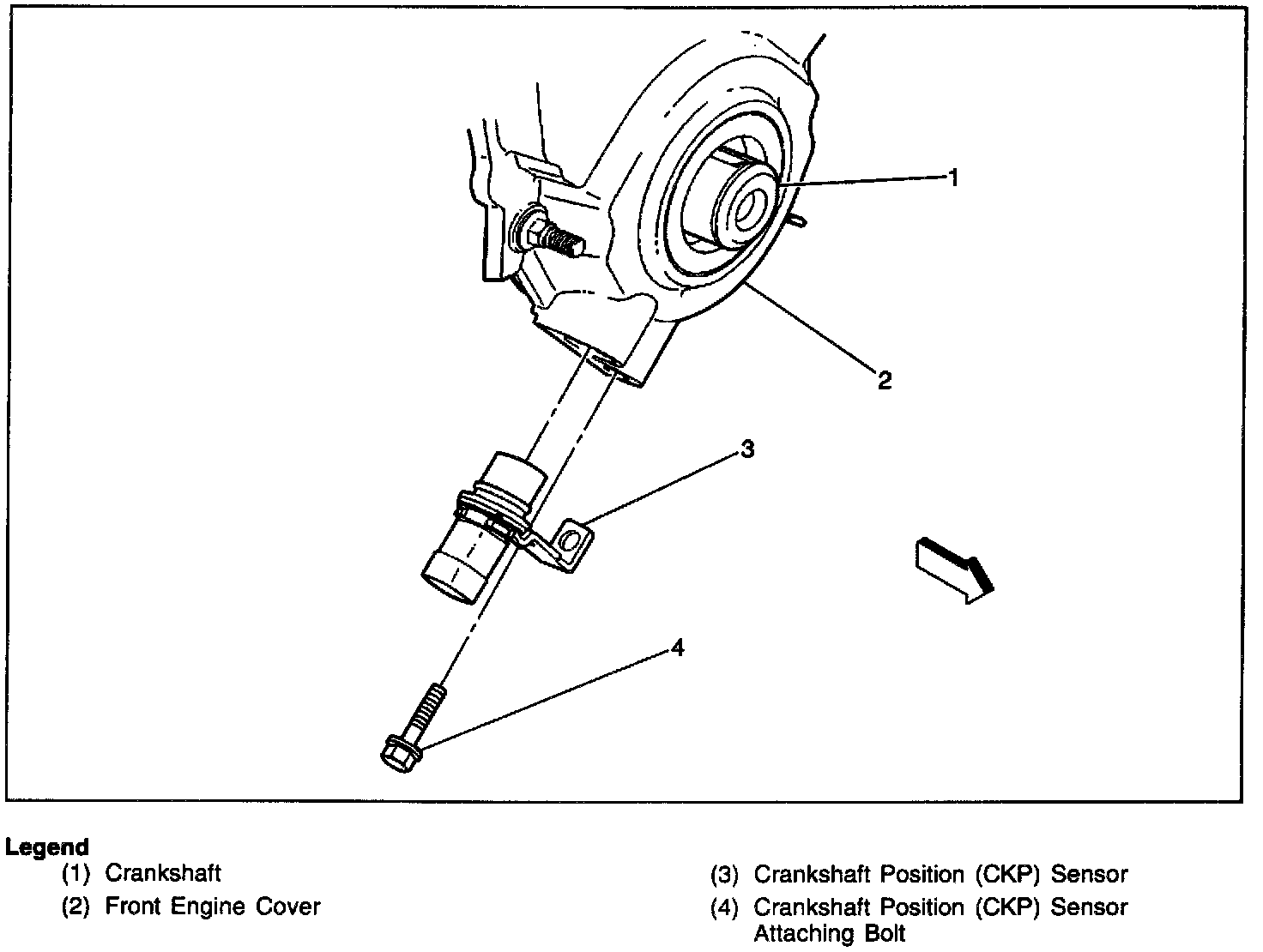

Crankshaft Position (CKP) Sensor

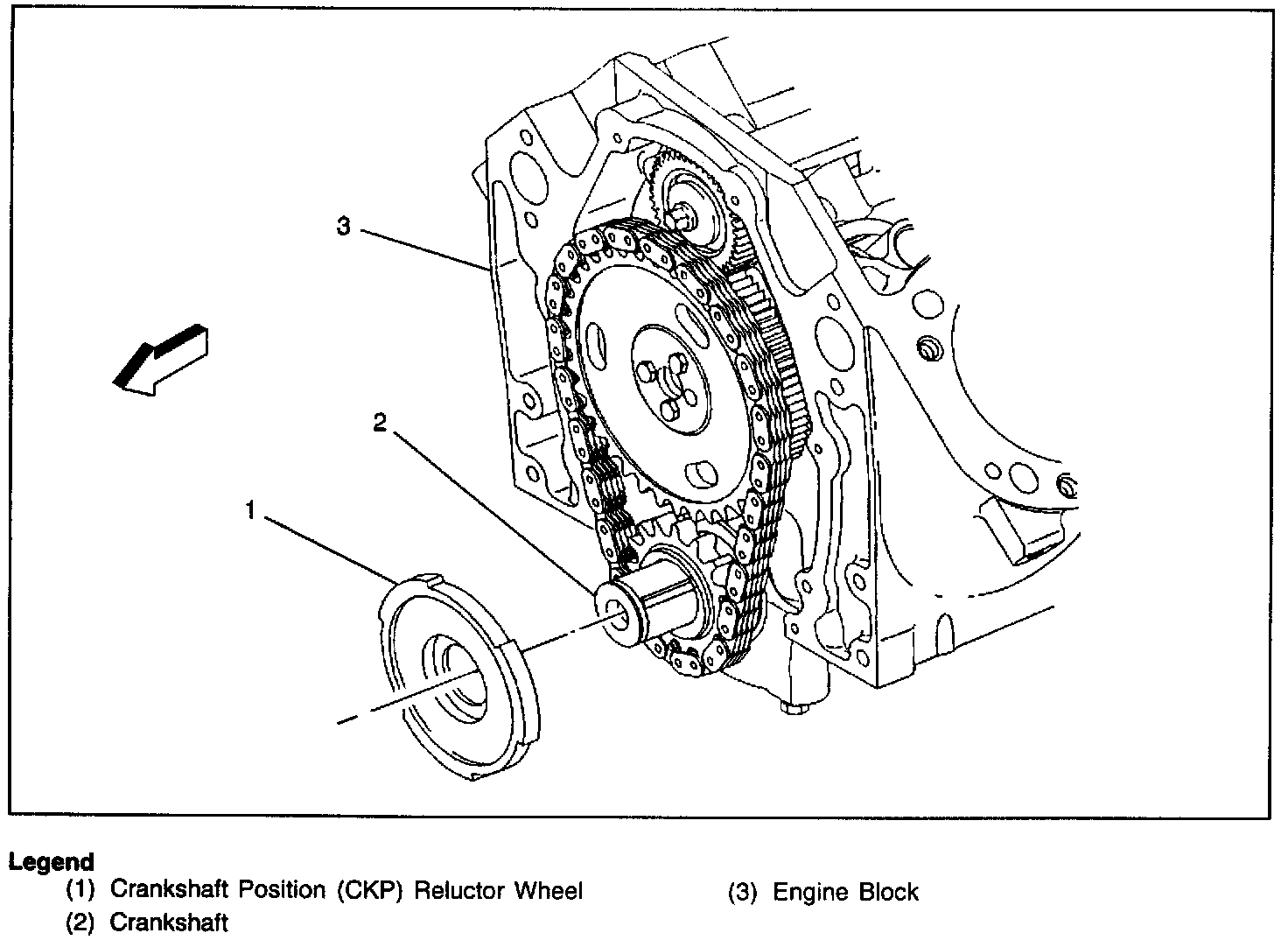

Crankshaft Position (CKP) Reluctor Wheel

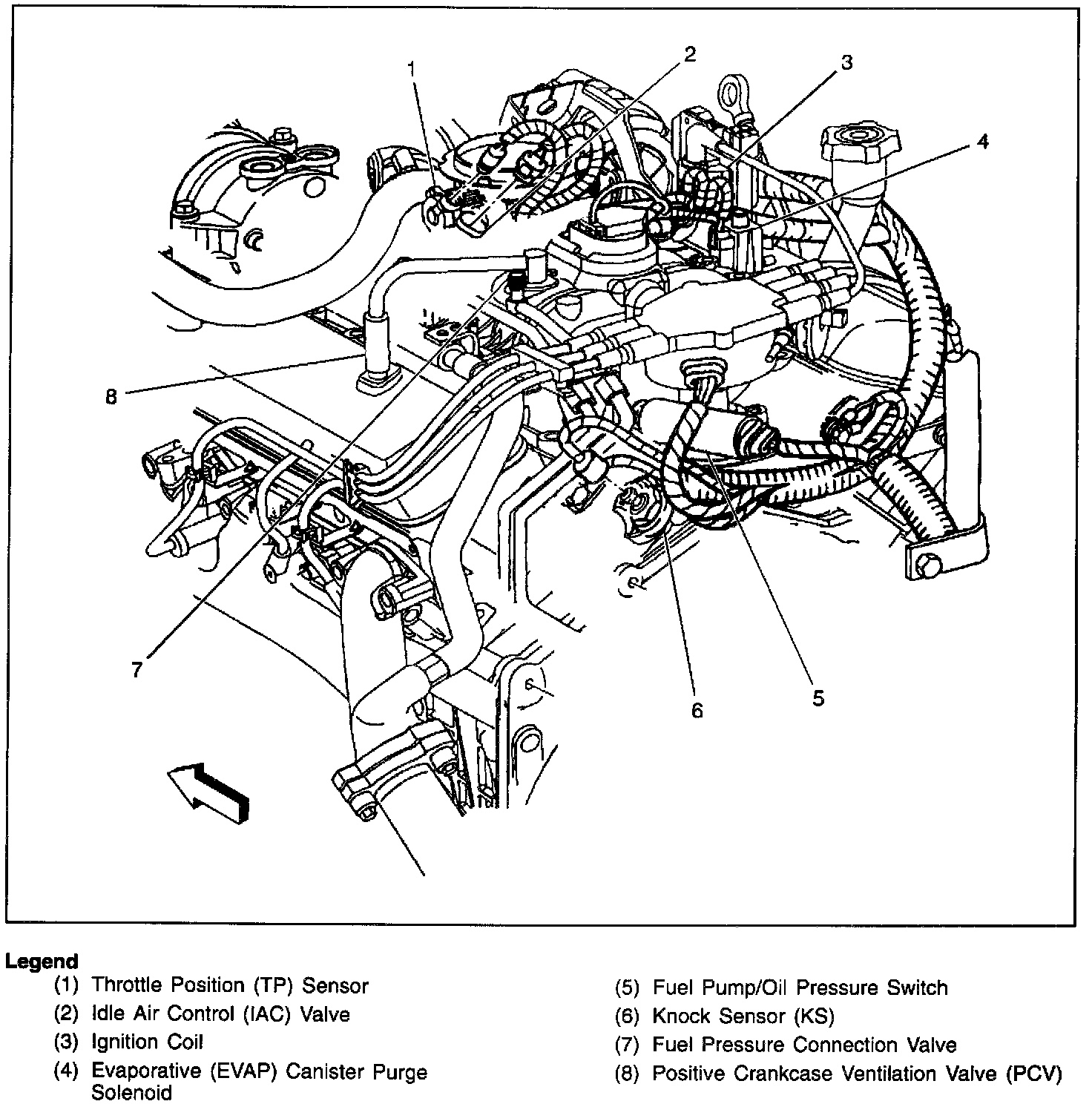

Throttle Position (TP) Sensor, Idle Air Control (IAC) Valve, and
Positive Crankcase Ventilation Valve (PCV)

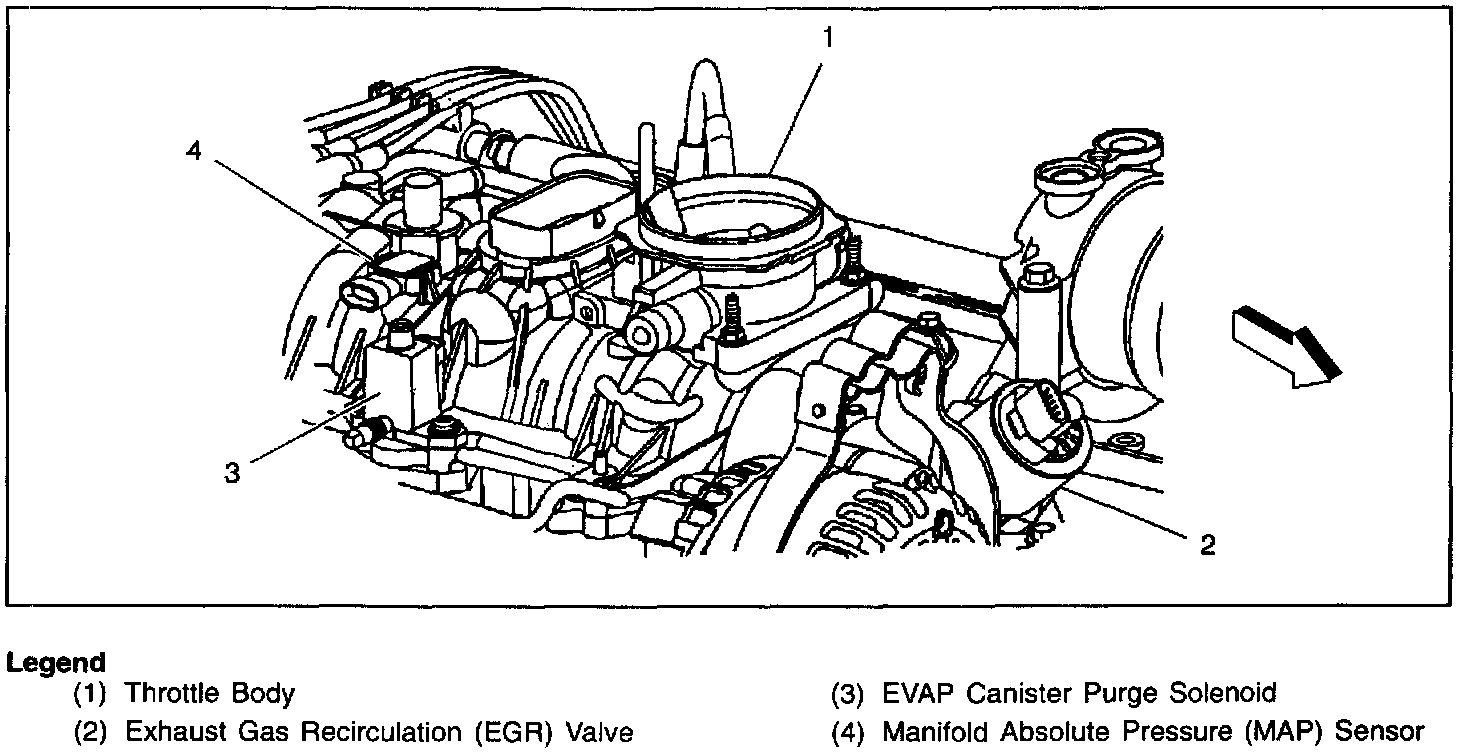

MAP, EGR, Purge Solenoid, and Throttle Body

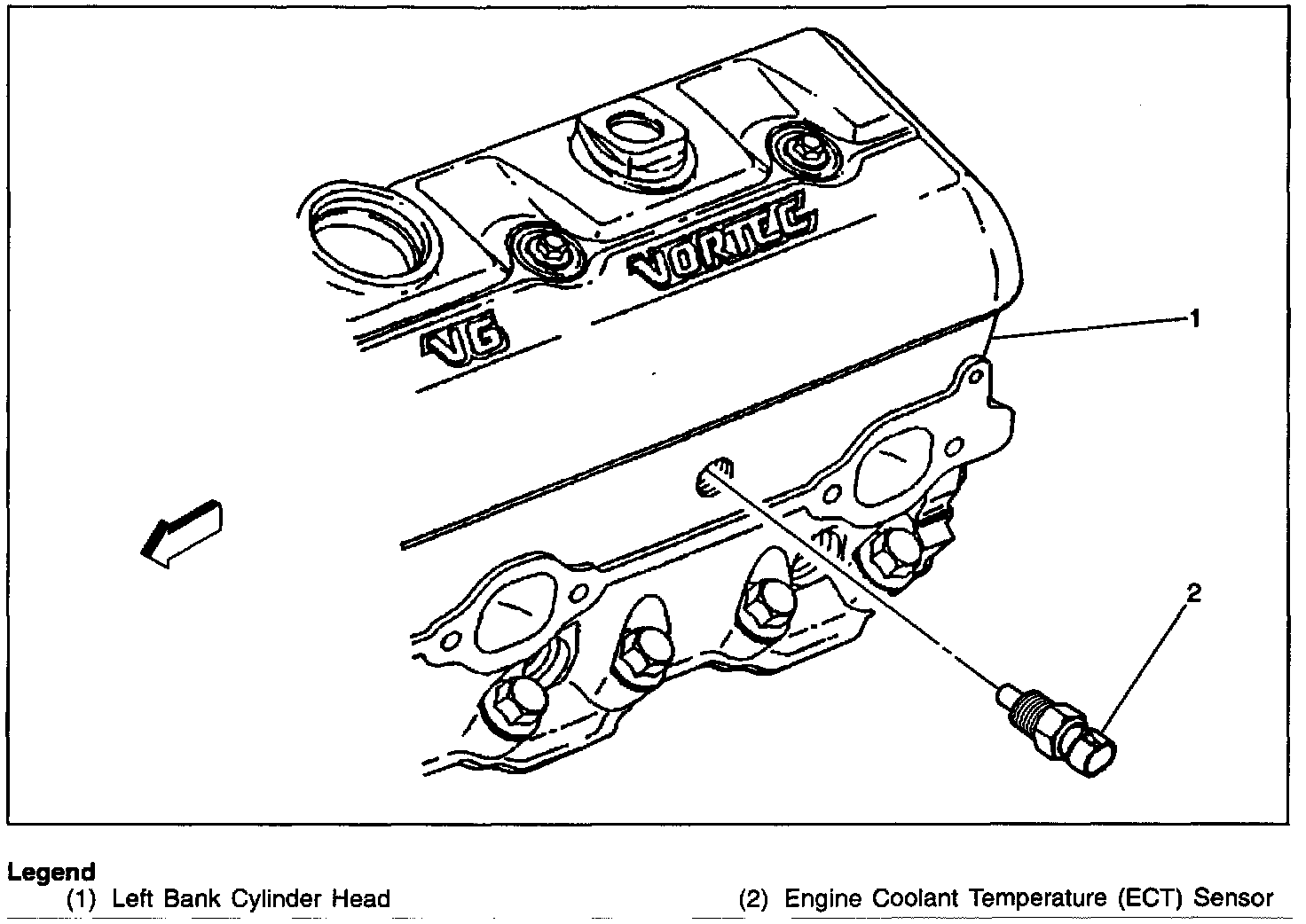

Engine Coolant Temperature (ECT) Sensor

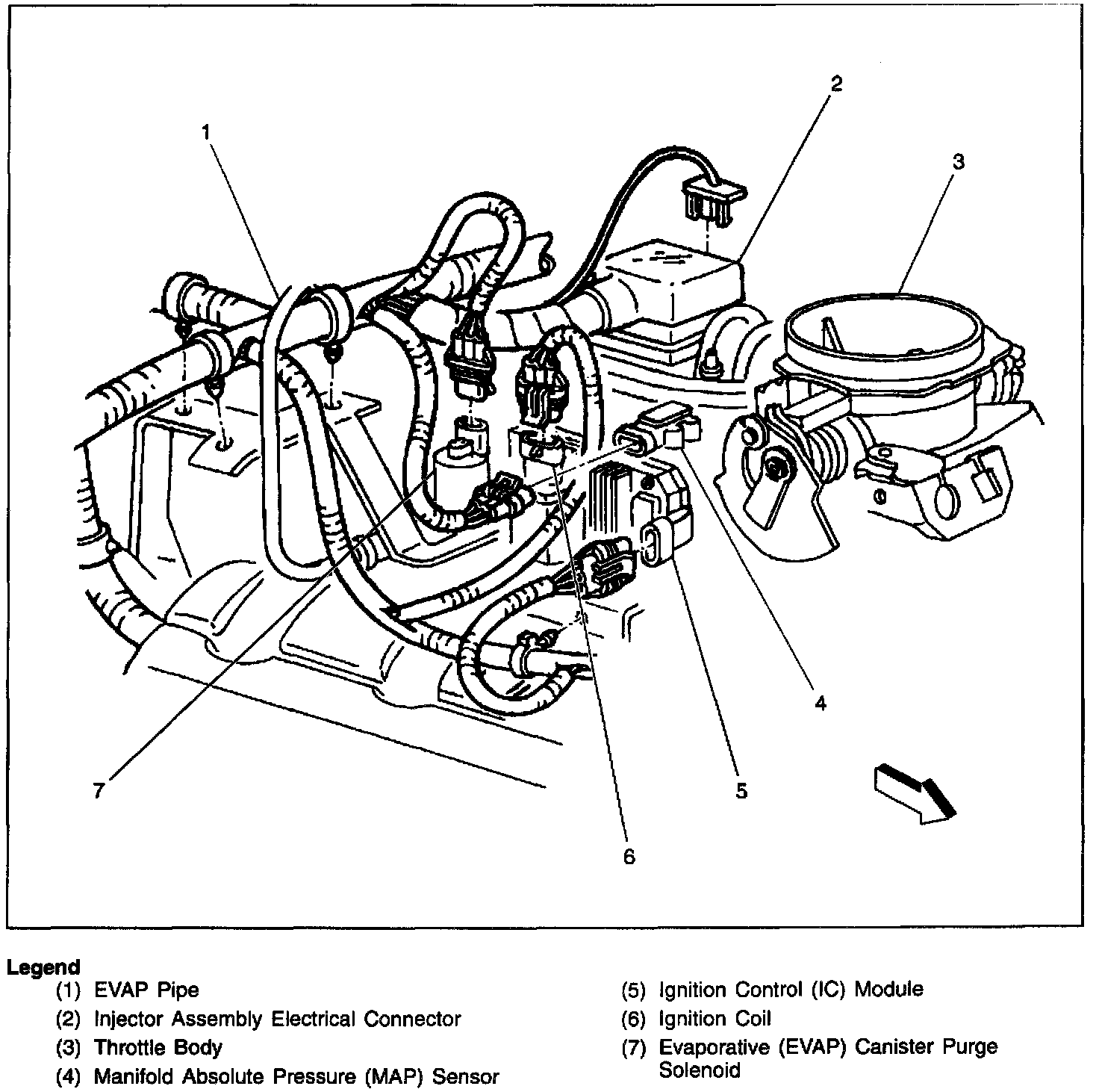

Ignition Coil Ignition Control (IC) Module, MAP, Throttle Body, and Evaporative (EVAP) Canister purge solenoid.
Border:

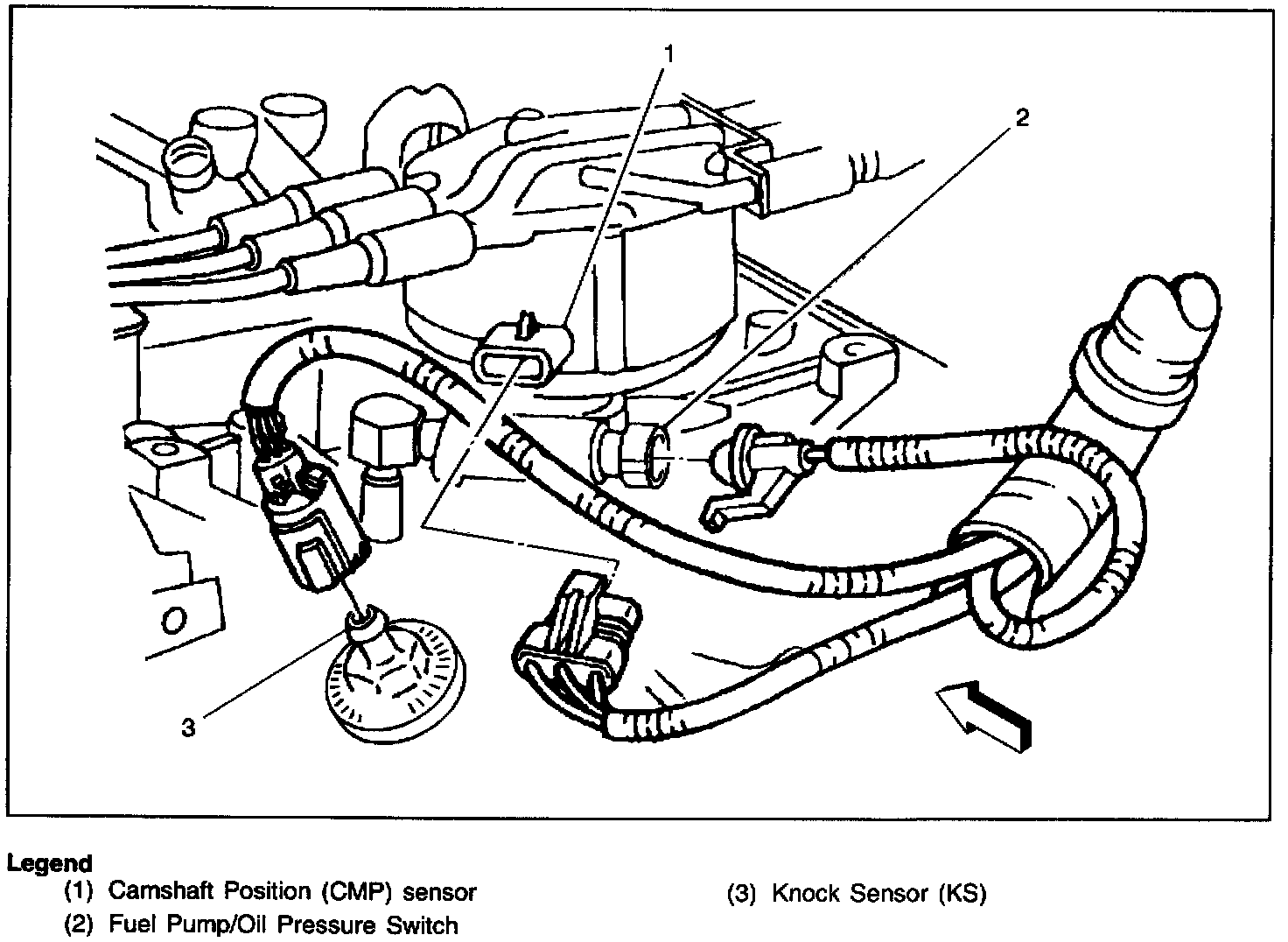

Camshaft Position (CMP) sensor, Knock Sensor (KS), and Fuel Pump/Oil
Pressure Switch

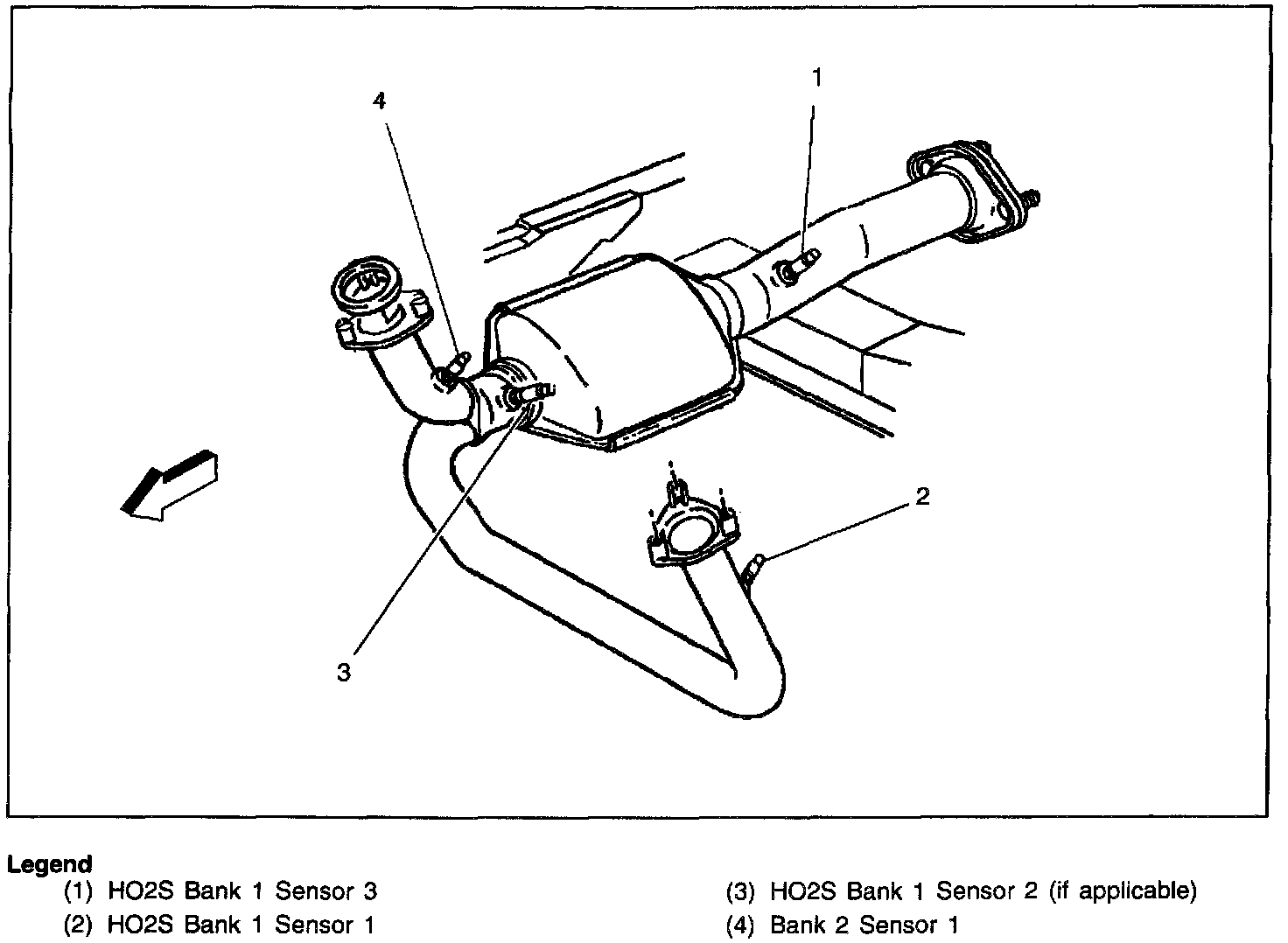

HO2S
VSS 2 Wheel Drive (2WD)

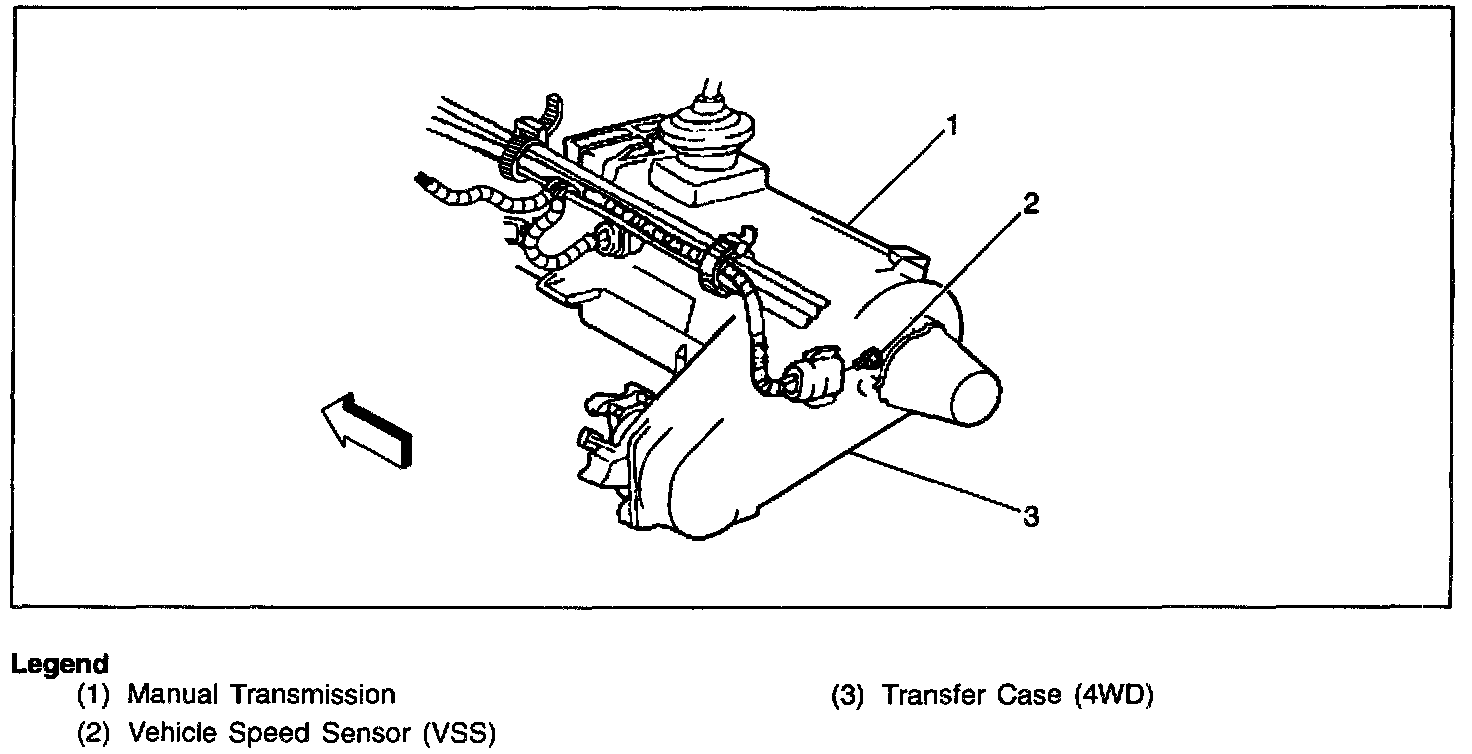

Vehicle Speed Sensor (VSS) - 2 Wheel Drive Manual Transmission

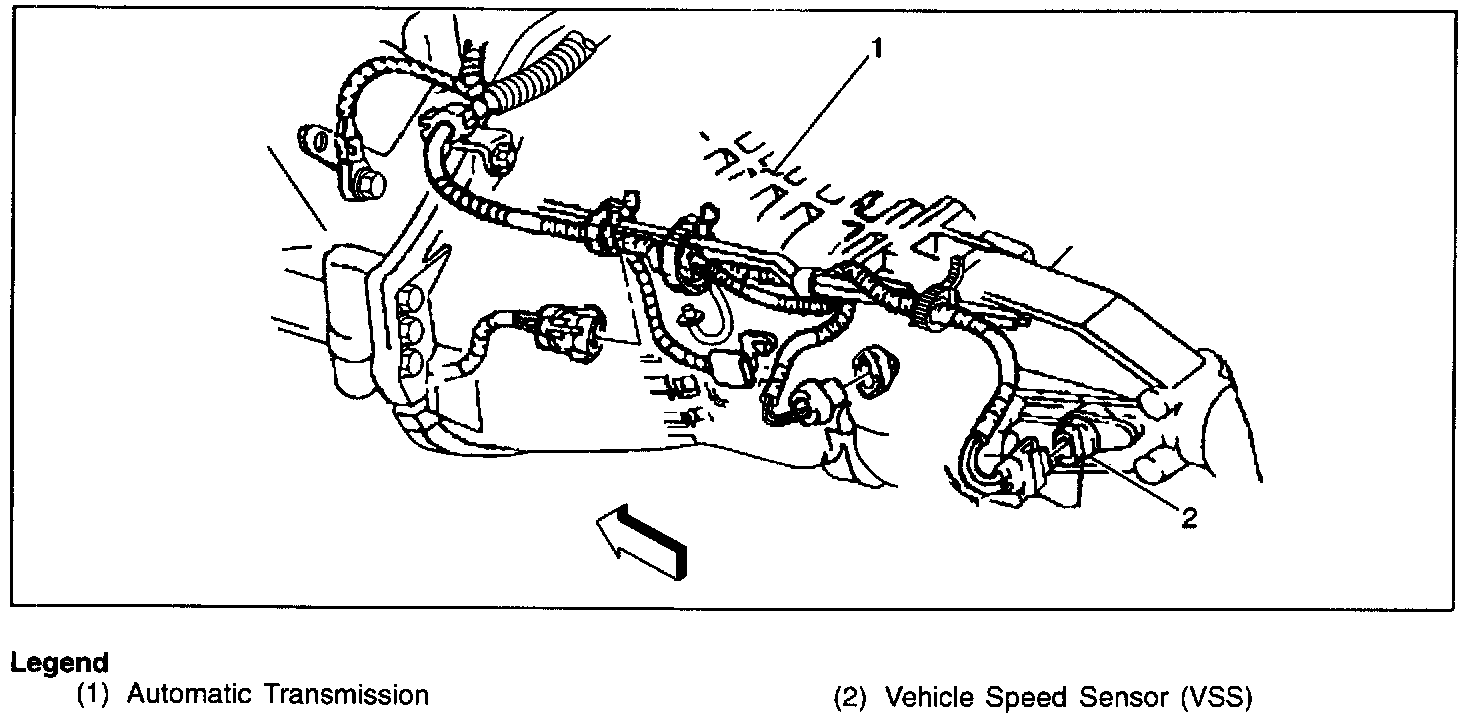

Vehicle Speed Sensor (VSS) - 4 Wheel Drive Automatic Transmission
Vehicle Speed Sensor (VSS) - 4 Wheel Drive Manual Transmission

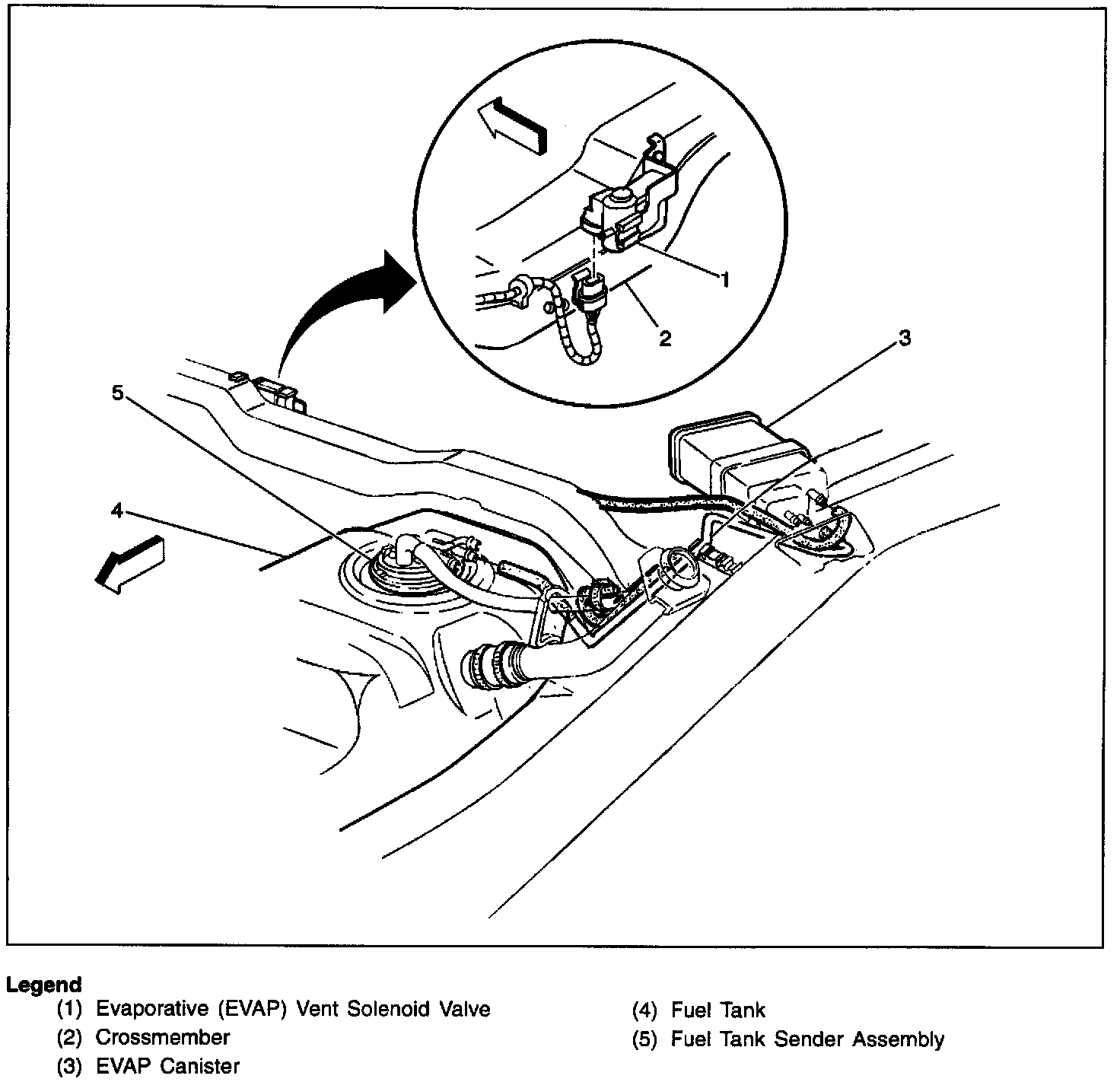

EVAP Canister and EVAP Vent Solenoid

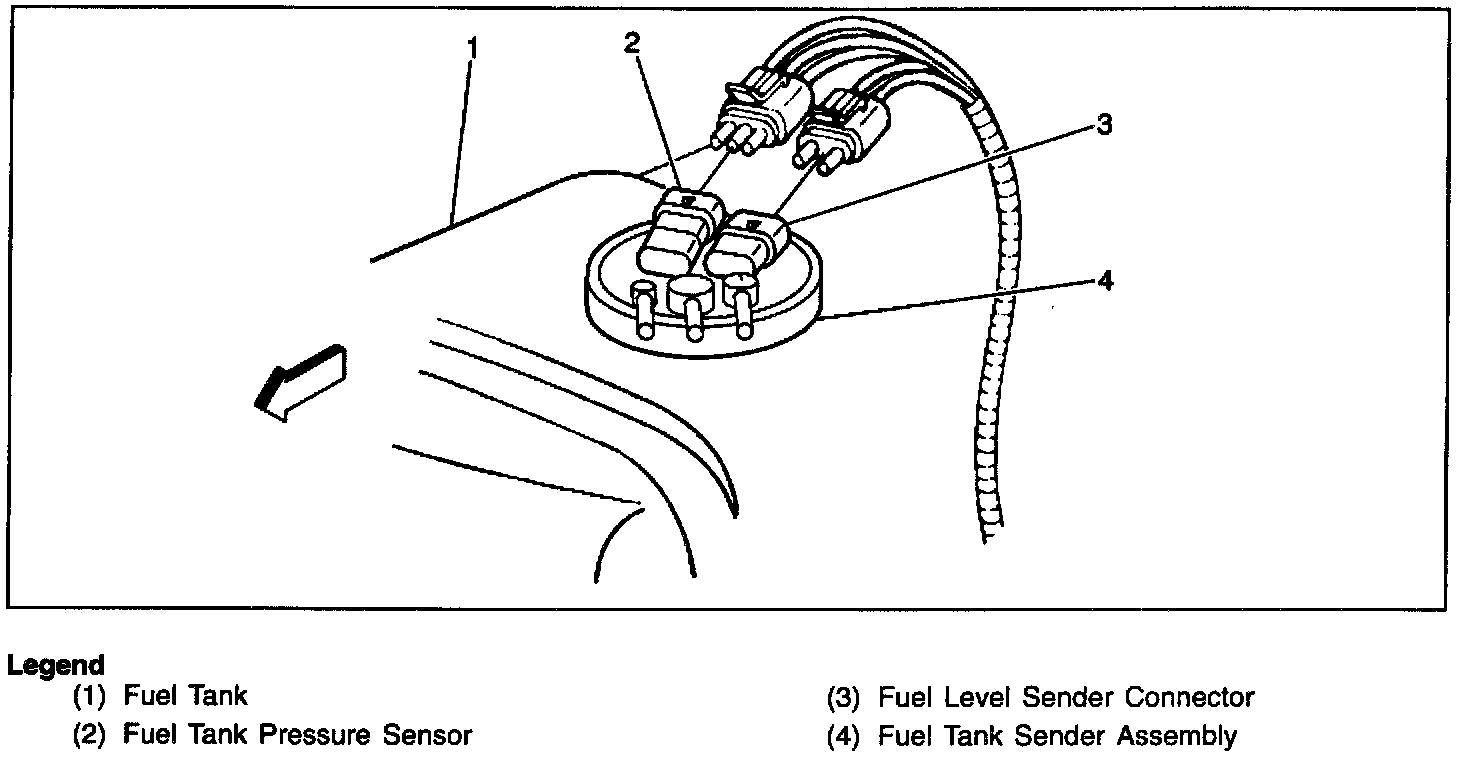

Fuel Tank Pressure Sensor and Fuel Level Sender Assembly
