Fuse Block

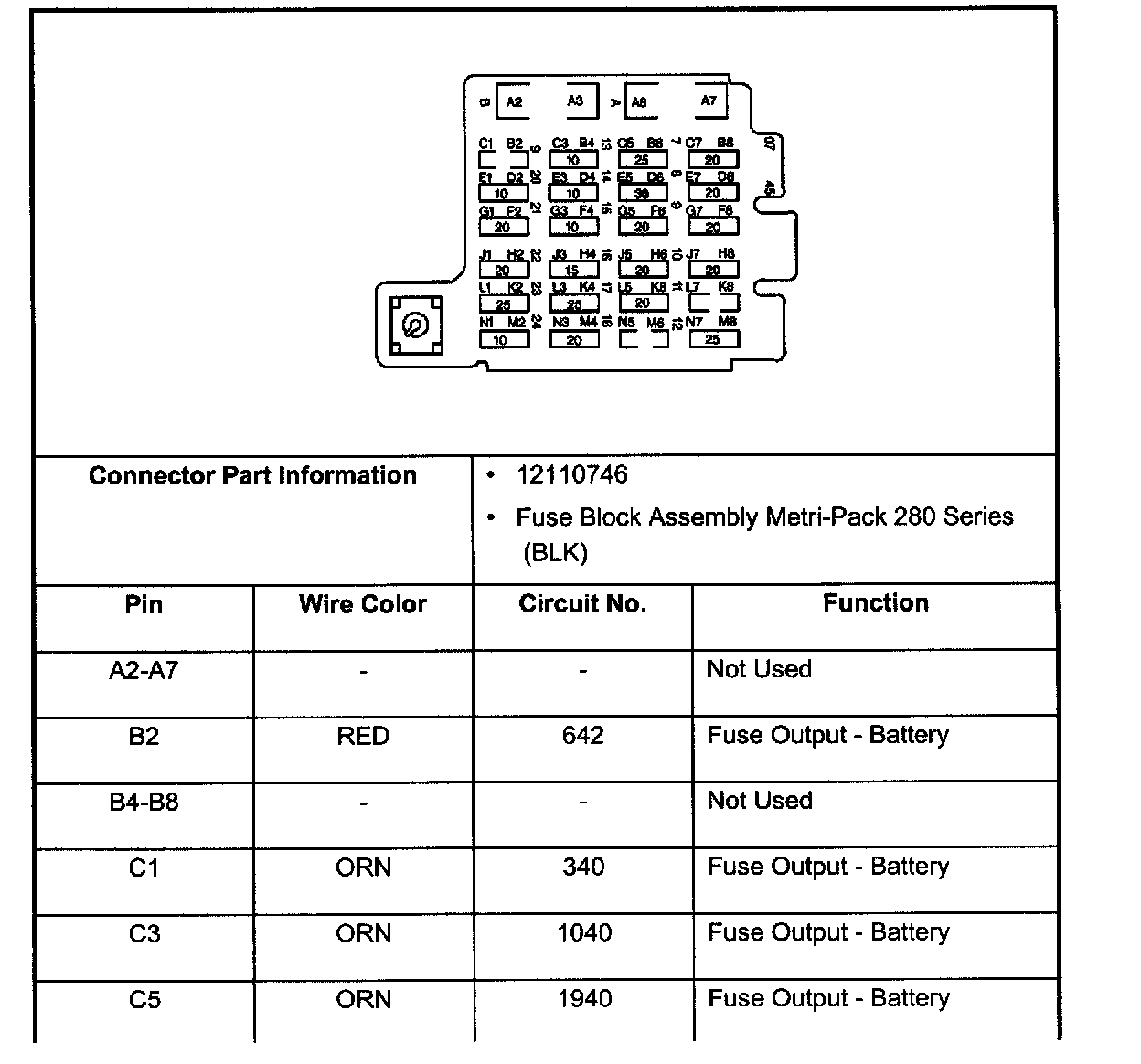

IP Fuse Block:

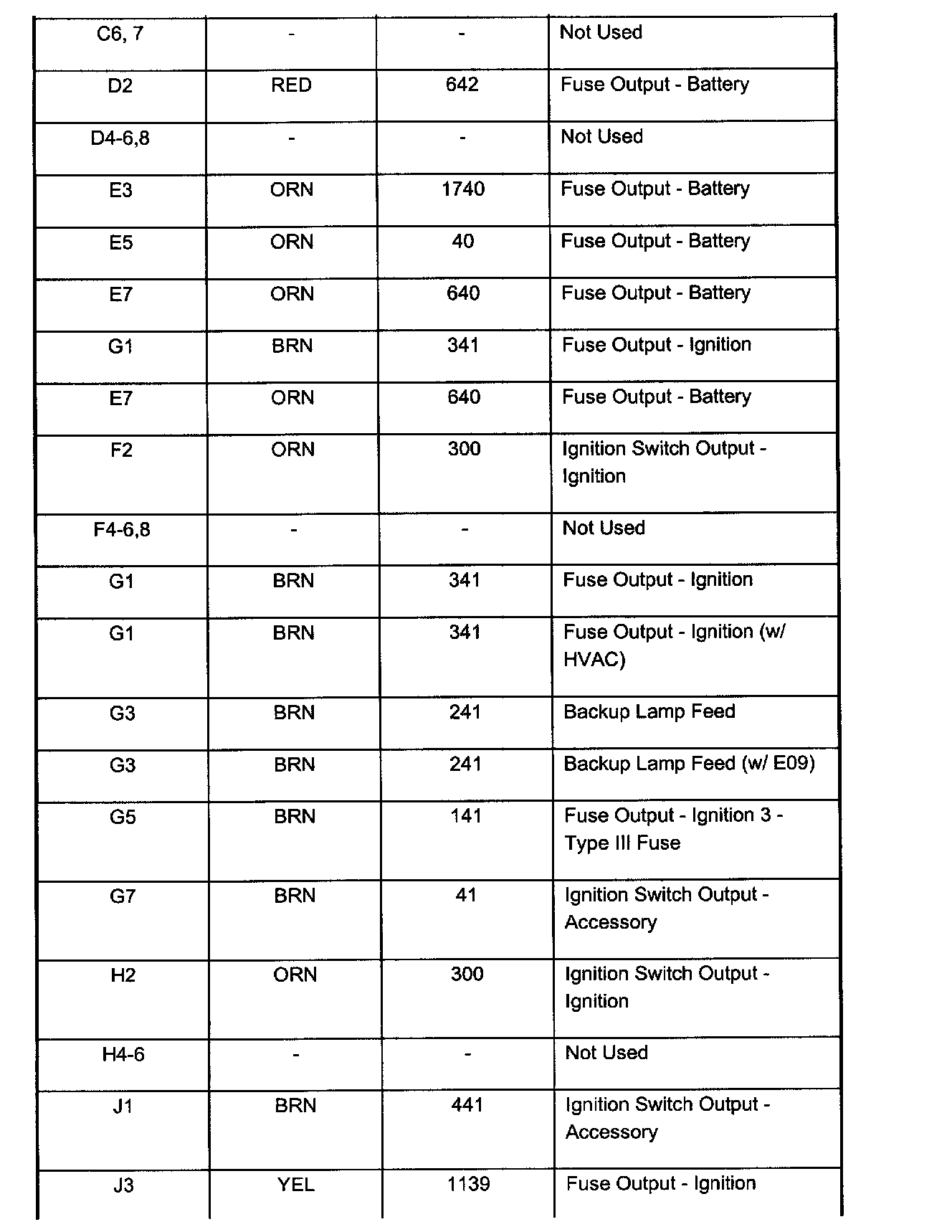

Pin C6 - J3:

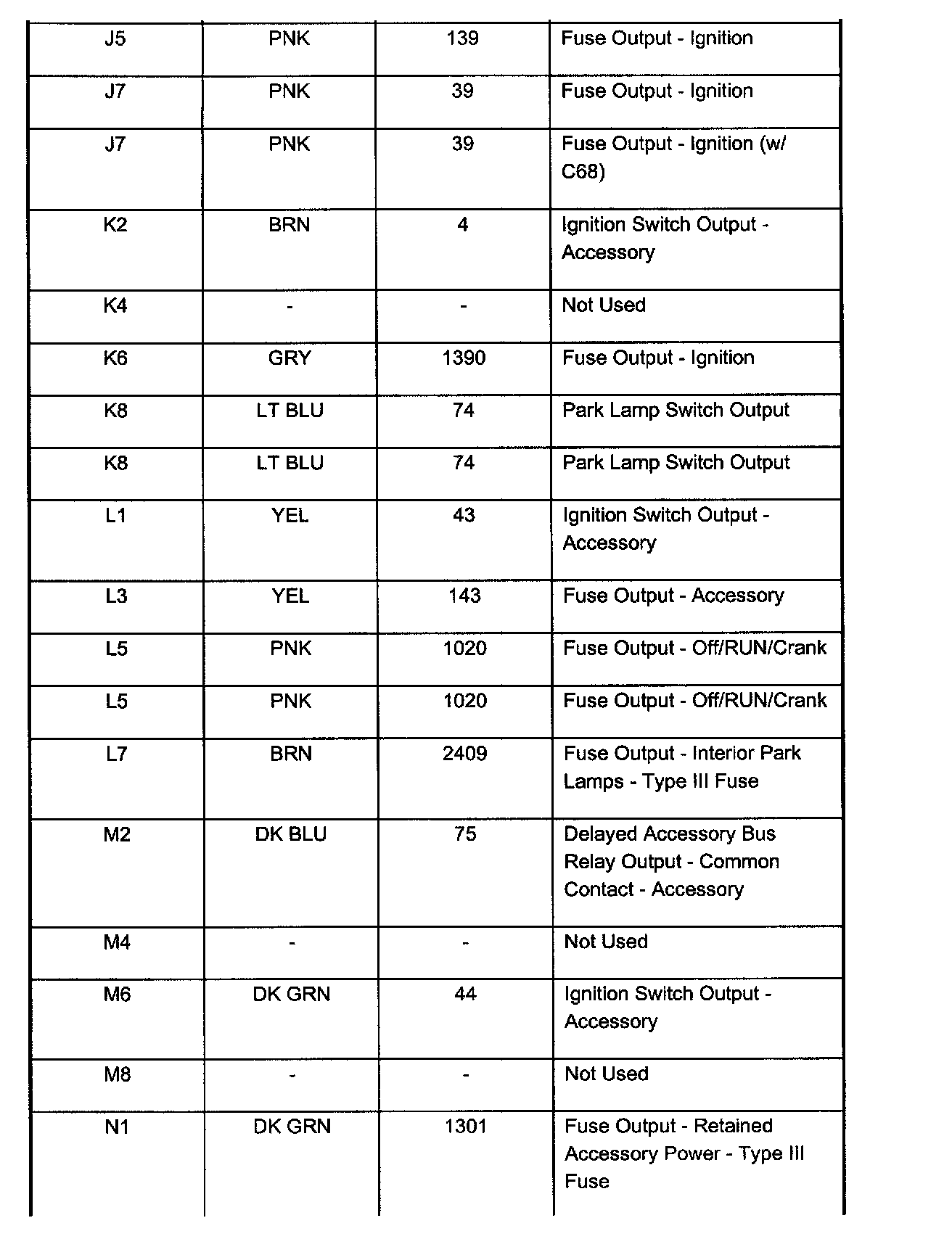

Pin J5 - N1:

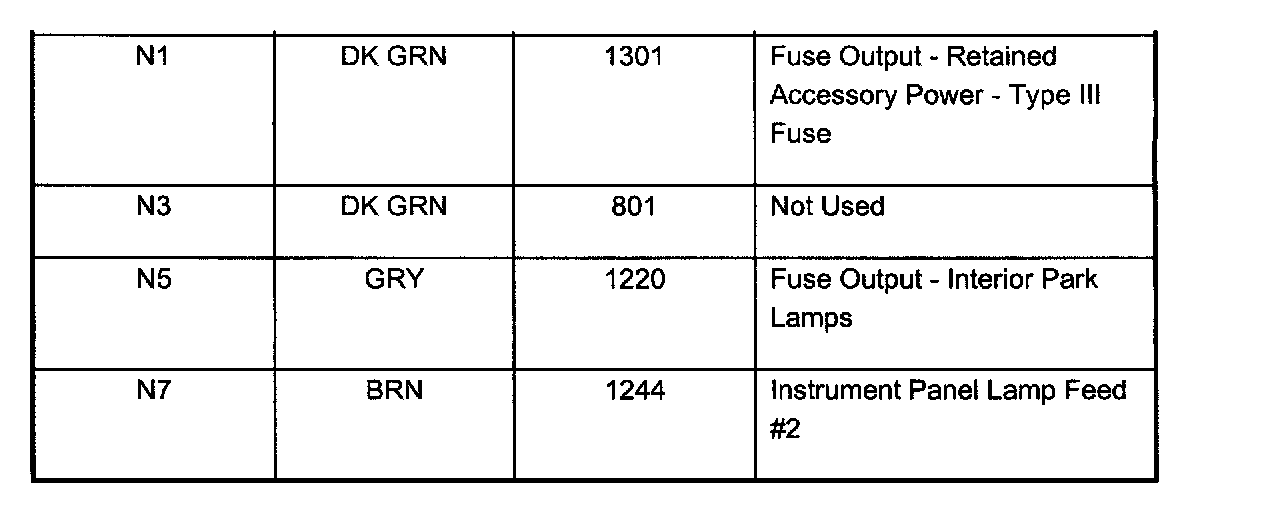

Pin N1 - N7:

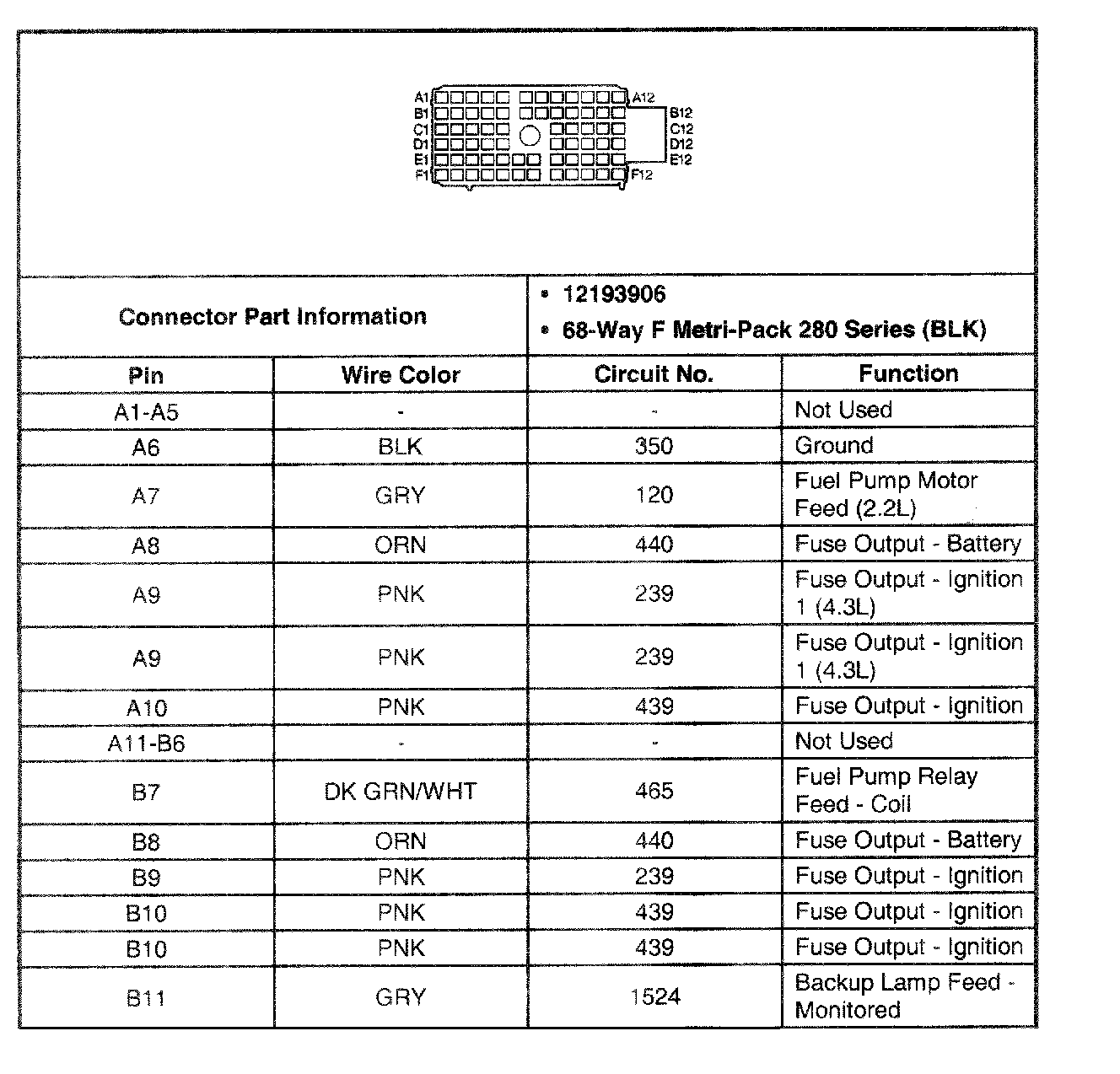

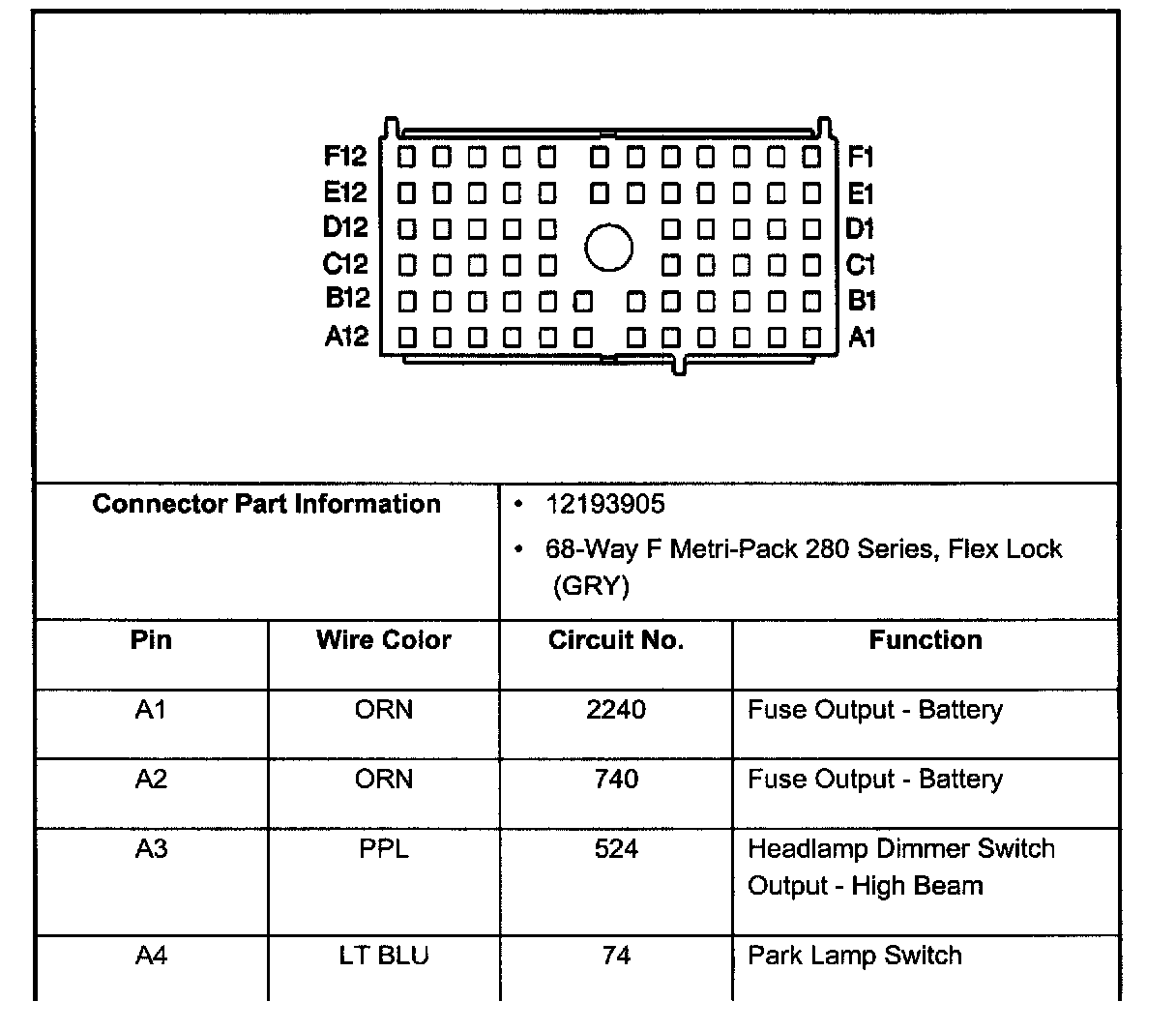

Underhood Fuse Block Connector C1:

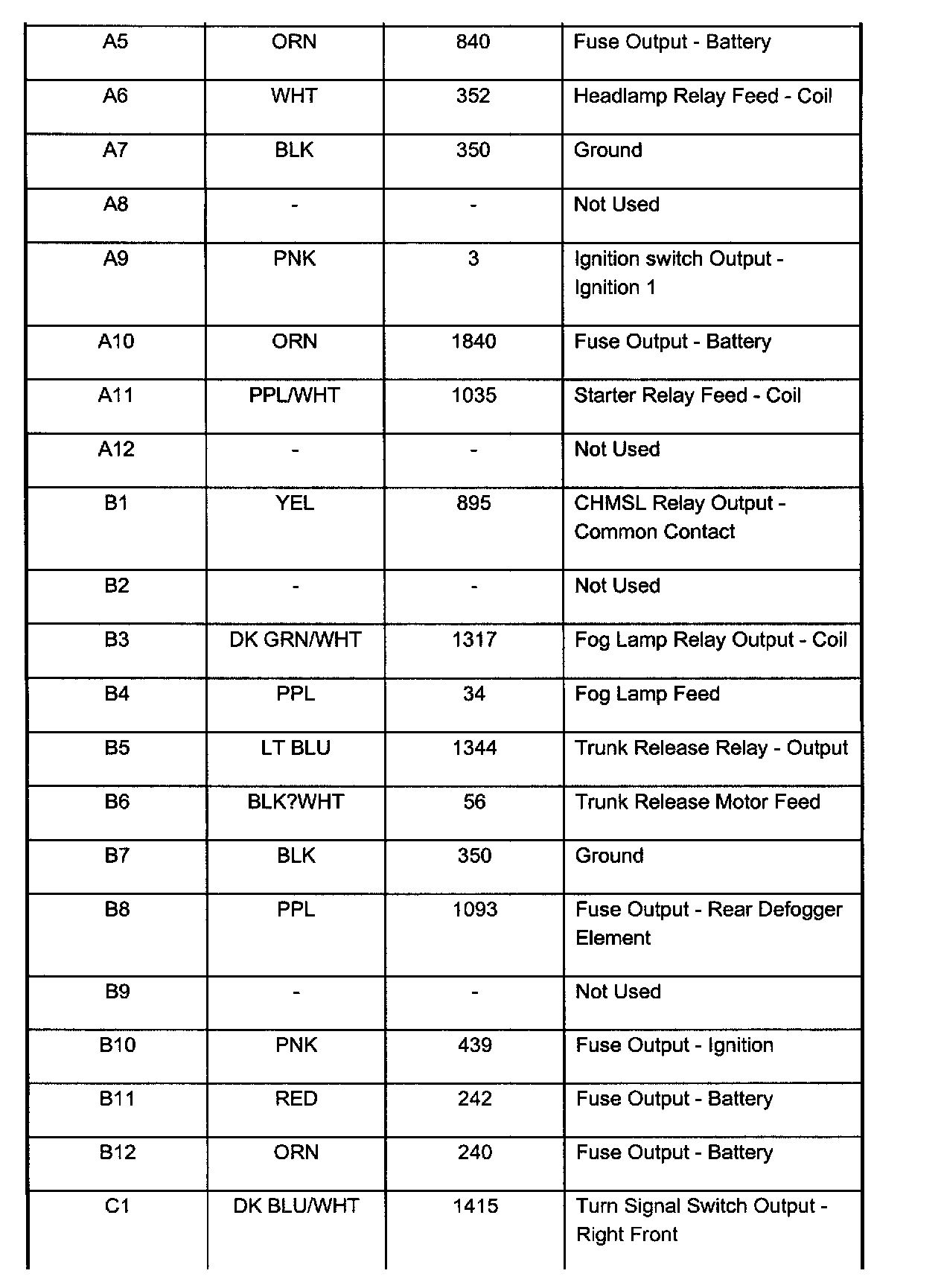

Pin A5 - C1:



Pin C2 - E6:

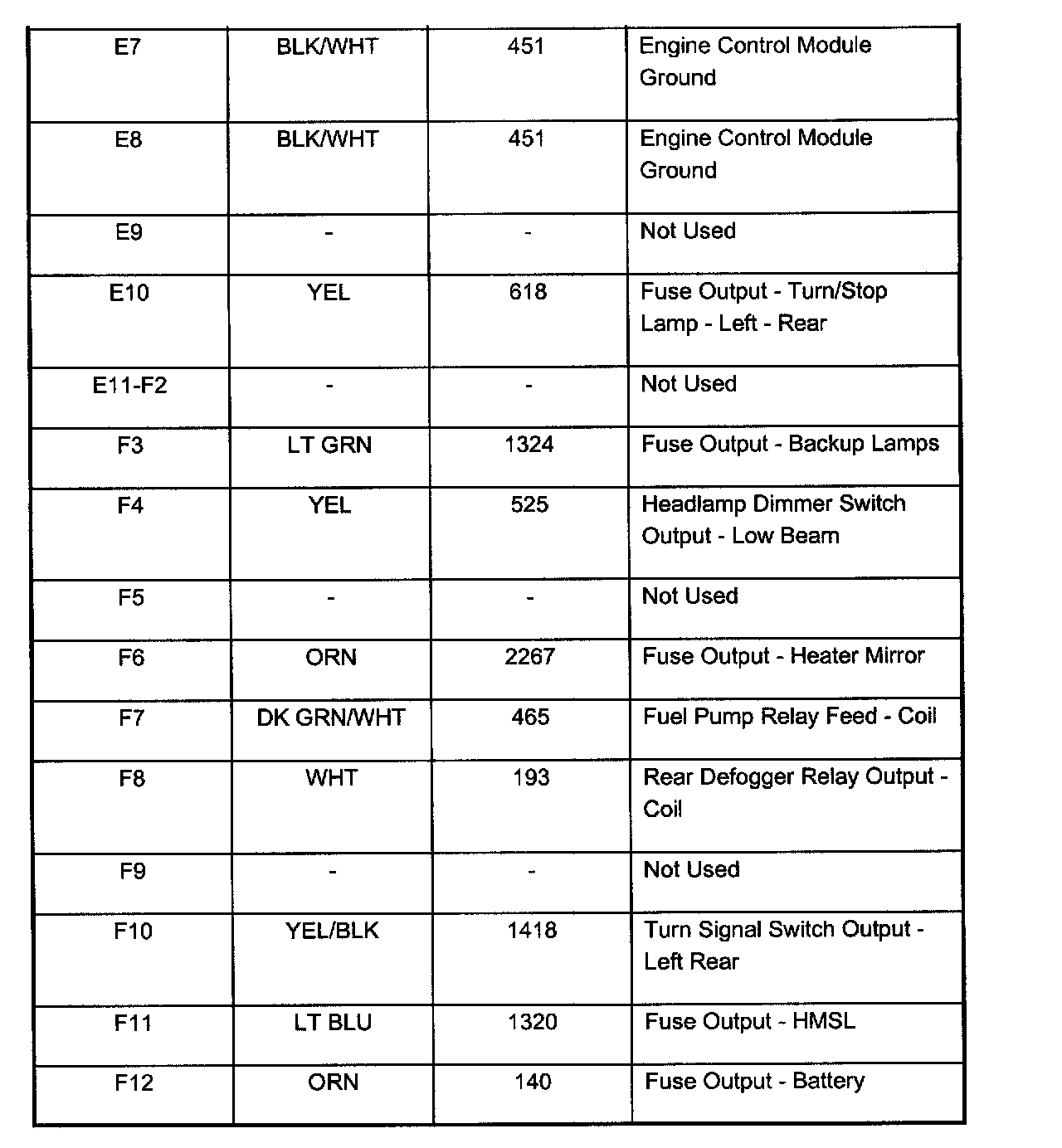

Pin E7 - F12:



Underhood Fuse Block Connector C2:

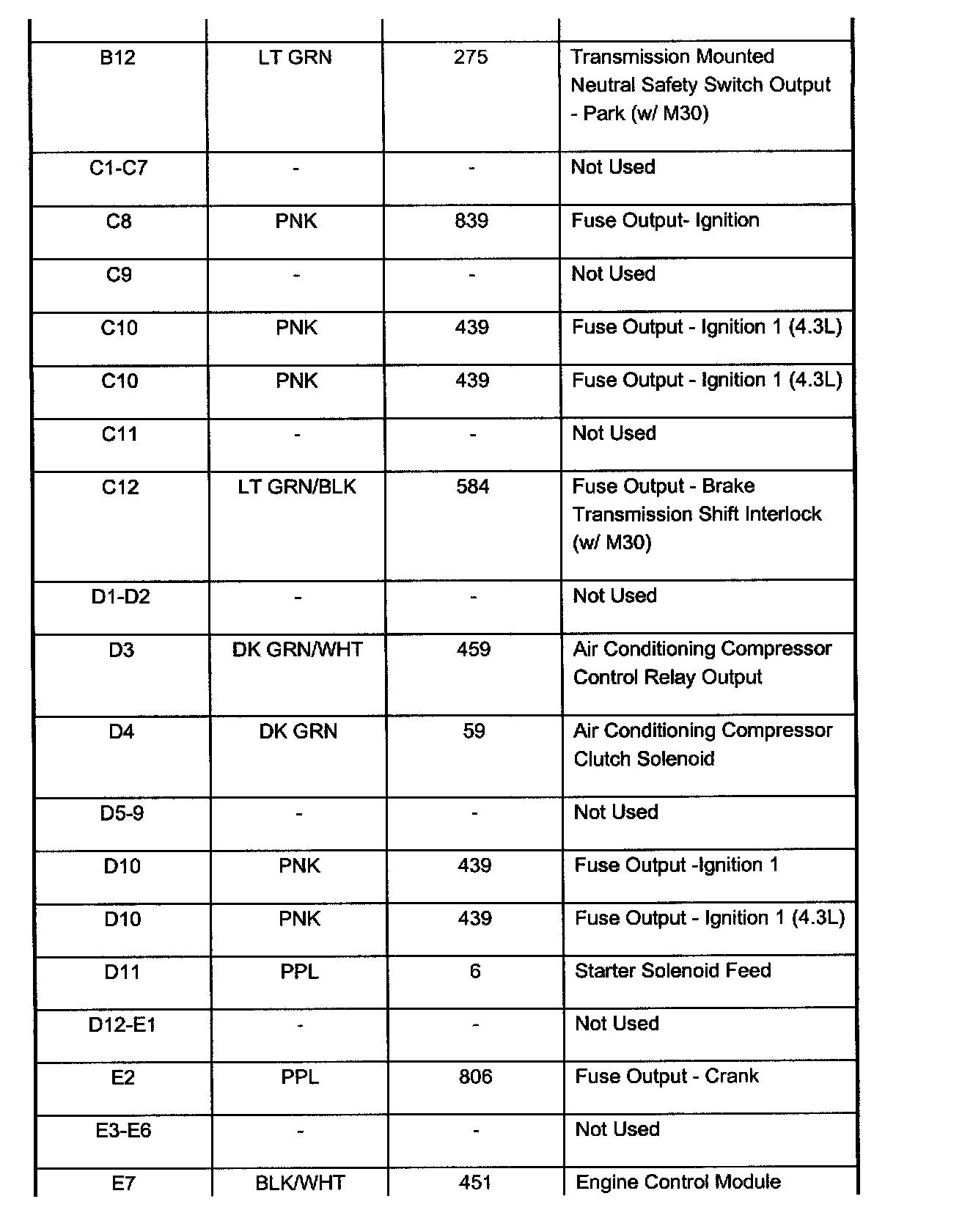

Pin B12 - E7:

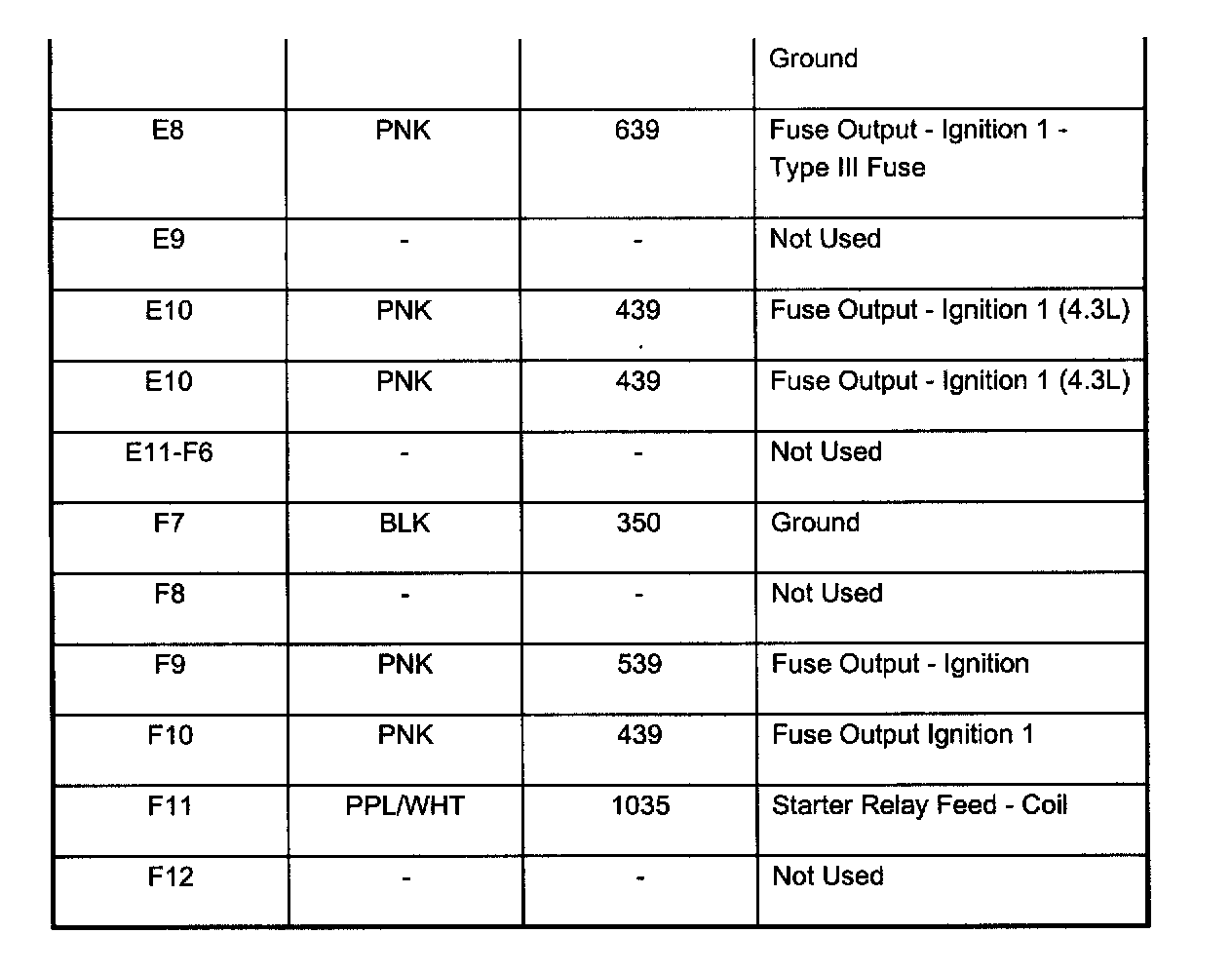

Pin E8 - F12:

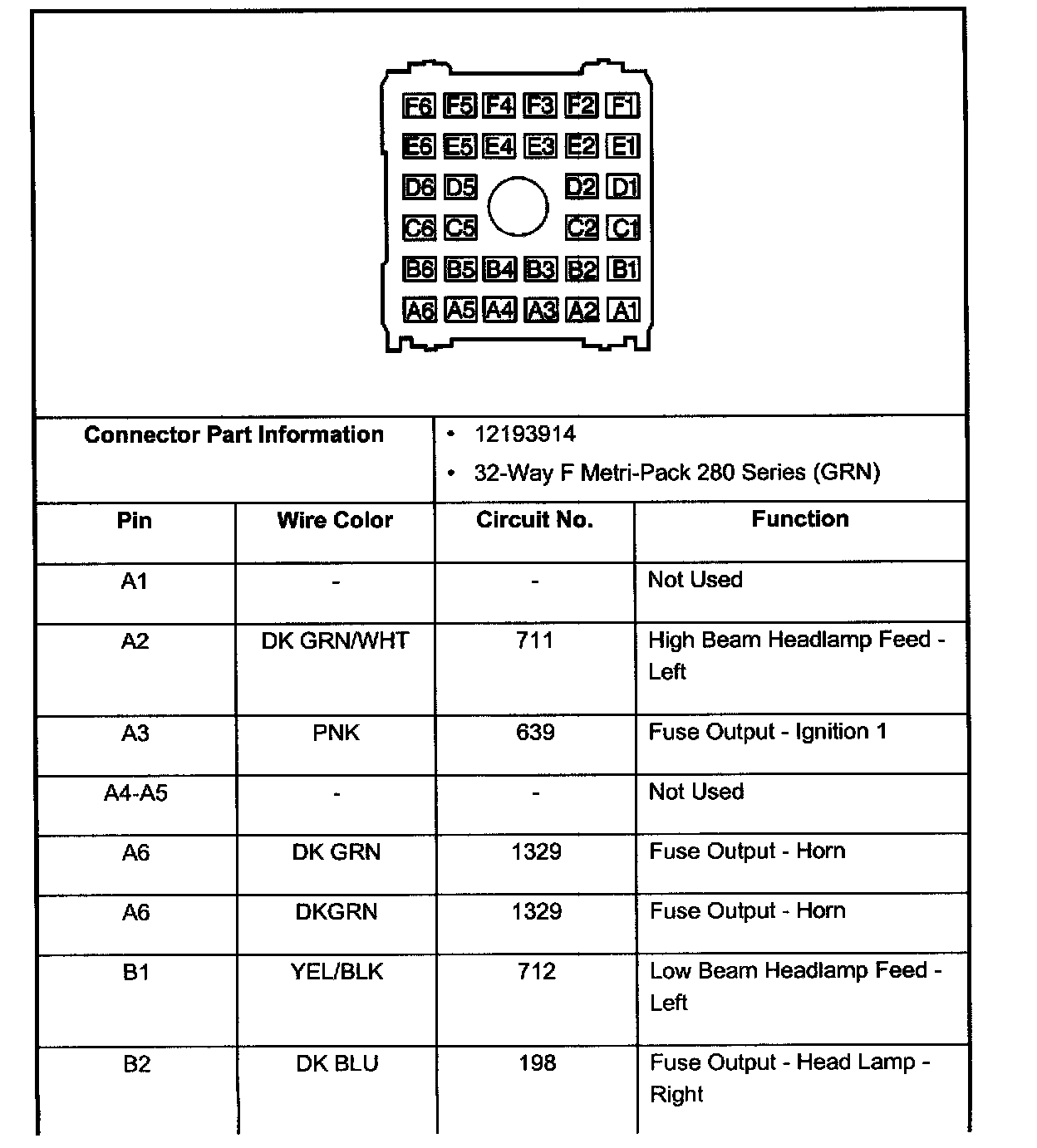

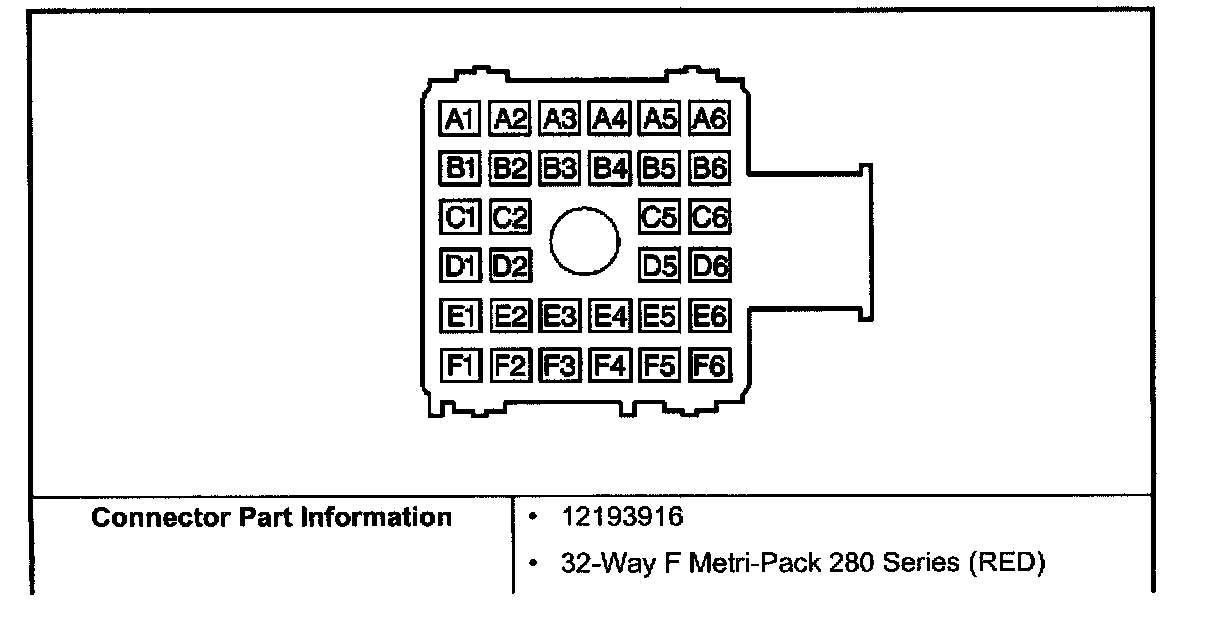

Underhood Fuse Block Connector C3:



Pin A1 - F2:

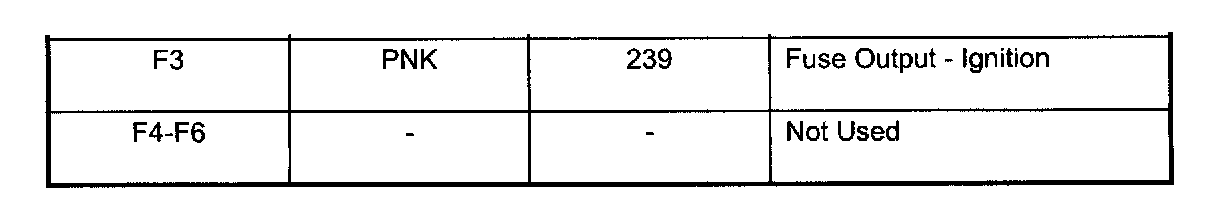

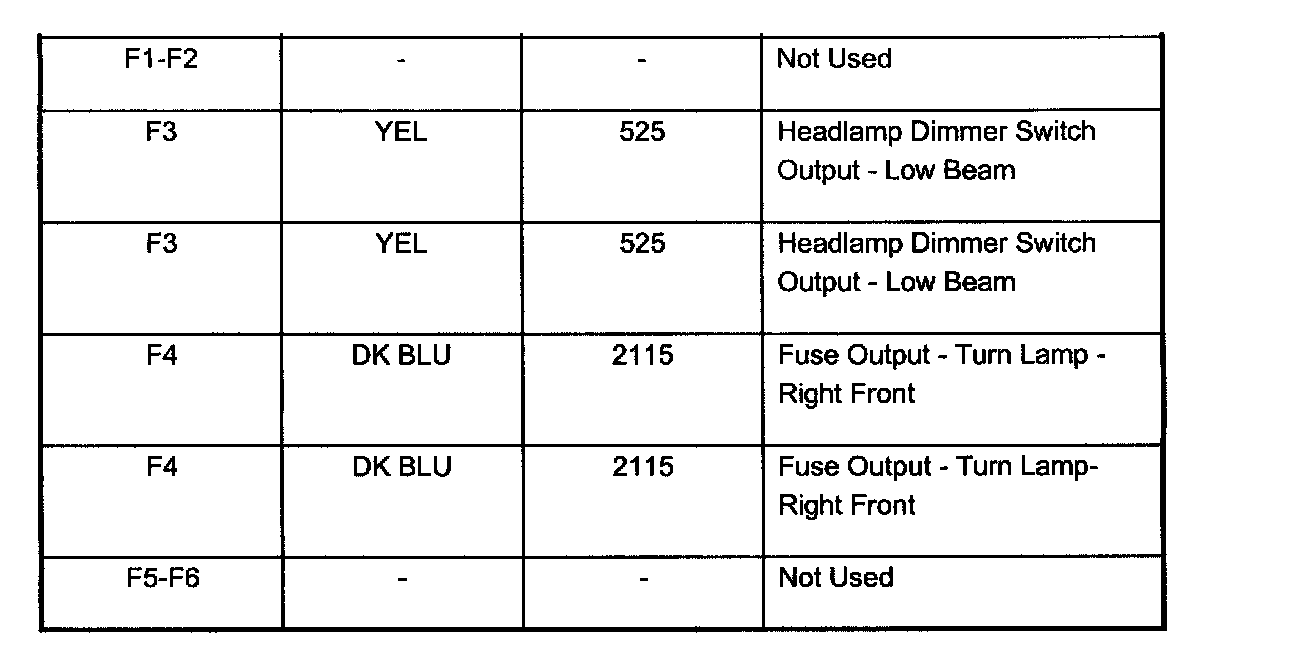

Pin F3 - F6:



Underhood Fuse Block Connector C4:

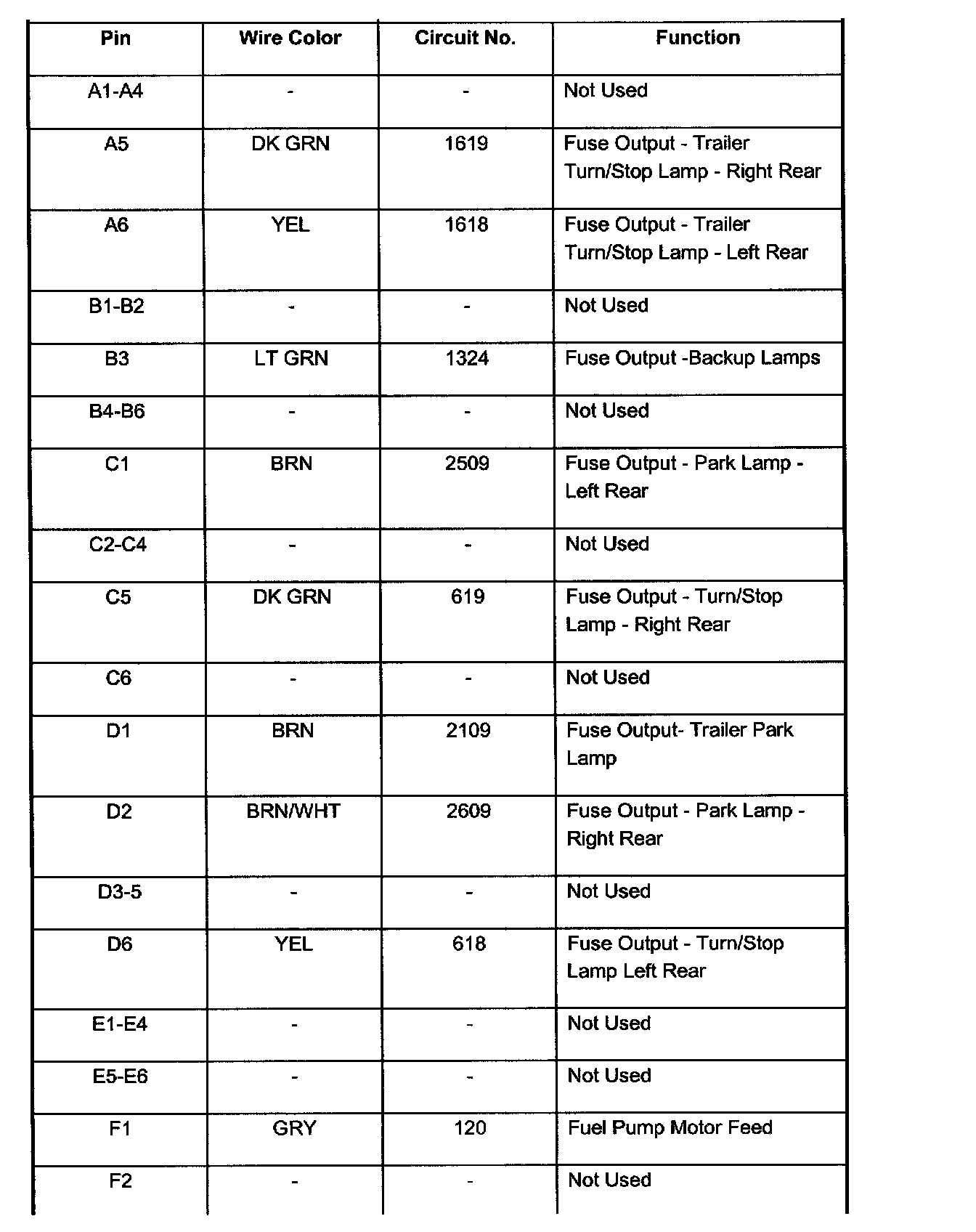

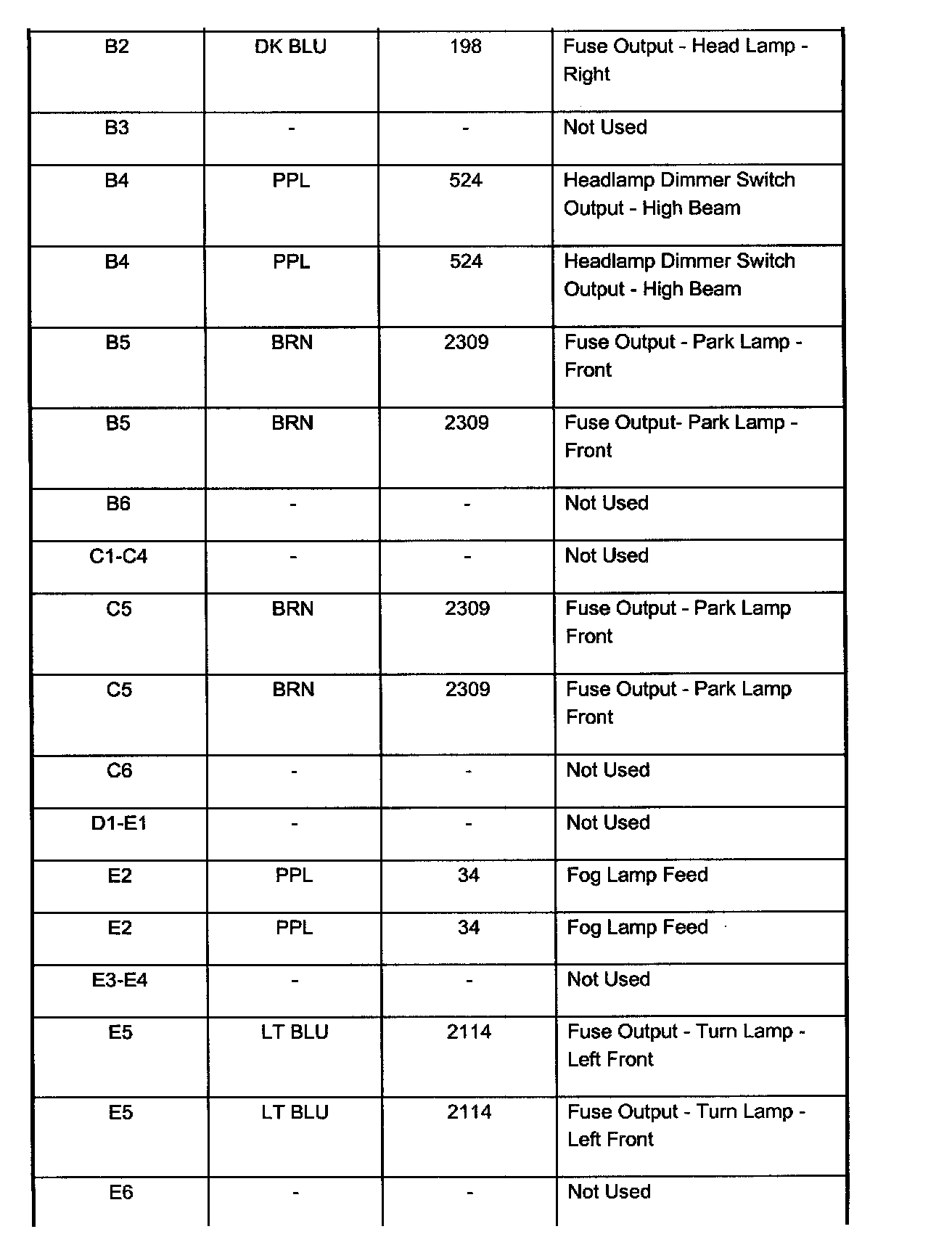

Pin B2 - E6:



Pin F1 - F6:

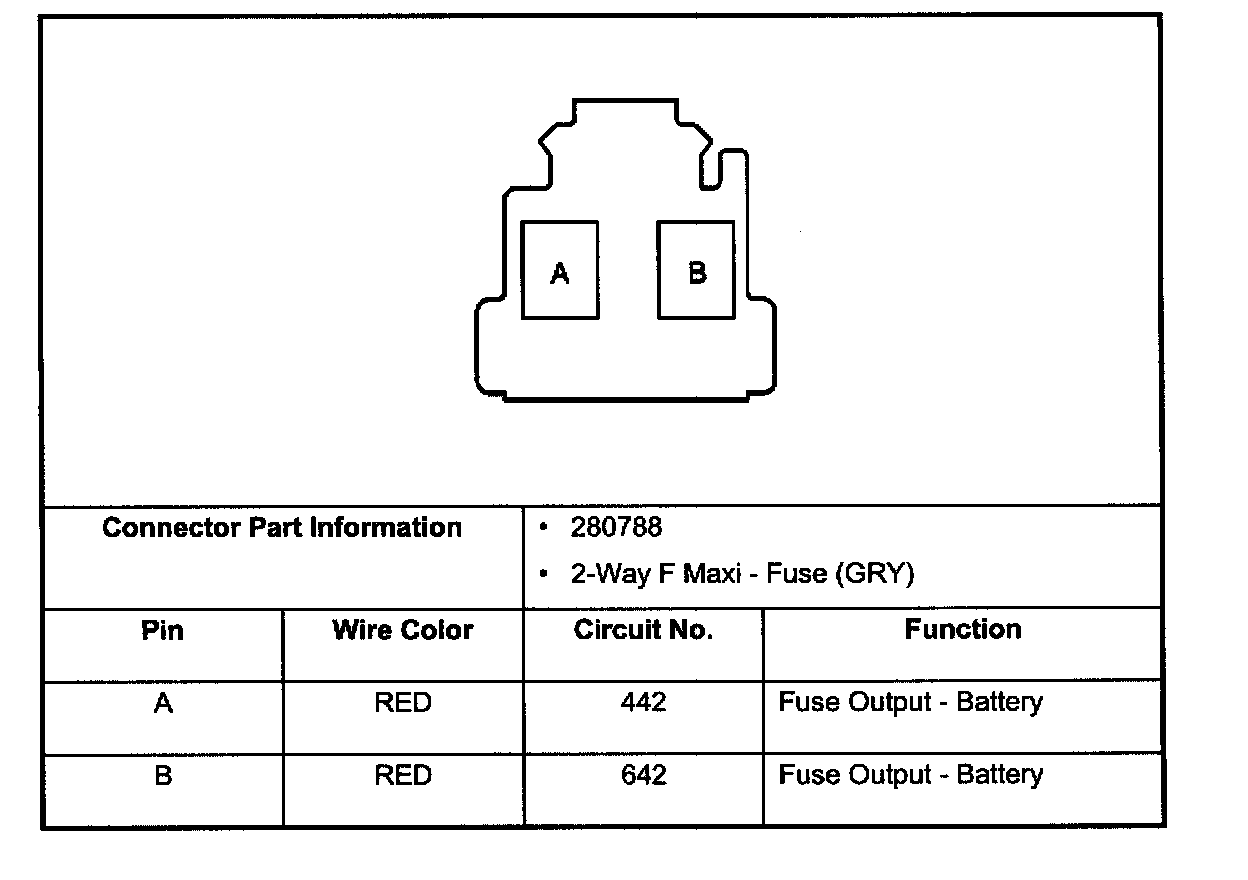

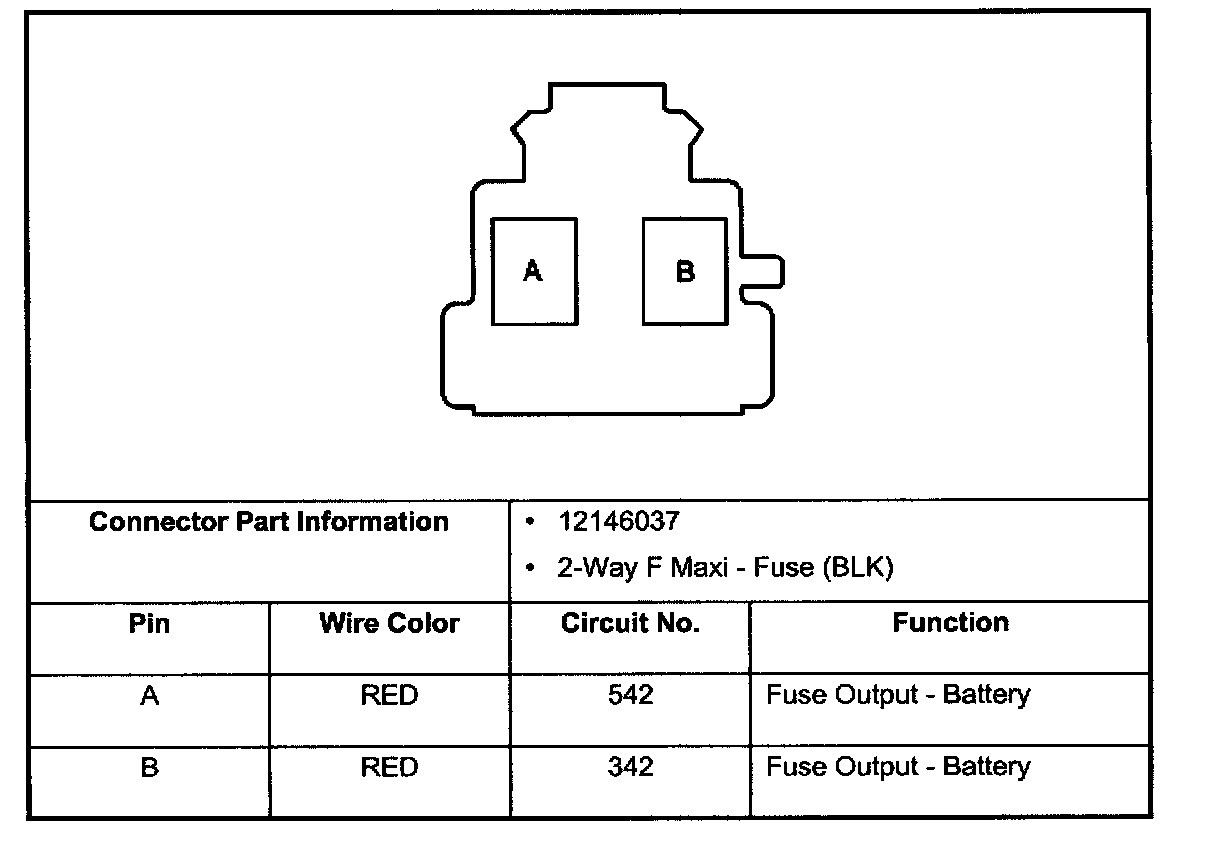

Underhood Fuse Block Connector C5:



Underhood Fuse Block Connector C6:
