Standard Column

Standard Wheel Column/Connector End Views

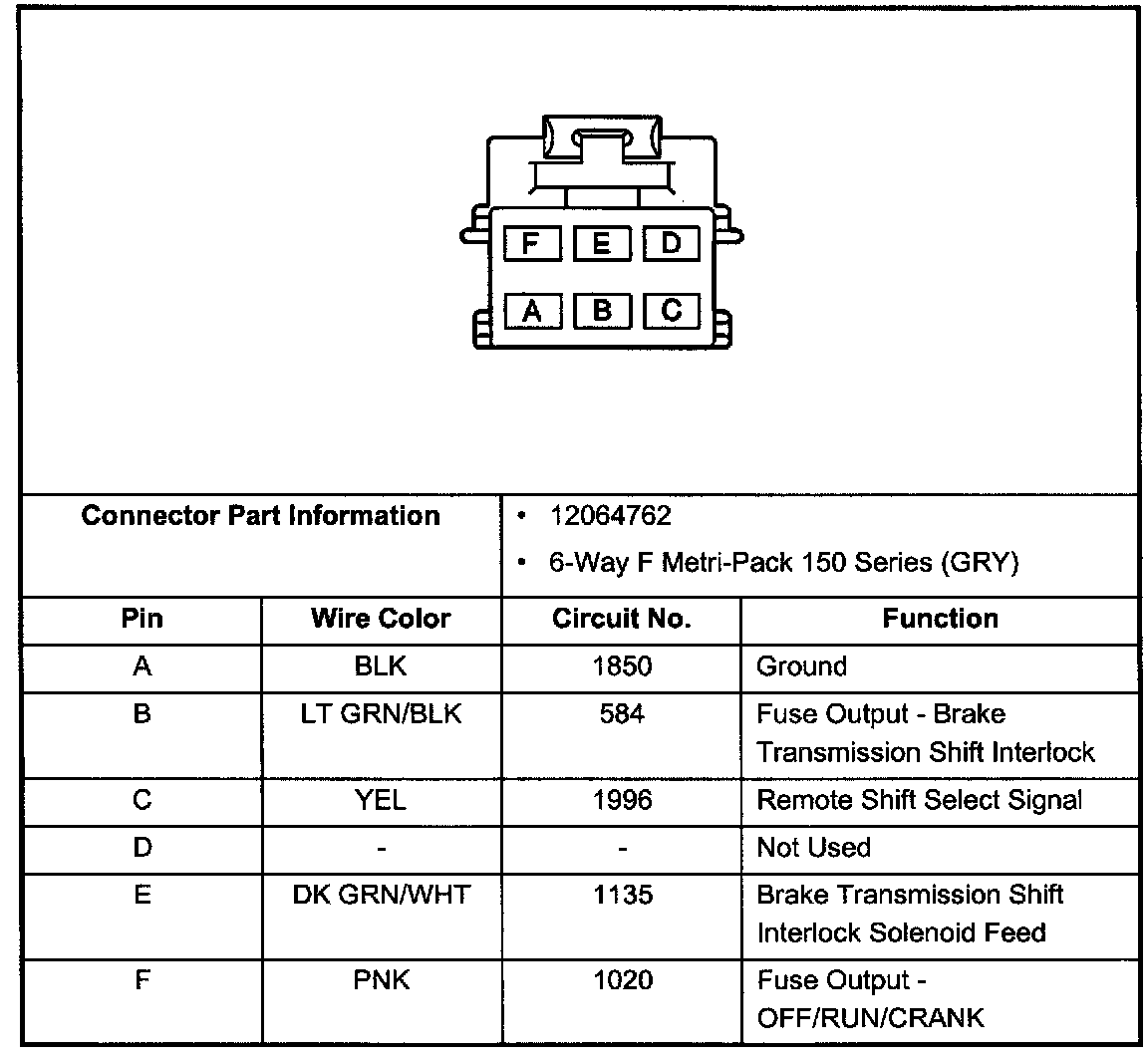

Automatic Transmission Controller (Utility W/ Floor Shift)

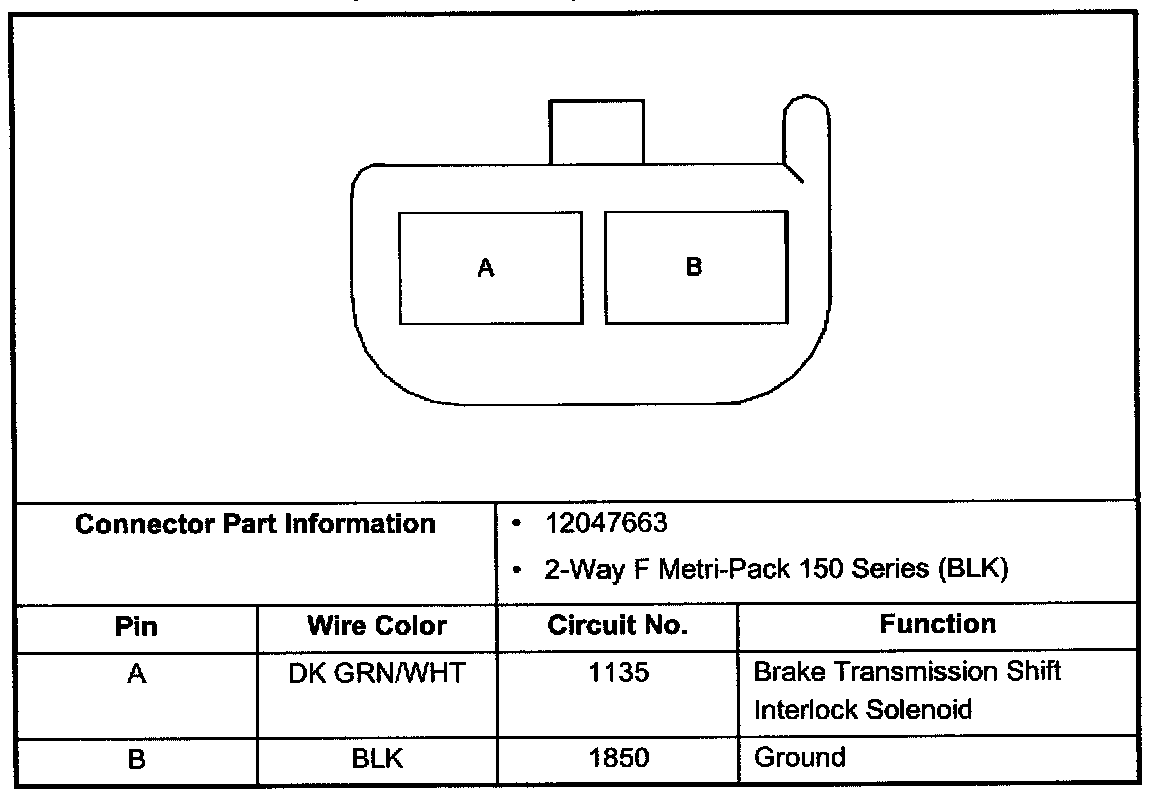

Brake Transmission Shift Interlock (BTSI) Solenoid (Utility W/ Floor Shift)

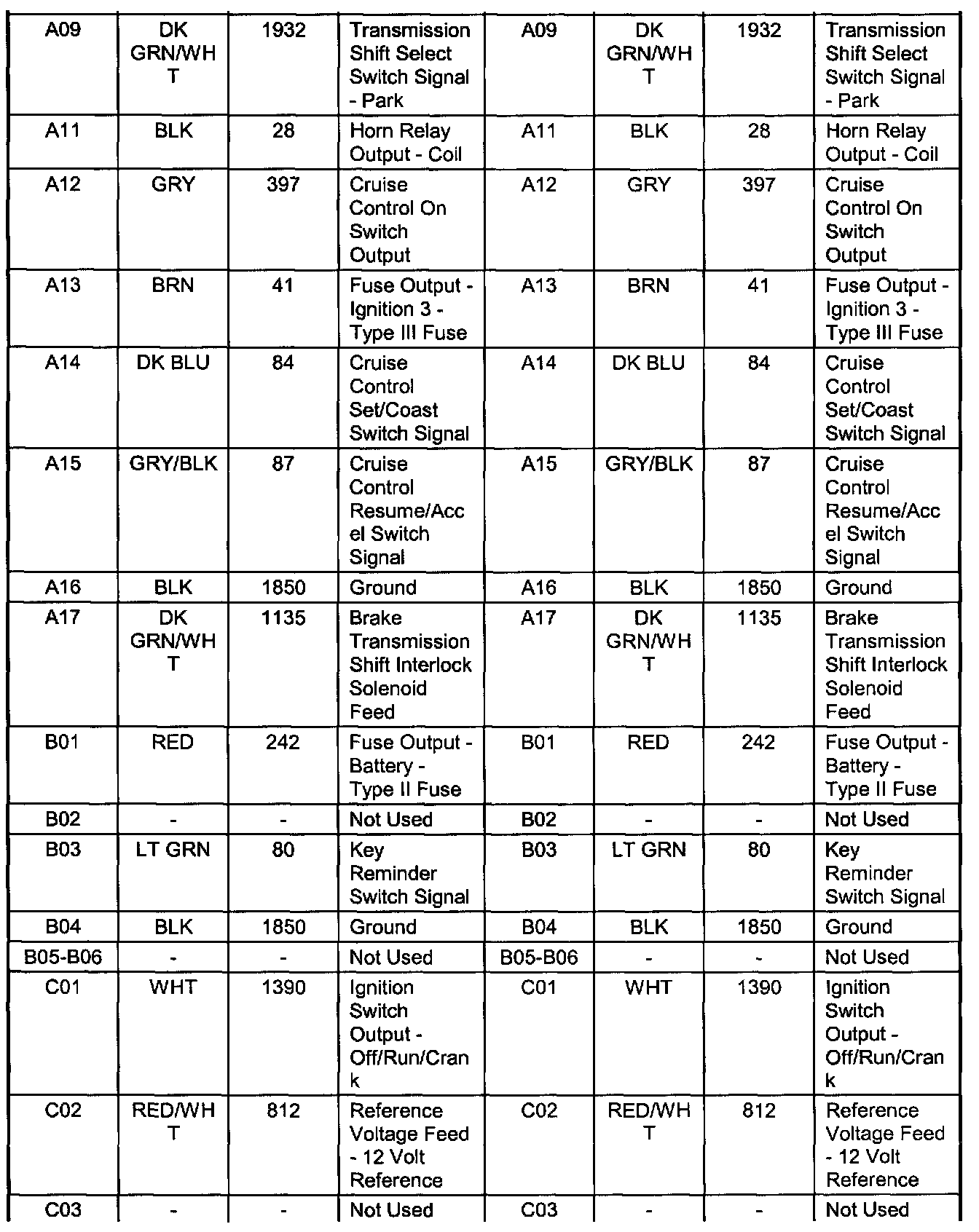

Part 1 Of 4:

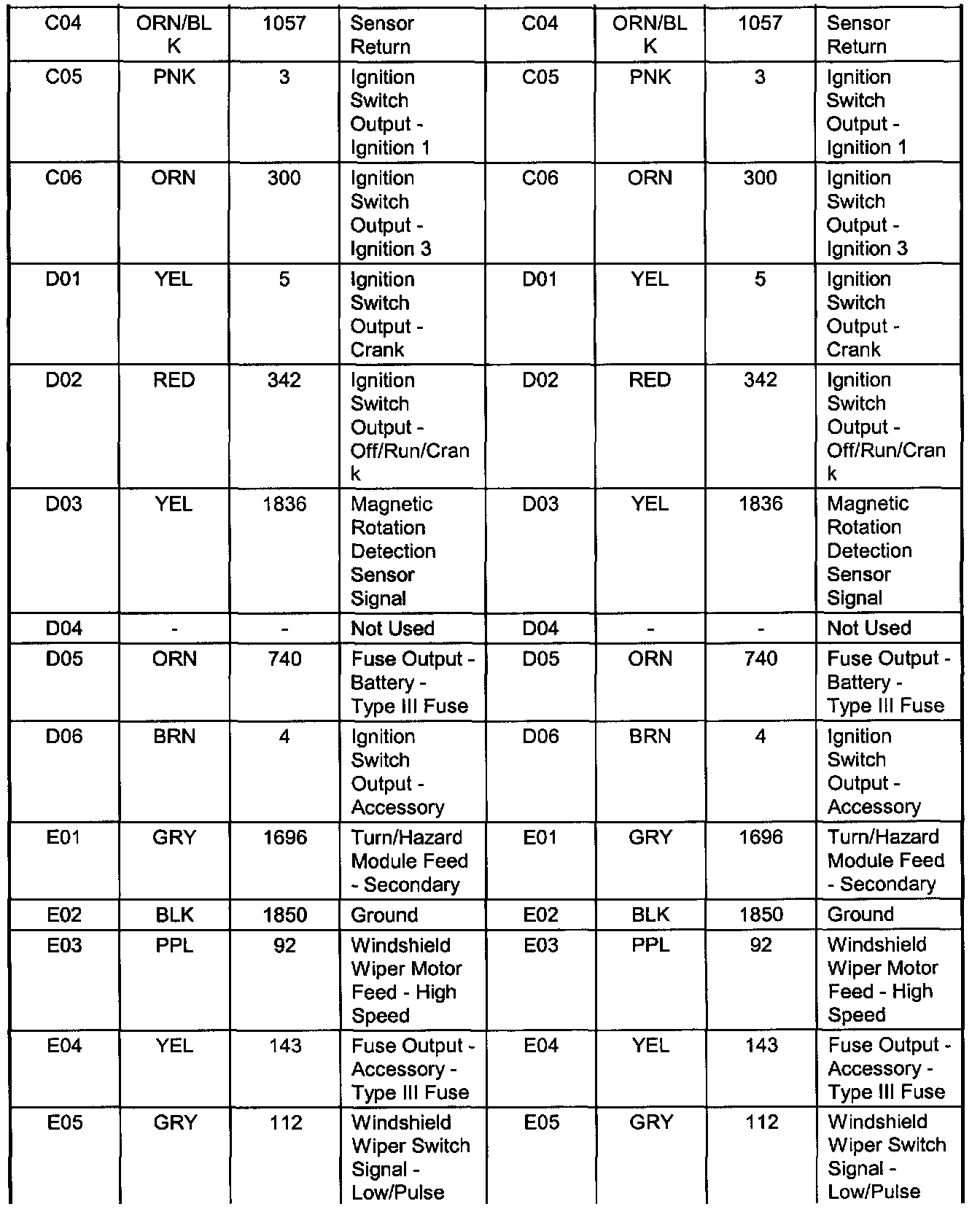

Part 2 Of 4:

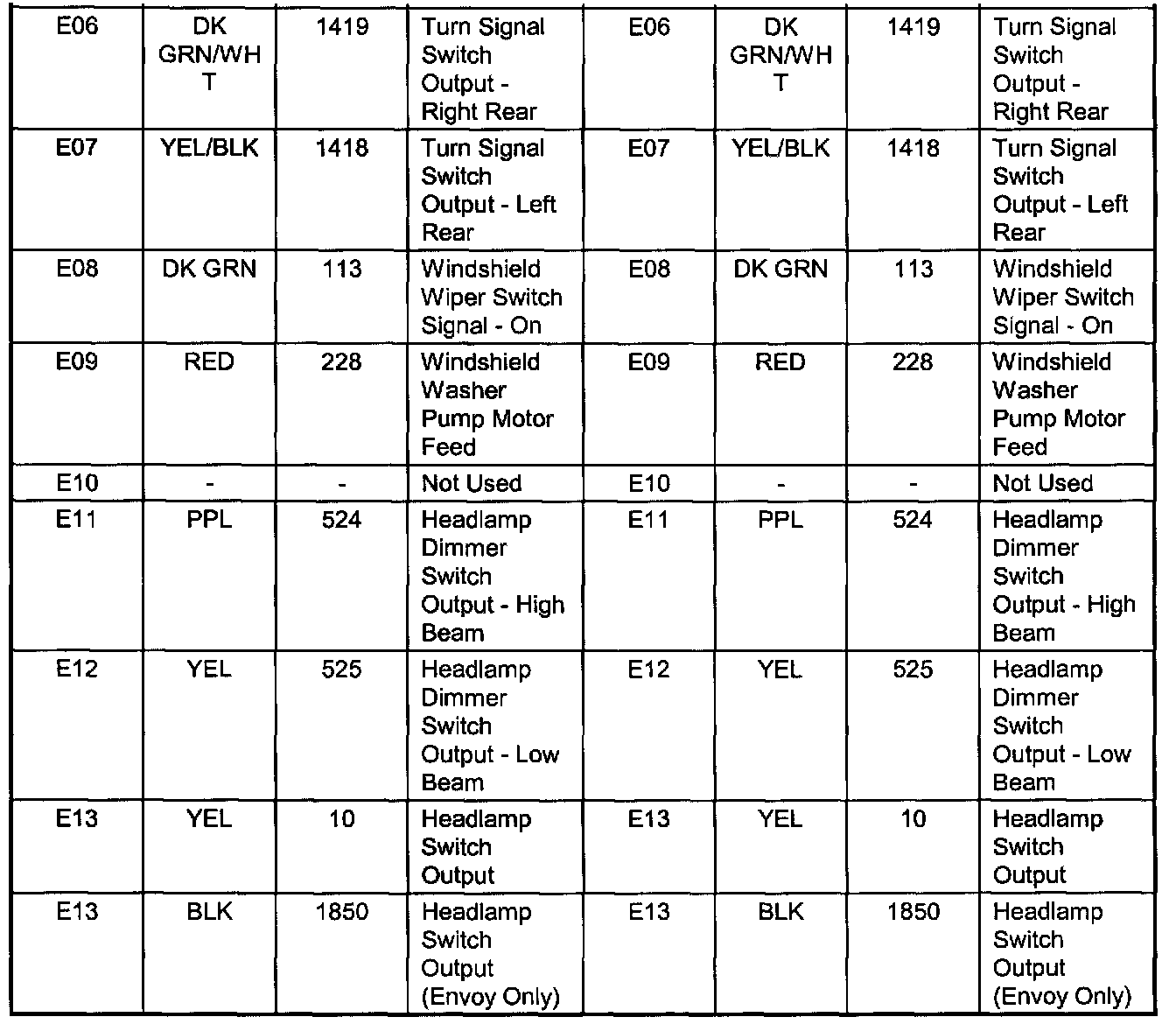

Part 3 Of 4:

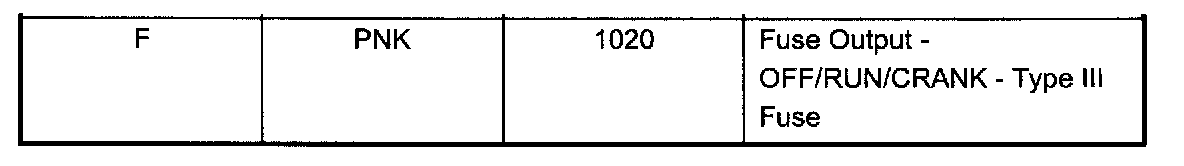

Part 4 Of 4:




C211 (Body Harness to Steering Column Harness 4 Door Utility)

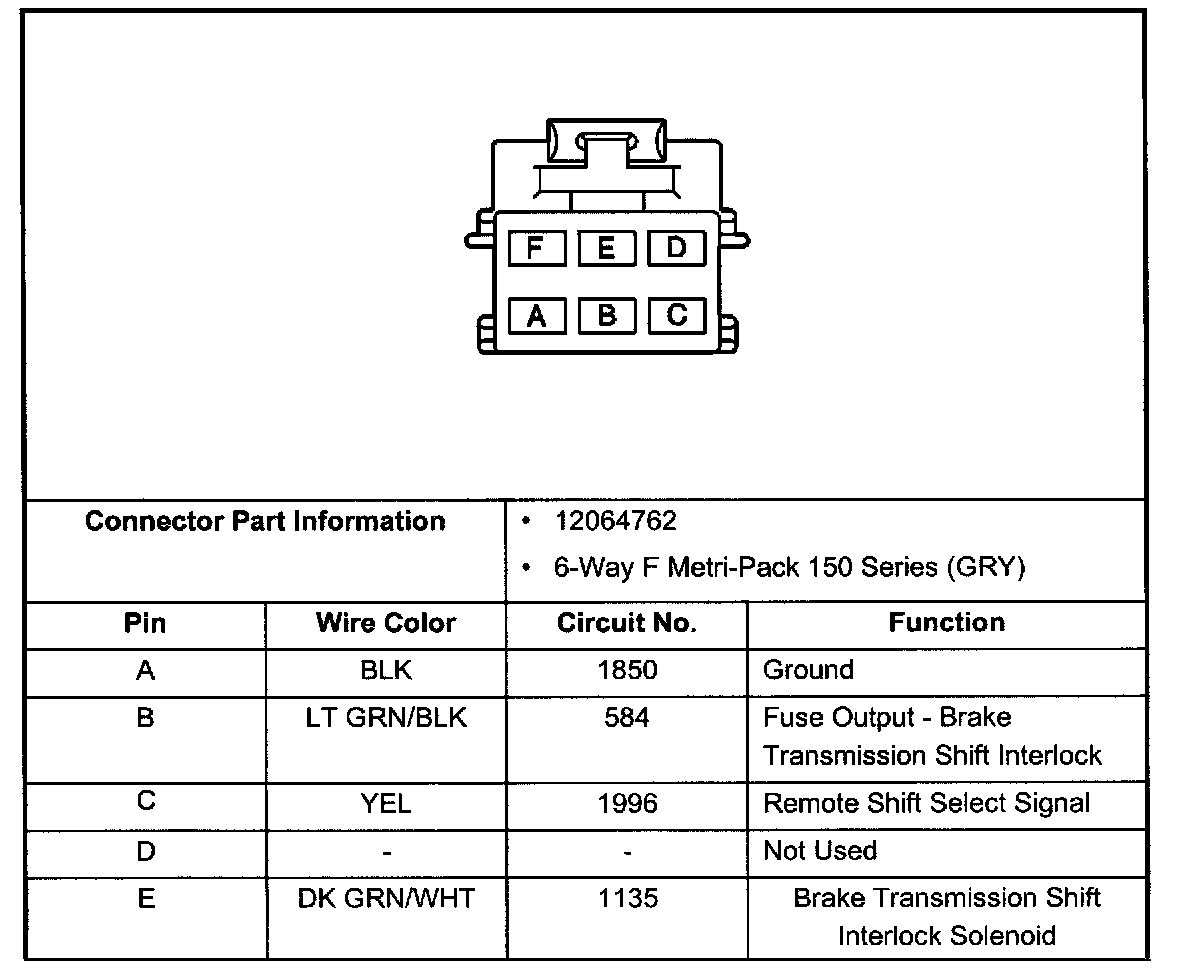

Park Lock Solenoid (W/ Floor Shift)

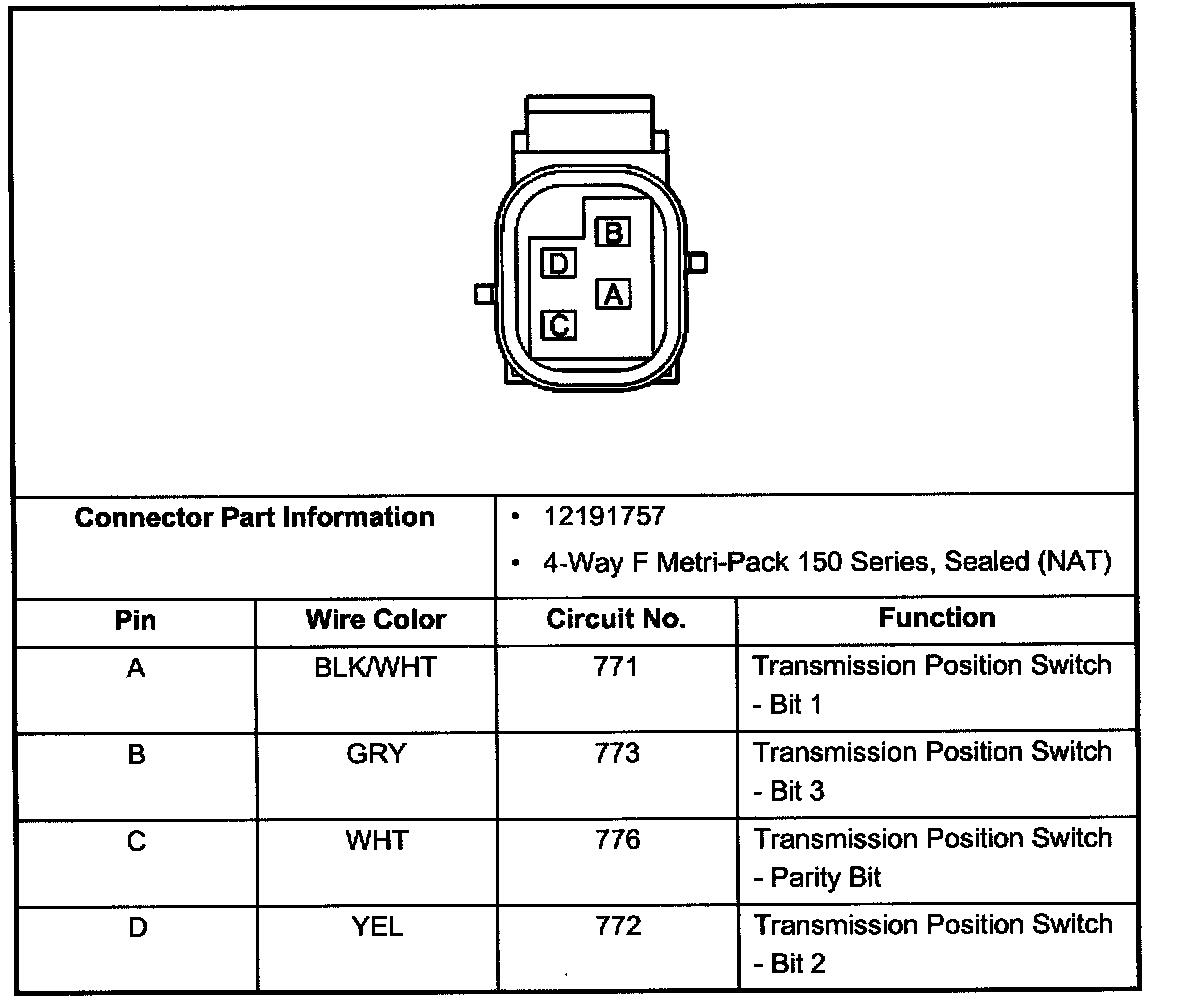

Park/ Neutral Position (PNP) Switch Connector C1




Park/Neutral Position (PNP) Switch Connector C2
