Fluid Pump, A/T

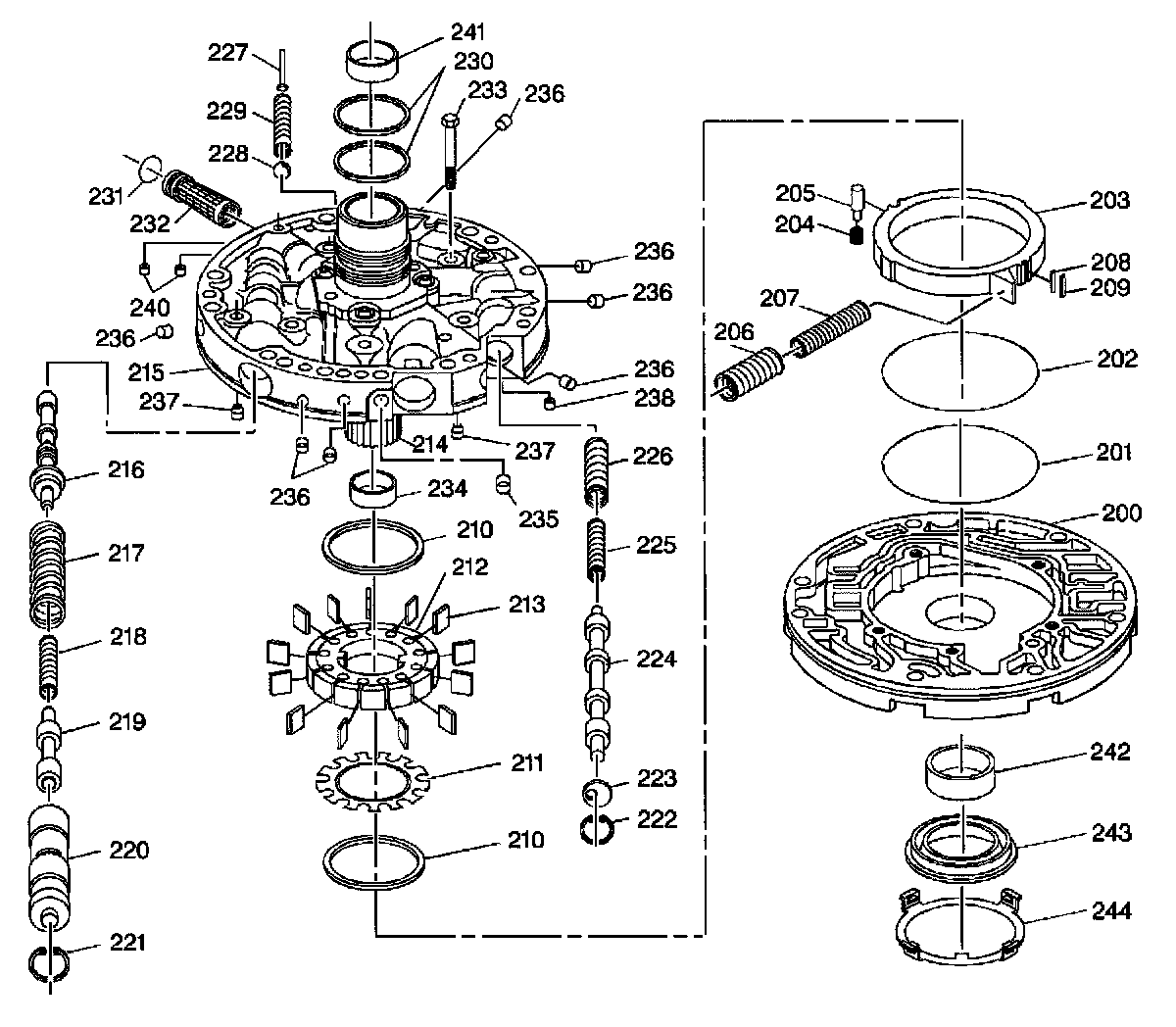

Oil Pump Assembly





(200) Body, Pump
(201) Ring, Oil Seal (Slide to Wear Plate)
(202) Seal, 0-ring (Slide Seal Back-Up)
(203) Slide, Pump
(204) Spring, Pivot Pin
(205) Pin, Pivot Slide
(206) Spring, Pump Slide (Outer)
(207) Spring, Pump Slide (Inner)
(208) Support, Pump Slide Seal
(209) Seal, Pump Slide
(210) Ring, Pump Vane
(211) Guide, Rotor
(212) Rotor, Oil Pump
(213) Vane, Pump
(214) Shaft, Stator
(215) Cover, Pump
(216) Valve, Pressure Regulator
(217) Spring, Pressure Regulator Valve
(218) Spring, Pressure Regulator Isolator
(219) Valve, Reverse Boost
(220) Sleeve, Reverse Boost Valve
(221) Ring, Oil Pump Reverse Boost Valve Retaining
(222) Ring, Oil Pump Converter Clutch Valve Retaining
(223) Valve, Stop
(224) Valve, Converter Clutch
(225) Spring, Converter Clutch Valve (Inner)
(226) Spring, Converter Clutch Valve (Outer)
(227) Rivet, Pressure Relief Bolt
(228) Bell, Pressure Relief
(229) Spring Pressure Relief
(230) Ring, Oil Seal (Stator Shaft)
(231) Seal, Oil Pump Cover Screen
(232) Seal, Oil Pump Cover
(233) Bolt, M8 x 1.25 x 40 (Cover to Body)
(234) Bushing, Stator Shaft (Front)
(235) Plug, Oil Pump Cover (FWD Clutch Feed)
(236) Plug, Oil Pump Cover
(237) Retainer and Ball Assembly, Check Valve
(238) Orifice, Converter Clutch Signal (Cup Plug)
(240) Plug, Cup Orifice
(241) Bushing, Stator Shaft (Rear)
(242) Bushing, Pump Body
(243) Seal Assembly, Oil
(244) Retainer, Front Helix
