Steering Gear

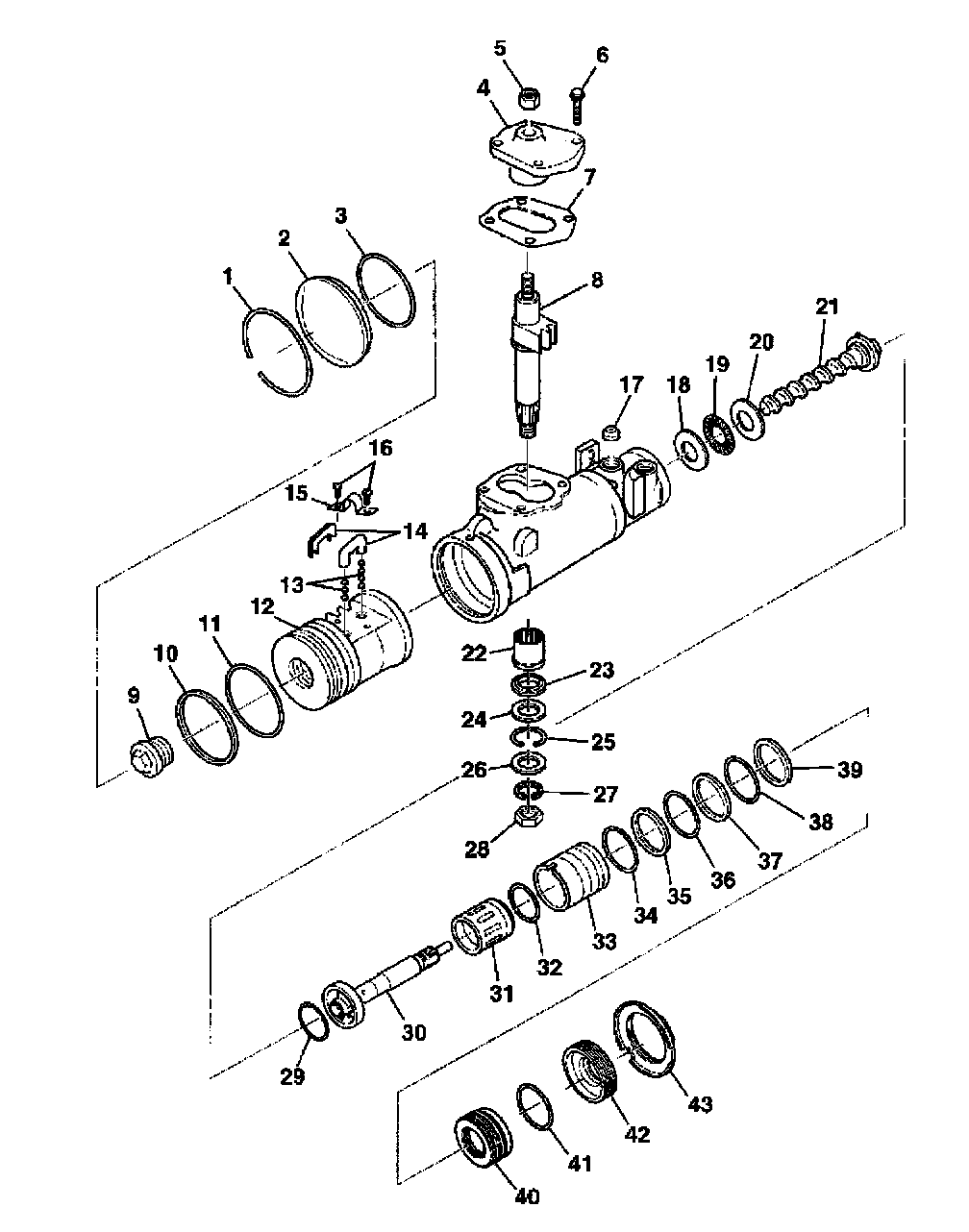

Power Steering Gear - Disassembled View

Right Hand Power Steering Gear





Legend

(1) Retaining Plug
(2) Plug
(3) 0-ring Seal
(4) Side Cover
(5) Adjuster Lock Nut
(6) Bolt
(7) Gasket
(8) Pitman Shaft
(9) Steering Gear Housing End Plug
(10) Teflon Ring
(11) 0-ring Seal
(12) Rack Piston
(13) Balls
(14) Ball Guide
(15) Clamp
(16) Screw
(17) Check Valve
(18) Flat Race
(19) Thrust Bearing
(20) Flat Race
(21) Worm Shaft
(22) Needle Bearing
(23) Pitman Shaft Seal
(24) Backup Washer
(25) Retaining Ring
(26) Dust Seal
(27) Lock Washer
(28) Nut
(29) Seal
(30) Stub Shaft
(31) Valve Spool
(32) Seal
(33) Valve Body
(34) Valve Body 0-ring Seal
(35) Ring
(36) Valve Body 0-ring Seal
(37) Ring
(38) Valve Body 0-ring Seal
(39) Ring
(40) Thrust Support Assembly
(41) 0-ring Seal
(42) Adjuster Nut Assembly
(43) Coupling Shield Retainer and Lock Nut
