Without A/C

Control Assembly Replacement

Removal Procedure
1. Remove the Instrument panel accessory trim plate.

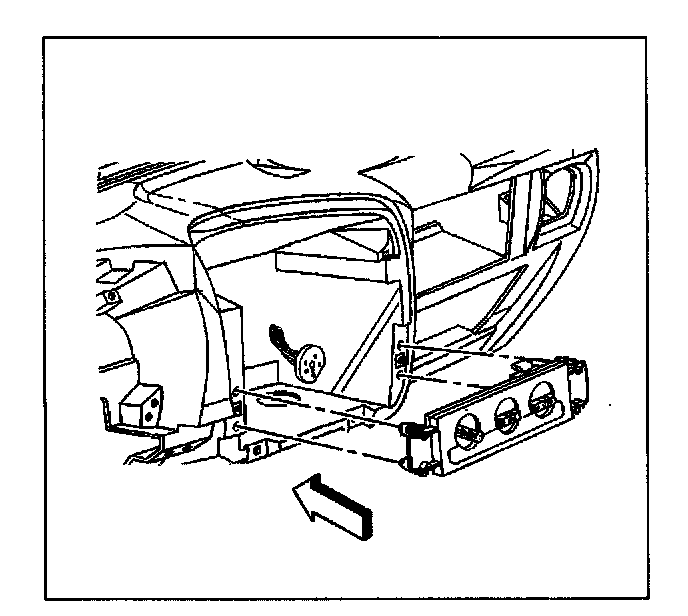

2. Remove the control assembly screws.




3. Remove the control assembly.

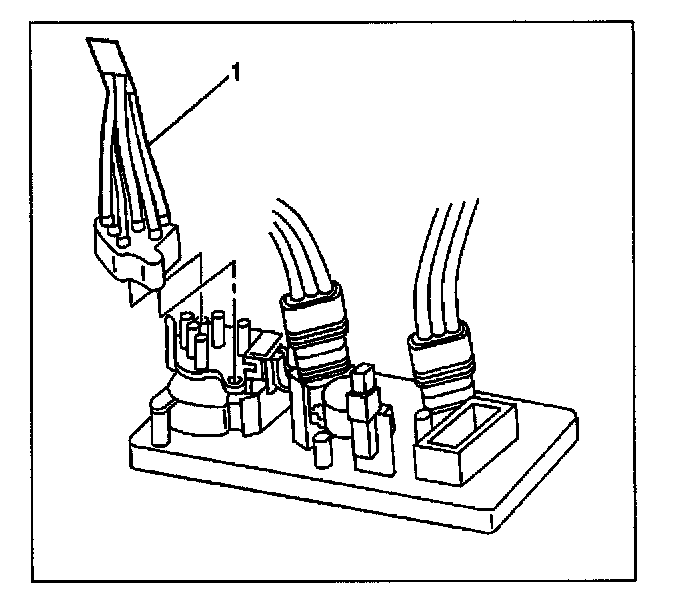

4. Disconnect the vacuum connectors, as necessary (1).

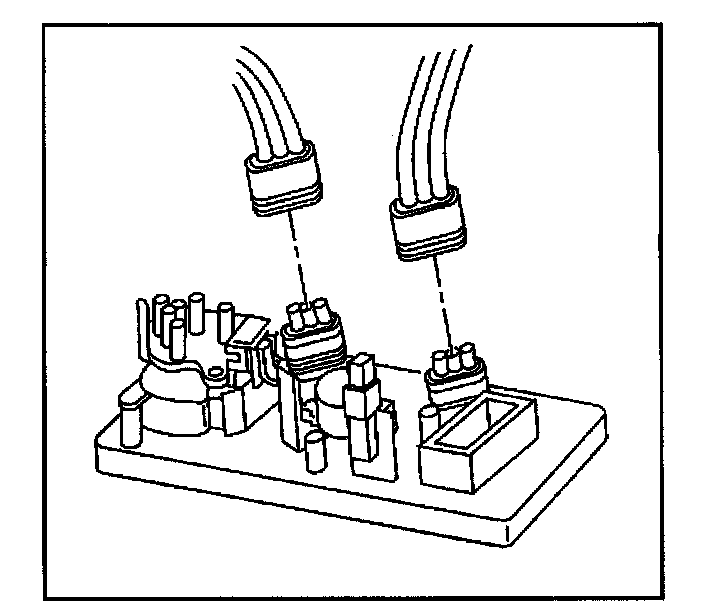

5. Disconnect the electrical connectors, as necessary

Installation Procedure
1. Connect the electrical connectors, as necessary (1).




2. Connect the vacuum connectors, as necessary.




3. Install the control assembly.

NOTE: Refer to Fastener Note in Service Precautions.




4. Install the control assembly screws.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

5. Install the instrument panel accessory trim plate.
6. Perform a heater function test.
