Fuel Level Sensor: Service and Repair

REMOVAL
1. Relieve fuel system pressure.
2. Drain the fuel tank.
3. Remove the fuel tank.
4. Remove the fuel sender assembly.
5. Remove the fuel level sensor electrical connectors from the fuel sender assembly.

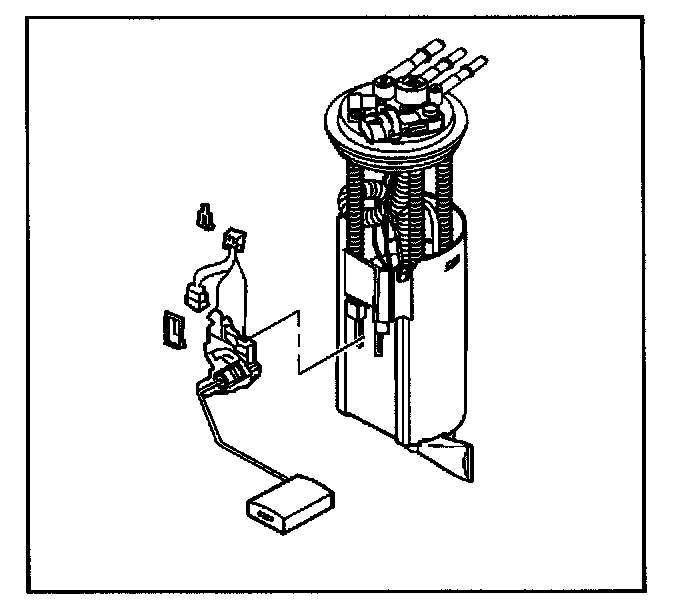

6. Remove the fuel level sensor (1) from fuel sender assembly.




INSTALLATION
1. Install the fuel level sensor to the modular fuel sender.
2. Install the fuel level sensor electrical connectors to the fuel sender assembly.
3. Install the fuel sender assembly.
4. Install the fuel tank.
5. Refill the fuel tank.
6. Connect the negative battery cable.
7. Inspect for fuel leaks through the following steps:
1. Turn the ignition switch to the ON position for two seconds.
2. Turn the ignition switch to the OFF position for ten seconds.
3. Turn the ignition switch to the ON position
4. Check for fuel leaks.
