Engine Control Components Views

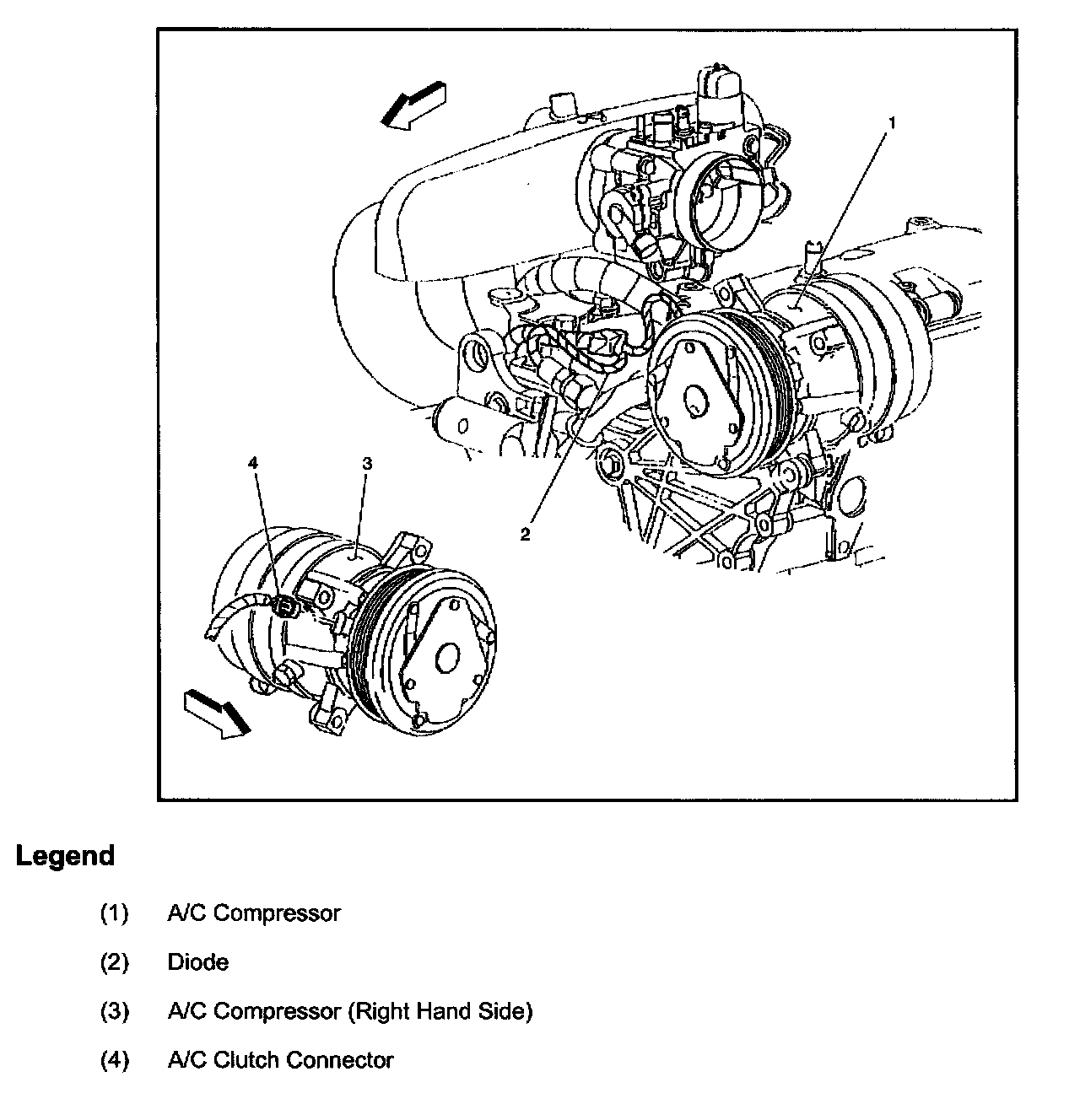

A/C Compressor:

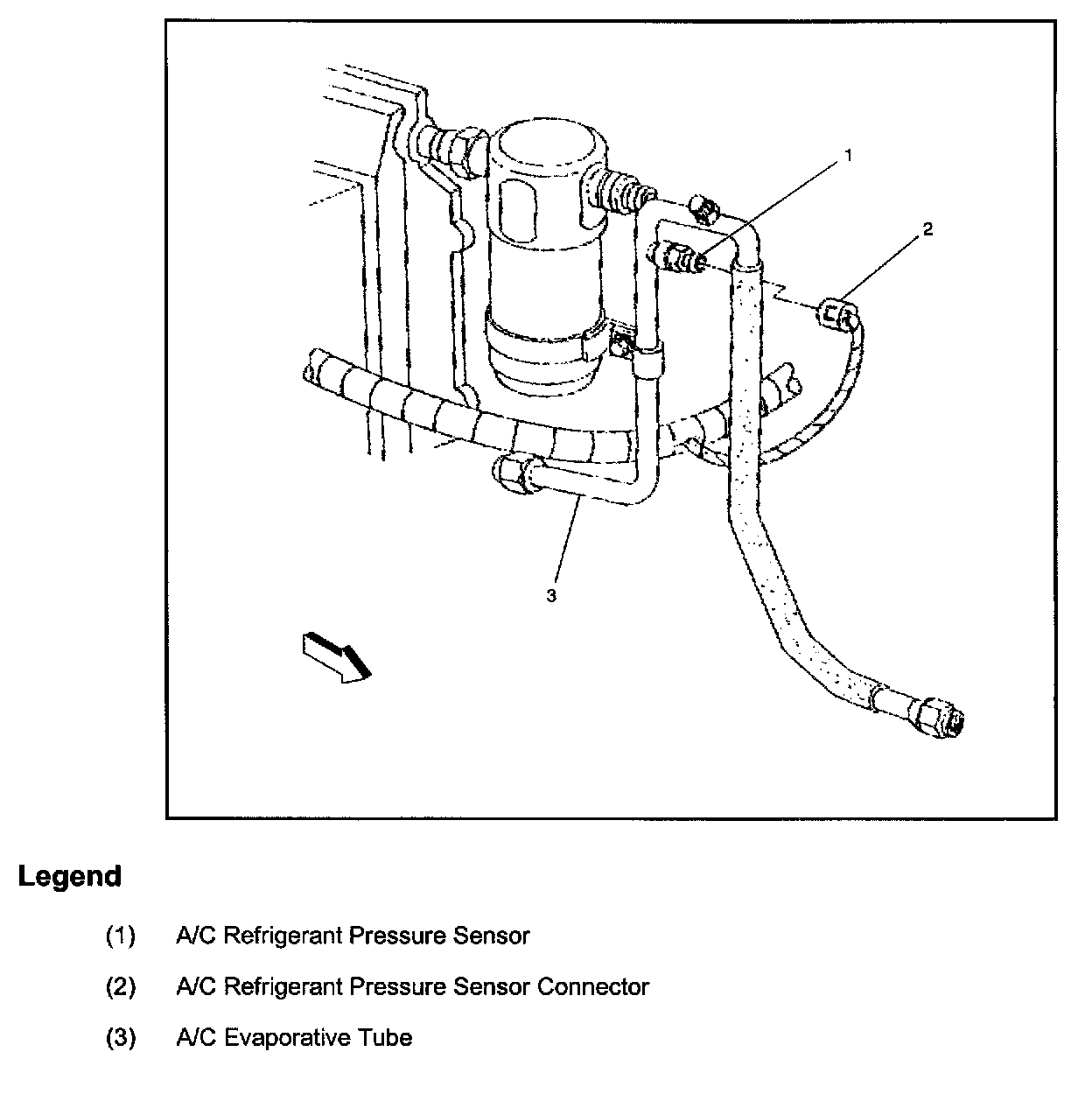

A/C Refrigerant Pressure Sensor:
CKP Sensor,CMP Sensor, And Knock Sensor:

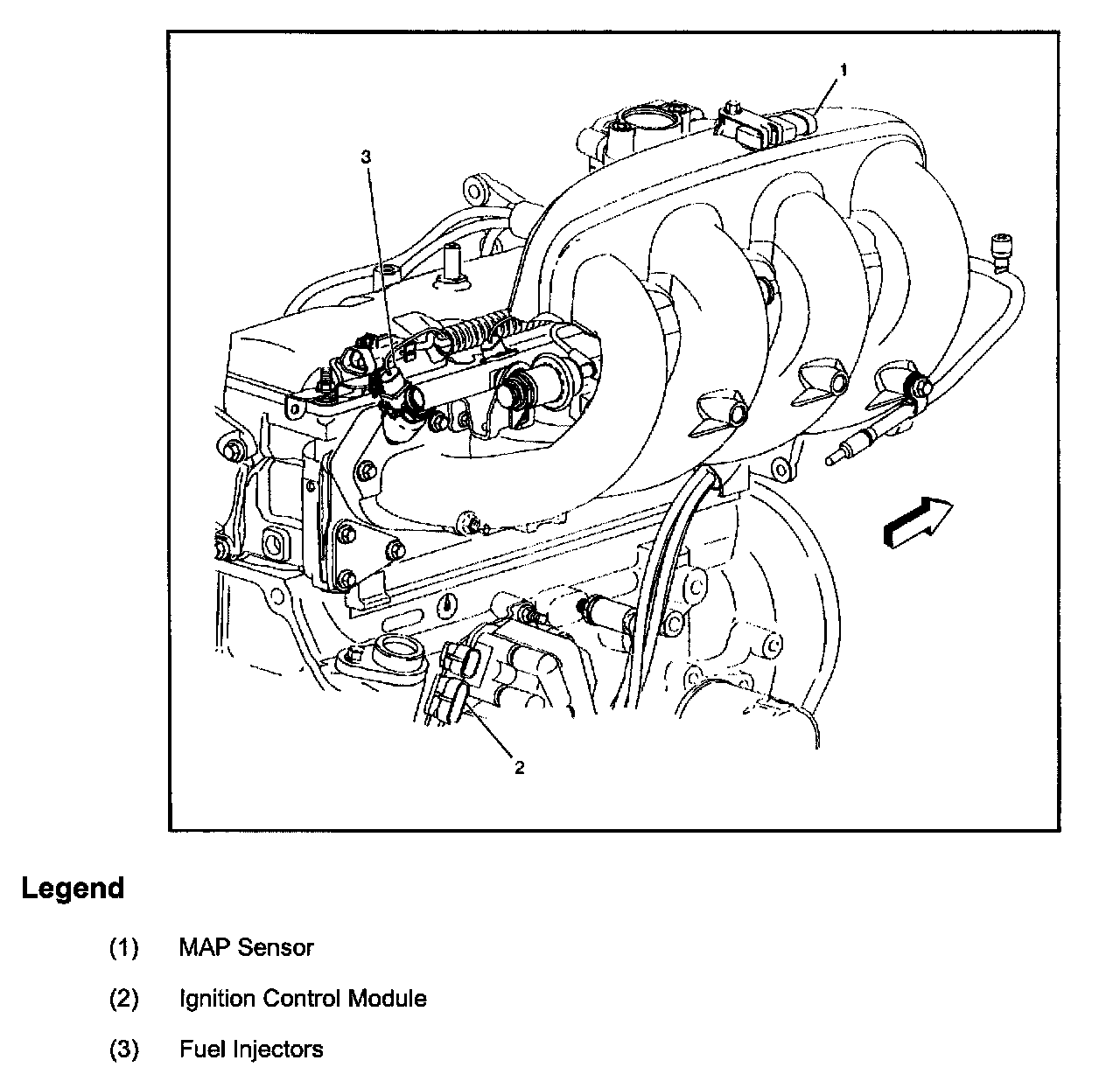

ICM And Fuel Injectors:

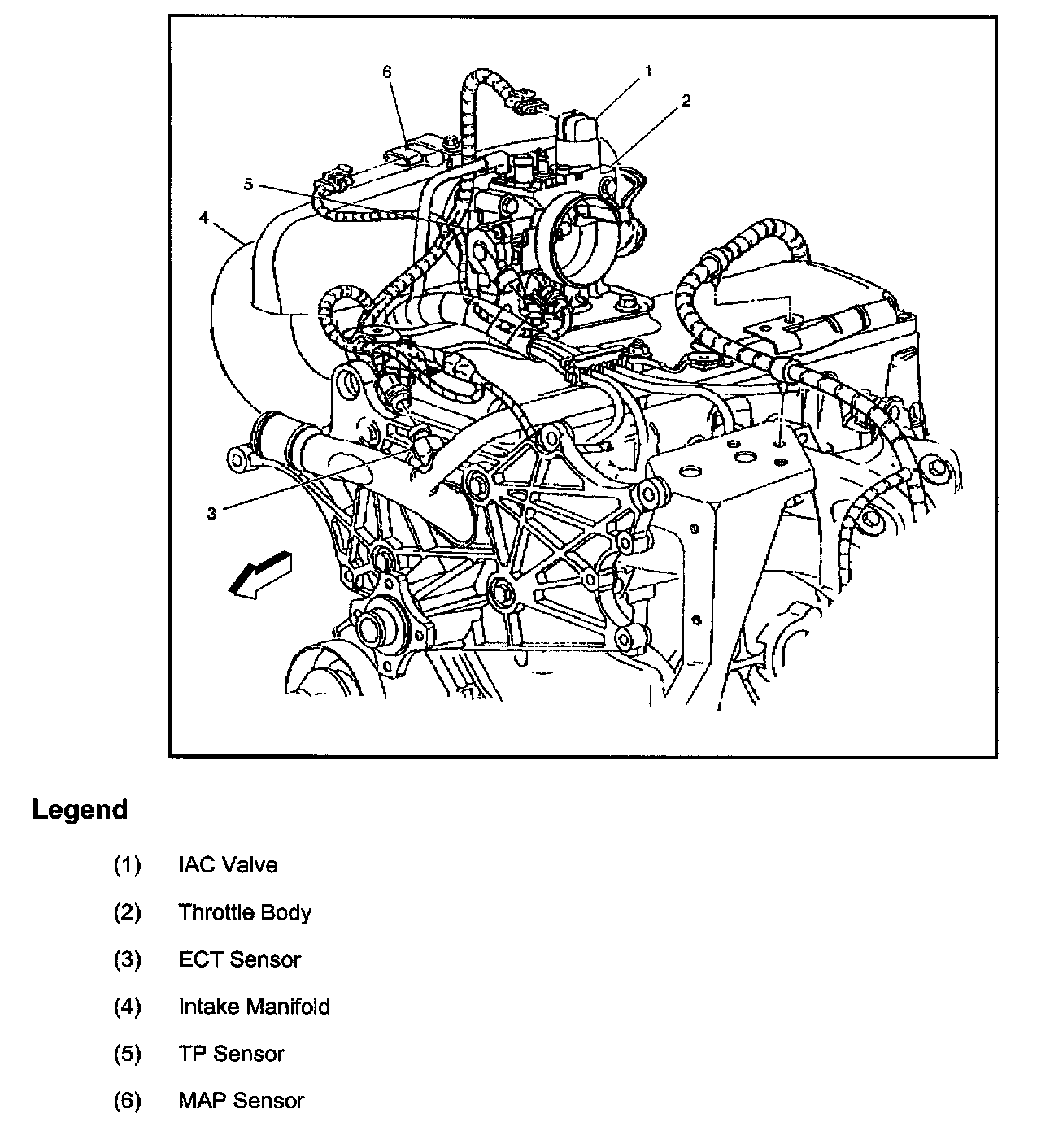

LH Upper Engine:

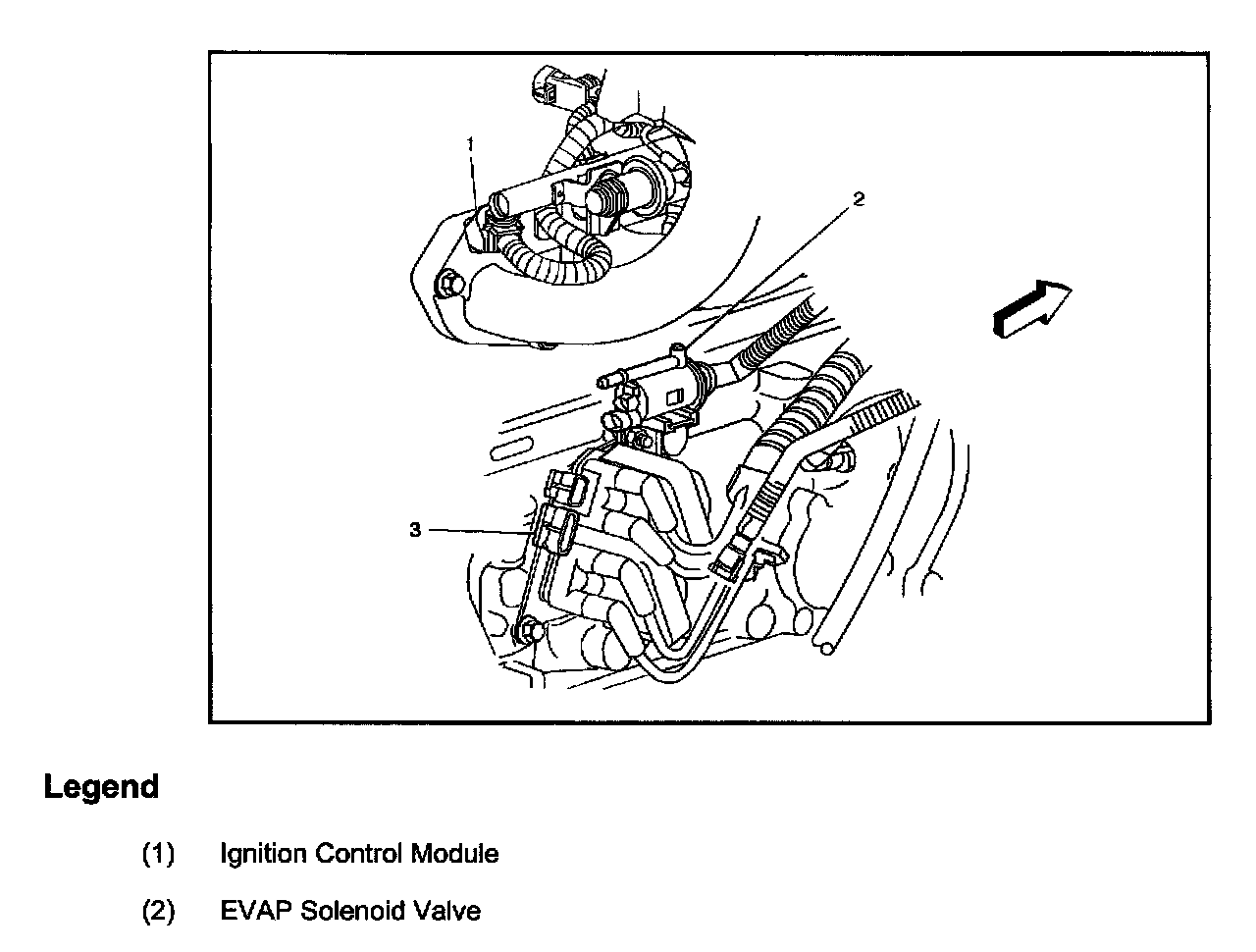

EVAP Solenoid Valve:

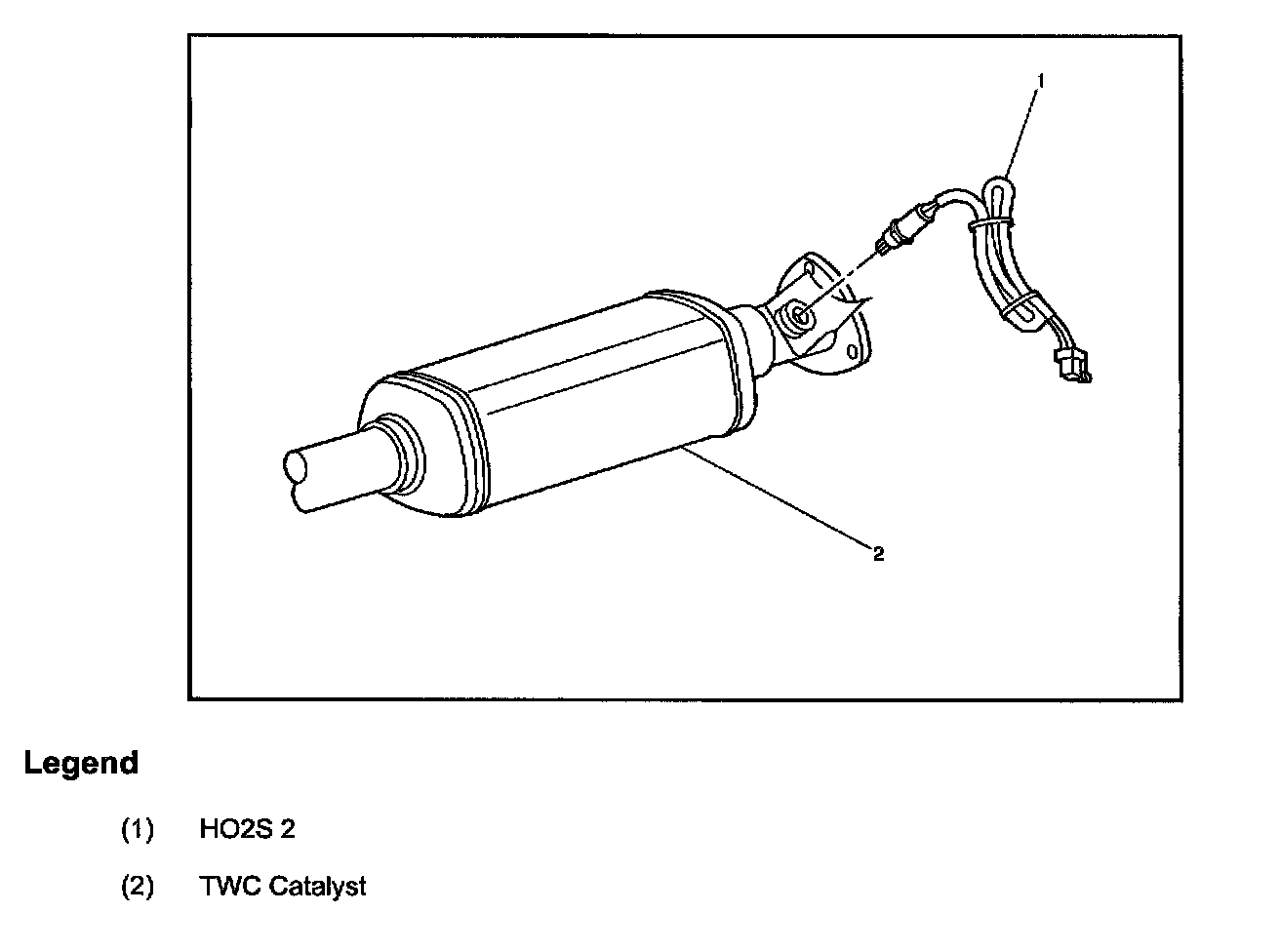

HO2S 2:

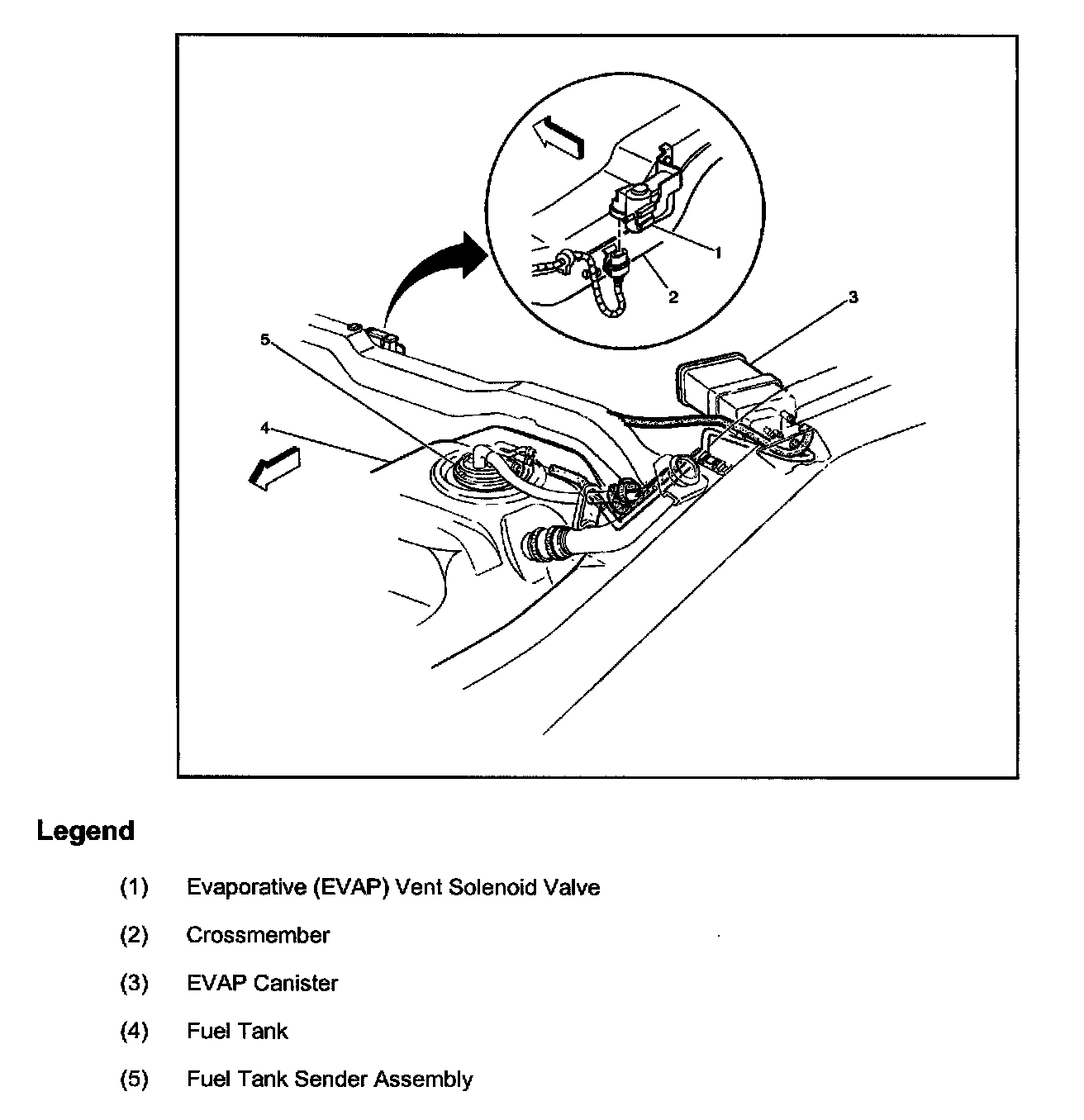

EVAP Canister And EVAP Vent Valve (4DR Utility And PickUp):

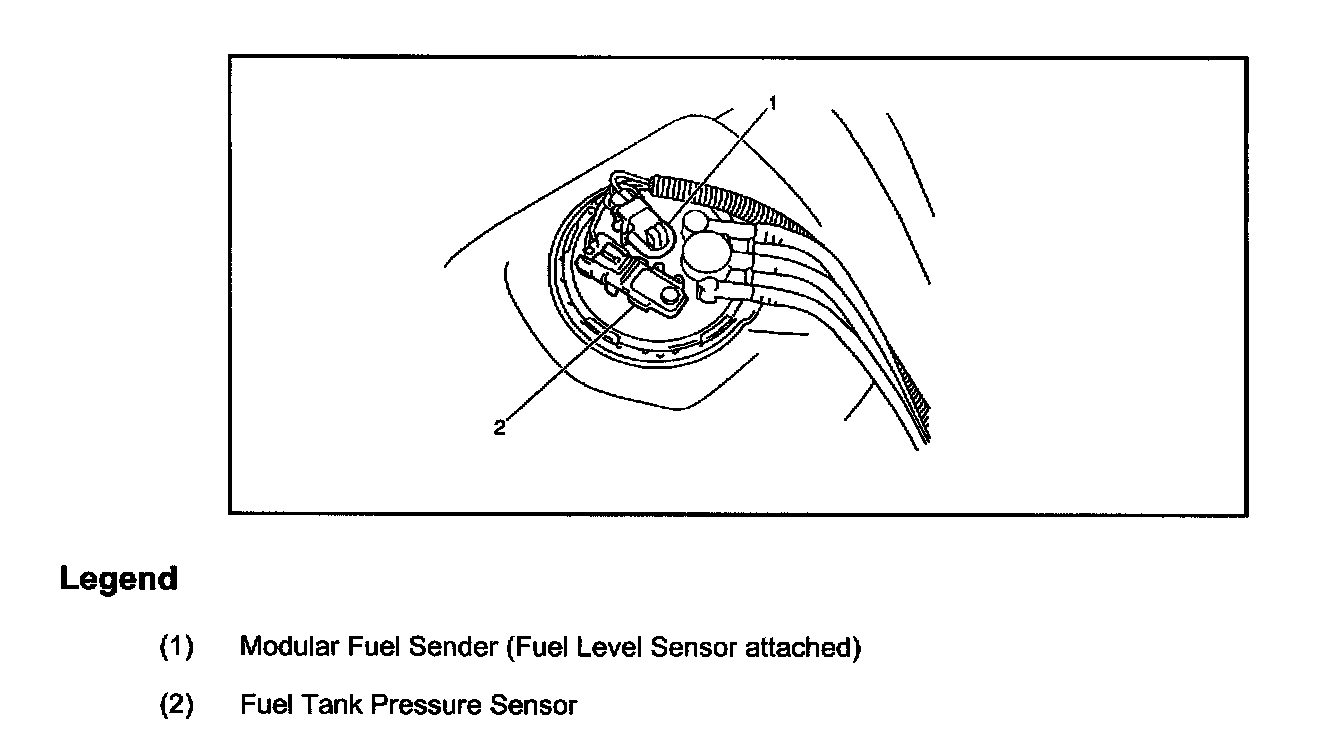

Modular Fuel Sender:

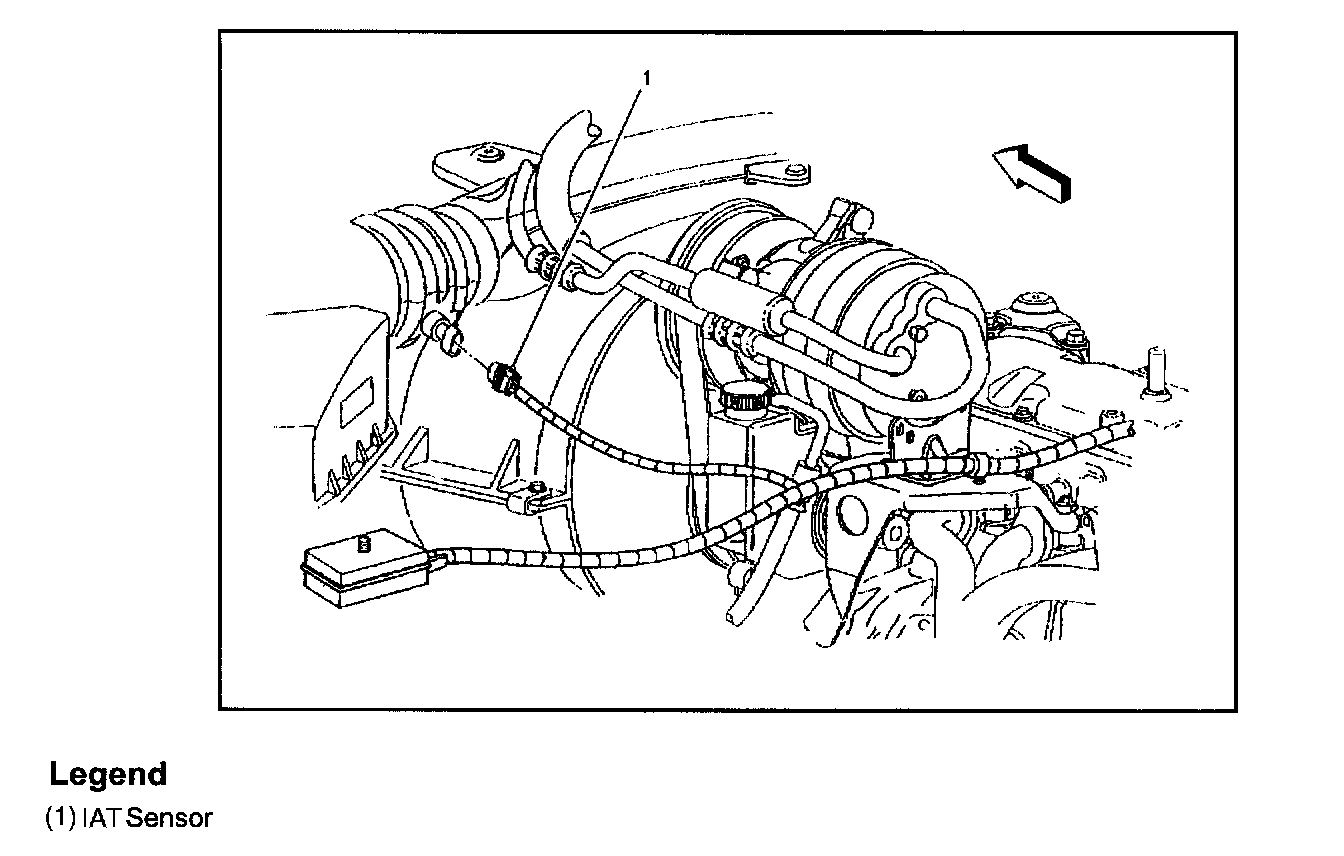

IAT Sensor:

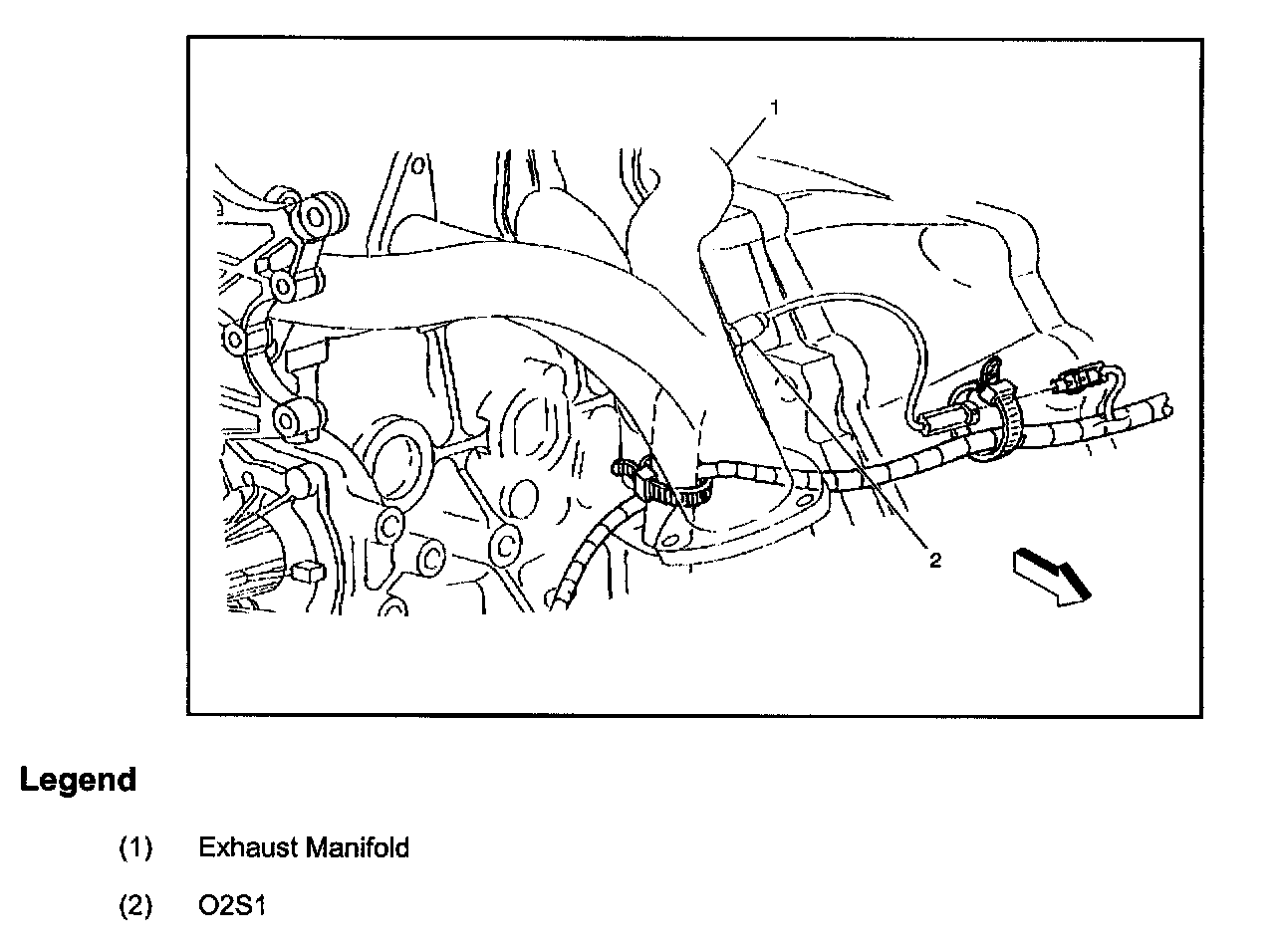

O2S1:

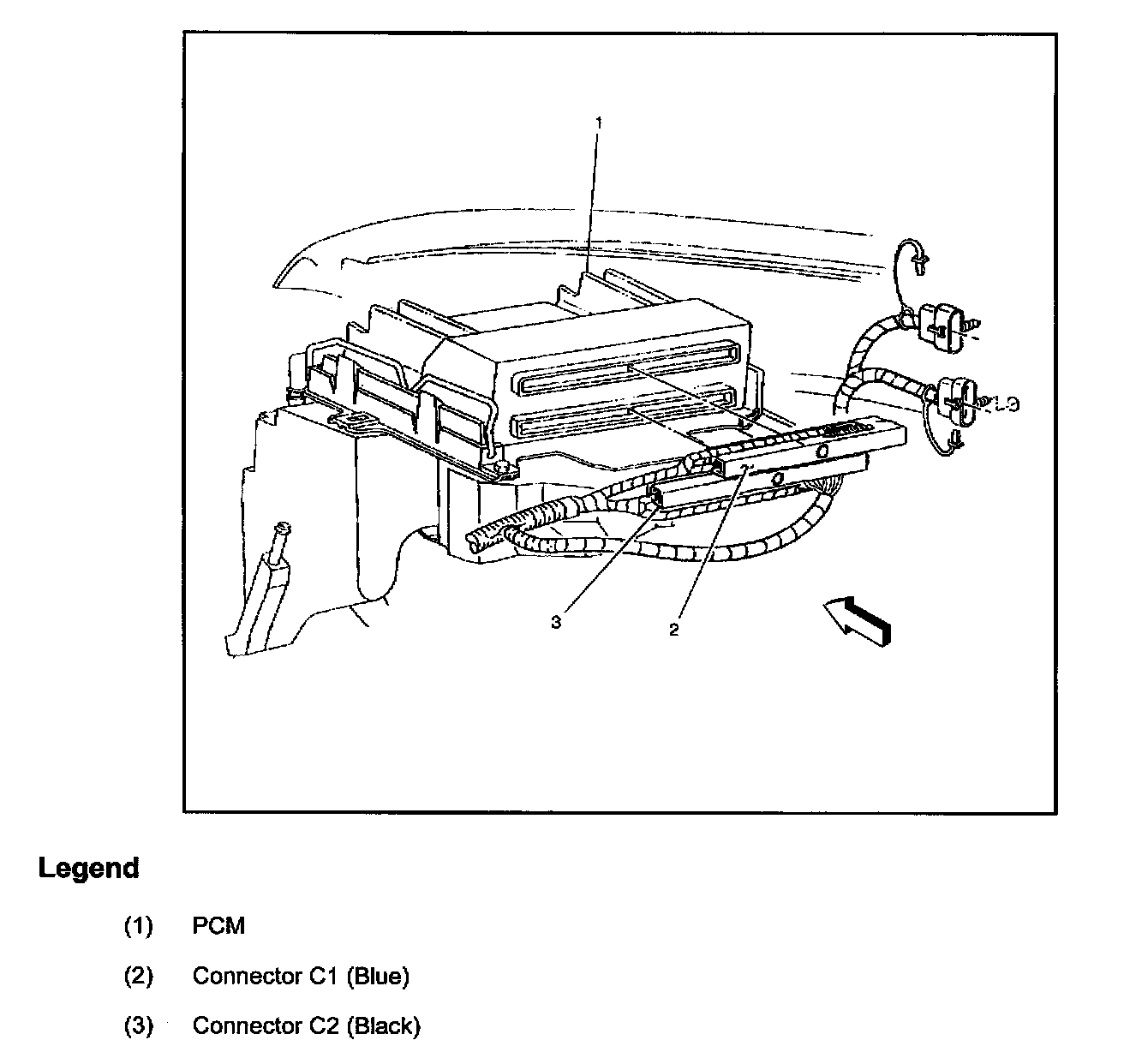

PCM Connectors:
Park/Neutral Position (PNP) Switch:
