Connector End Views

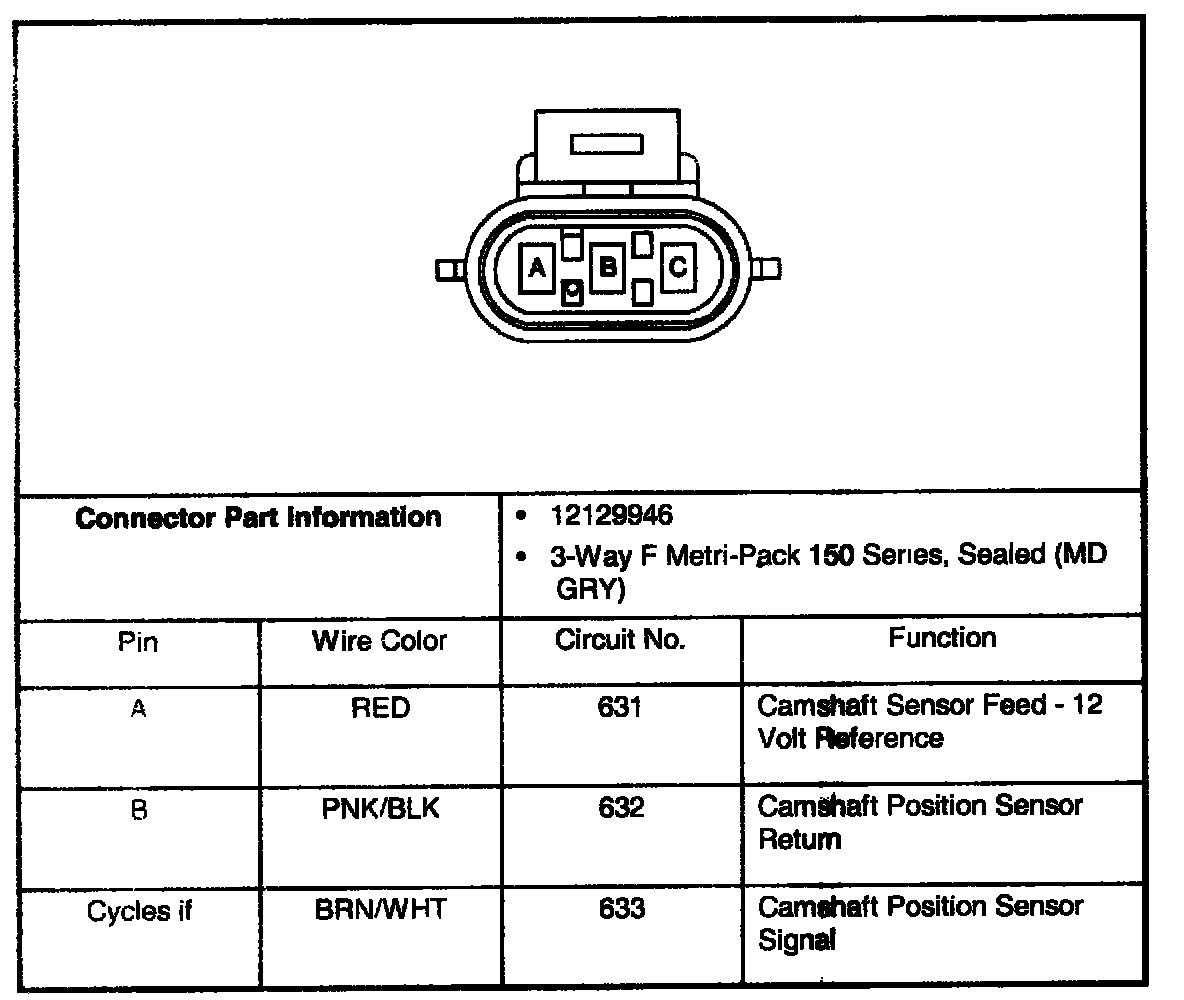

Camshaft Position (CMP) Sensor Connector:

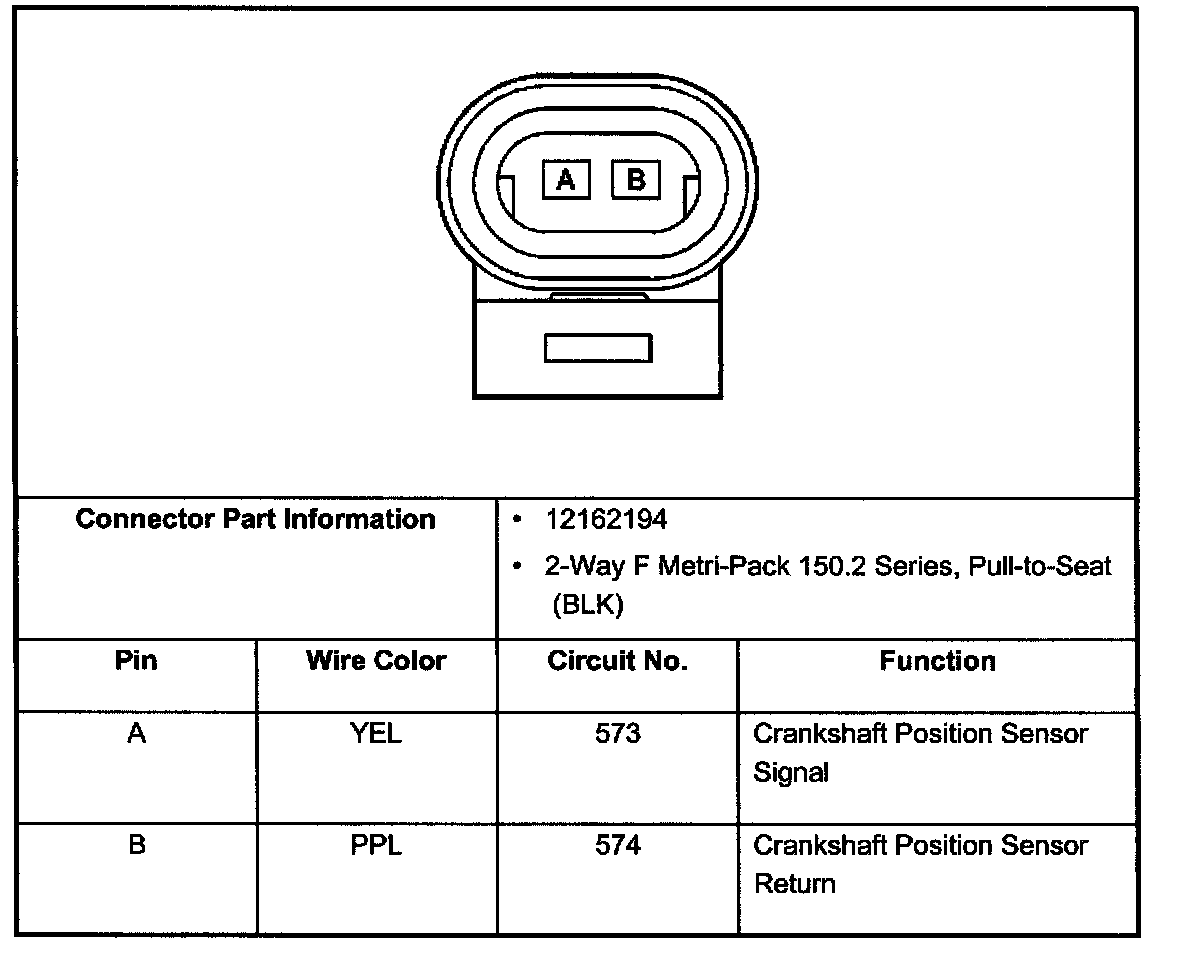

Crankshaft Position (CKP) Sensor Connector:

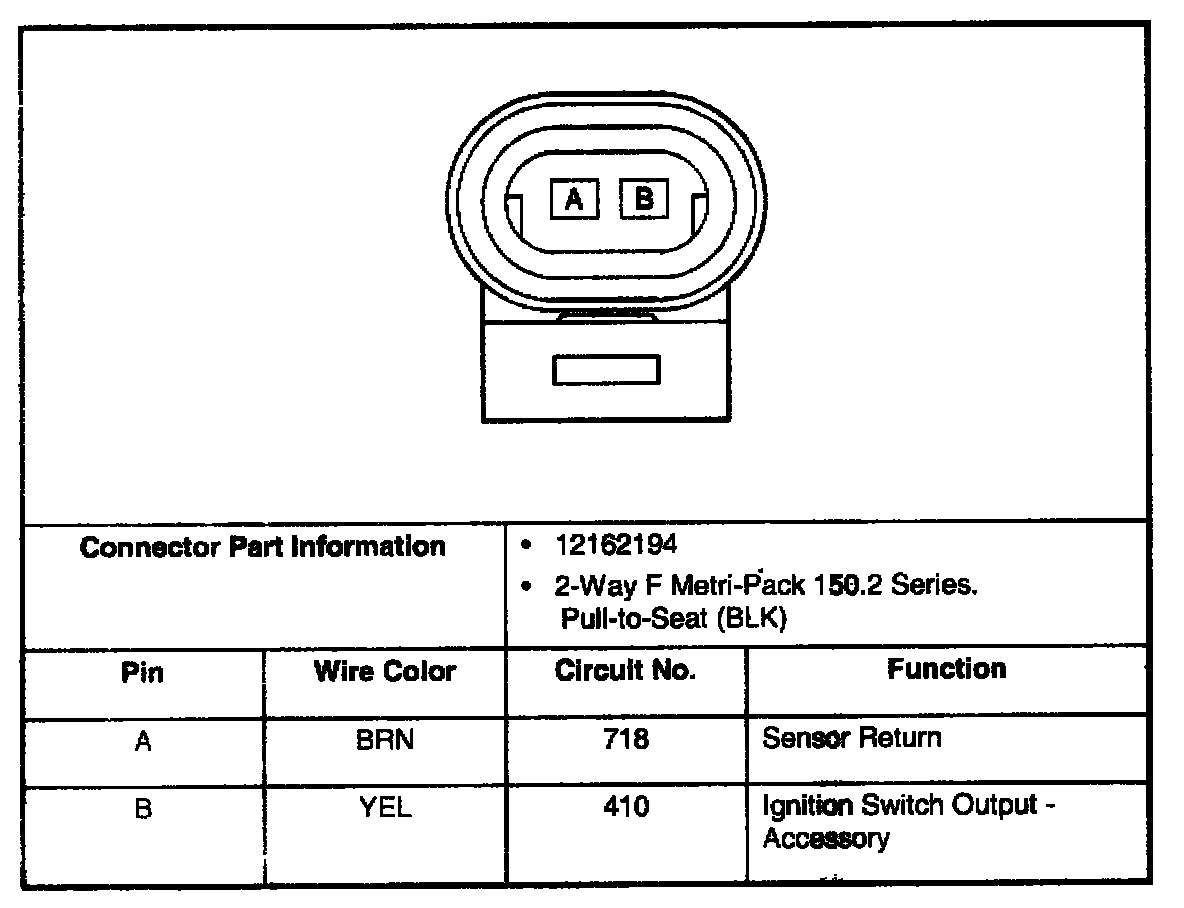

Engine Coolant Temperature (ECT) Sensor Connector:

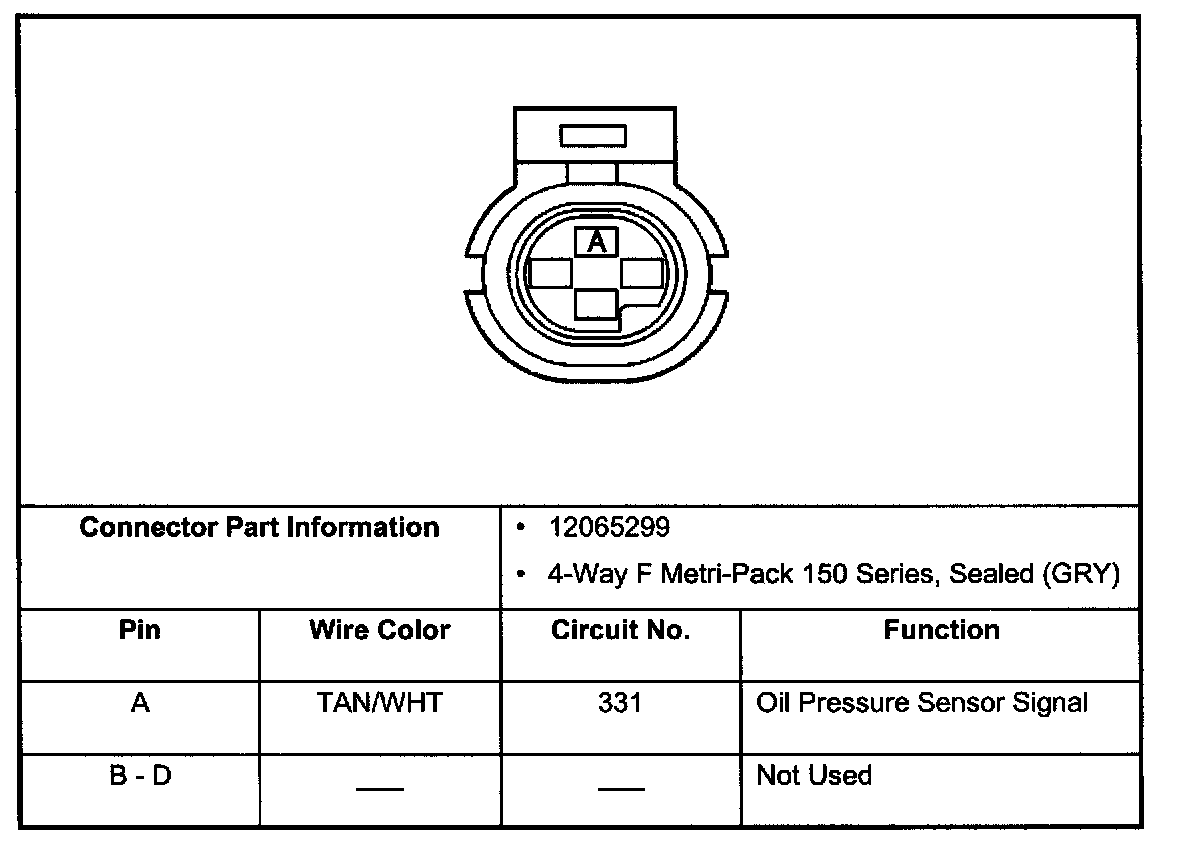

Engine Oil Pressure Gauge Sensor Connector:

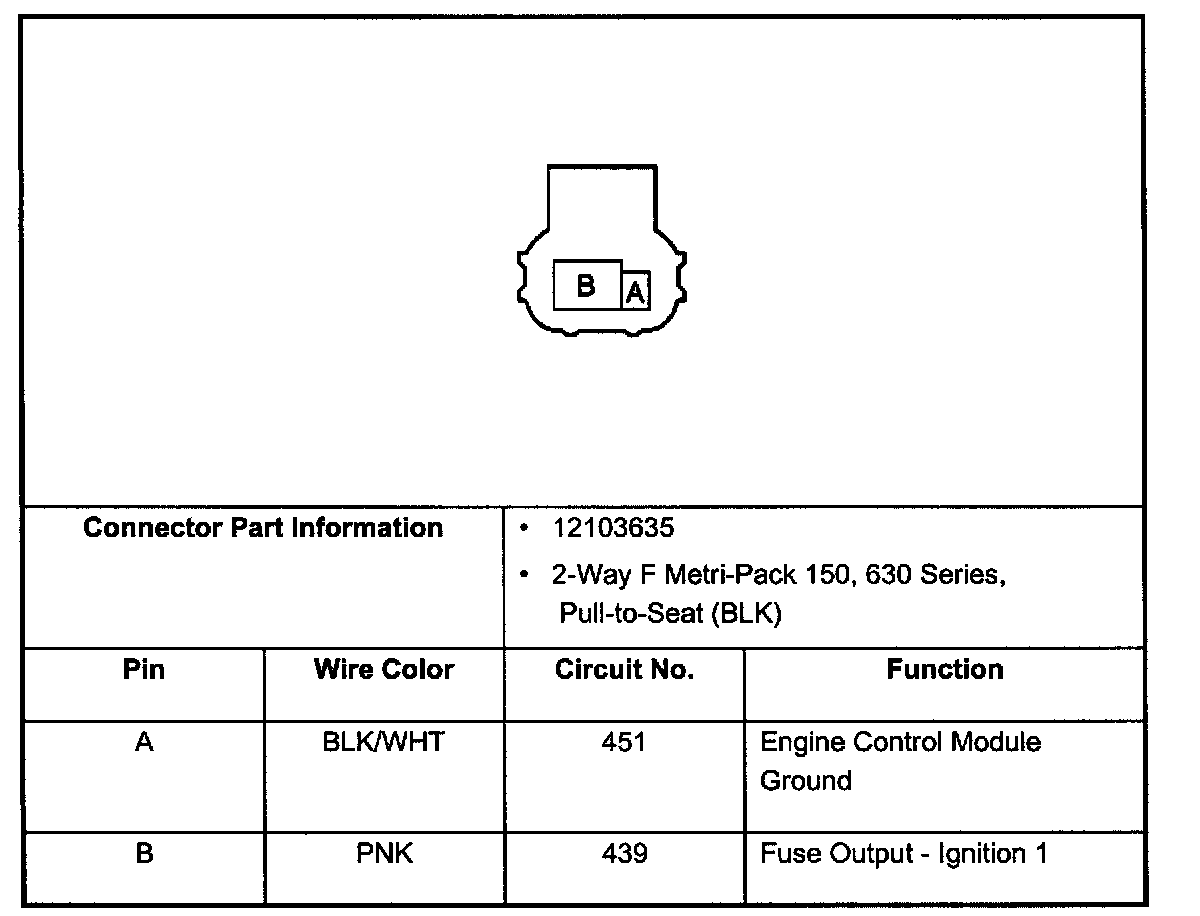

Evaporative (EVAP) Emissions Canister Purge Valve Connector:

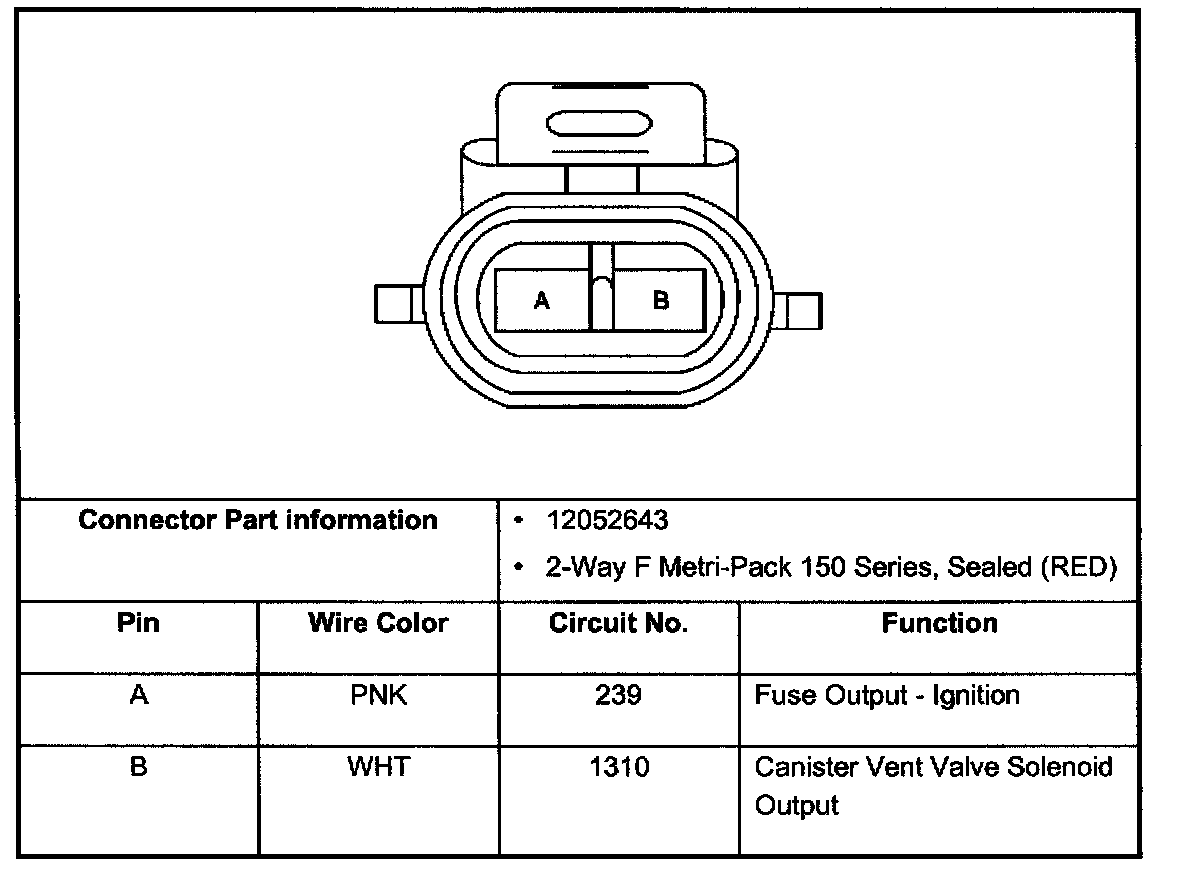

Evaporative (EVAP) Emissions Canister Vent Valve Connector:

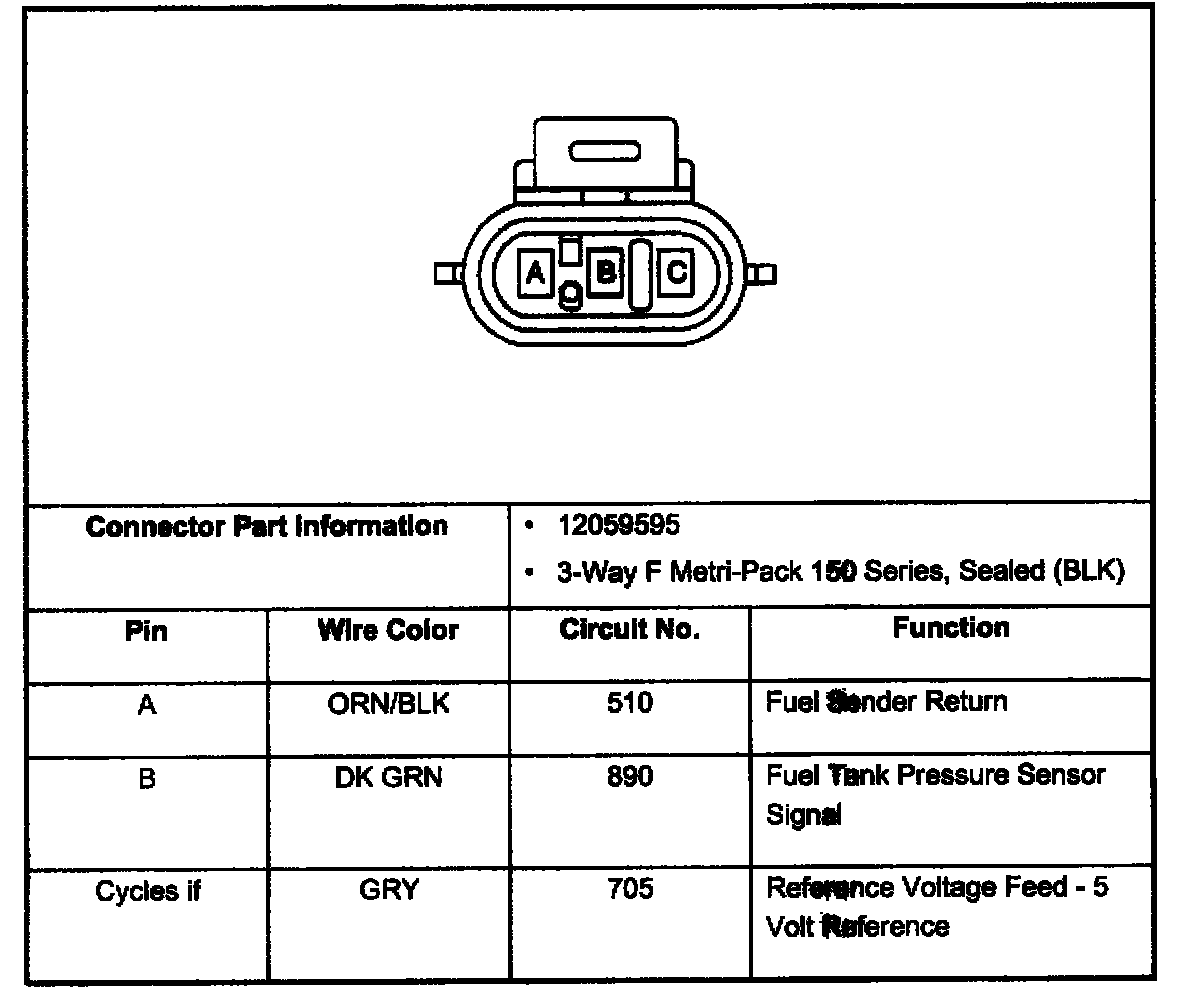

Fuel Tank Pressure Sensor Connector:

Fuel Pump And Sender Connector:

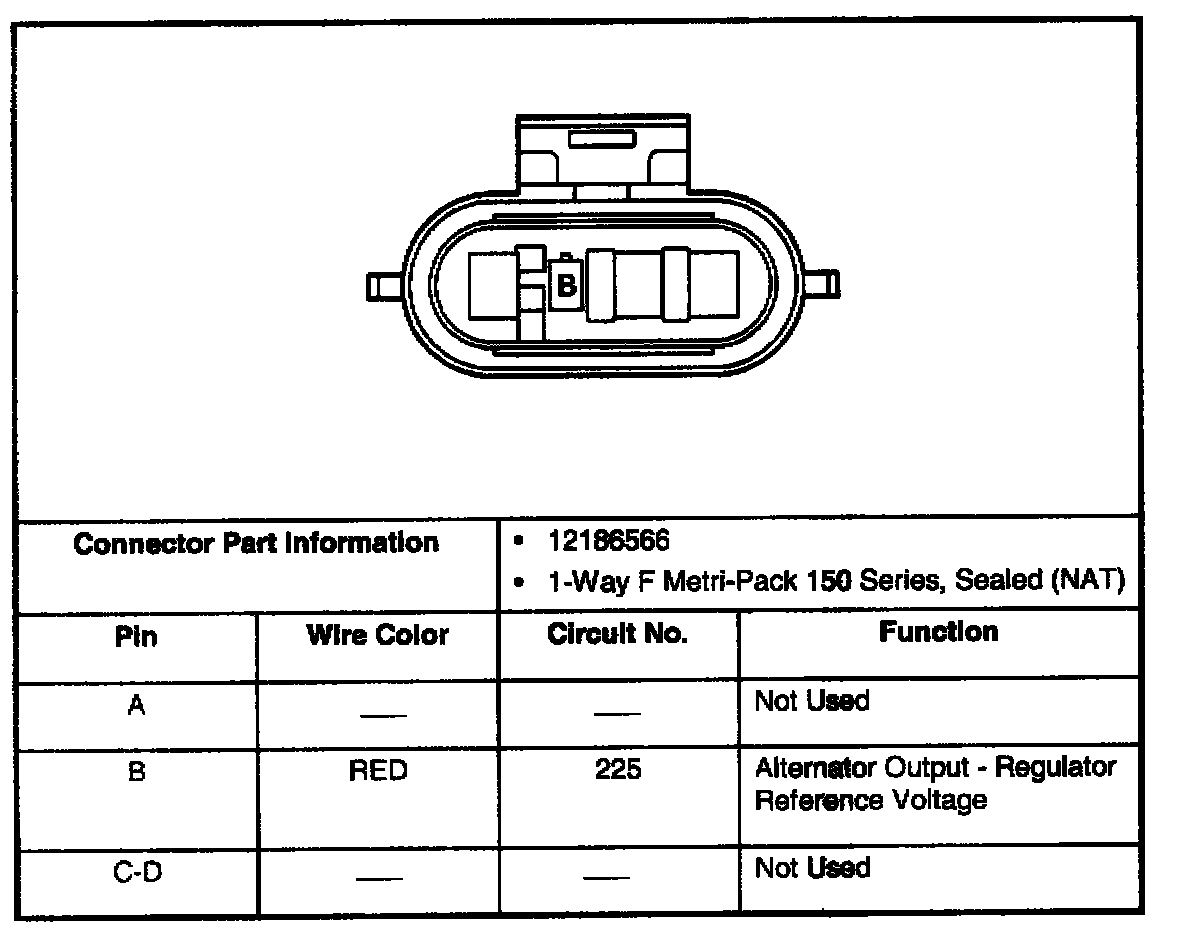

Generator Connector:

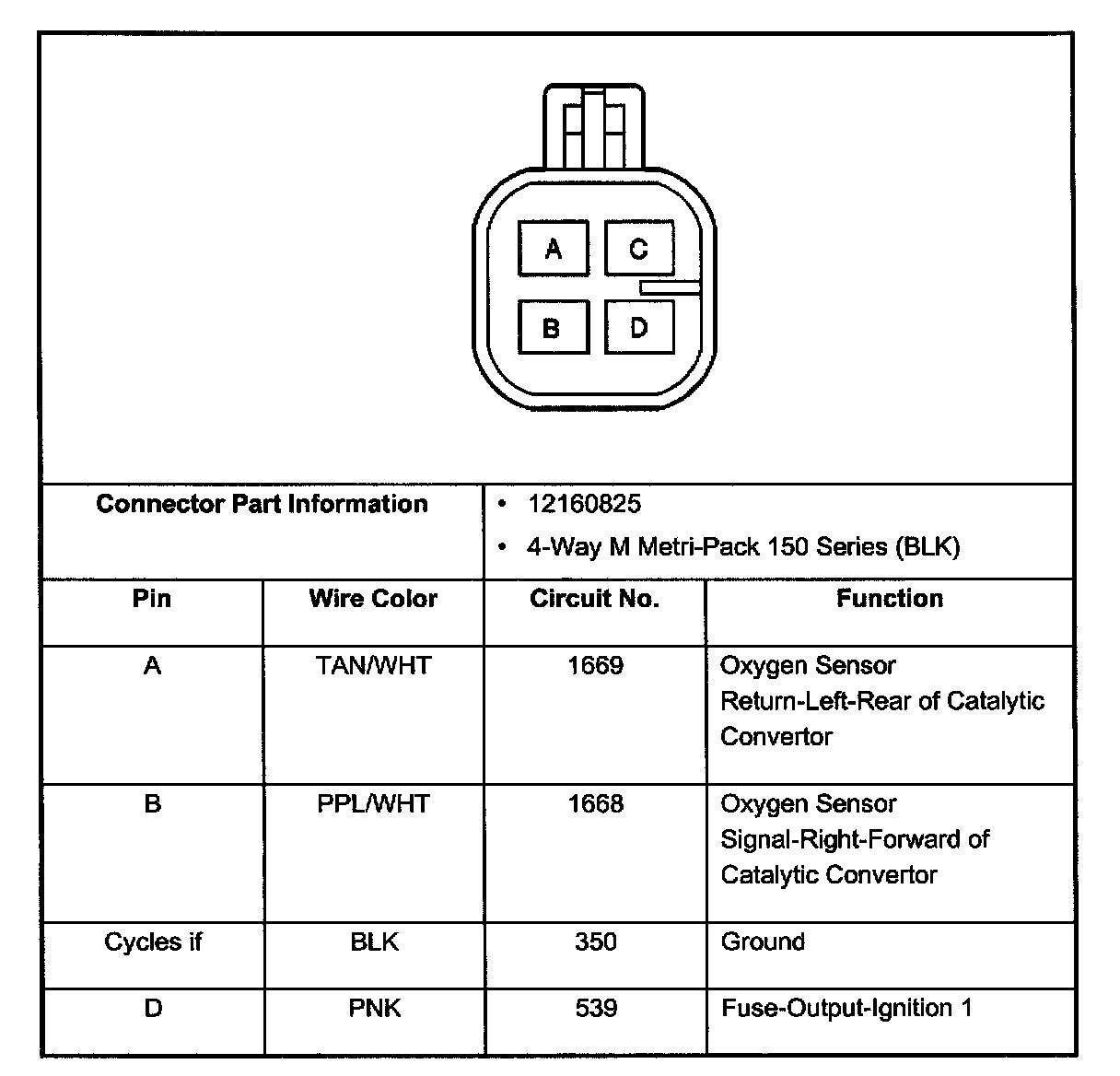

H2OS Connector, Bank1 Sensor1:

Idle Air Control (IAC) Valve Connector:

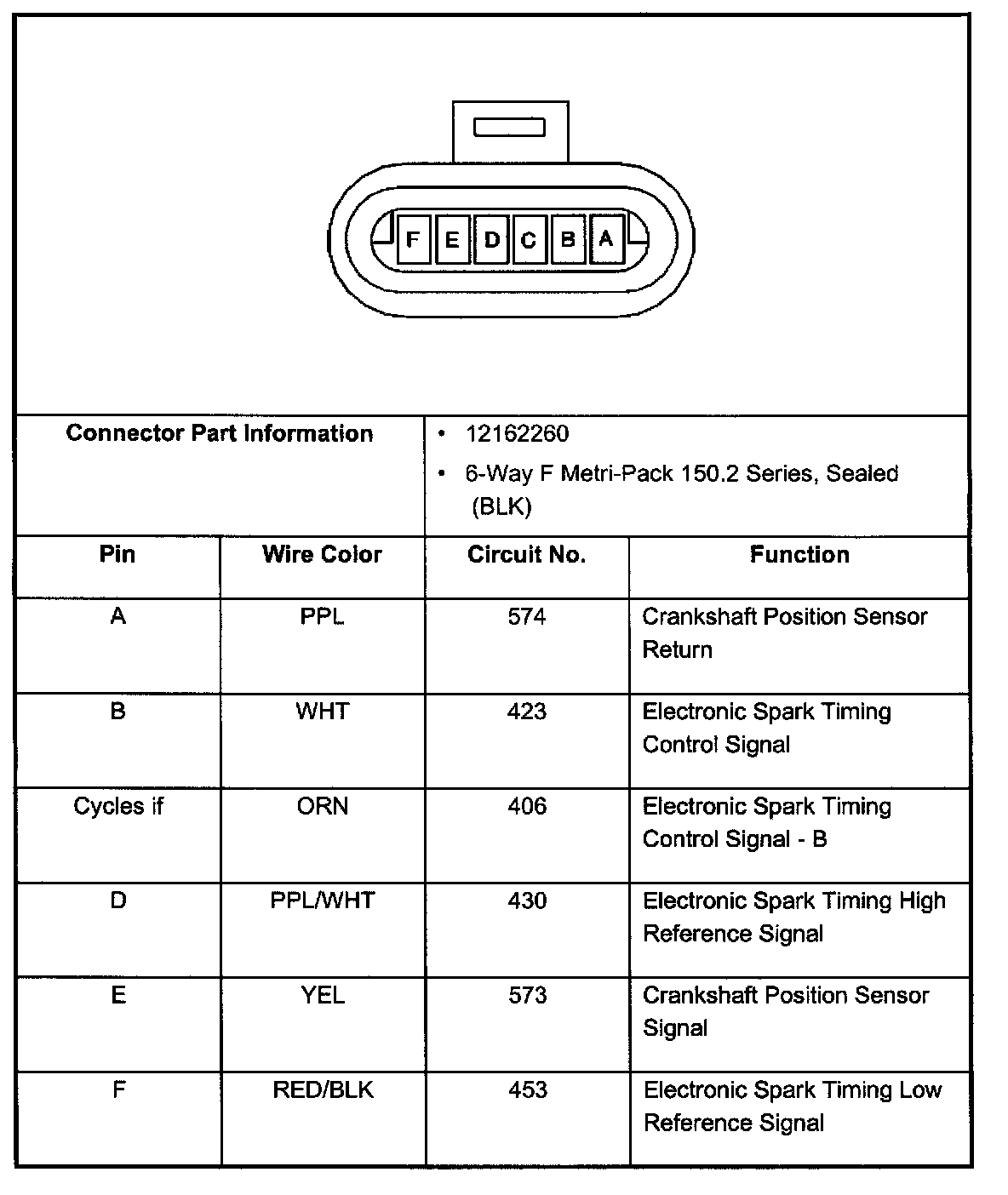

Ignition Control Module (ICM) Connector C1:

Ignition Control Module (ICM) Connector C2:

Intake Air Temperature (IAT) Sensor Connector:

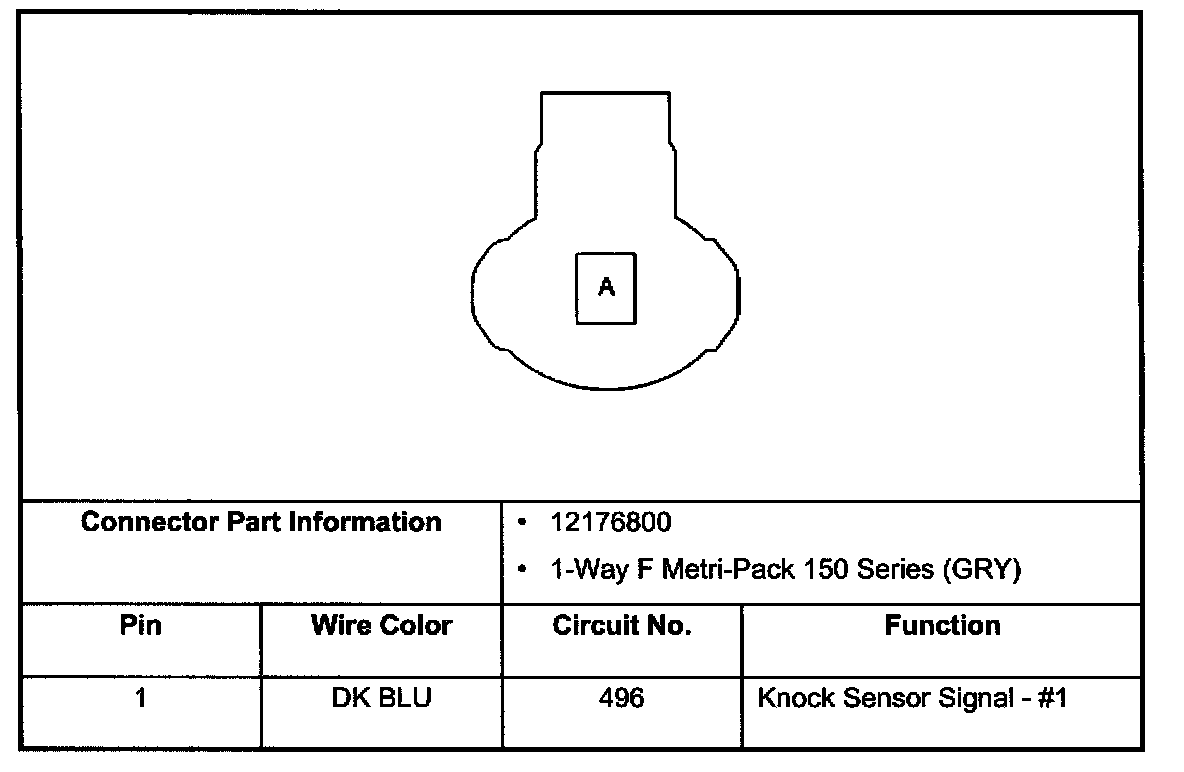

Knock Sensor (KS) Connector:

Manifold Absolute Pressure (MAP) Sensor Connector:

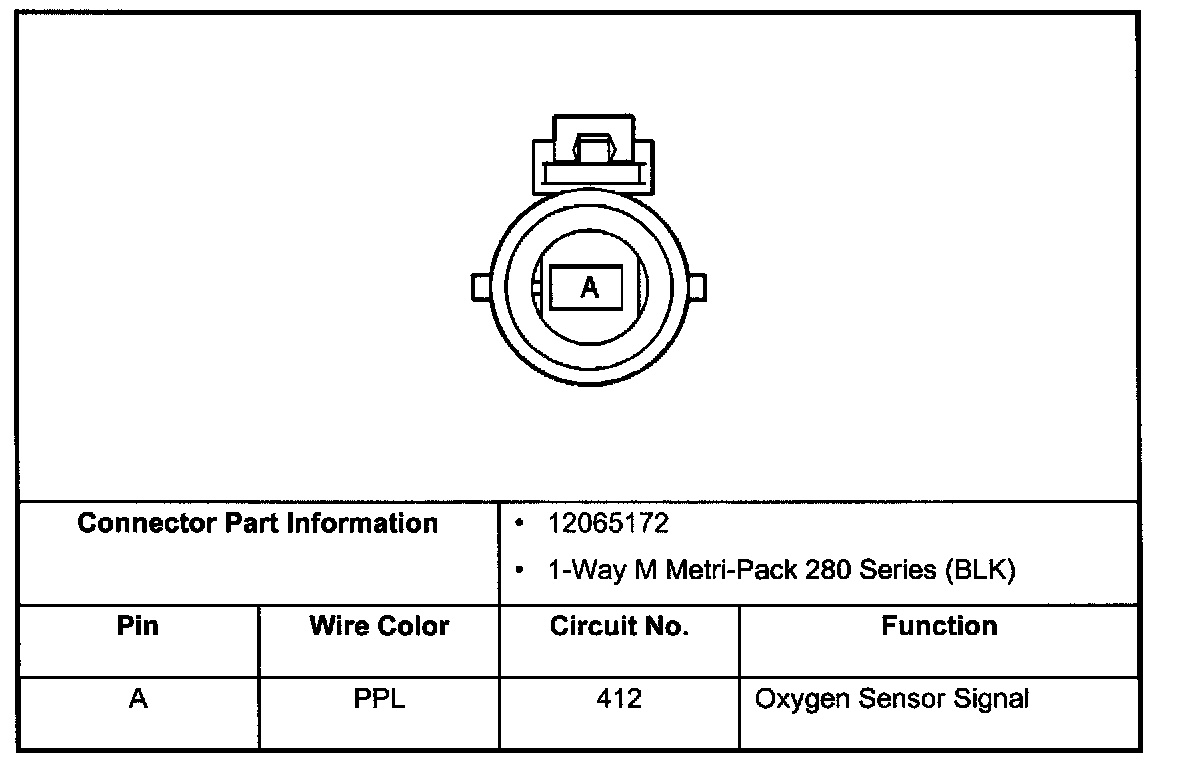

Oxygen Sensor Connector, Bank 1 Sensor 1:

Park/Neutral Position (PNP) Switch Connector C1:

Park/Neutral Position (PNP) Switch Connector C2:

Throttle Position (TP) Sensor Connector:

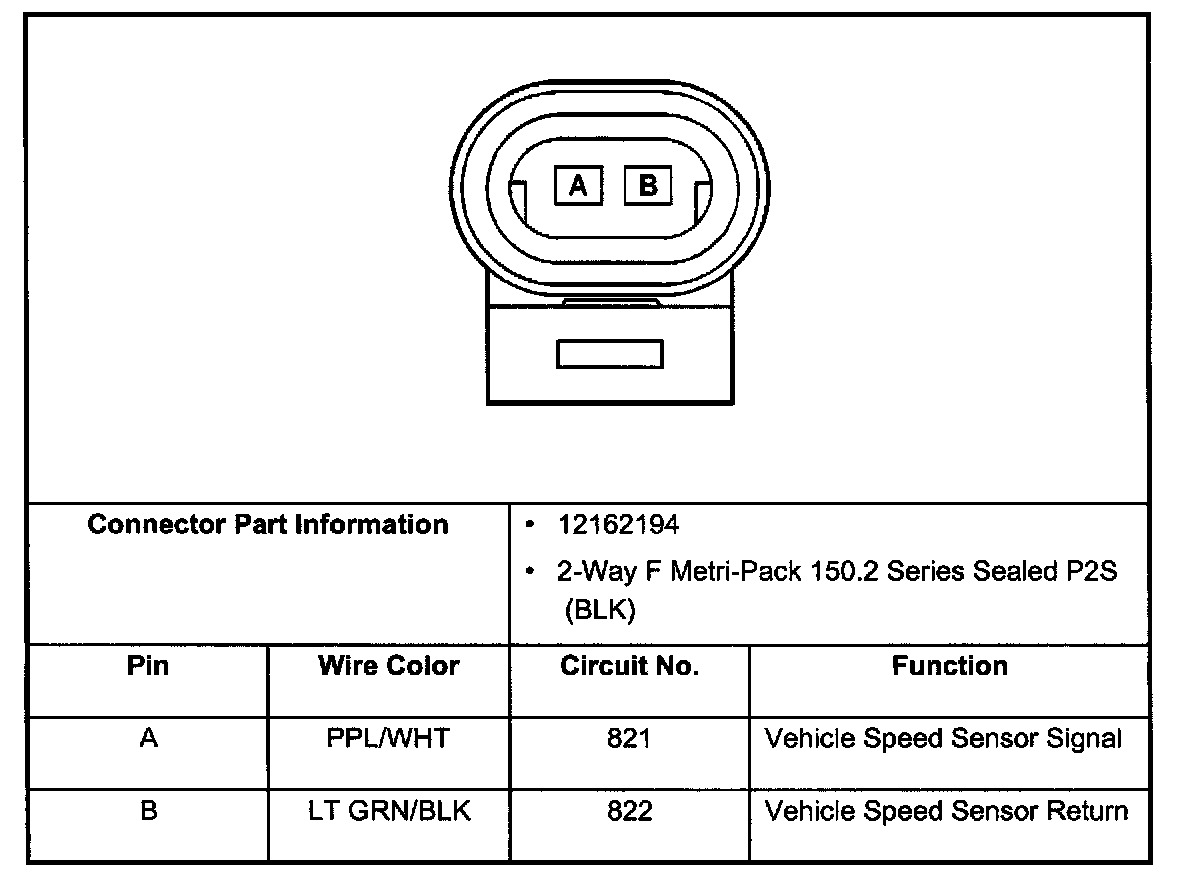

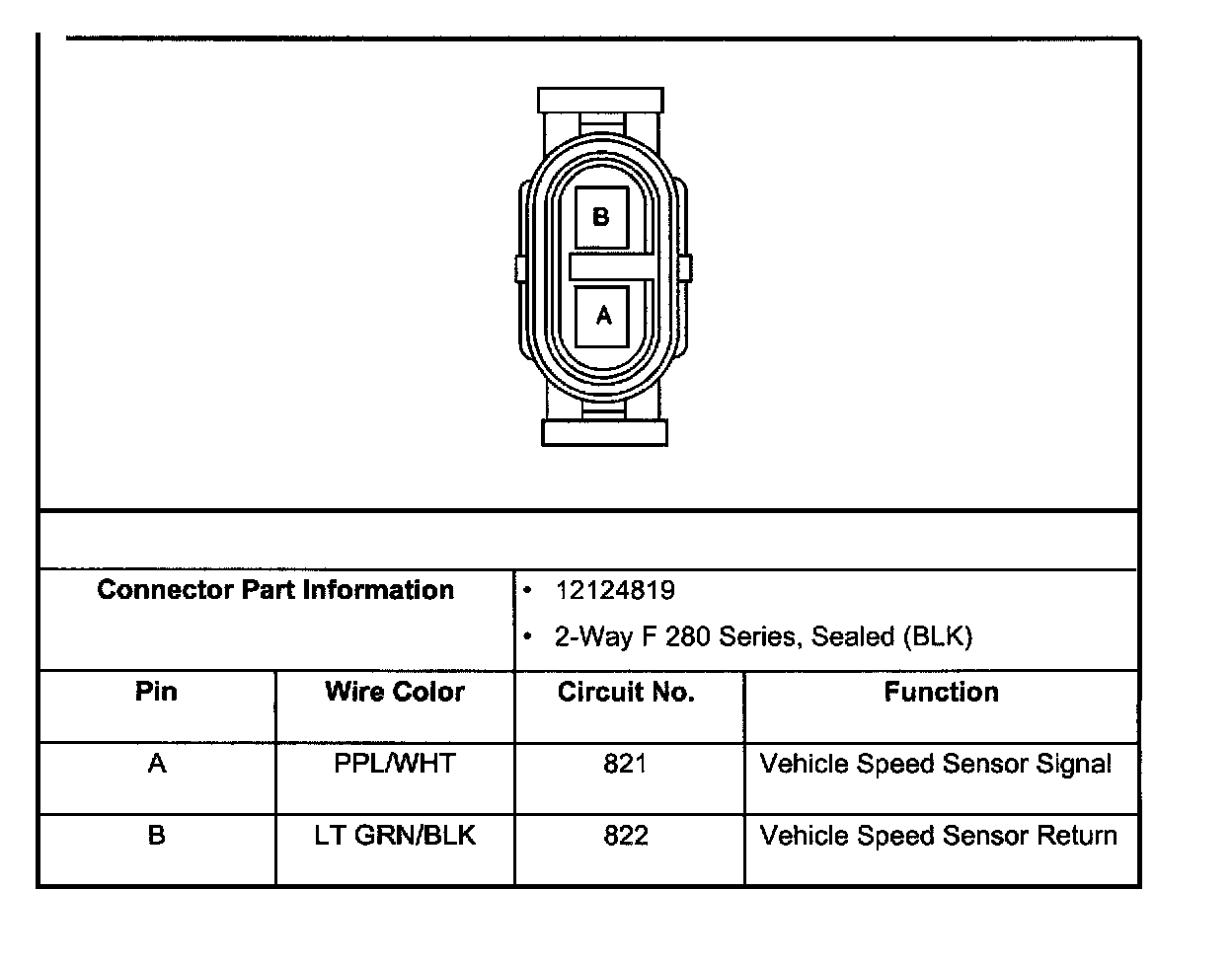

Vehicle Speed Sensor (VSS) (w/ A/T):

Vehicle Speed Sensor (VSS) (w/ M/T):
