Scan Tool Does Not Communicate W/Class 2 Data Line

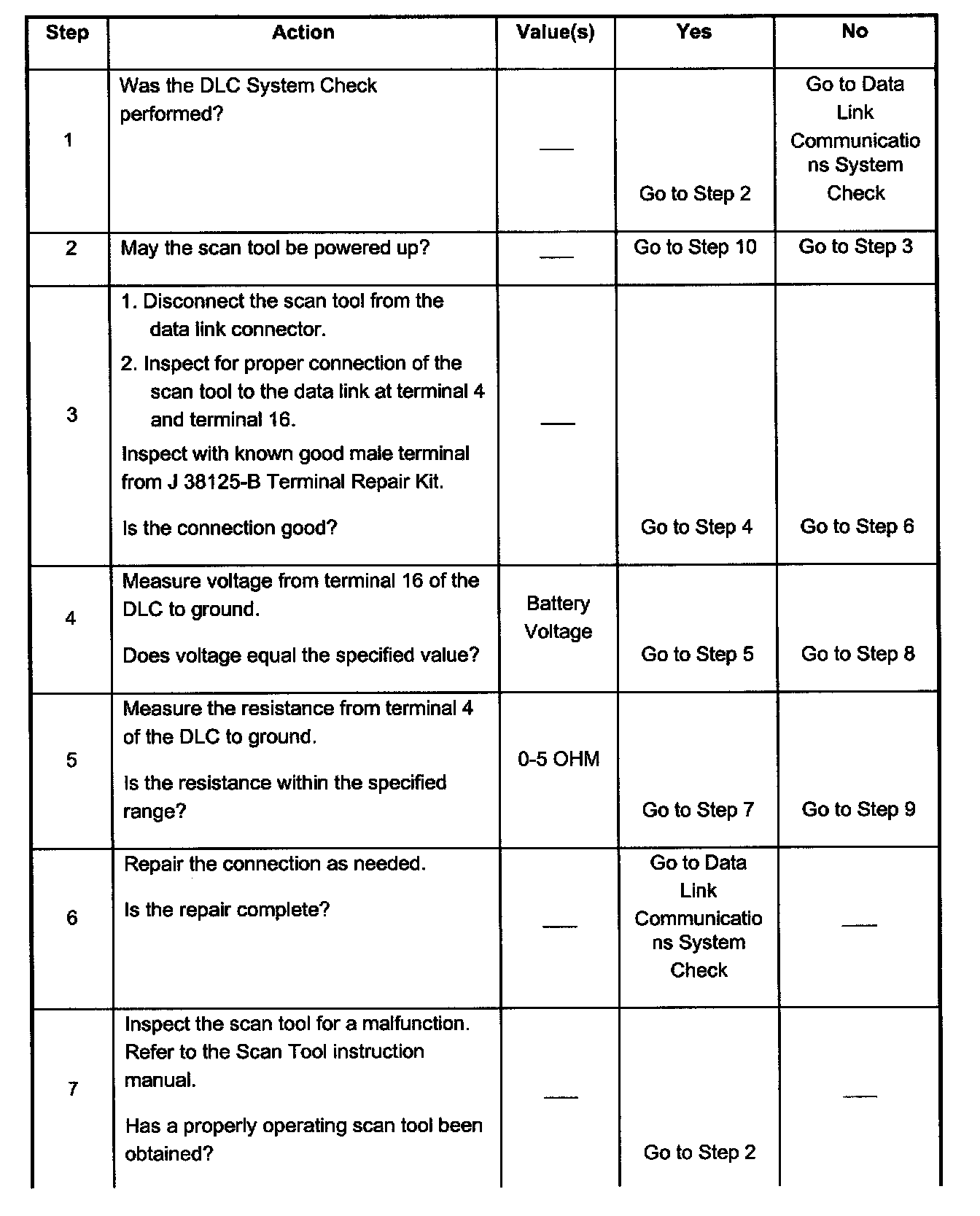

Steps 1 - 7:

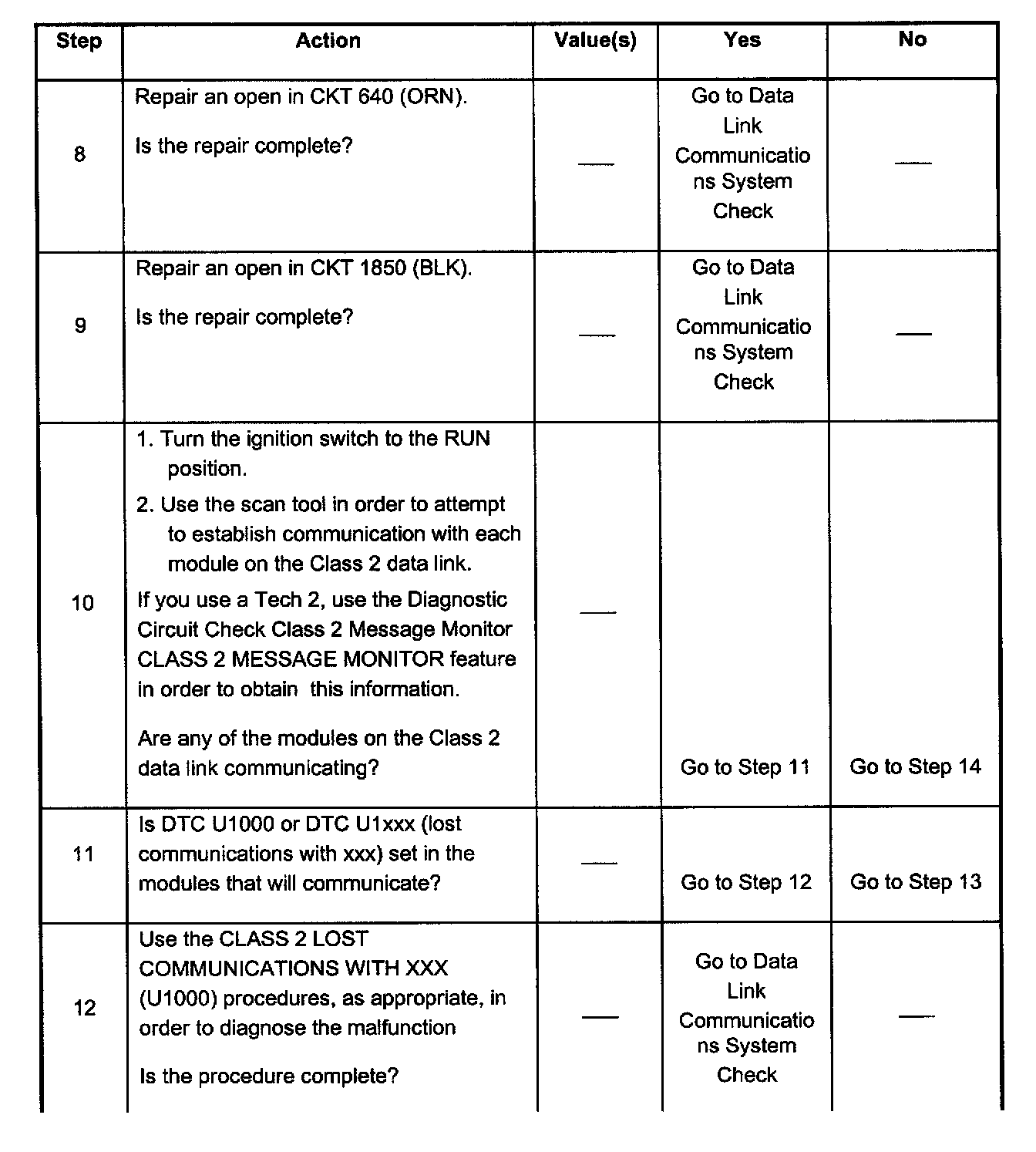

Steps 8 - 12:

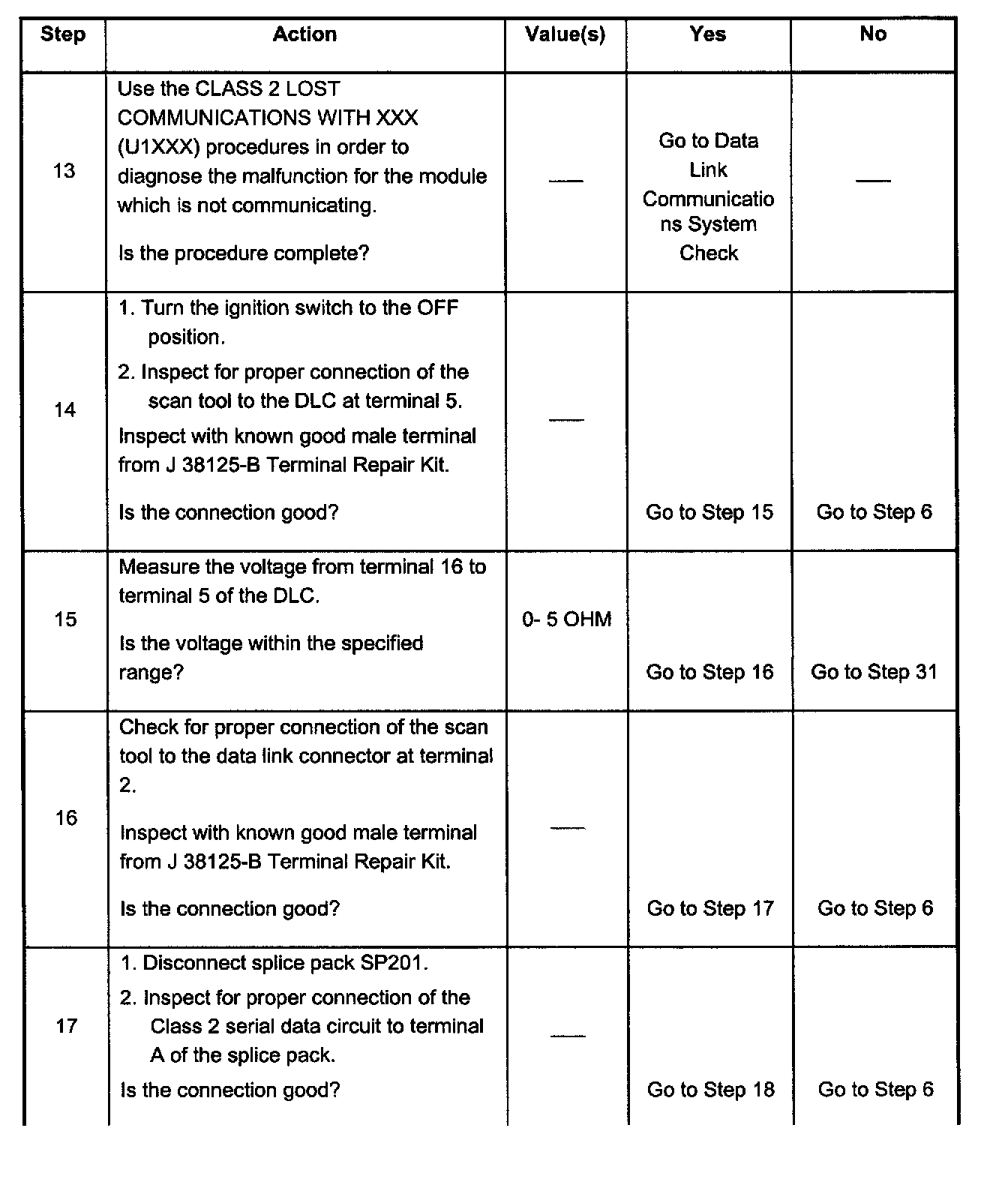

Steps 13 - 17:

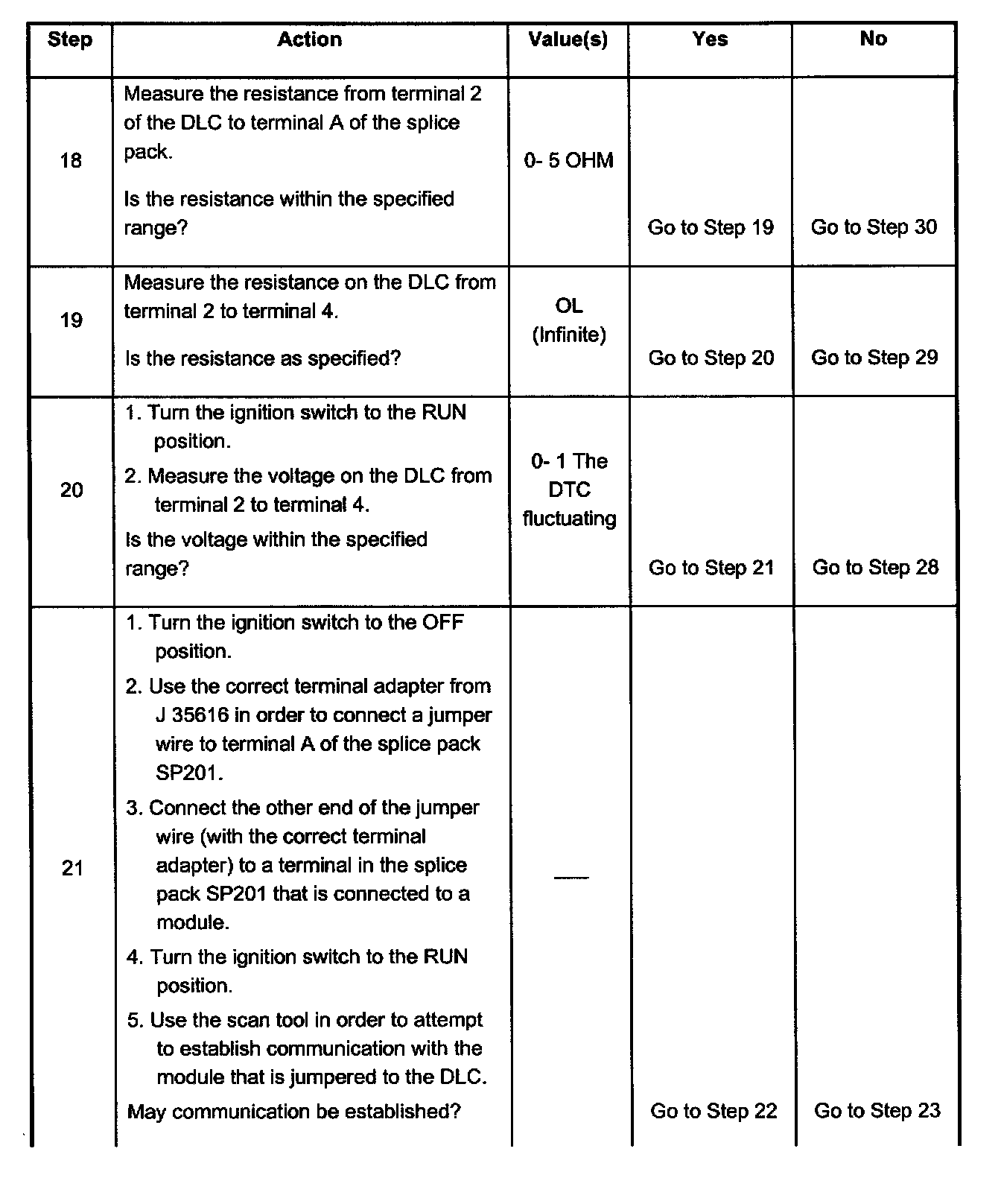

Steps 18 - 21:

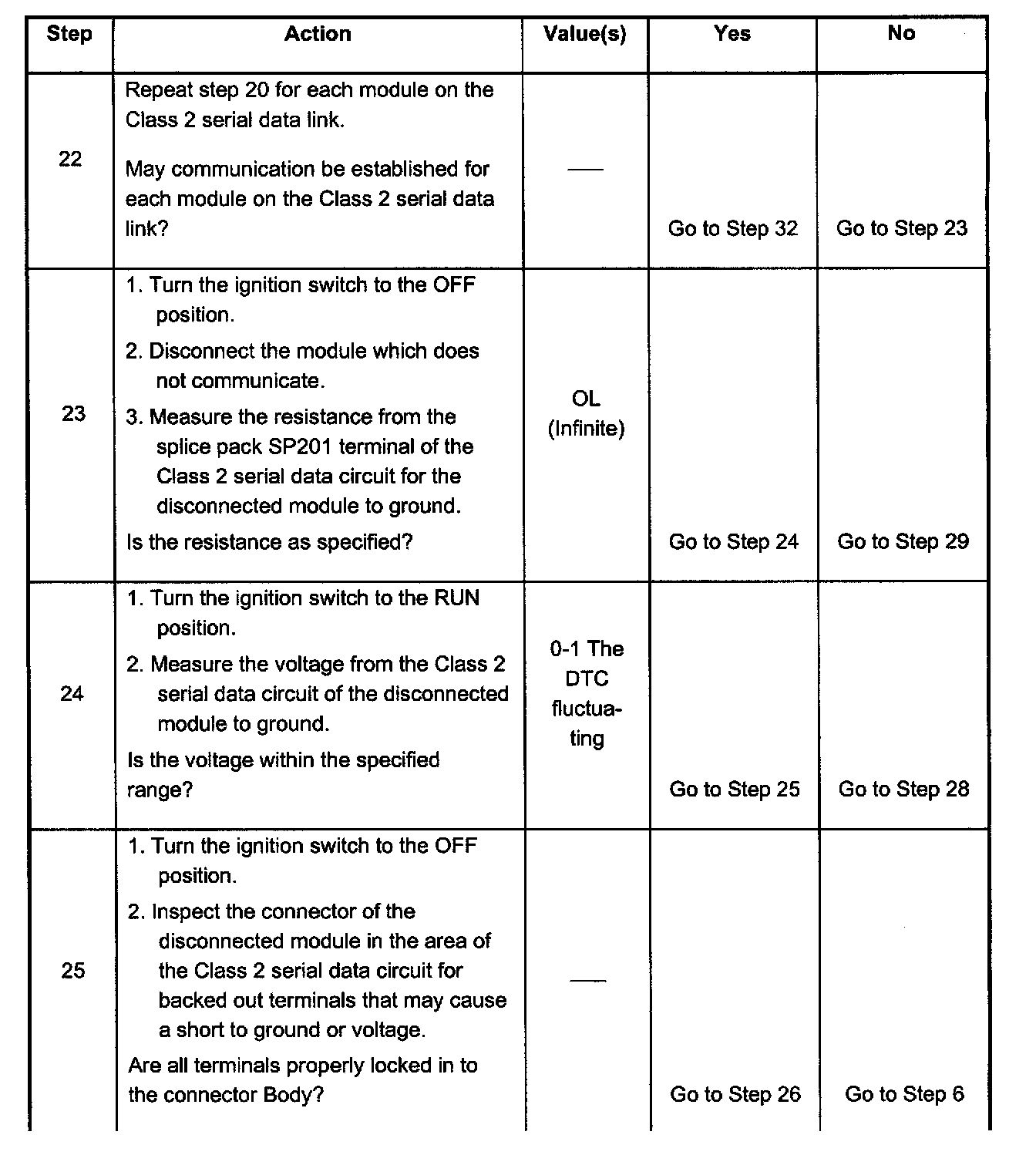

Steps 22 - 25:

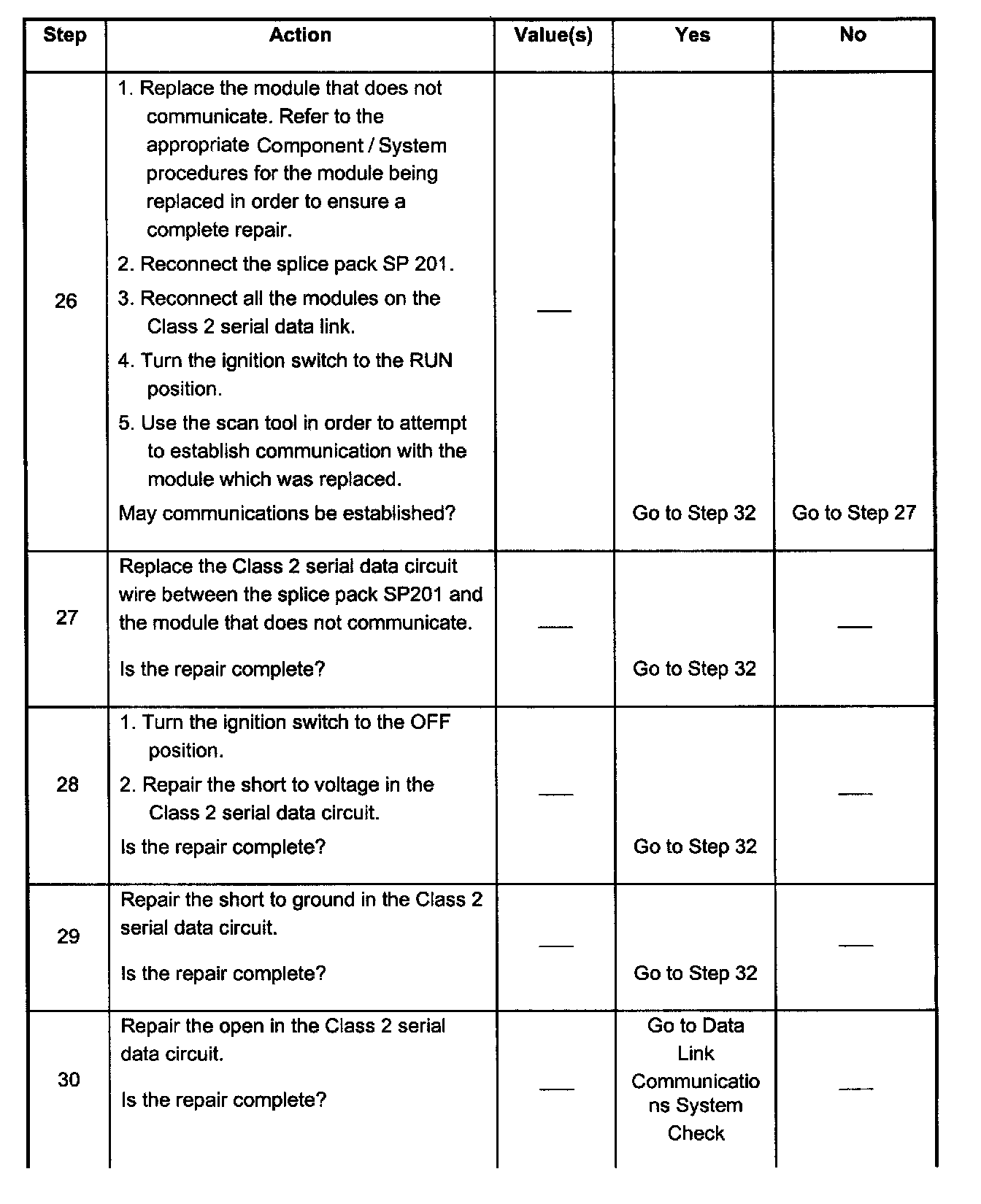

Steps 26 - 30:

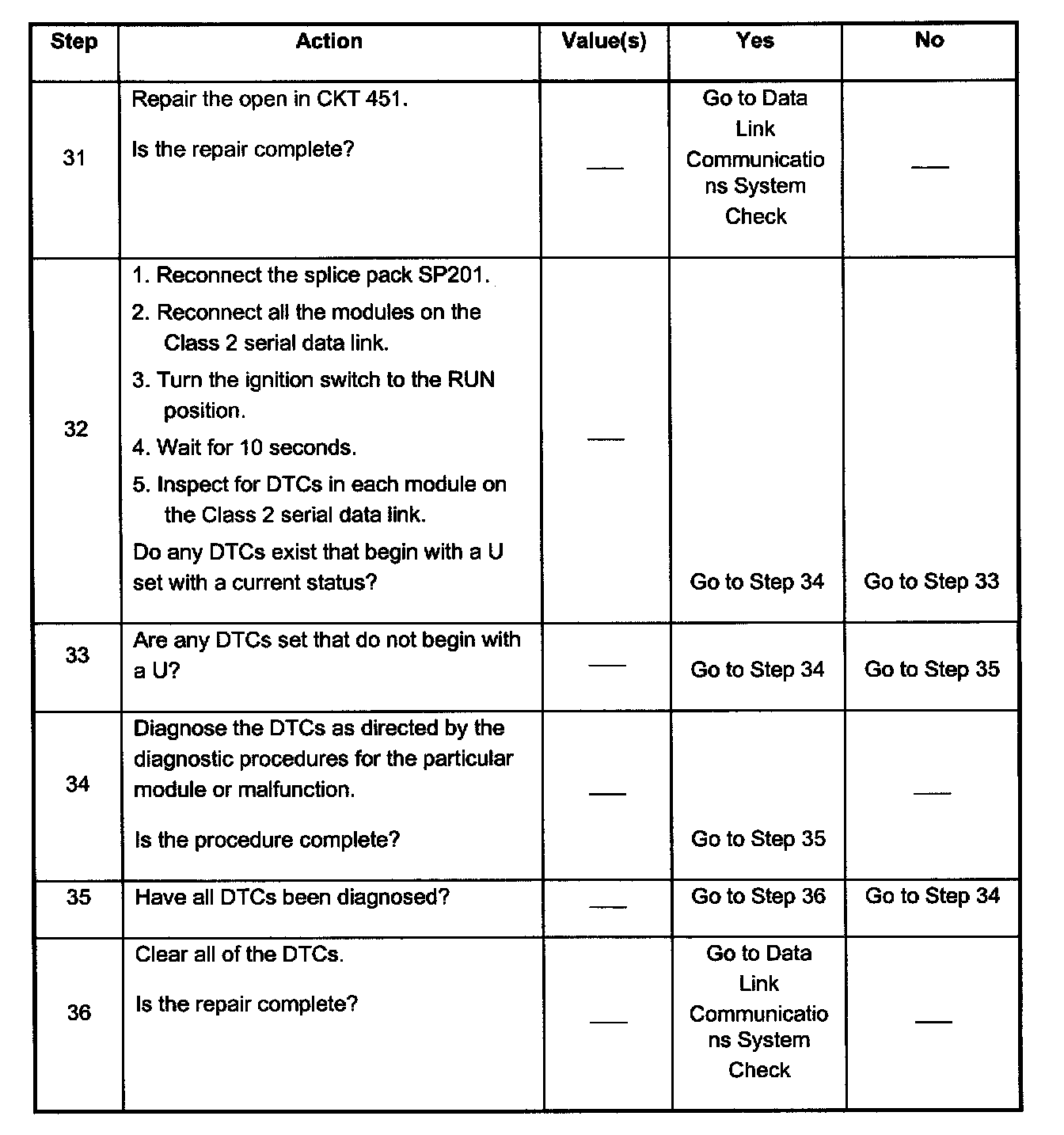

Steps 31 - 36:
