Component Locations

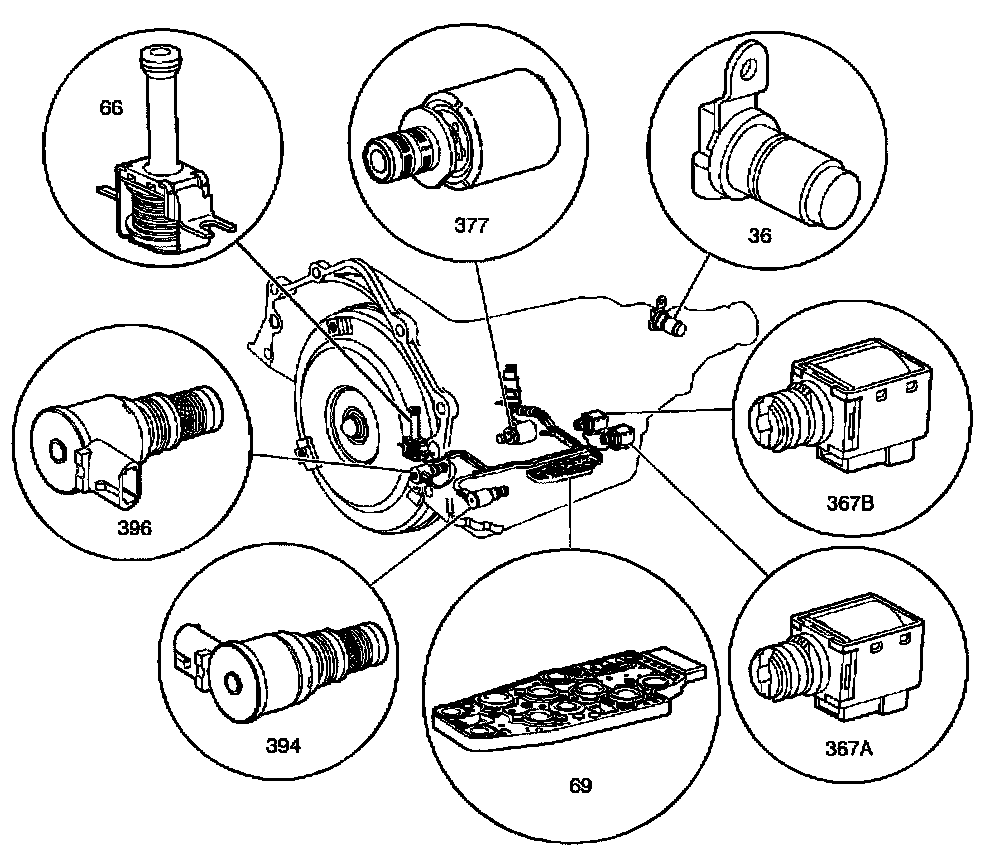

Electronic Component Locations





Legend
(36) Vehicle Speed Sensor (VSS)
(66) Torque Converter Clutch (TCC) Solenoid Valve
(69) Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
(367a) 1-2 Shift Solenoid (SS) Valve
(367b) 2-3 Shift Solenoid (SS) Valve
(377) Pressure Control (PC) Solenoid Valve
(394) 3-2 Shift Solenoid (SS) Valve Assembly
(396) Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve

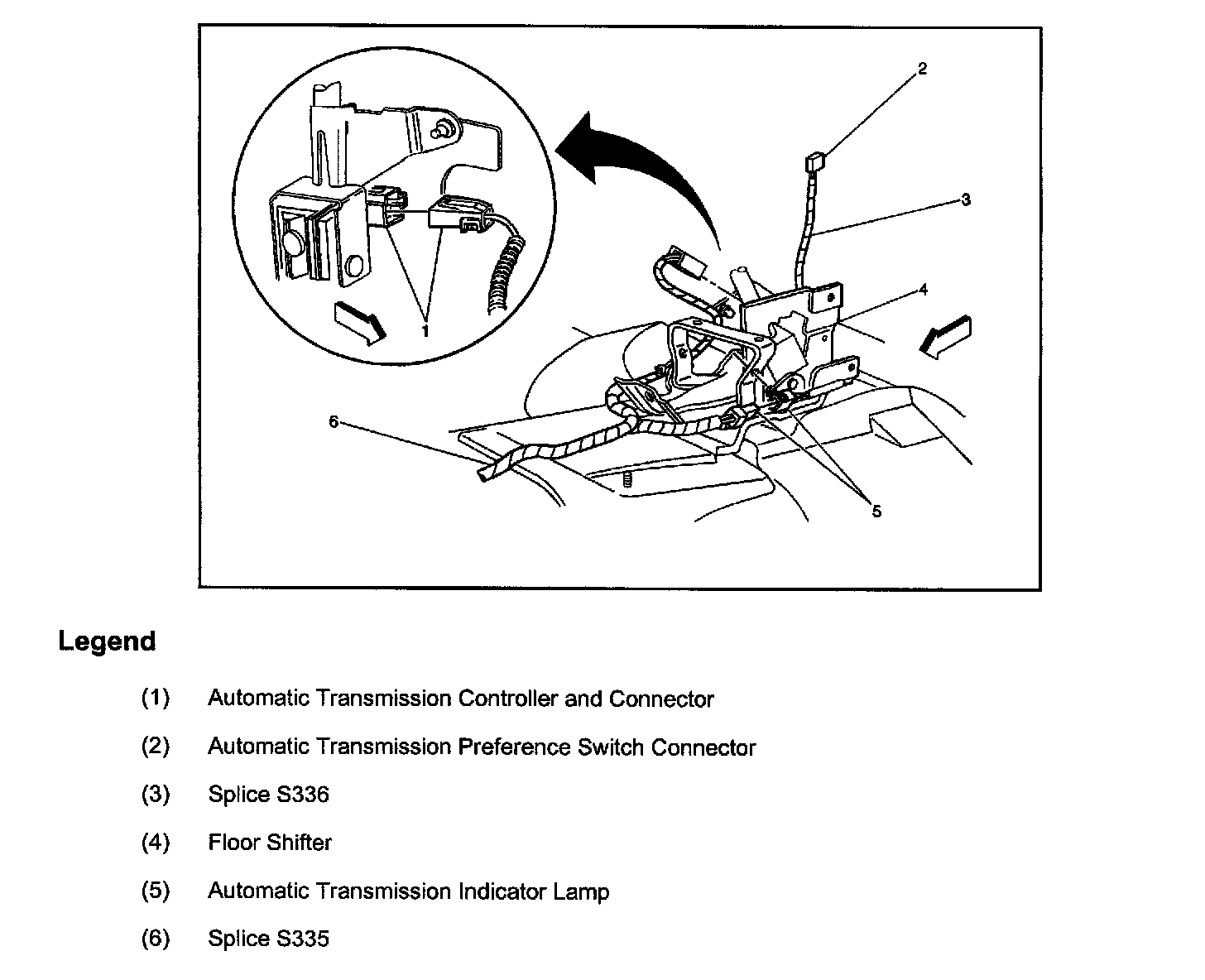

Automatic Transmission Controller and Connector

Floor Shifter Harness Connections:
