Component Locations

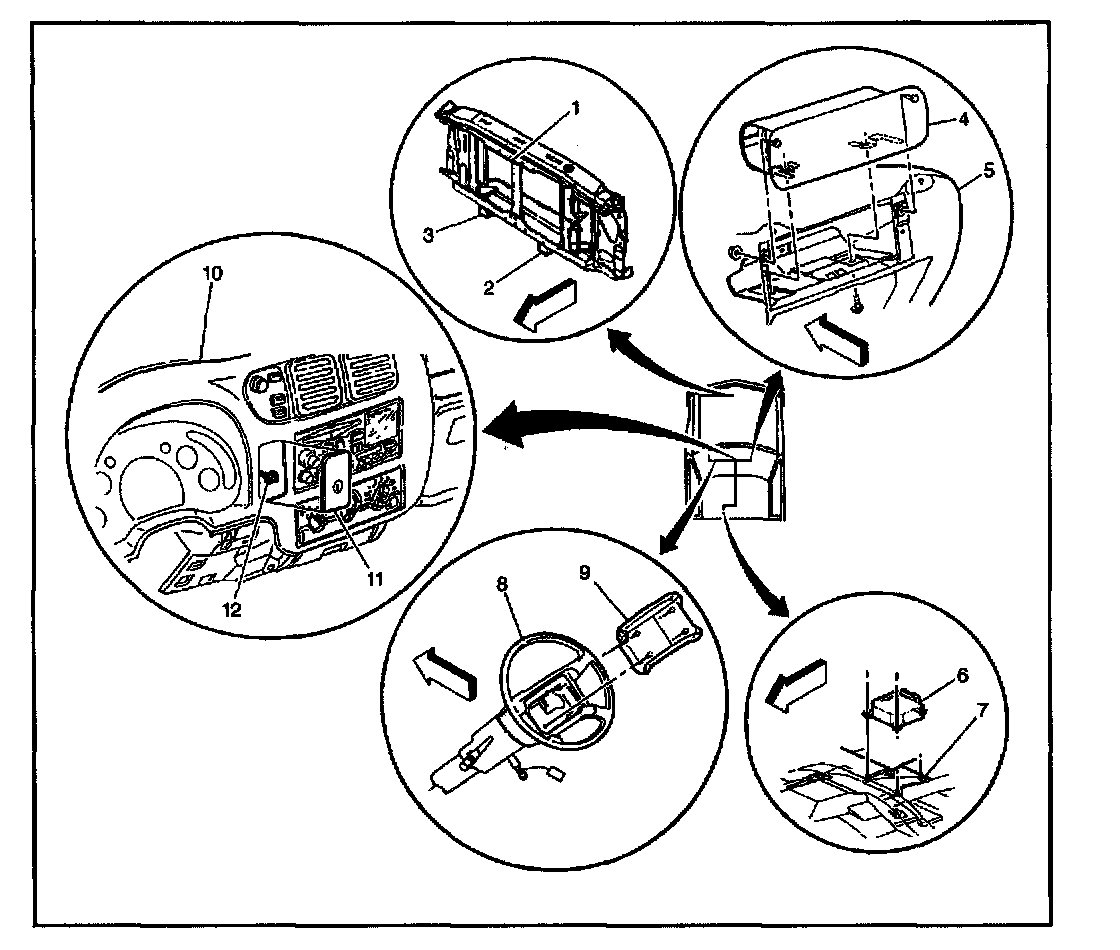

Legend
1. Radiator Support Bracket
2. LH Supplemental Restraint Discriminating Sensor
3. RH Supplemental Restraint Discriminating Sensor
4. Supplemental Restraint IP Module
5. Instrument Panel
6. Supplemental Restraint Sensing and Diagnostic Module
7. Floor Pan
8. Steering Wheel
9. Supplemental Restraint Steering Wheel Module
10. Instrument Panel
11. Supplemental Restraint IP Module Switch
12. Supplemental Restraint P Module Switch Connector

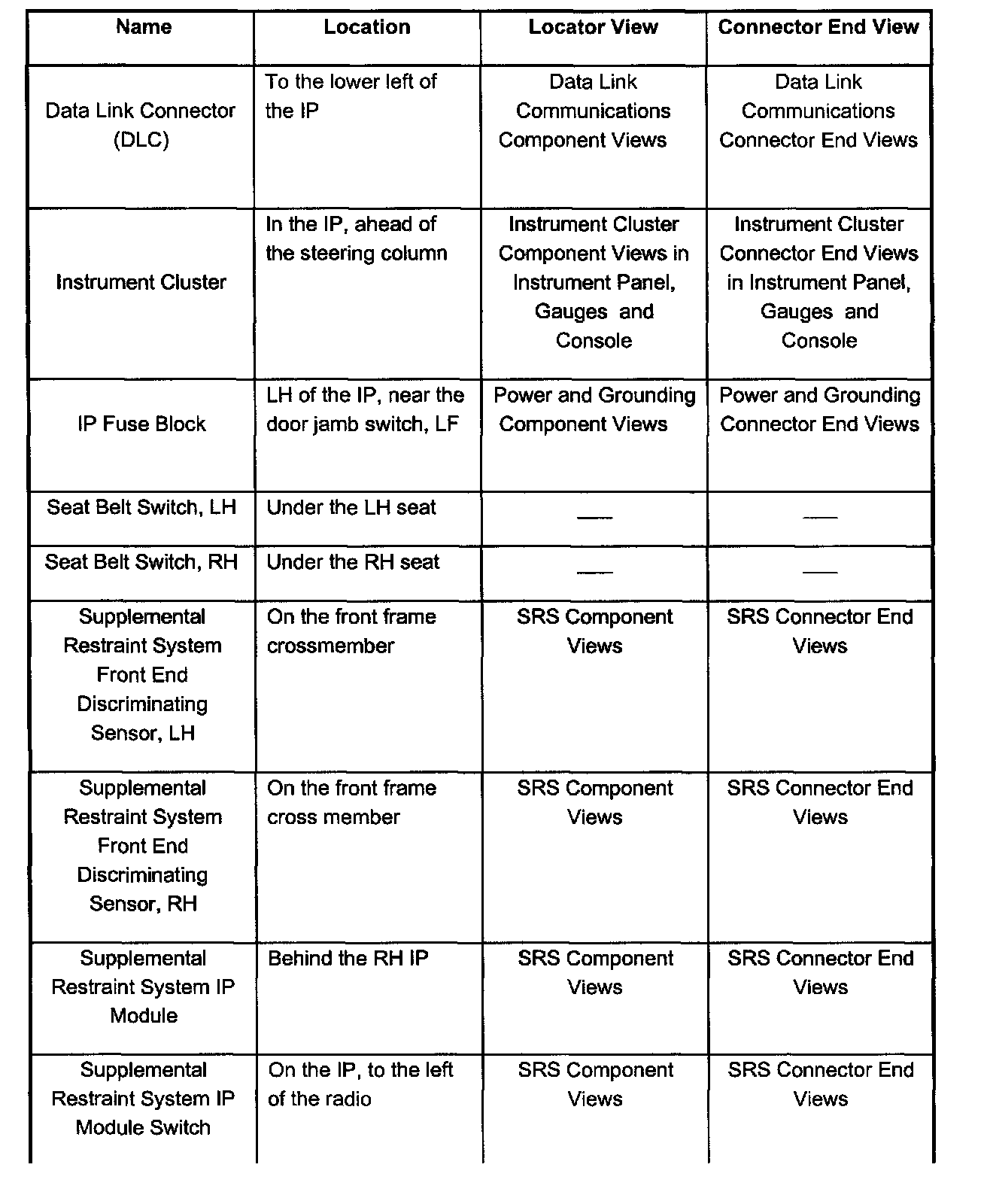

SRS Components (Part 1 0f 5):

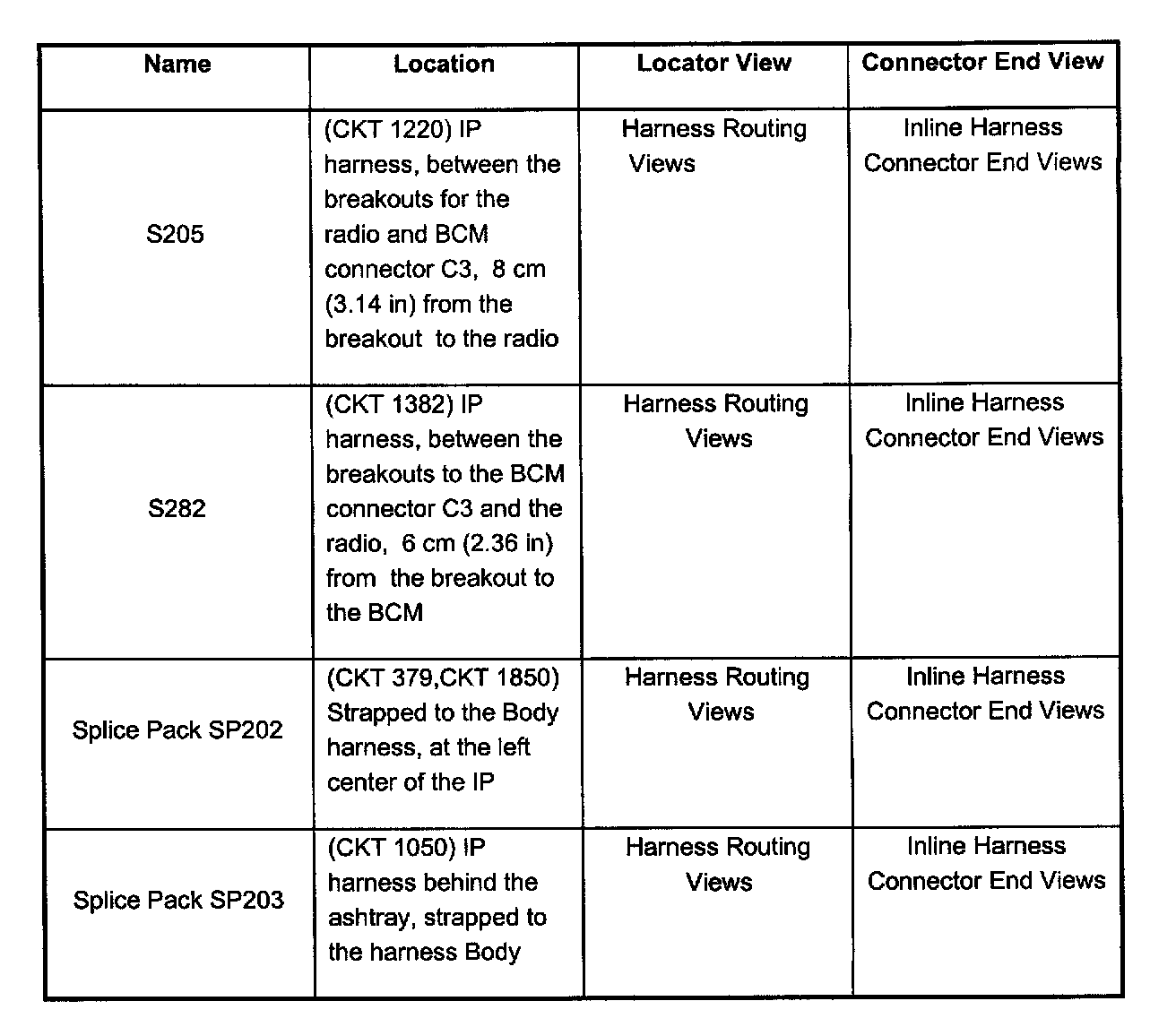

Part 2 Of 5:

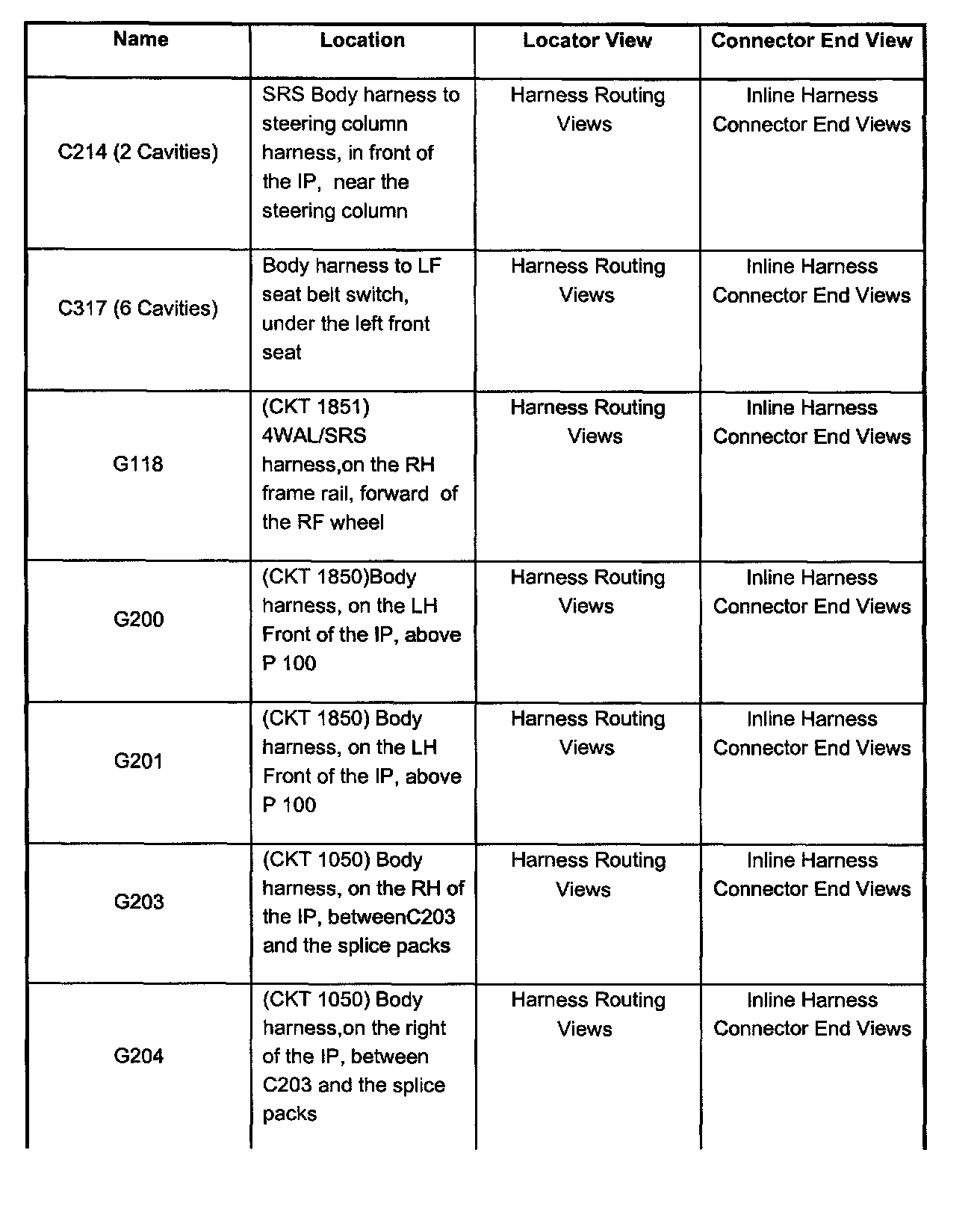

Part 3 Of 5:

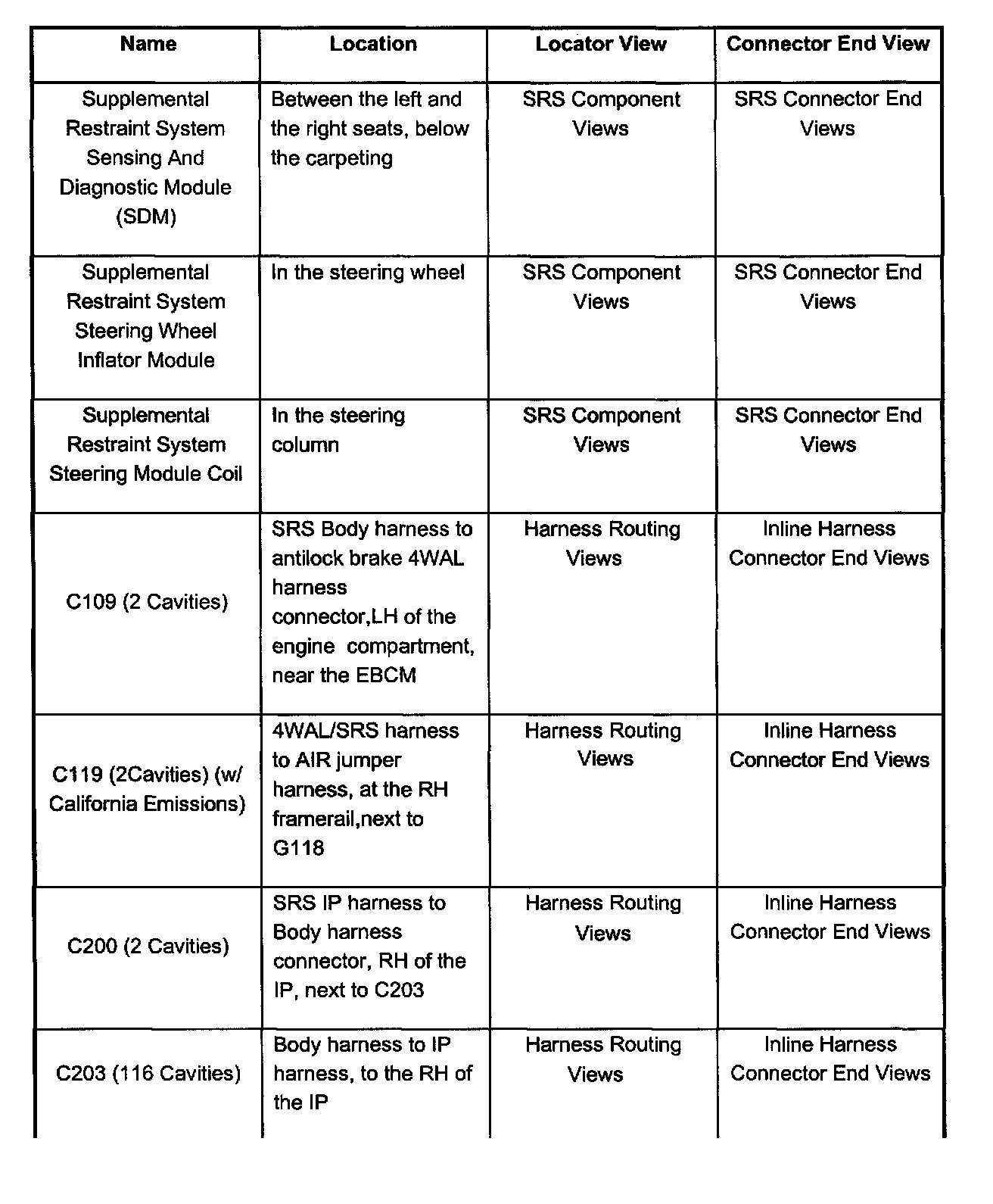

Part 4 Of 5:




Part 5 Of 5:
