Cylinder Head Assembly

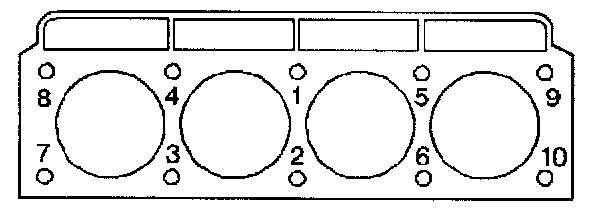

Use the following sequence in order to tighten the cylinder head bolts:
Tighten the long cylinder head bolts to 63 N.m (46 lb ft).
Tighten the short cylinder head bolts to 58 N.m (43 lb ft).
1. Tighten bolt 1 to 63 N.m (46 lb ft).
2. Tighten bolt 2 to 58 N.m (43 lb ft).
3. Tighten bolt 3 to 58 N.m (43 lb ft).
4. Tighten bolt 4 to 63 N.m (46 lb ft).
5. Tighten bolt 5 to 63 N.m (46 lb ft).
6. Tighten bolt 6 to 58 N.m (43 lb ft).
7. Tighten bolt 7 to 58 N.m (43 lb ft).
8. Tighten bolt 8 to 63 N.m (46 lb ft).
9. Tighten bolt 9 to 63 N.m (46 lb ft).
10. Tighten bolt 10 to 58 N.m (43 lb ft).
11. Use J 36660 to tighten all the cylinder head bolts an additional 90 degrees in sequence.
