Component Locator View

Component Locator View

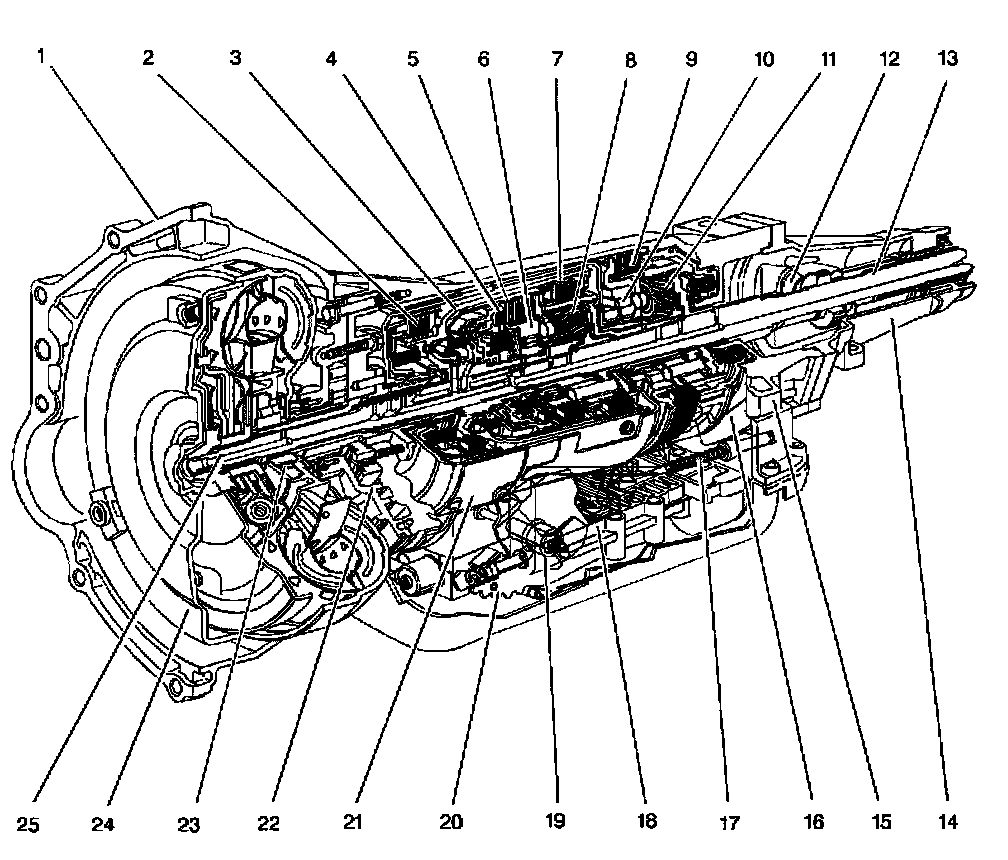

Legend
(1) Converter Housing
(2) Reverse Input Clutch
(3) Input Clutch Housing
(4) Overrun Clutch
(5) Forward Clutch
(6) Forward Sprag Clutch Assembly
(7) 3-4 Clutch
(8) Input planetary Gear Set
(9) Lo and Reverse Clutch
(10) Lo Roller Clutch Assembly
(11) Reaction Planetary Gear Set
(12) Speed Sensor
(13) Output Shaft
(14) Case Extension
(15) Case, Main Section
(16) Parking Pawl
(17) Parking Lock Actuator Assembly
(18) Control Valve Assembly
(19) Manual Shaft
(20) Inside Detent Lever
(21) 2-4 Band Assembly
(22) Pump Assembly
(23) Stator Roller Clutch
(24) Torque Converter Assembly
(25) Turbine Shaft
