Power Window Switch Replacement

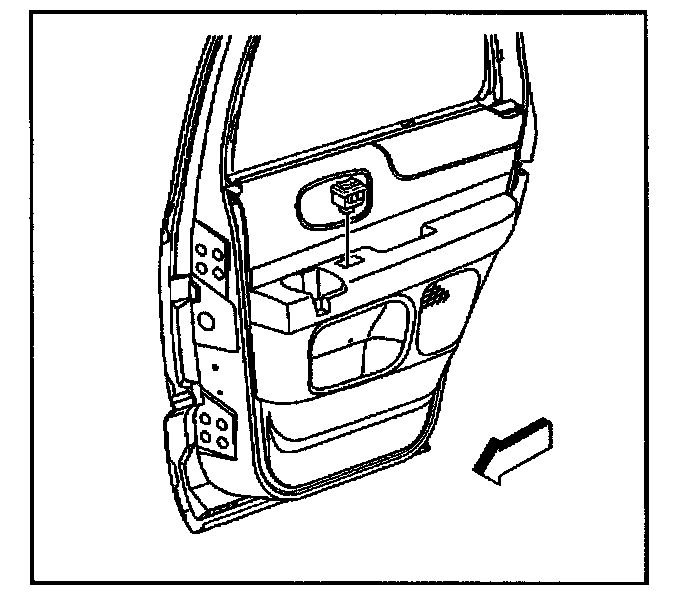

Removal Procedure 1.
Remove the
power Window switch from the trim panel.
2.

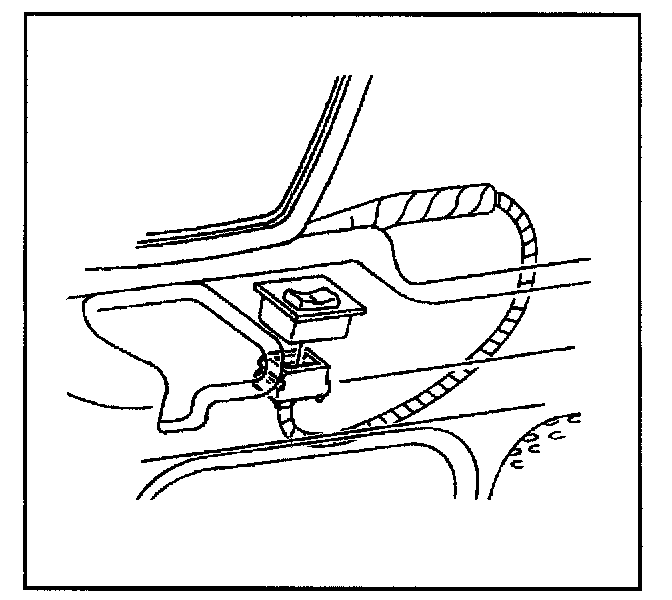

Disconnect the electrical connector from the switch.
Use a small screwdriver in order to press in the retainer springs.

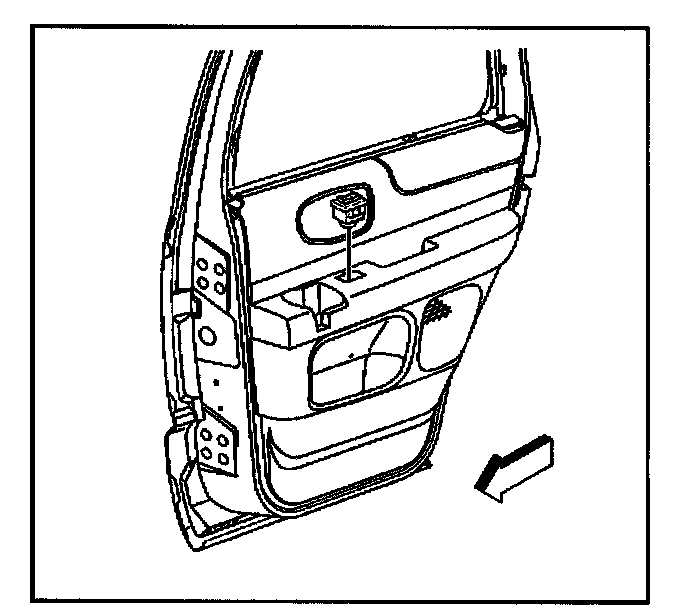

Installation Procedure 1.

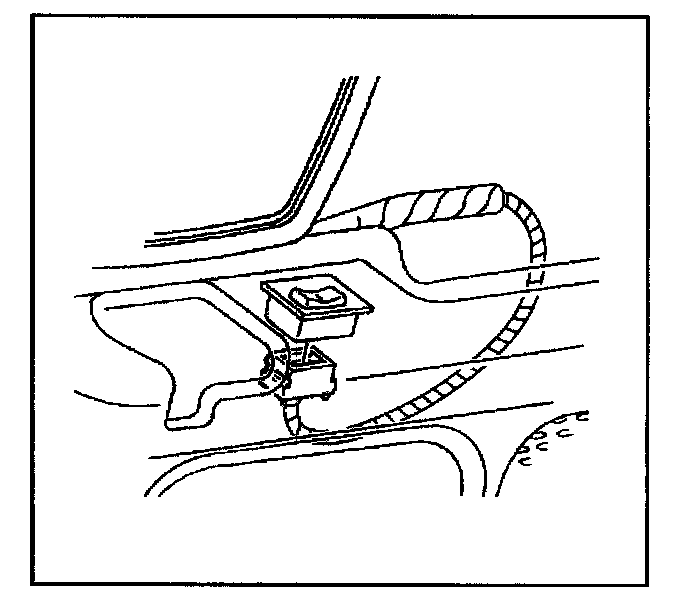

Connect the electrical connector to the switch.
2.
Install the
power Window switch to the trim panel.
