Wiper Control Module: Service and Repair

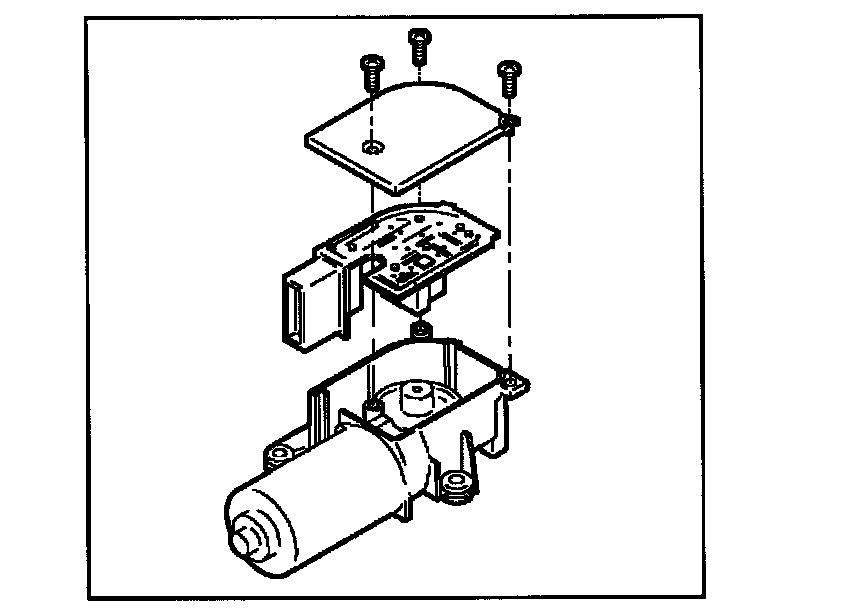

Removal Procedure

1. Remove the wiper motor electrical connector.
2. Remove the cover screws.
3. Remove the cover.
4. Remove the wiper motor module by lifting up on the terminal.

Installation Procedure

NOTE: Refer to Fastener Note in Service Precautions.

1. Install the wiper motor module.
2. Install the cover and three screws.

Tighten
Tighten the screws to 2.6 N.m (23 lb in).

3. Install the wiper motor electrical connector.
