Timing Belt

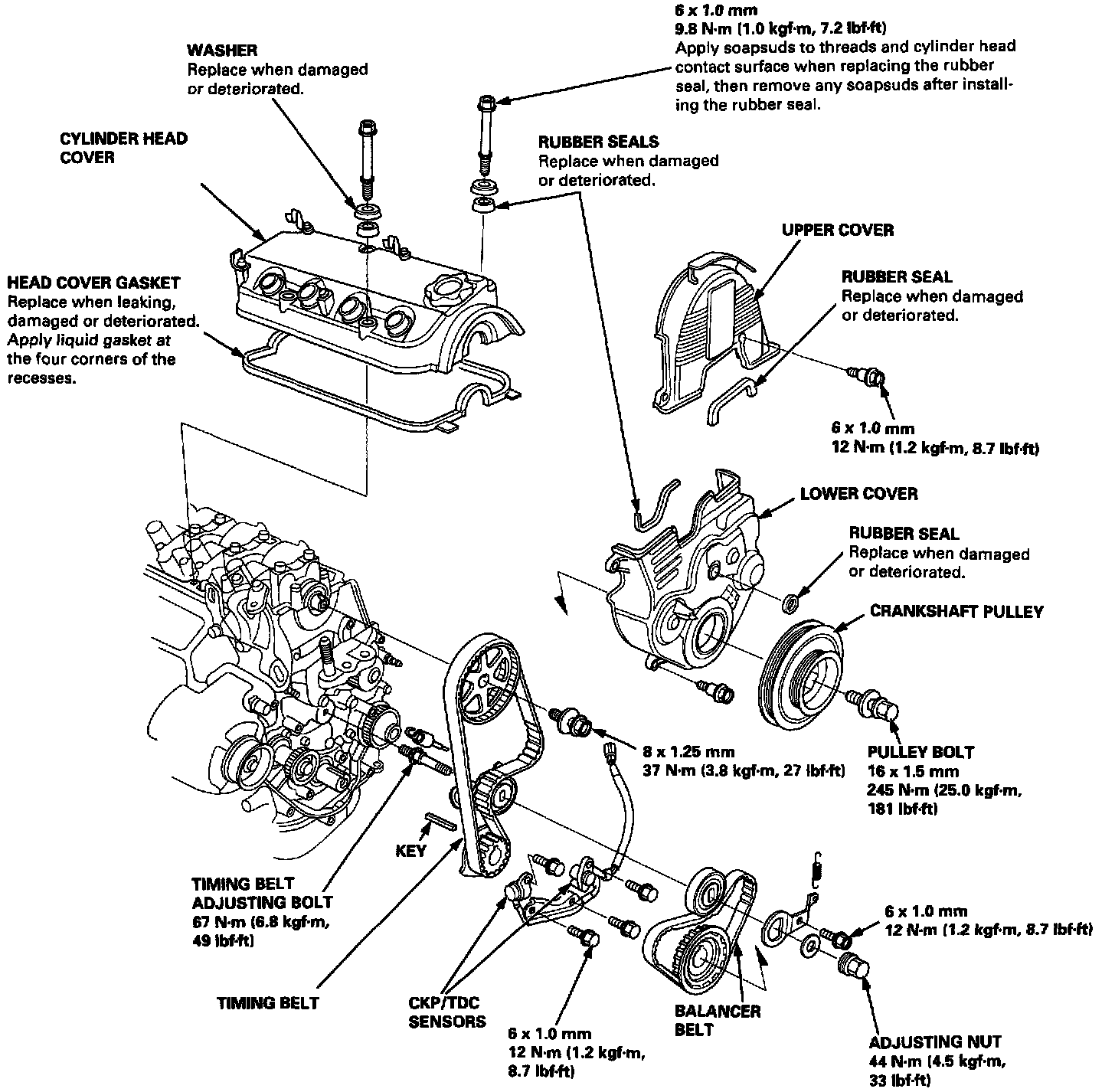

Timing Components:

NOTE:
^ Refer to Timing Belt, Service and Repair for how to position the crankshaft and pulley before installing the belt.
^ Mark the direction of rotation on the belt before removing it.
^ Do not use the upper cover and lower cover for storing removed items.
^ Clean the upper cover and lower cover before installing them.
^ Replace the camshaft seals and crankshaft seals if there is oil leakage.
^ Refer to Crankshaft Pulley, Service and Repair before installing the timing belt and balancer belt.
