Blower Assembly

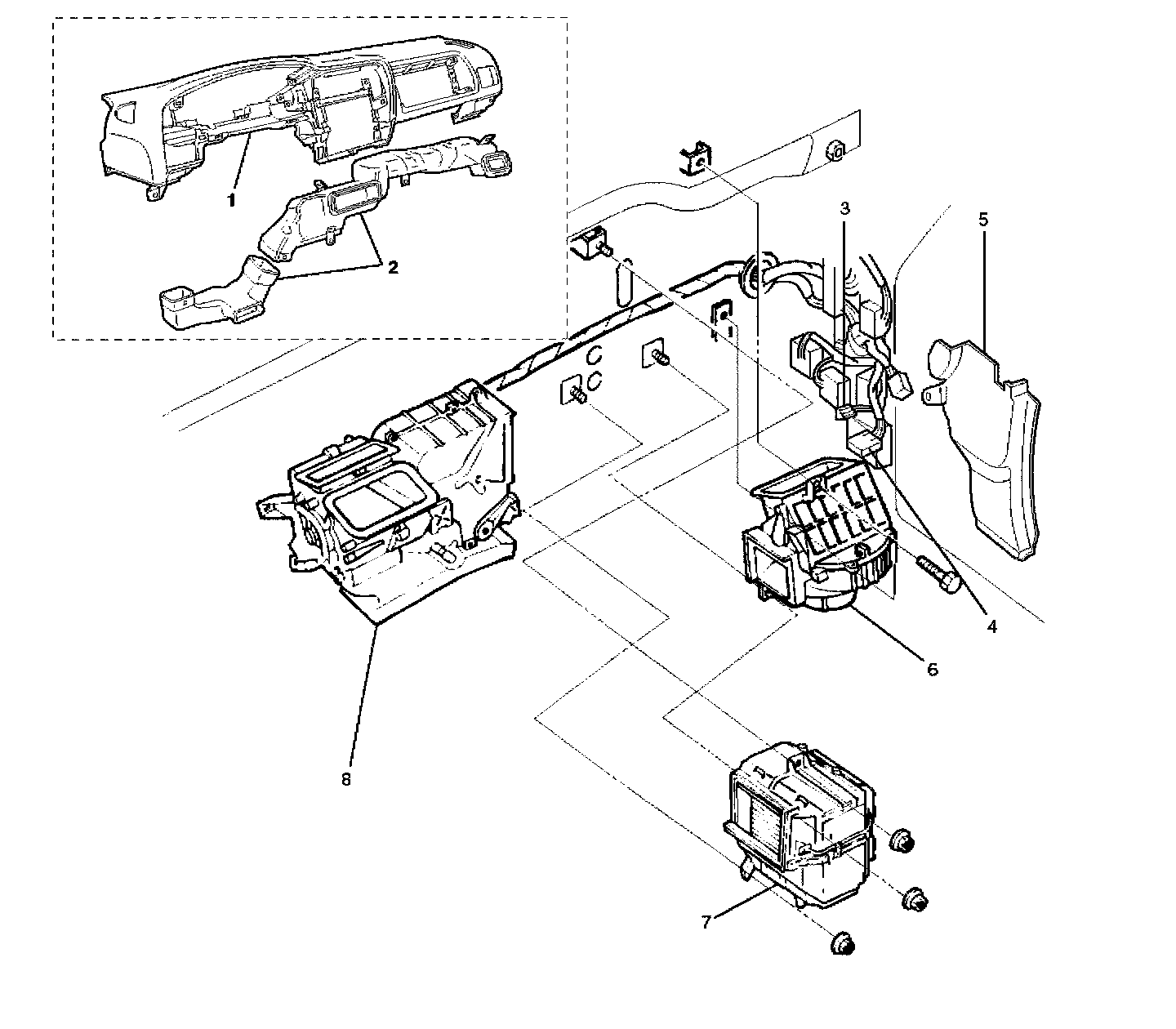

Blower Assembly and Associated Parts

Removal
1. Disconnect the battery ground cable.
2. Discharge and recover refrigerant (with air conditioning). Service and Repair
3. Remove instrument panel assembly.
4. Disconnect resistor connector.
5. Remove evaporator assembly.
6. Disconnect blower motor connector.
7. Remove blower assembly.

Installation
To install, follow the removal steps in the reverse order, making sure to adjust the control cables.
