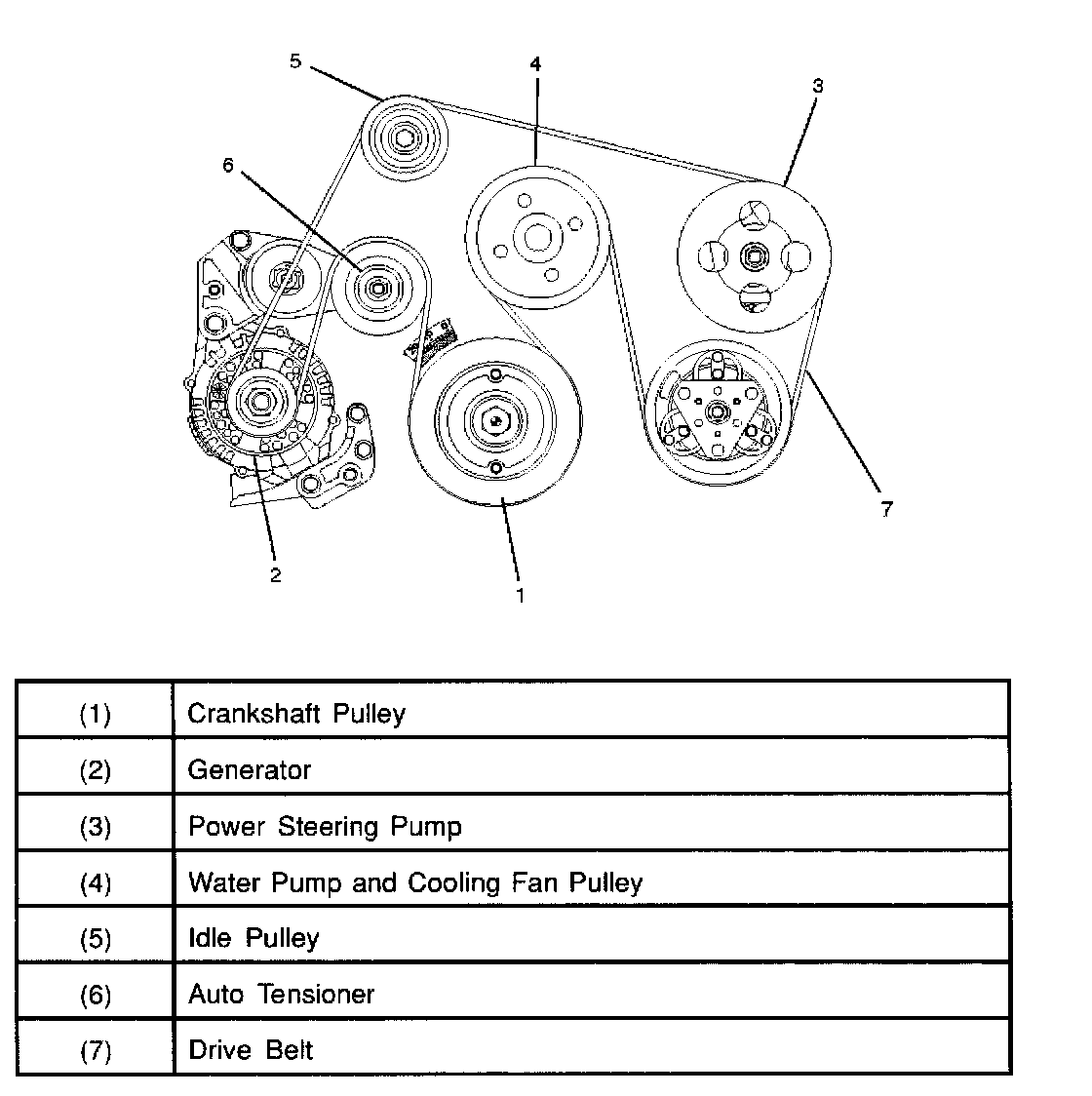

Drive Belt: Testing and Inspection
The
drive belt adjustment is not required with this automatic drive belt tensioner system.
Inspection Check
drive belt for wear or damage, and replace with a new one as necessary.
Installation Install cooling fan assembly and tighten bolts/nuts to the specified torque.
Torque
22 Nm (16 ft. lbs.) for fan pulley and fan bracket.
Torque
10 Nm (88.5 inch lbs.) for fan and clutch assembly.
