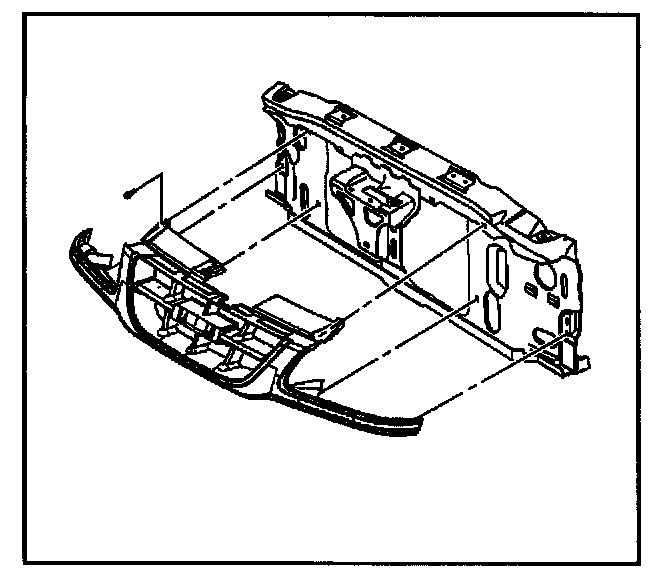

Grille: Service and Repair
Removal Procedure 1.
Open the
hood. Support the hood with a prop rod.
2.
Remove the
grille from the radiator support. Pull firmly in order to unseat the retainers.
3.
Remove the
grille from the vehicle.
Installation Procedure 1.
Install the
grille to the vehicle.
2.
Attach the retainers in order to install the
grille to the radiator support.
3.
Close the
hood.
