Seat Replacement - Bench

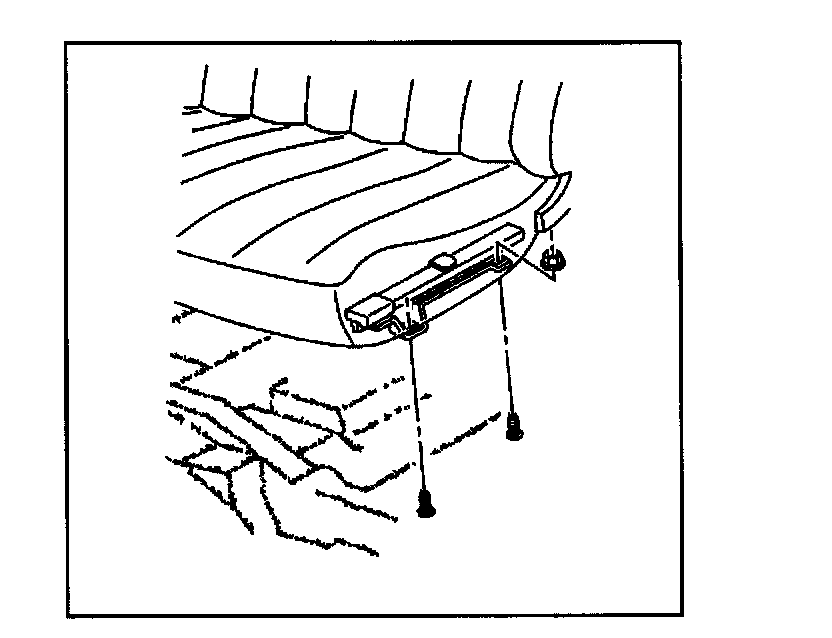

Removal Procedure




1. Remove the seat adjuster trim covers. Refer to Seat Adjuster Track Cover Replacement - Front.
2. Remove three seat mounting nuts.
3. Guide the seat belts through the slots in the seat.
4. Remove the seat from the vehicle.

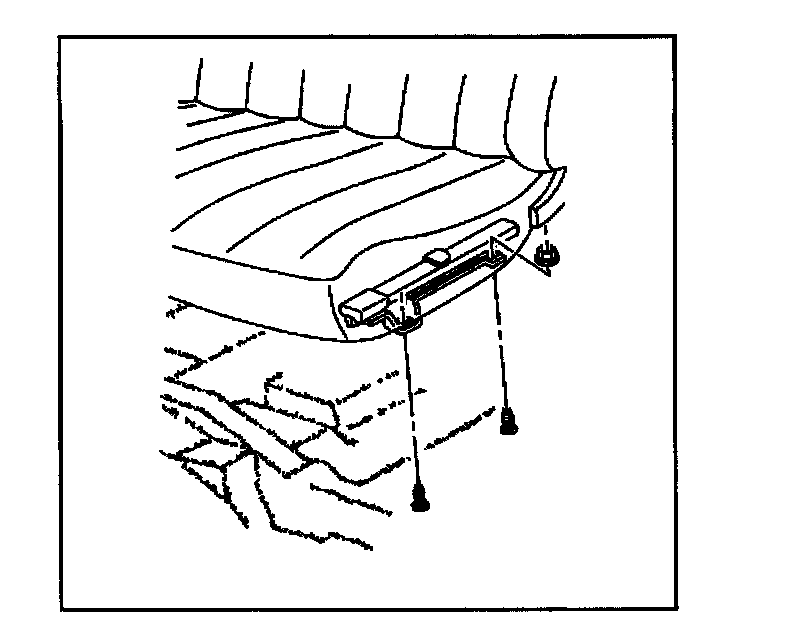

Installation Procedure
1. Install the seat to the vehicle.




2. Guide the seat belts through the slots in the seat.

NOTE: Refer to Fastener Note in Cautions and Notes.

3. Install the seat mounting nuts.

Tighten
Tighten the seat nuts to 45 N.m (33 lb ft).

4. Install the seat adjuster trim covers. Refer to Seat Adjuster Track Cover Replacement - Front.
