Tailgate Shock / Support: Service and Repair




Removal Procedure
1. Safely support the endgate in the open position.

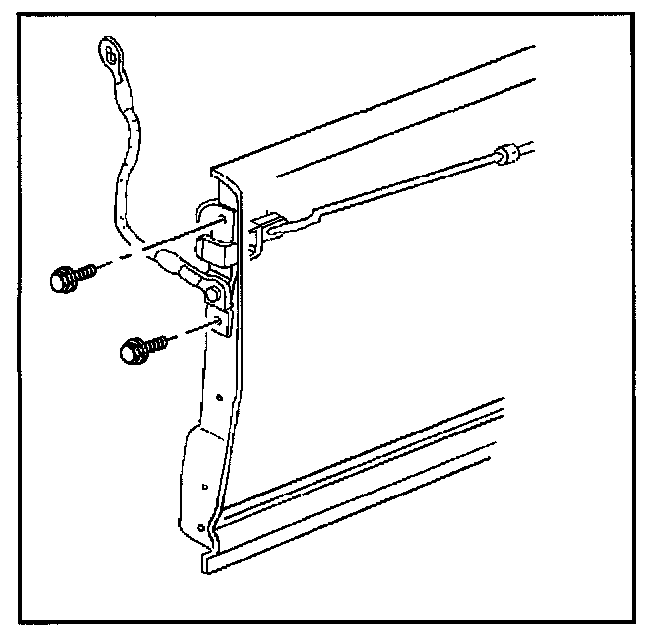

2. Remove the bolts that retain the endgate supports to the endgate.
3. Remove the endgate supports from the vehicle.




Installation Procedure
1. Install the endgate supports to the vehicle.

NOTE: Refer to Fastener Note in Service Precautions.

2. Install the bolts that retain the endgate supports to the vehicle.

Tighten
Tighten the bolts to 2.8 N.m (25 lb in).

3. Install the bolts that retain the endgate supports to the endgate.

Tighten
Tighten the bolts to 2.8 N.m (25 lb in).
