Map Light: Service and Repair

Removal Procedure

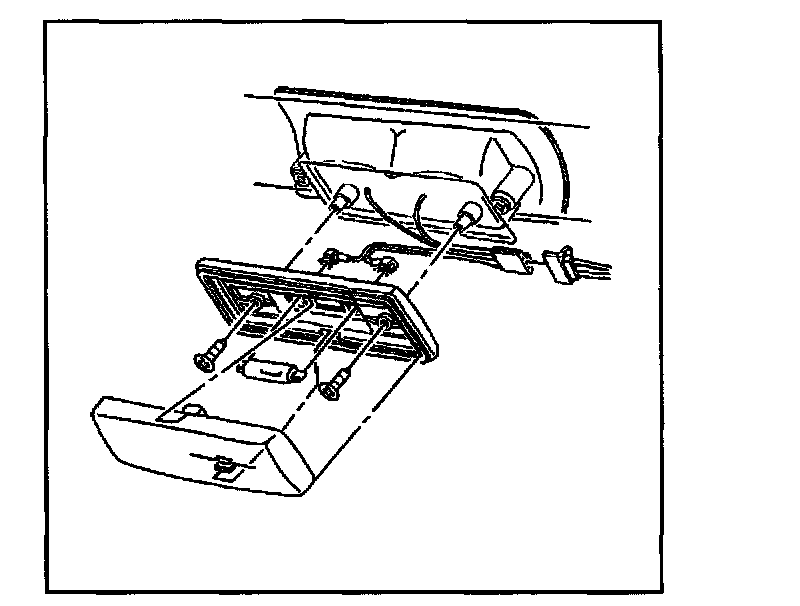

On pickup models the dome lamp is located on the roof panel above the rear glass.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notes.




1. Disconnect the battery negative cable.
2. Squeeze the dome lamp lens in order to remove the lens.
3. Remove the dome lamp bulb.
4. Remove the screws that retain the dome lamp base to the high mount stop lamp from inside the vehicle.
5. Remove the dome lamp from the vehicle.

Installation Procedure




1. Install the dome lamp base to the vehicle.

NOTE: Refer to Fastener Note in Cautions and Notes.

2. Install the screws that retain the dome lamp base to the high mount stop lamp from inside the vehicle.

Tighten
Tighten the screws to 2.5 N.m (22 lb in).

3. Install the dome lamp bulb.
4. Install the dome lamp lens. Squeeze the lens in order to engage the tabs.
5. Connect the battery negative cable.
