Fuel Pump Pickup Filter: Service and Repair




Removal Procedure
1. Relieve fuel system pressure.
2. Drain fuel tank.
3. Remove the fuel tank.

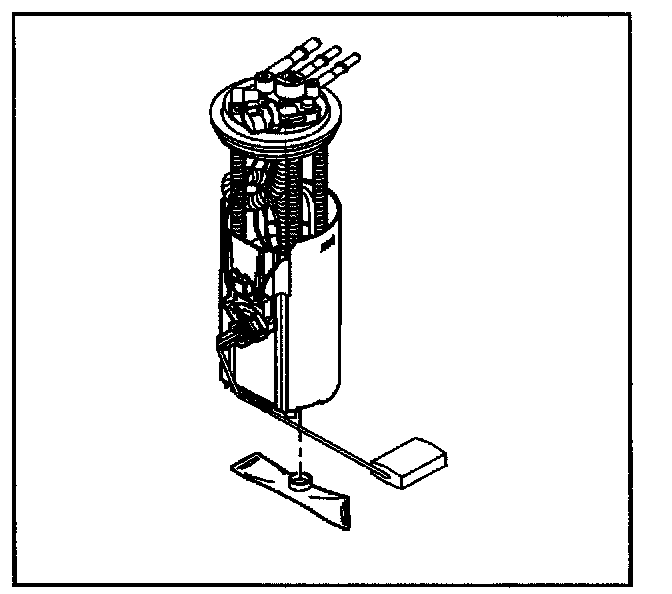

4. Remove the fuel sender assembly.




5. Note strainer position for future reference.
6. Support the reservoir with one hand.
7. Use a screwdriver to pry the strainer ferrule off the reservoir.
8. Discard the strainer.




Installation Procedure
1. Support the reservoir with one hand and grasp the strainer with the other hand twisting the strainer into position.
2. Install the fuel sender assembly.
3. Install the fuel tank.
4. Refill the fuel tank.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

5. Connect the negative battery cable.
6. Inspect for fuel leaks:
1. Turn the ignition switch to the ON position for 2 seconds.
2. Turn the ignition switch OFF position for 10 seconds.
3. Turn the ignition switch to the ON position.
4. Check for fuel leaks.
