Power Distribution Schematics

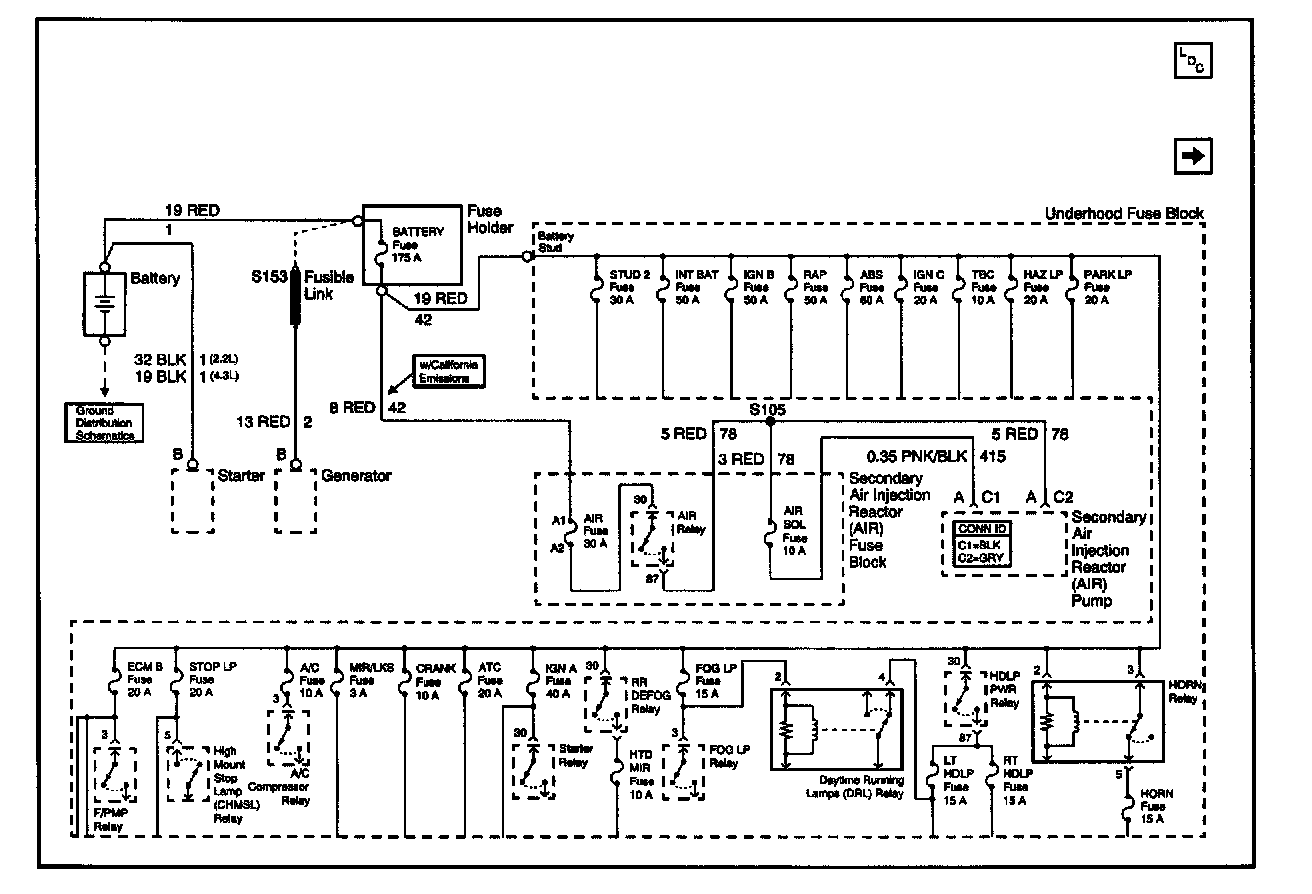

B+ Bus Bar:

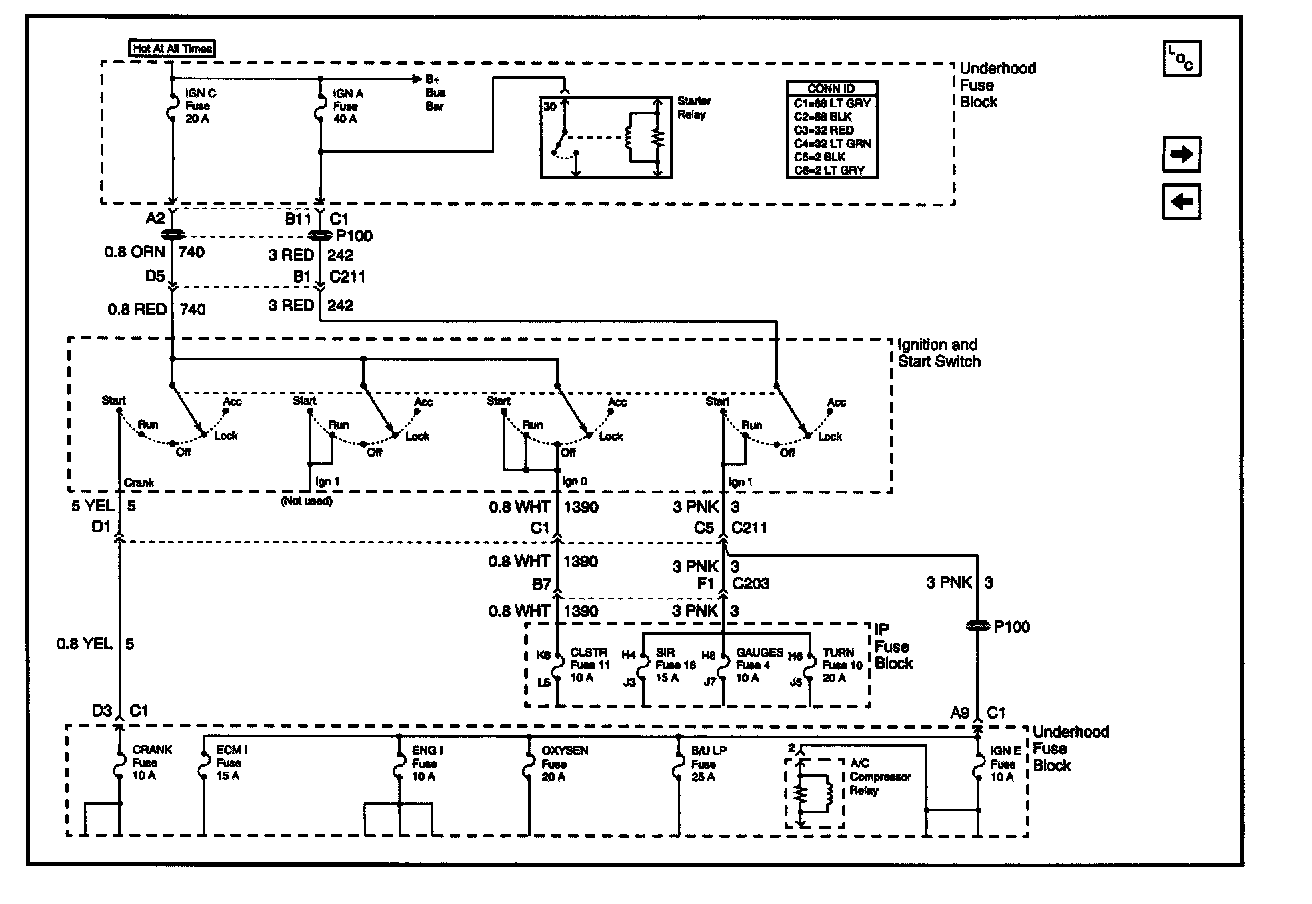

IGN C, IGN A Fuses and Ignition and Start Switch:

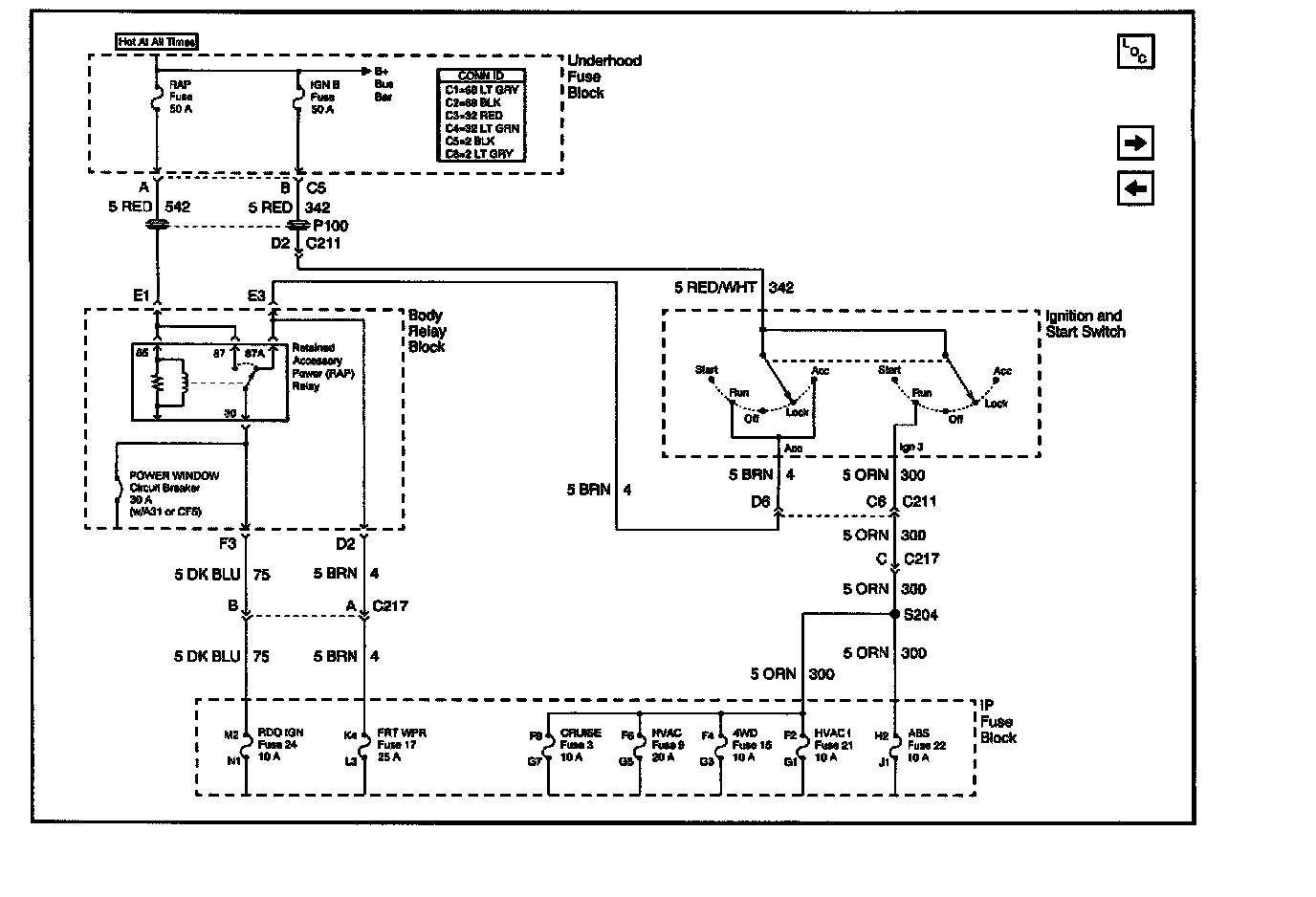

RAP, IGN B Fuses and Ignition Switch:

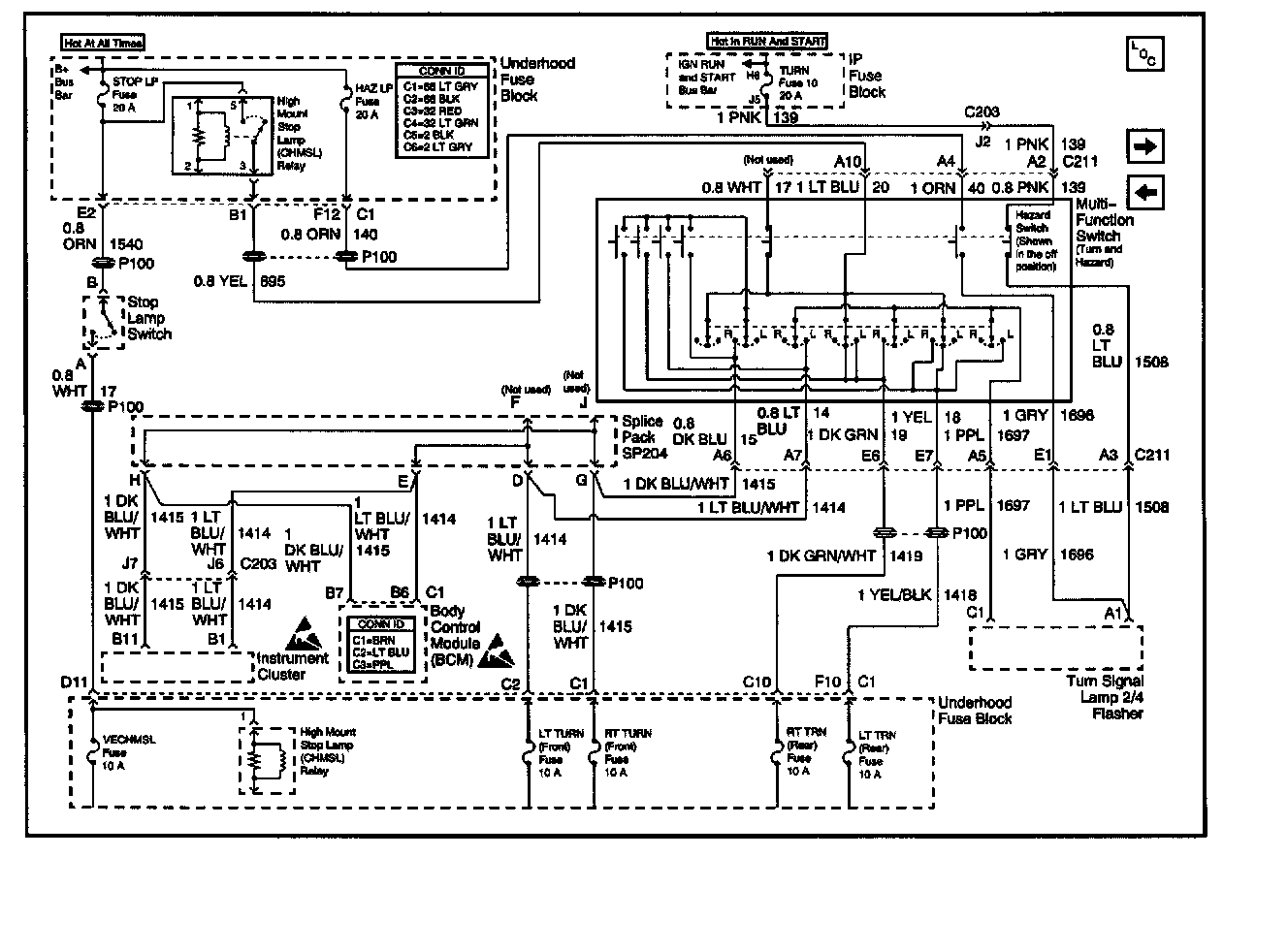

Stop LP, HAZ LP, TURN Fuses and Turn and Hazard Switch:

STUD 2, ABS and TBC Fuses:

INT BATT, PWR LKS, CTSY LP and CIGAR LTR Fuses:

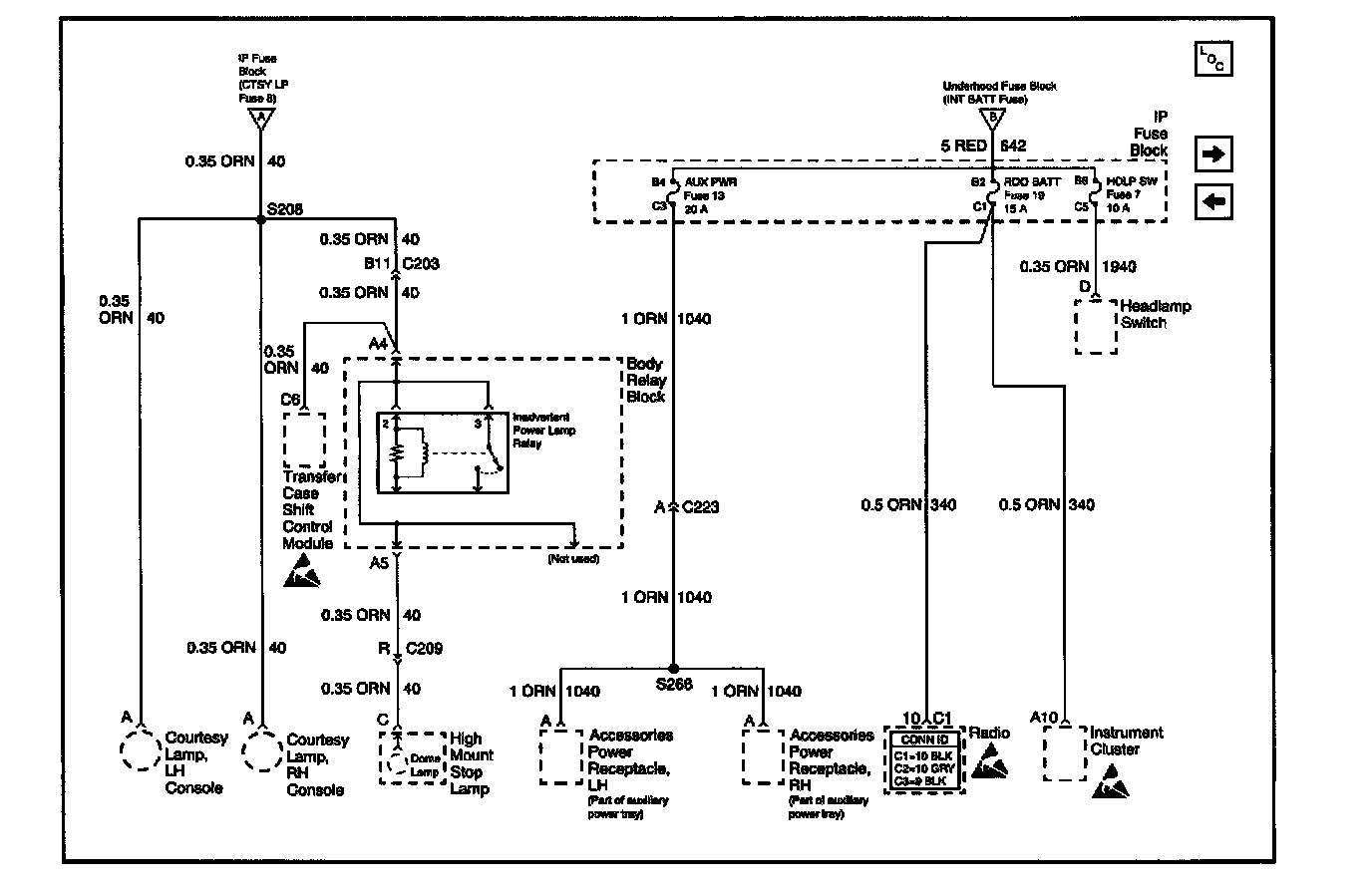

AUX PWR, RDO BATT, HDLP SW Fuses and Inadvertent Power Lamp Relay:

ATC, HVAC and A/C Fuses:

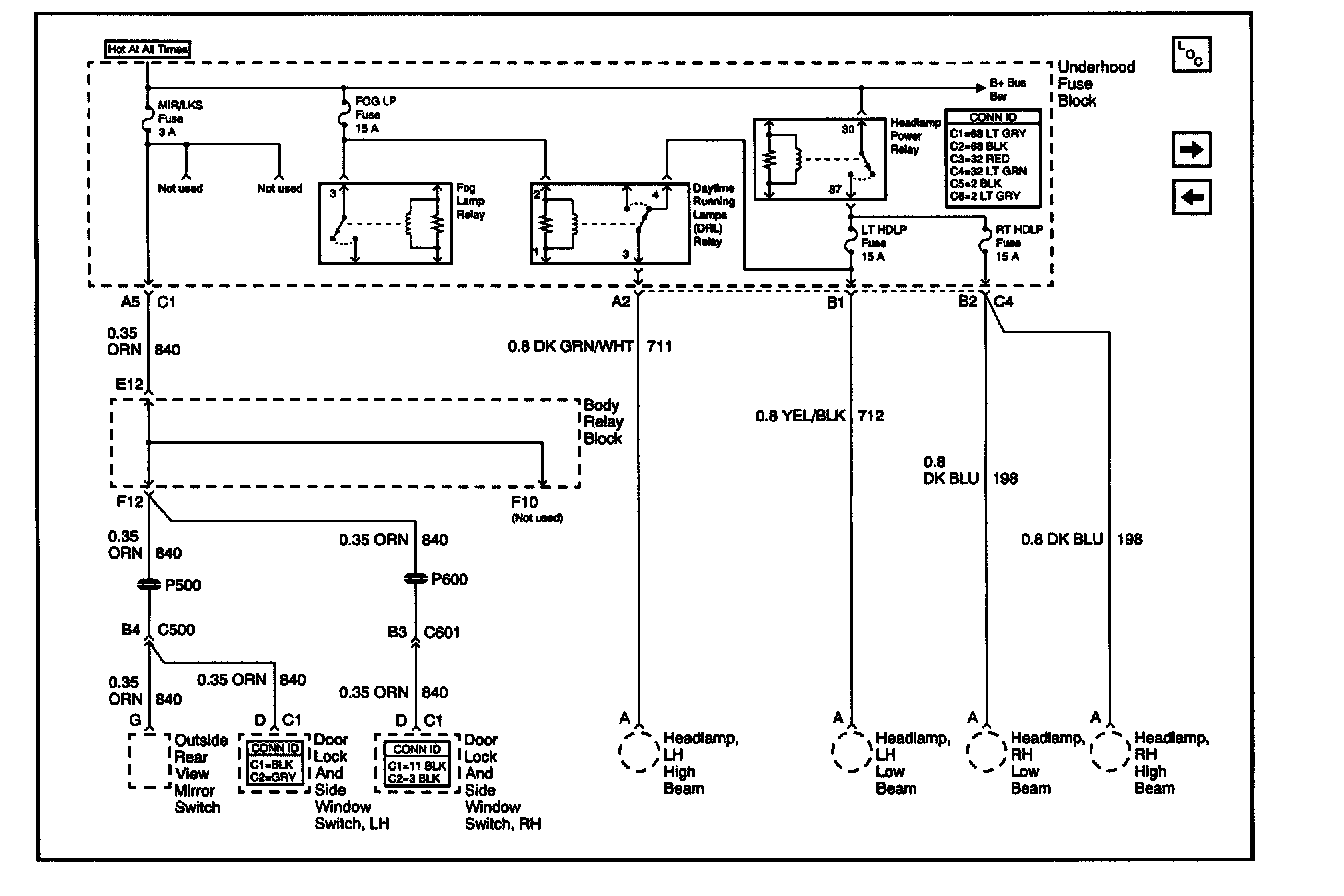

MIR/LKS, FOG LP, LT HDLP, and RT HDLP Fuses:

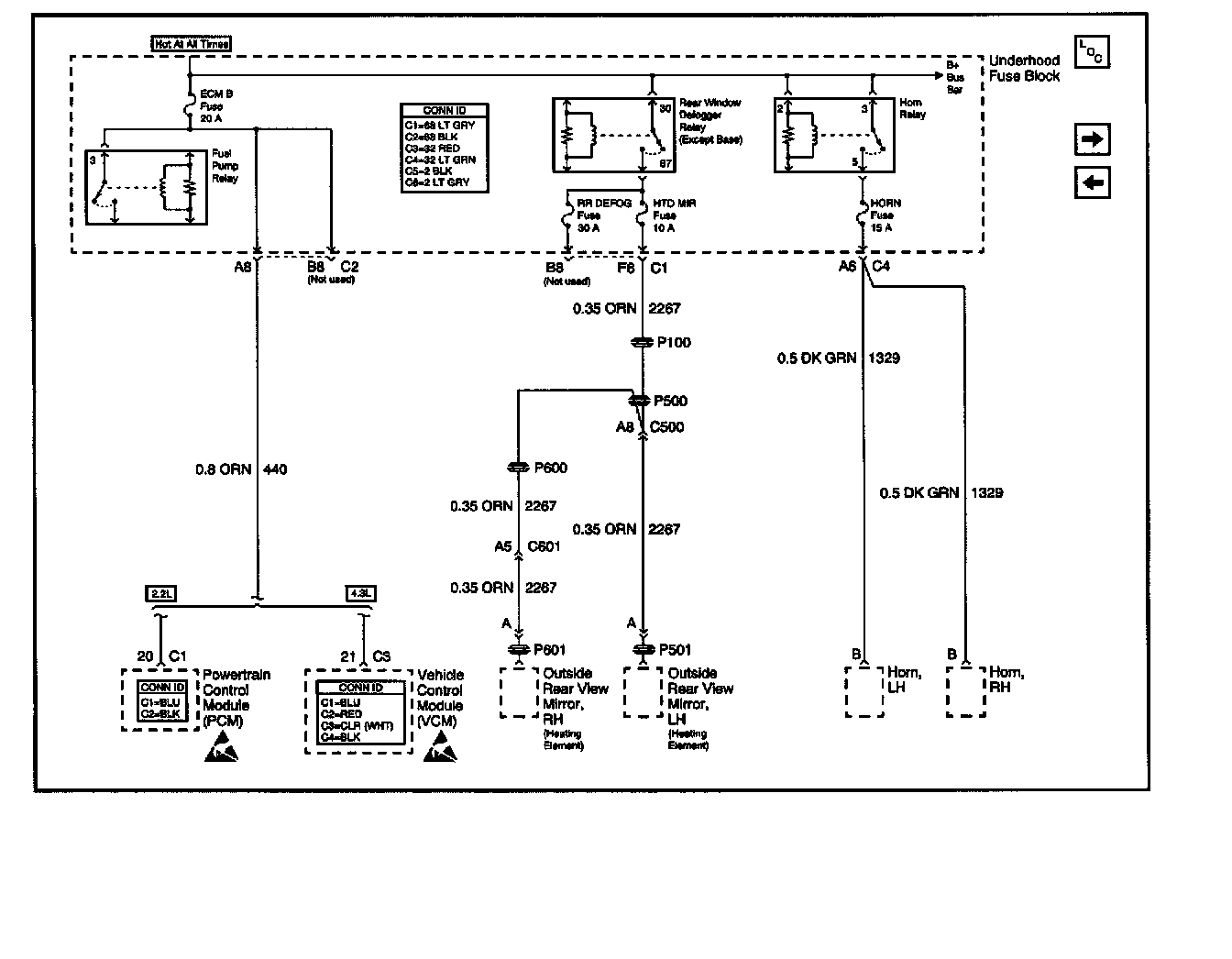

ECM B, HORN, HTD MIR Fuses, Horn and Fuel Pump Relays:

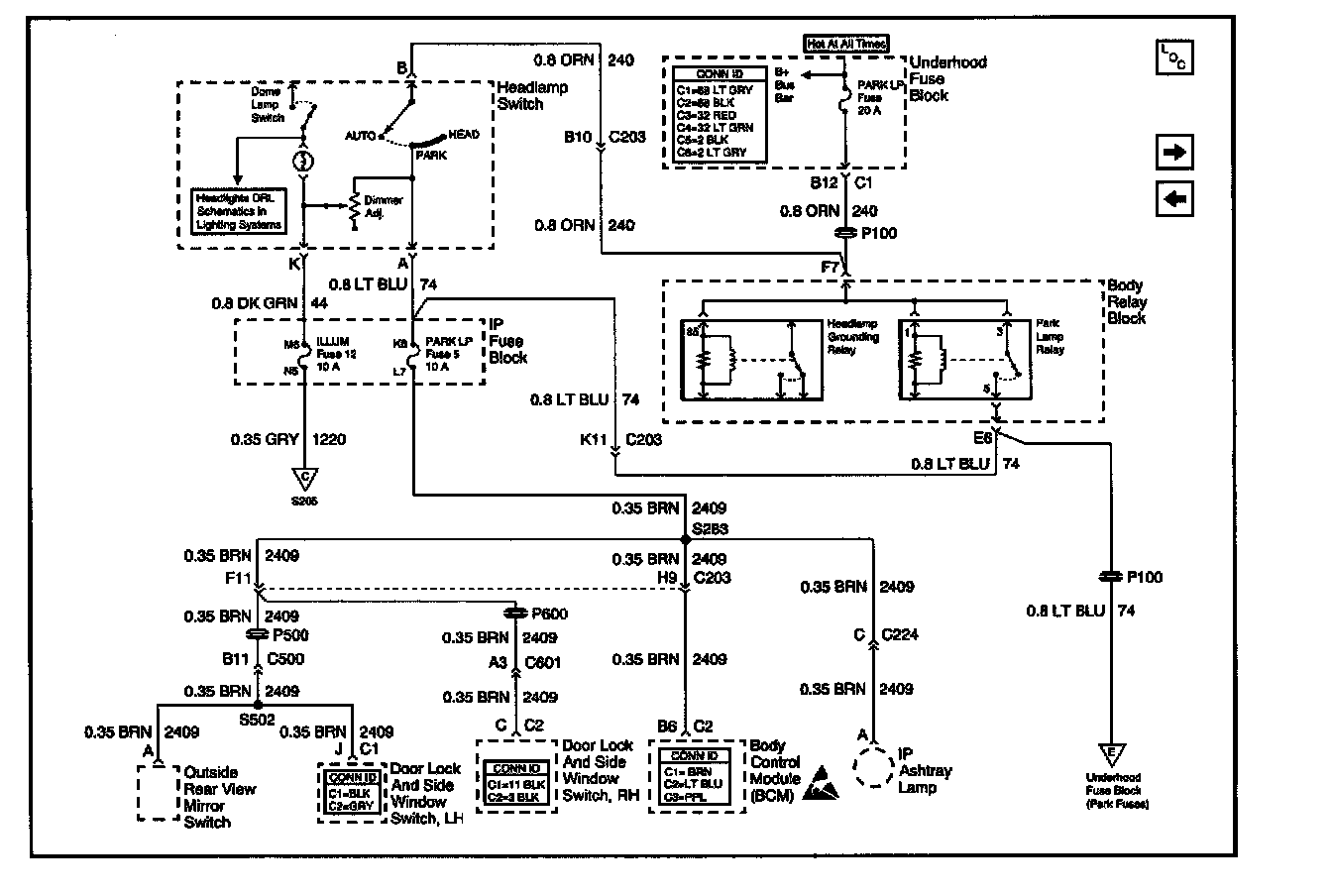

PARK LP, ILLUM Fuses, Park Lamp and Headlamp Grounding Relays:

ILLUM Fuse Power:

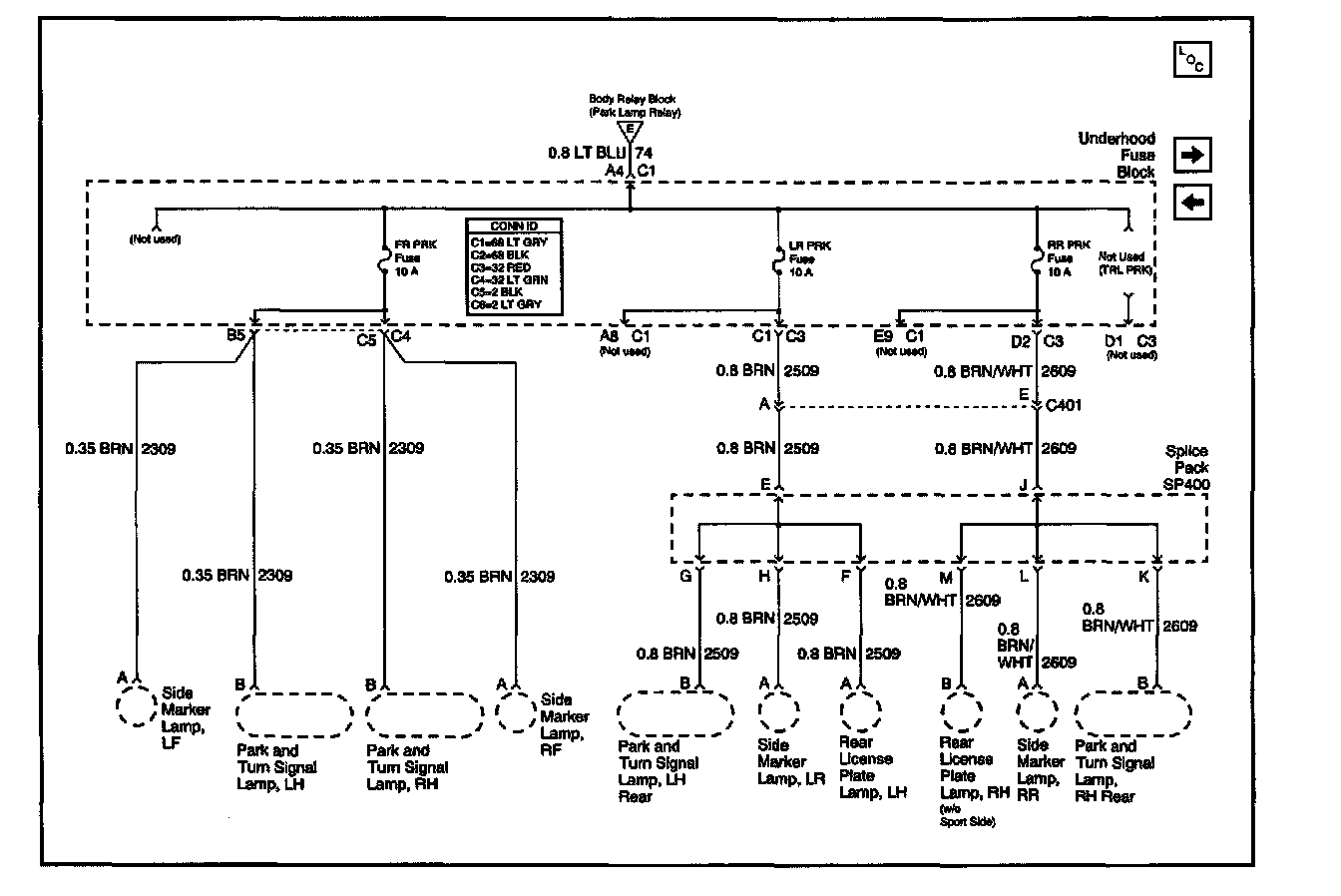

FR PRK, LR PRK, and RR PRK Fuses:

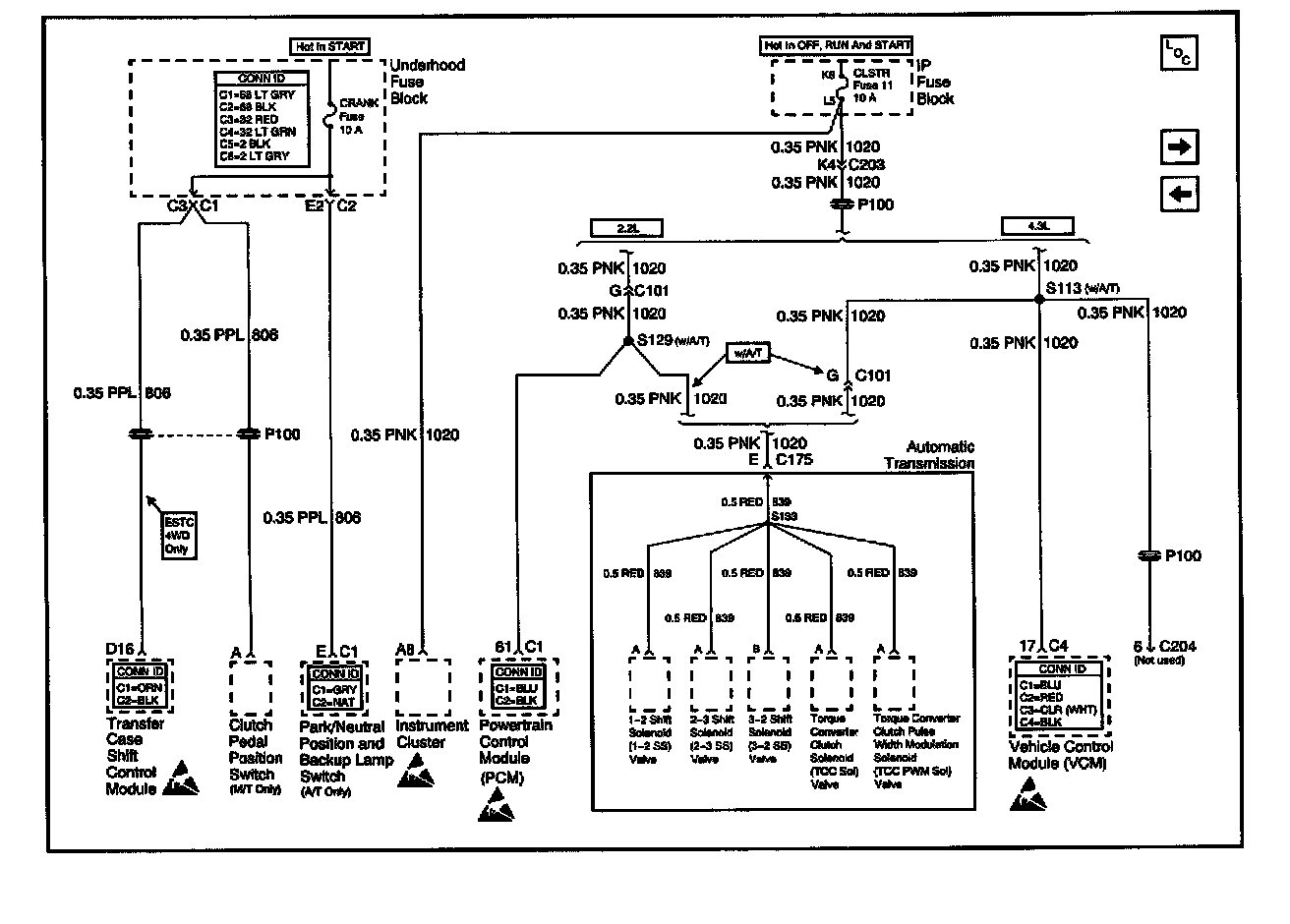

CRANK and CLSTR Fuses:

TURN, SIR and GAUGES Fuses:

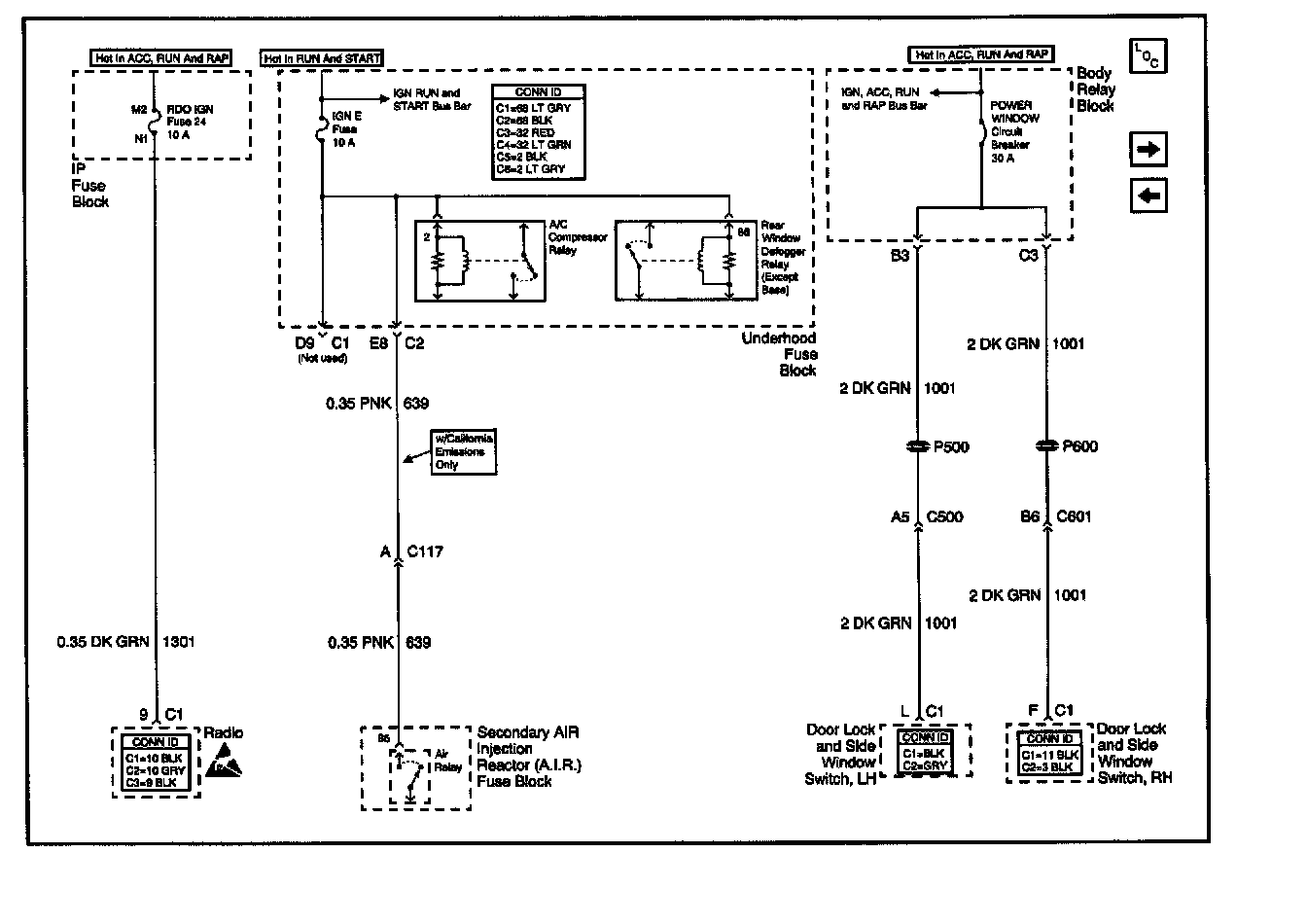

IGN E, RDO IGN Fuses and Power Window Circuit Breaker:

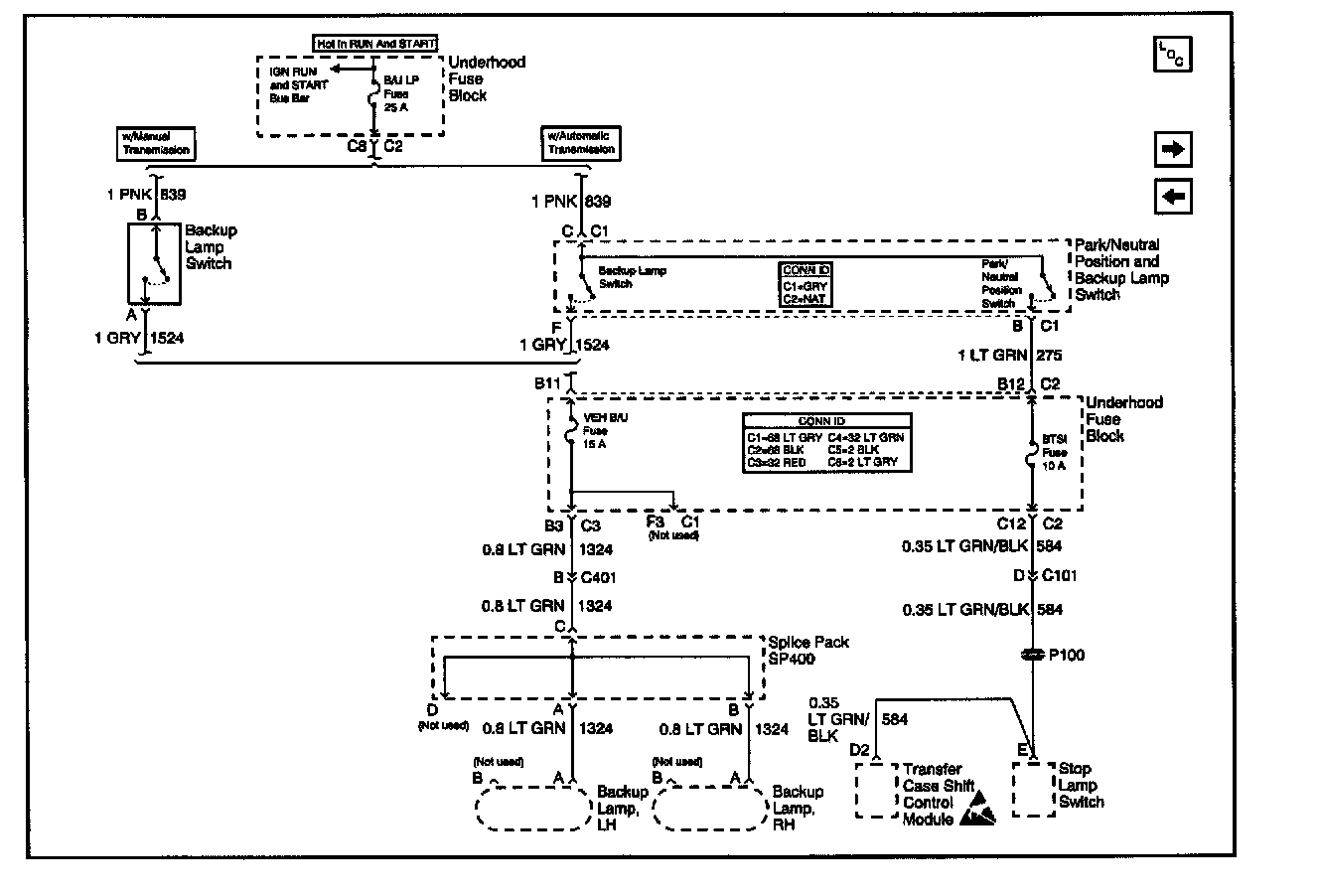

BIU LP, VEH B/U and BTSI Fuses:

ENG I and OXYGEN Fuses:

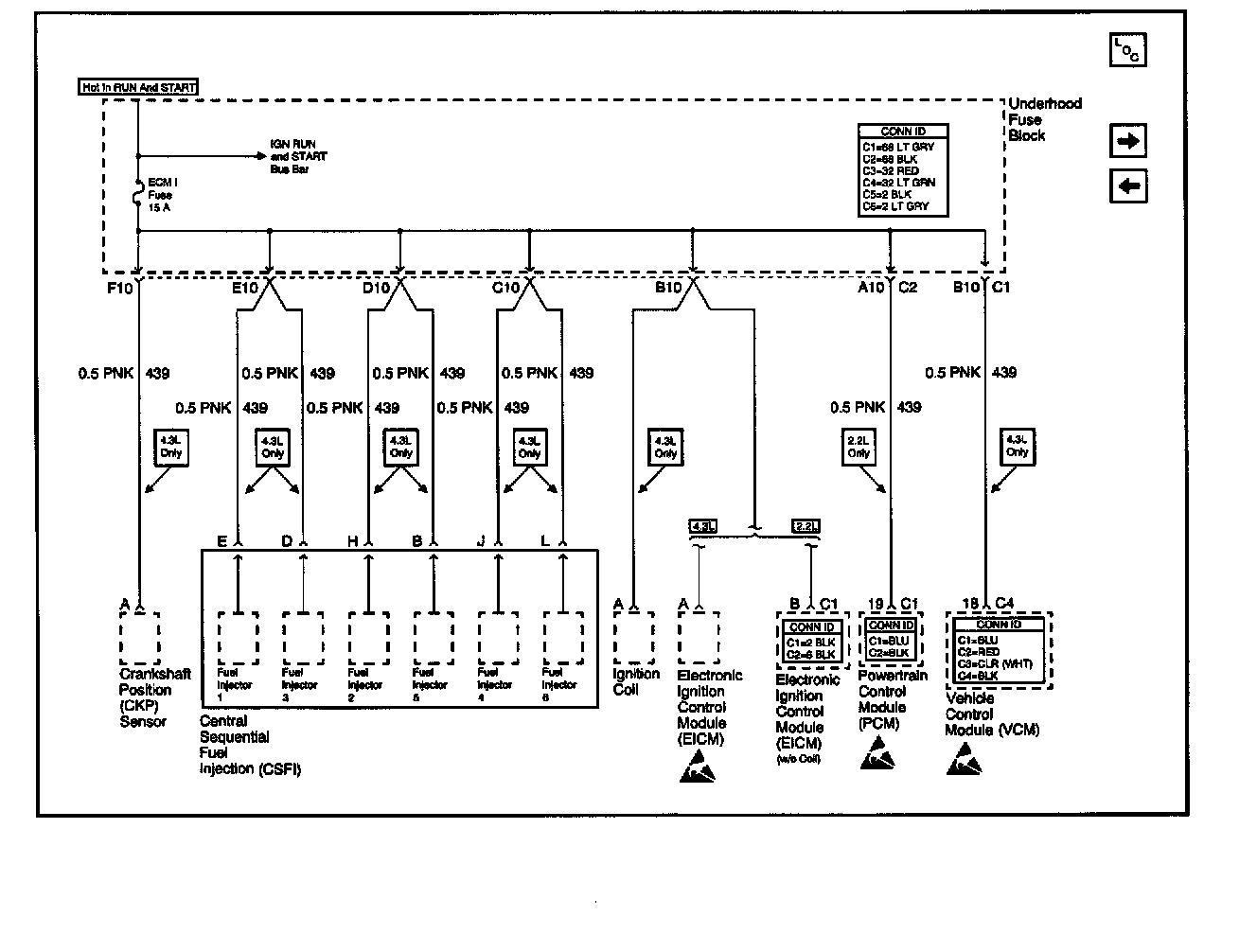

ECM I Fuse:

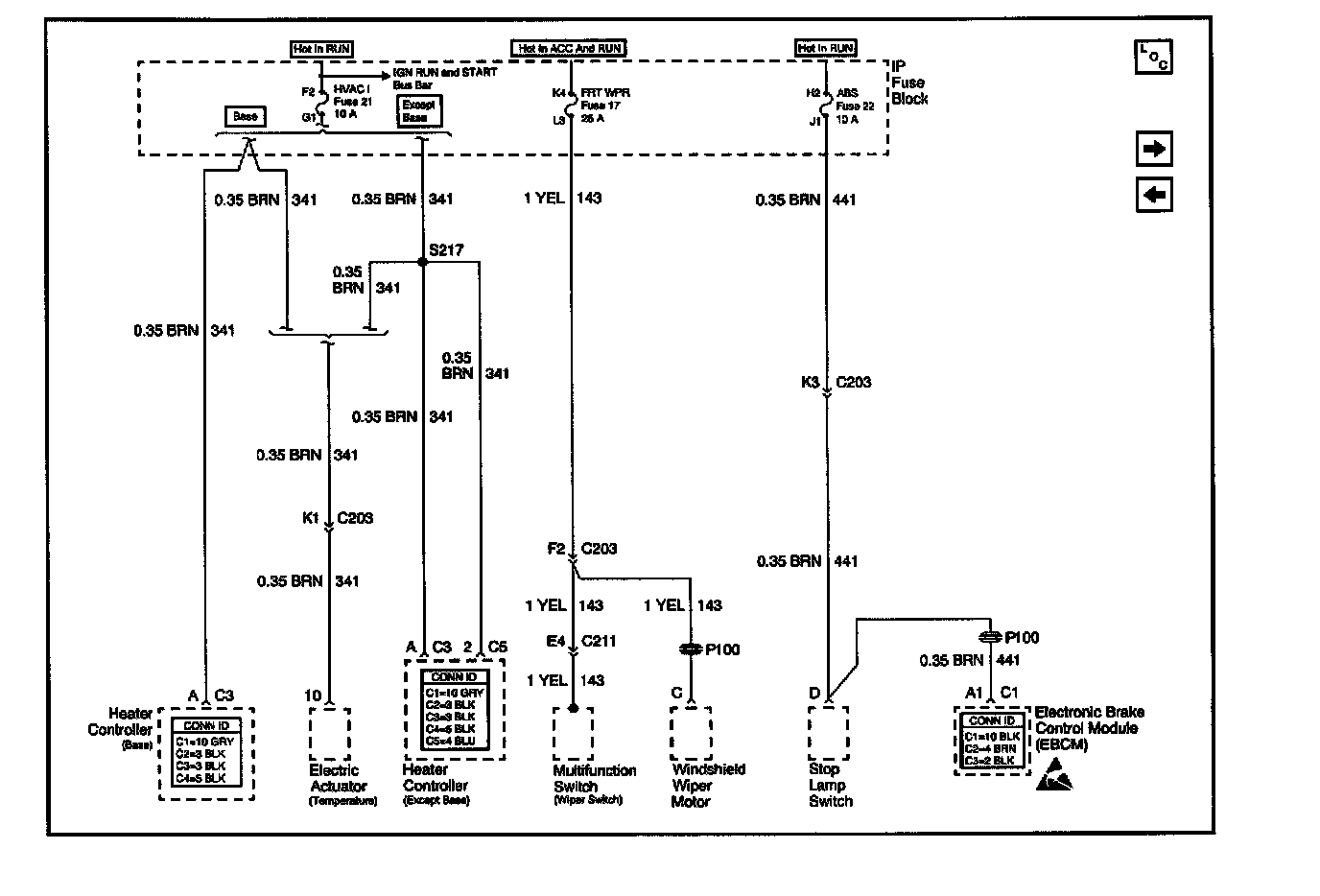

HVAC I, FRT WPR and ABS Fuses:

4WD Fuse:

HVAC And CRUISE Fuses:

VECHMSL Fuse and CHMSL Relay:

RT TURN And RT TRN Fuses:

LT TURN and LT TRN Fuses:
