Wiper Arm: Service and Repair

Removal Procedure




1. Mark the wiper park position on the windshield with a suitable non-permanent marker.

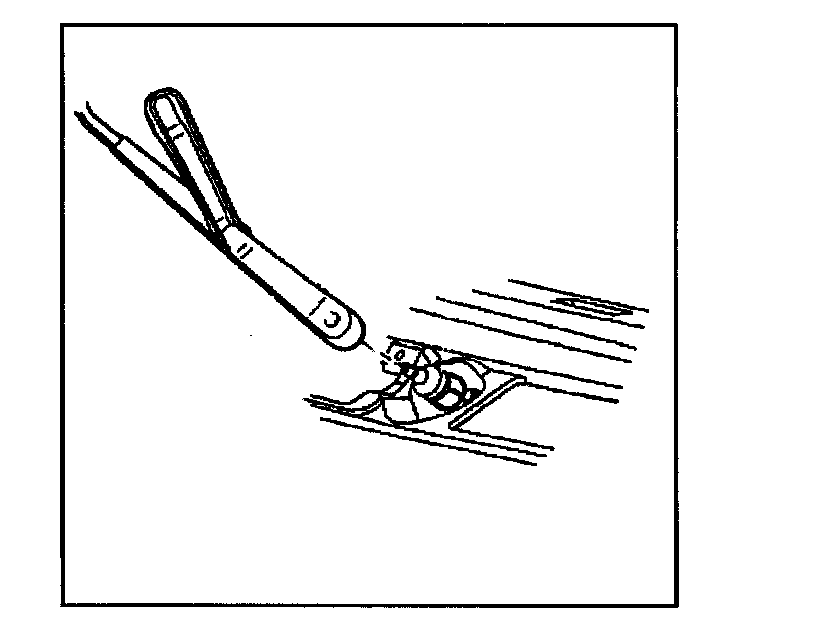

2. Remove the cover from the wiper arm.

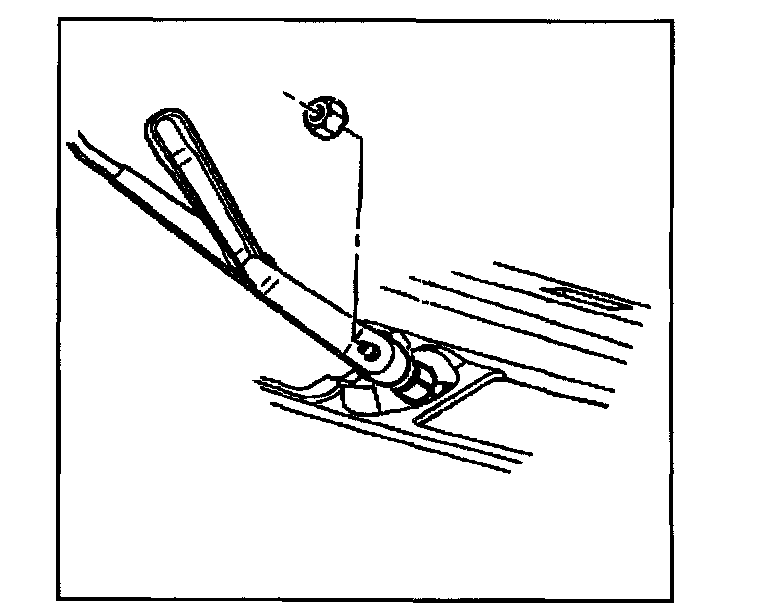

3. Remove the wiper arm retaining nut.




4. Remove the wiper arm from the wiper transmission drive shaft.

Installation Procedure




1. Install the wiper arm onto the wiper transmission drive shaft.
1. Align the wiper arm with the marks made on the windshield.
2. Push the wiper arm down onto the wiper transmission drive shaft completely.

NOTE: Refer to Fastener Note in Cautions and Notes.




2. Install the retaining nut onto the wiper transmission drive shaft and the wiper arm.

Tighten
Tighten the nut to 23 N.m (17 lb ft)

3. Install the cover on the wiper arm over the nut.
4. Run the wipers and check for proper operation.
