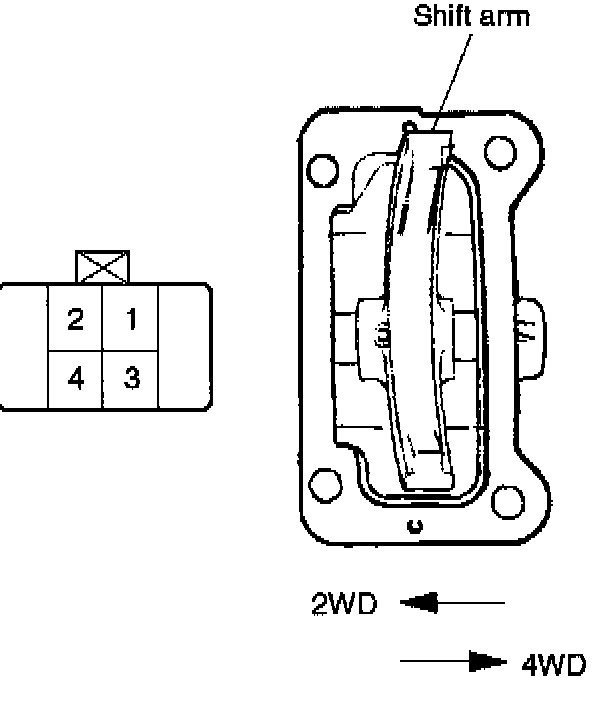

Axle Disconnect Controller
AXLE DISCONNECT CONTROLLER 1.

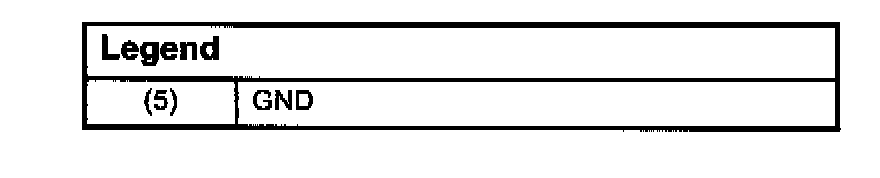

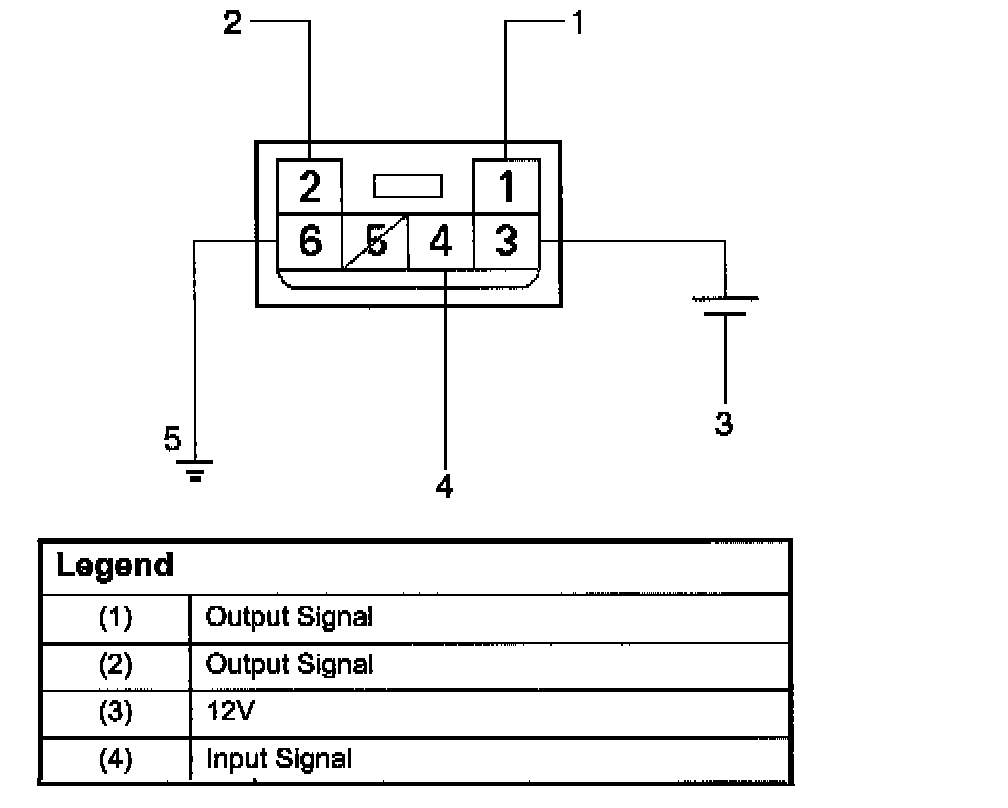

Connect 12 V with terminal (3) and the ground with the terminal (6).
2.

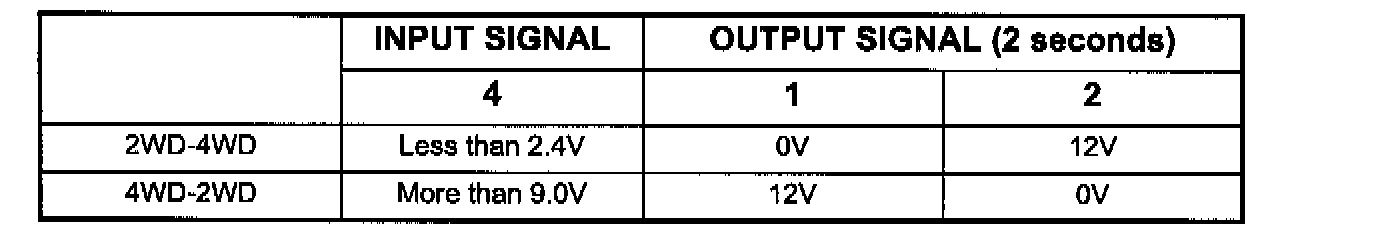

Send the signal to the terminal (4).
2WD - 4WD less than 2.4 V
4WD - 2WD more than 9.0 V
3.
Confirm the output signal from the terminals (1) & (2) (2 seconds output).
4.
If the trouble occurs after the above test, change the Axle Disconnect controller to the new one.
