Diagnostic Trouble Code List
PCM Diagnostic Trouble CodesP0106 - P0118:

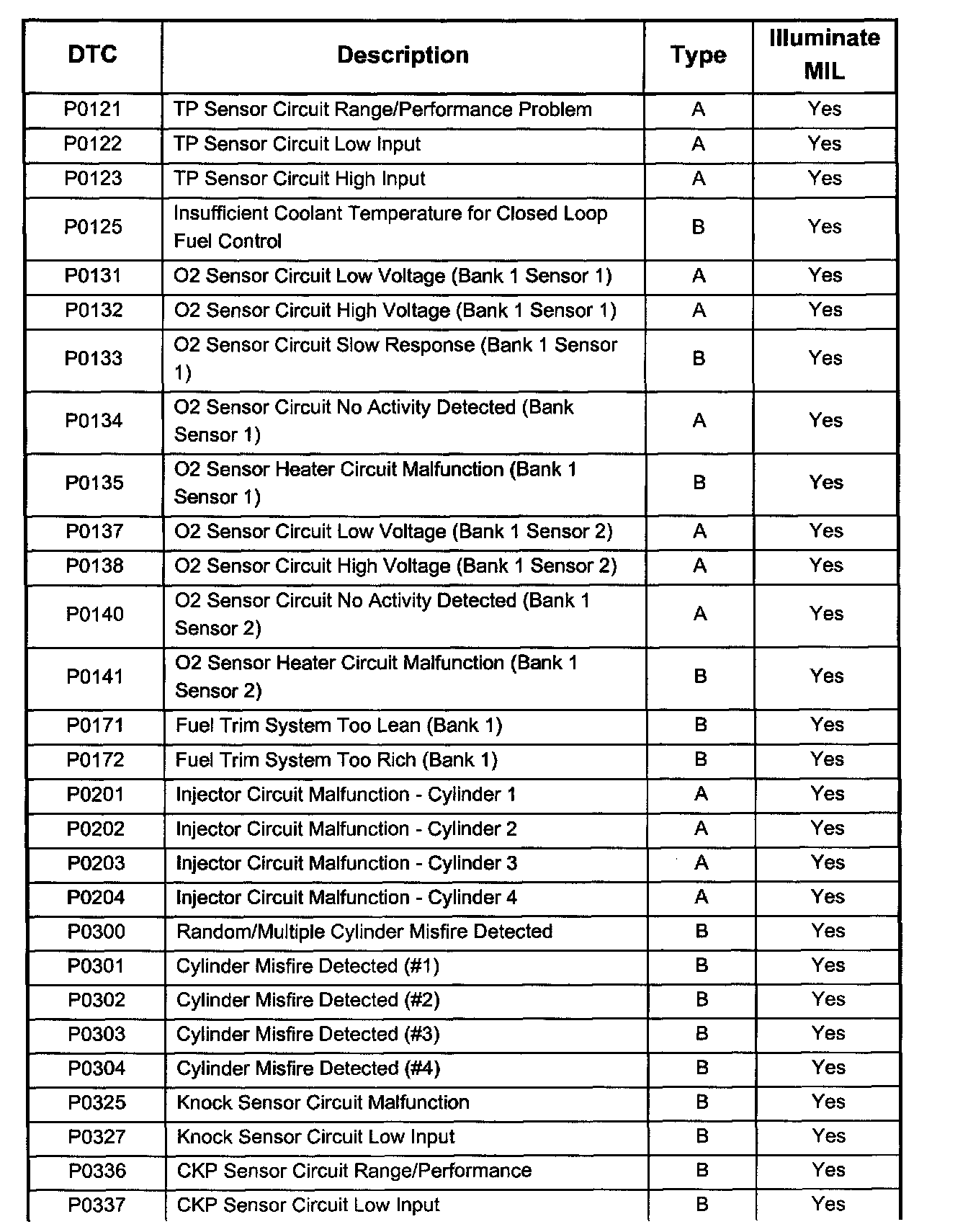

P0121 - P0337:

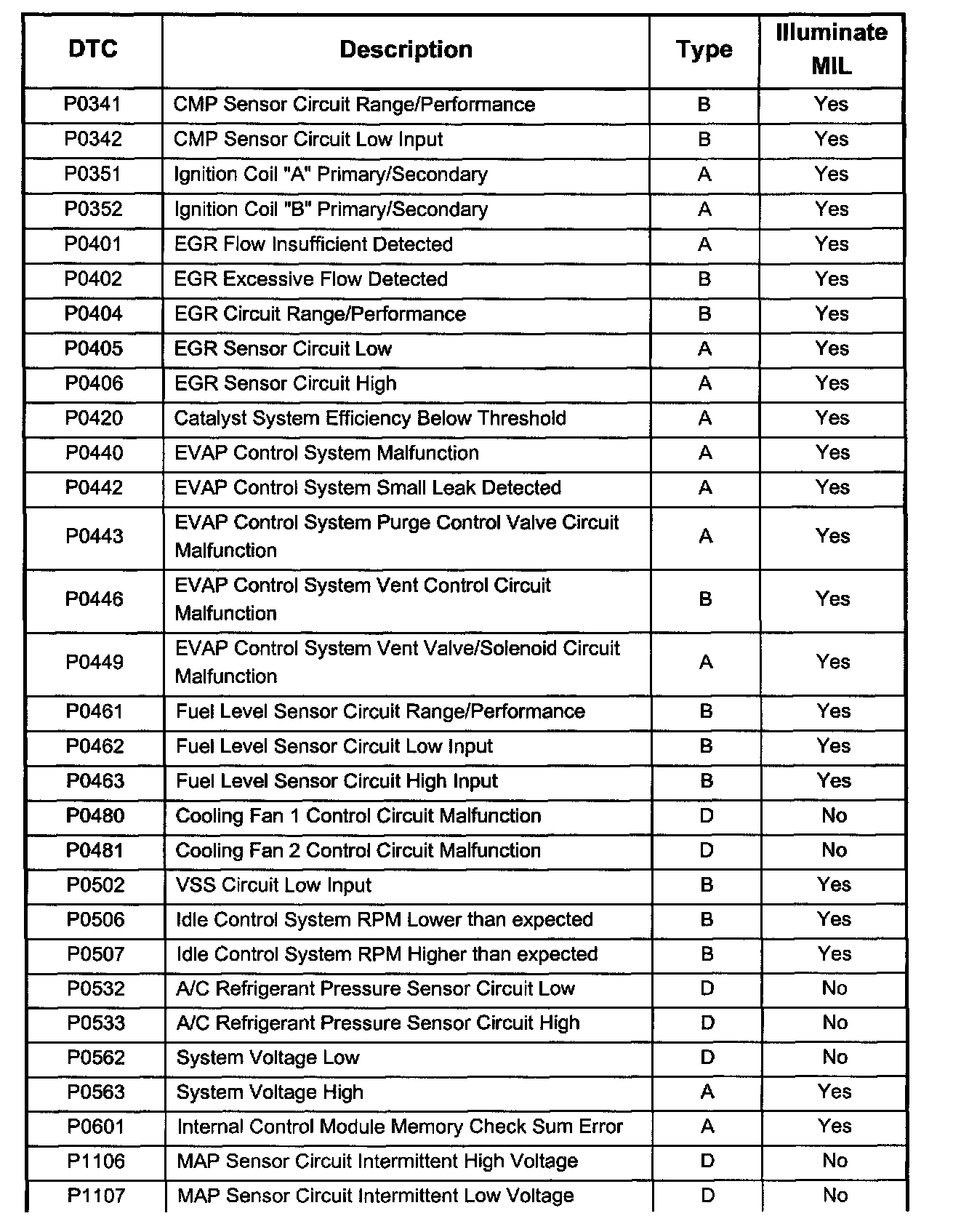

P0341 - P1107:

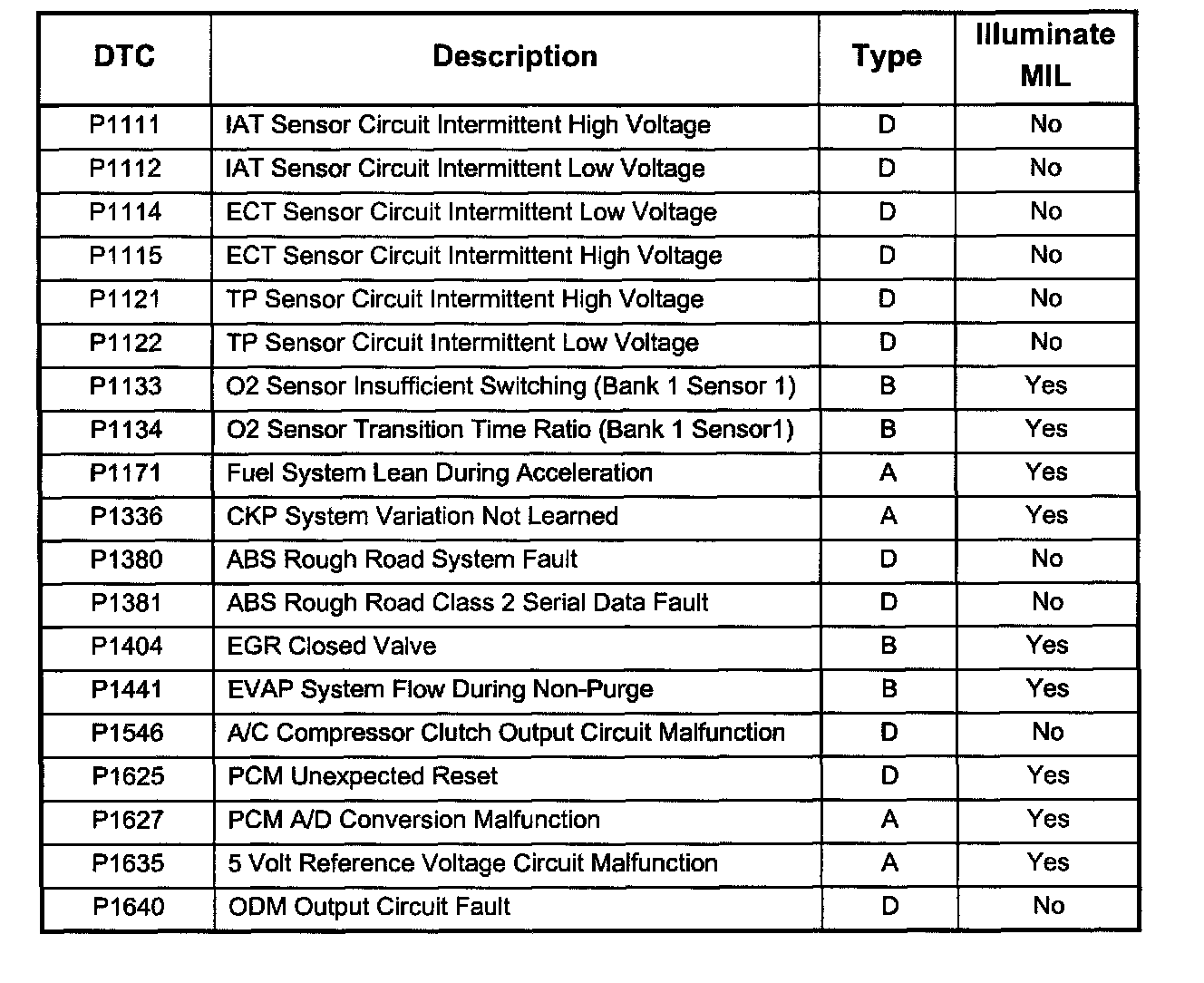

P1111 - P1640:
The tables lists the diagnostic trouble codes supported by this vehicle application. If any DTCs not listed here are displayed by a Scan Tool, the Tech 2 data may be faulty; notify the Tech 2 manufacturer of any DTCs displayed that are not included in the given tables.
