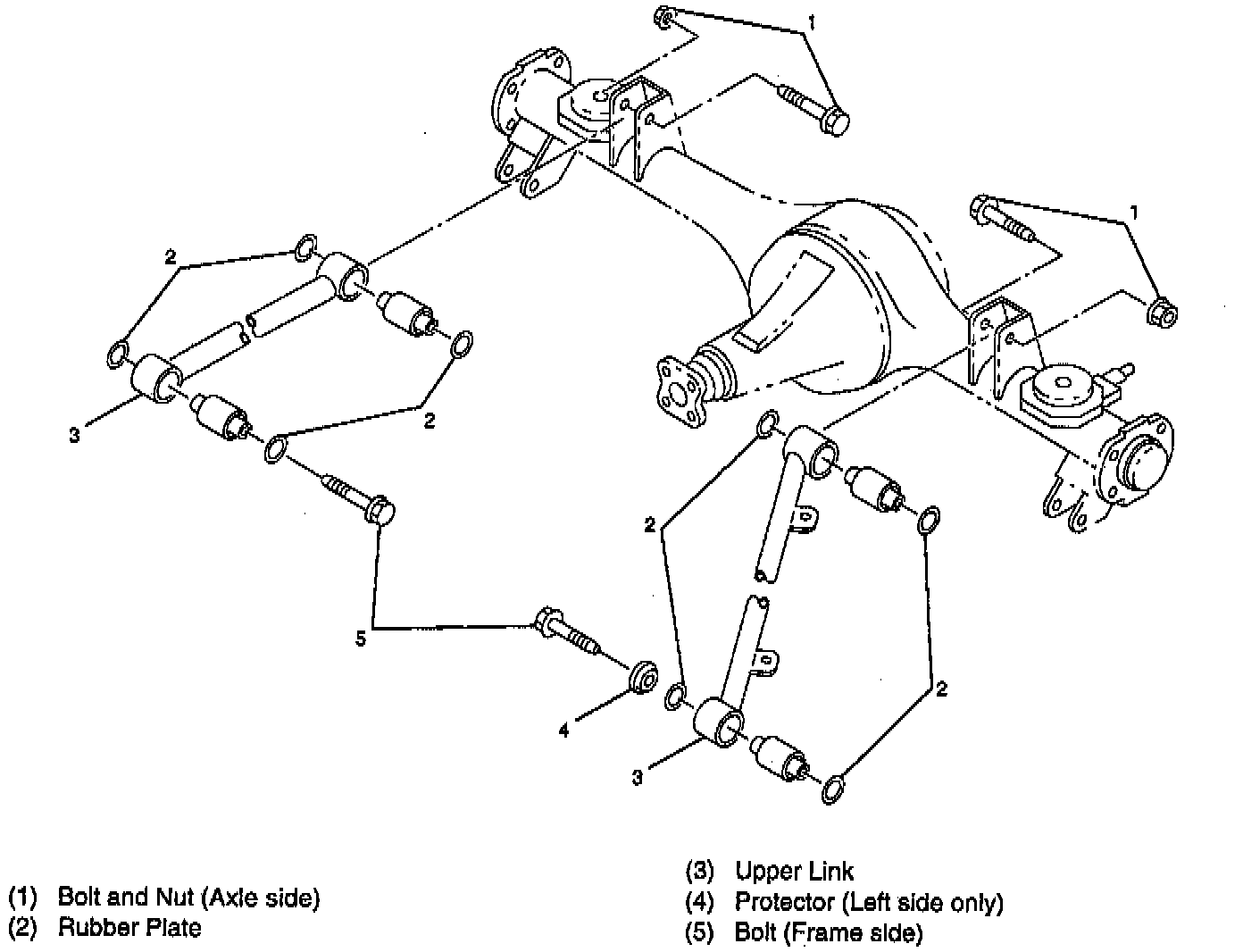

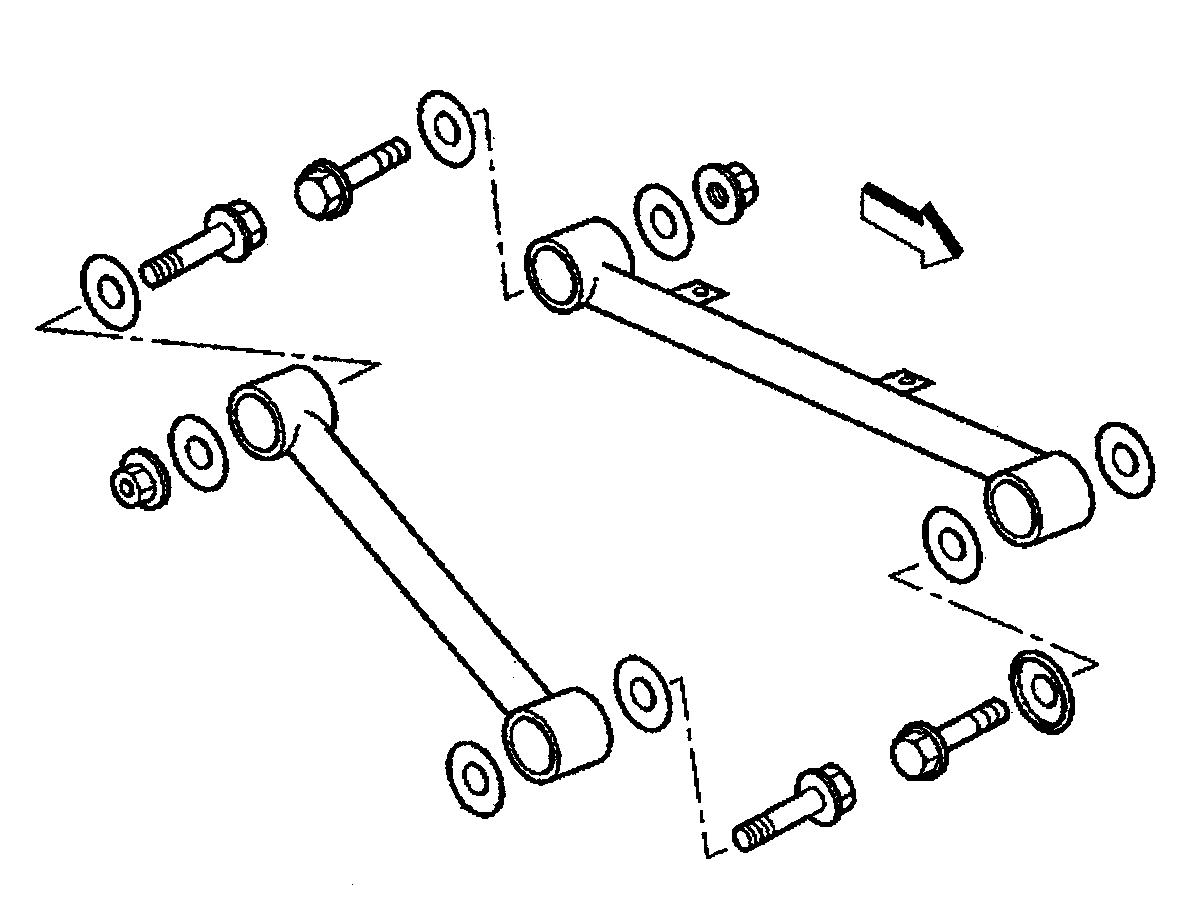

Upper Link






REMOVAL
1. Remove fuel tank.
2. Remove the speed sensor cable from the upper link.
3. Remove bolt, nut, rubber plate and protector.
4. Remove upper link.

INSPECTION AND REPAIR
Make necessary correction or parts replacement if wear, damage, corrosion or any other abnormal condition are found through inspection.
1. Upper link
2. Rubber bushing:





- Remove the rubber bushing by using remover J-43008.





- Install the rubber bushing by using to installer J-43008.

NOTE: When mounting rubber bushings, be sure not to use grease on bushings or any other nearby part.

INSTALLATION





1. Install upper link. Make sure that the upper link is in its correct position.

NOTE: When mounting upper link, be sure not to use grease bushings or any other nearby part.

2. Install bolt, nut, rubber plate and protector. Tighten the bolts and nuts lightly, then retighten them to the specified torque after the vehicle is at curb height. Torque to 137 Nm (101 ft. lbs.).
3. Install speed sensor cable.
4. Install fuel tank.
