Cabin Ventilation Grille: Service and Repair

Ventilation Assembly

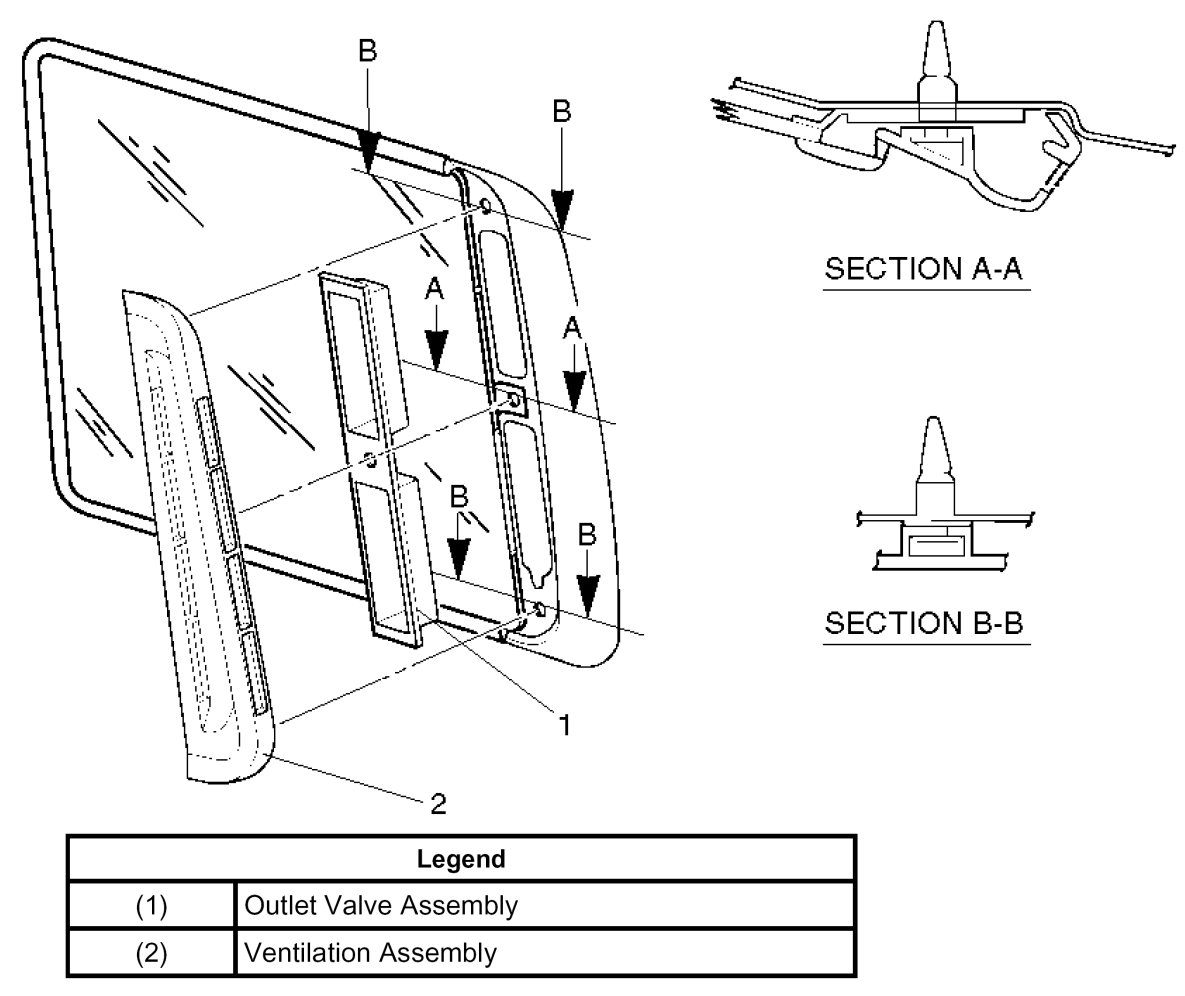

Ventilation Assembly and Associated Parts:

Removal

1. Remove the ventilation assembly(1).

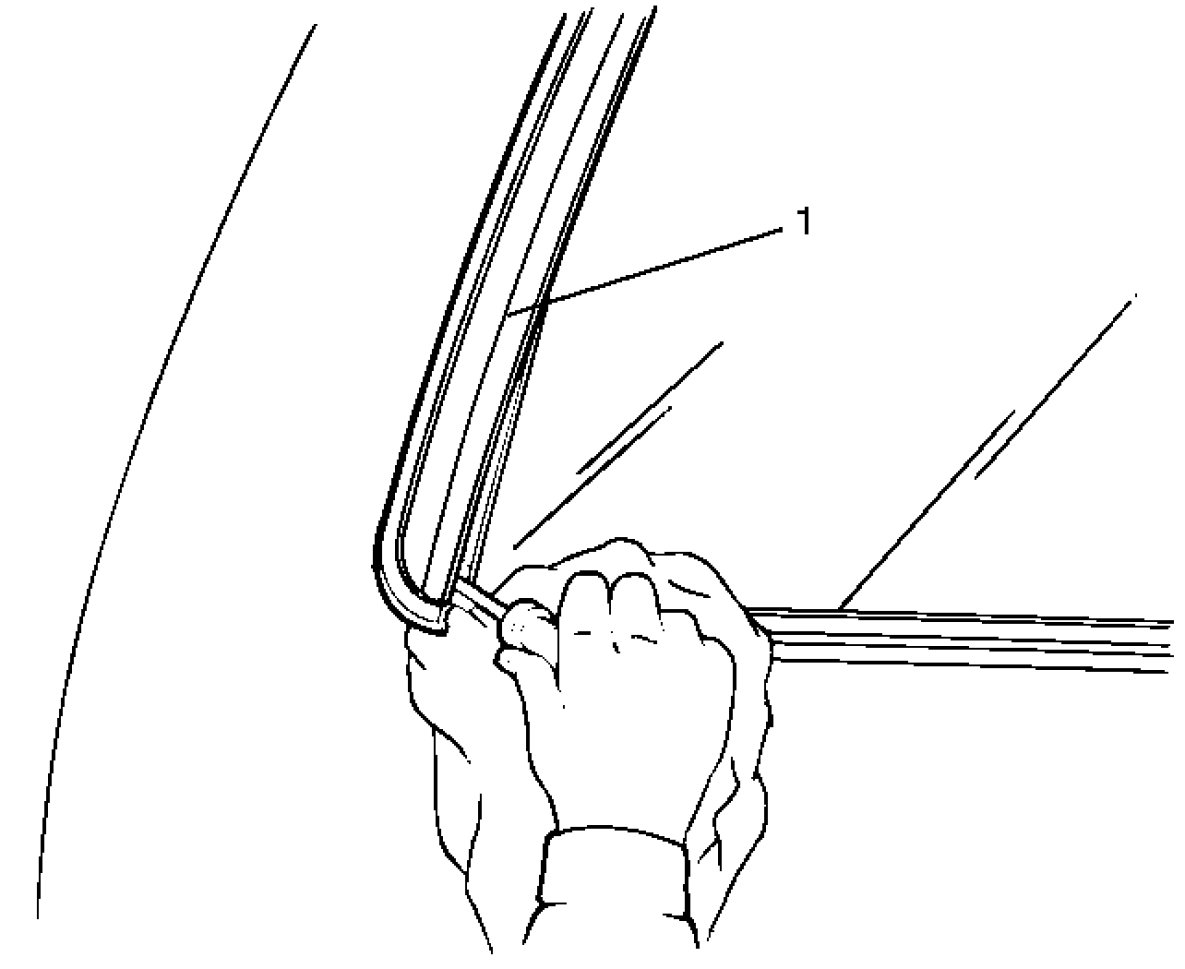

- Pry the ventilation assembly retainers free from the body panel.







2. Remove the outlet valve assembly.

Installation

1. Install the outlet valve assembly.
- Insert the upper and lower catches of the outlet valve into the body panel flange and fix them securely.

2. Install the ventilation assembly.
- Fix the clips to the body panel securely so that the ventilation assembly will not come off the body panel.
