Checking Failed TOD Control Unit Pin

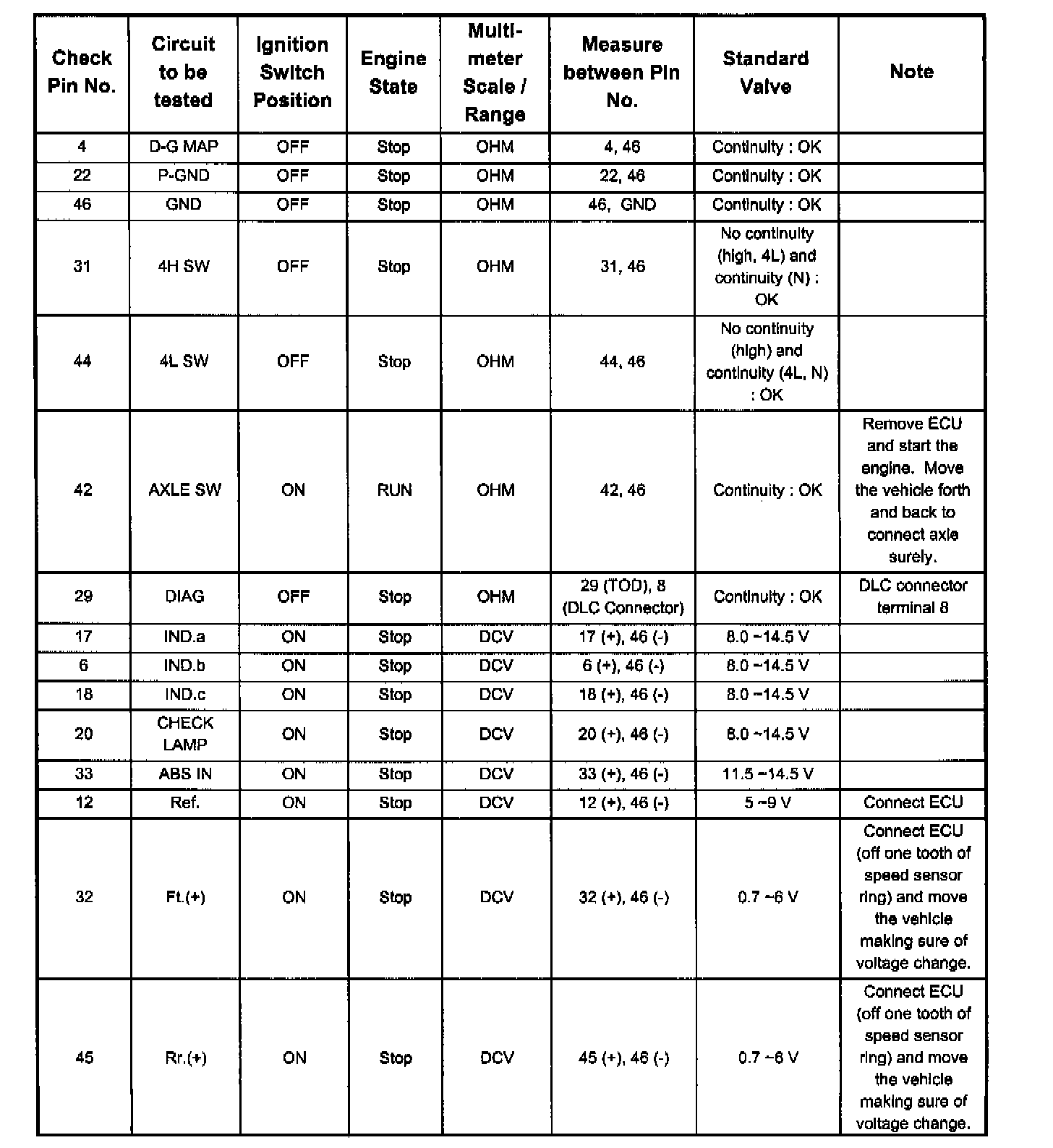

CHECKING FAILED TOD CONTROL UNIT PINPart 1 Of 2:

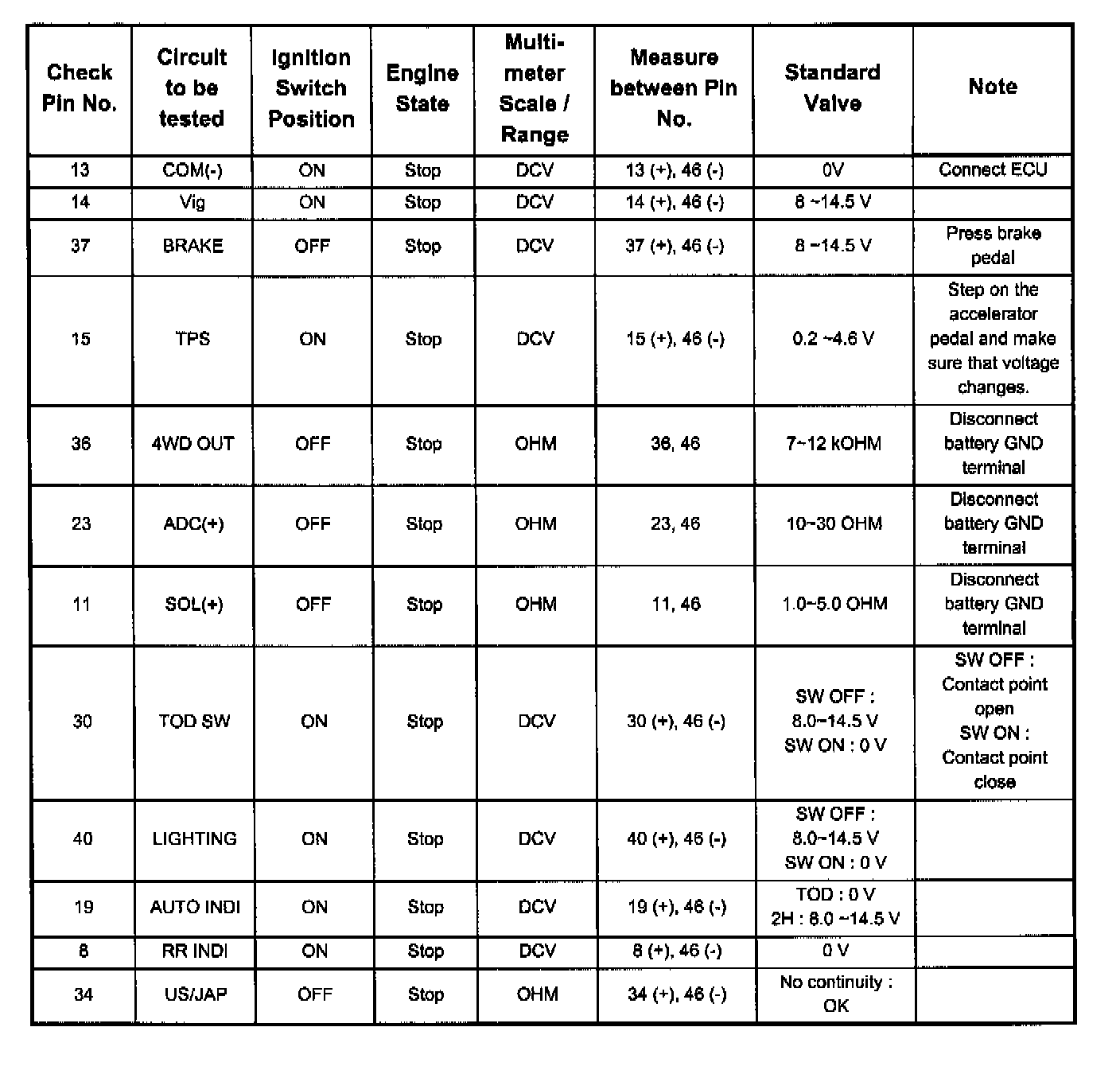

Part 2 Of 2:
NOTE: 1.
Unplug the ECU connector and the pins, unless other wise specified.
2.
Before removing the ECU, turn off the ignition switch.
3.
If the standard values are not observed, check the pins with other testers.
