Security Lamp/Indicator: Service and Repair




REMOVAL
1. Disconnect the battery ground cable.

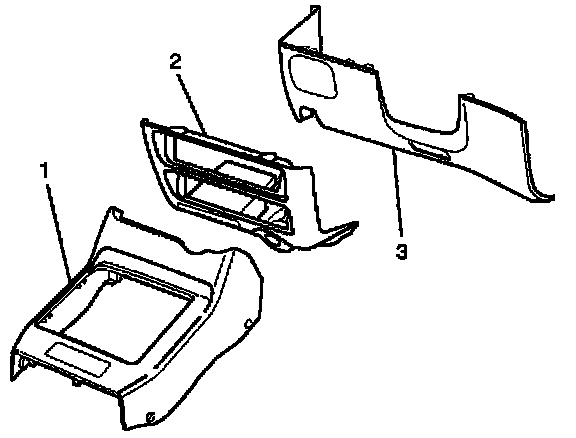

2. Remove the front console assembly (1).
Refer to Instrument Panel, Gauges and Warning Indicators.
3. Remove the lower cluster assembly (2).
Refer to Instrument Panel, Gauges and Warning Indicators.
4. Remove the instrument panel driver lower cover assembly (3). Refer to Instrument Panel, Gauges and Warning Indicators.




5. Remove the instrument panel cluster assembly (4). Refer to Instrument Panel, Gauges and Warning Indicators.
6. Remove two screws and then remove the anti-theft indicator (5).

INSTALLATION
To install, follow the removal steps in the reverse order.
